Features:

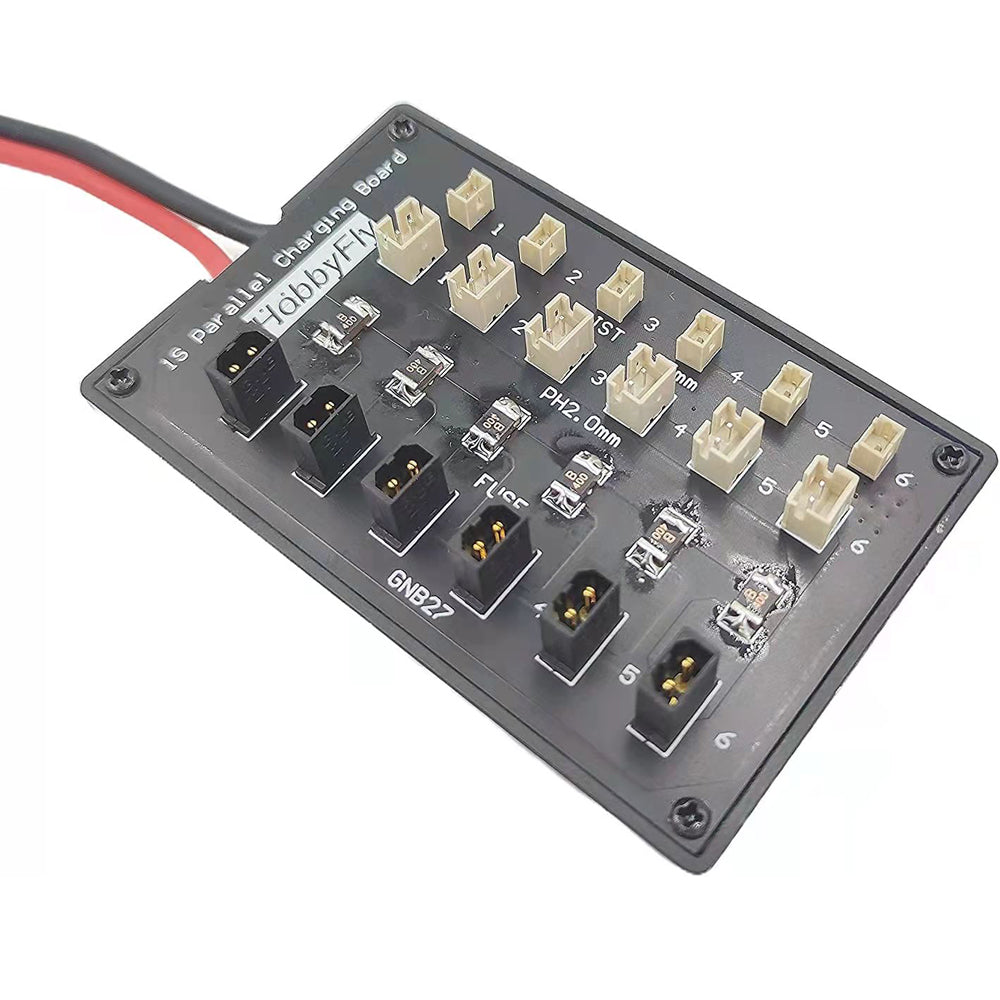

Updated Recharging Board: With GNB27 for GNB27 recharger and JST-PH 2.0 jst1.25mm connector in one board, allows you to recharge the 1s lipo battery with GNB27 plug and JST PH2.0 jst1.25mm plug directly.
High Compatibility: Suitable for battery of various of batteries.
Save Recharging Time: It can recharge-up to 6 lithium batteries(including LiPo, LiFe, and Li-ion types) at the same time when used with a balance recharger, instead of balancing batteries one by one, effectively save your time. (The batteries request the same type /voltage (Max 0.3v deviation) and mAh.)

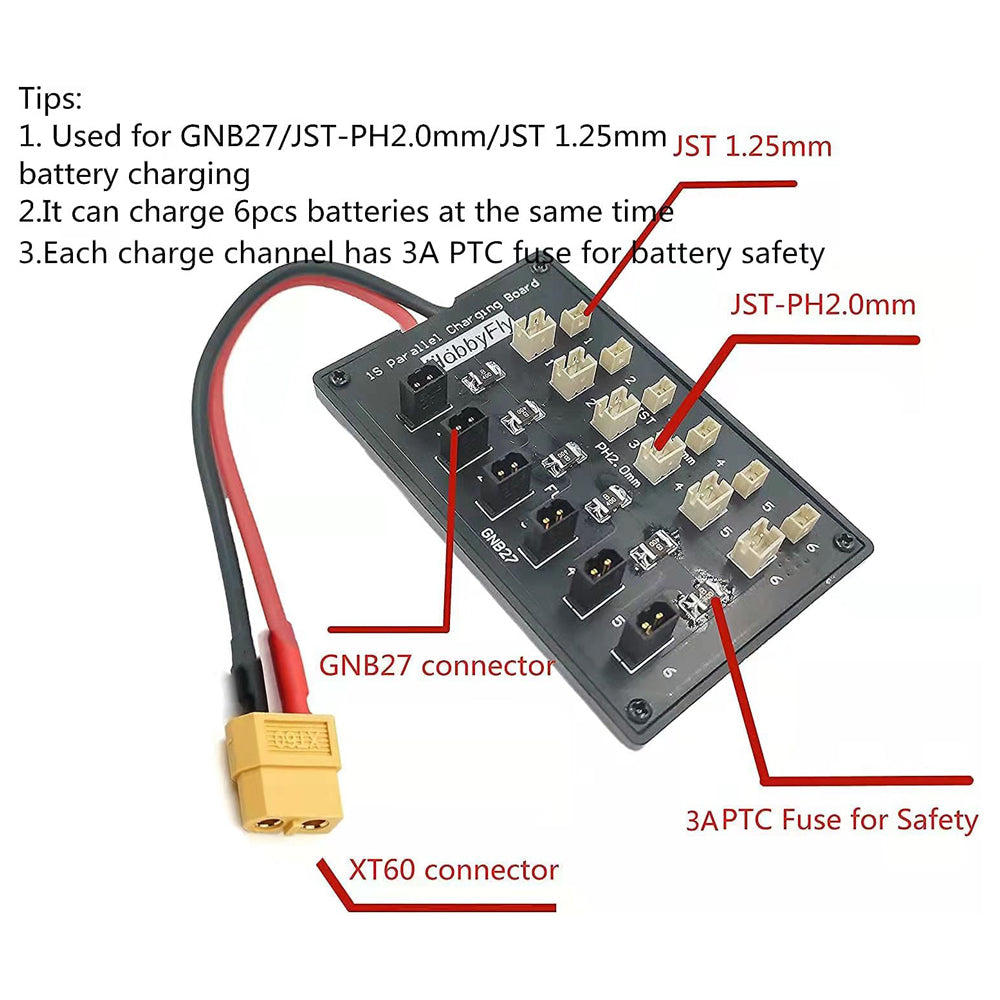

Built-in Short Circuit Protections: With 3A PTC fuse protections able to handle the large battery pressure, can protects the recharging batteries when short circuit happens.
Supports most lipo balance recharger: It has two type plugs to connect the rechargers, they are 4.0mm banana plug and XT60 plug. (Fit for the common balance rechargers such as SKYRC, EV-PEAK etc. )
High Safety: The board uses fine quality connectors for insurance.
Recharging Use Guidline:

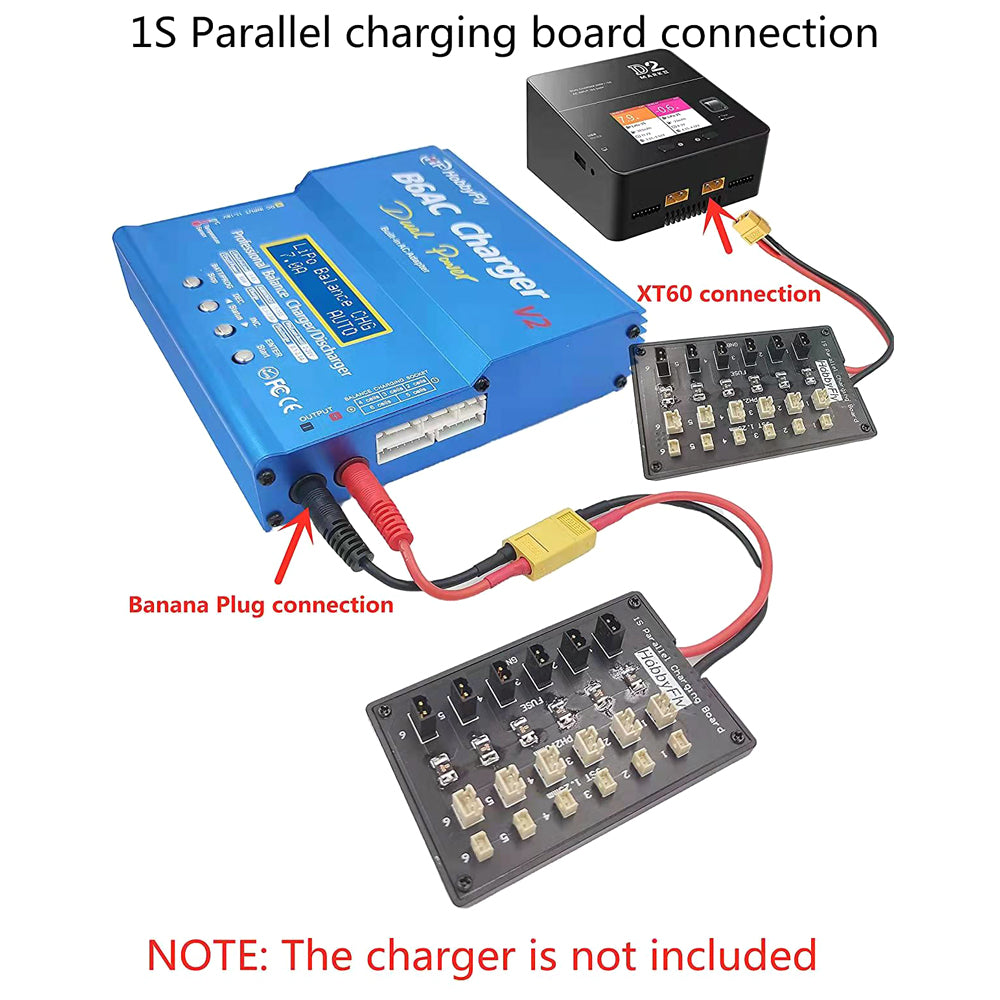

Step1: connect the board to the recharge and batteries as the pic. Shows
Step2: set up your recharger to starts recharging.
Specifications:
Name: Battery Parallel Recharging Board
Material: printed circuit board

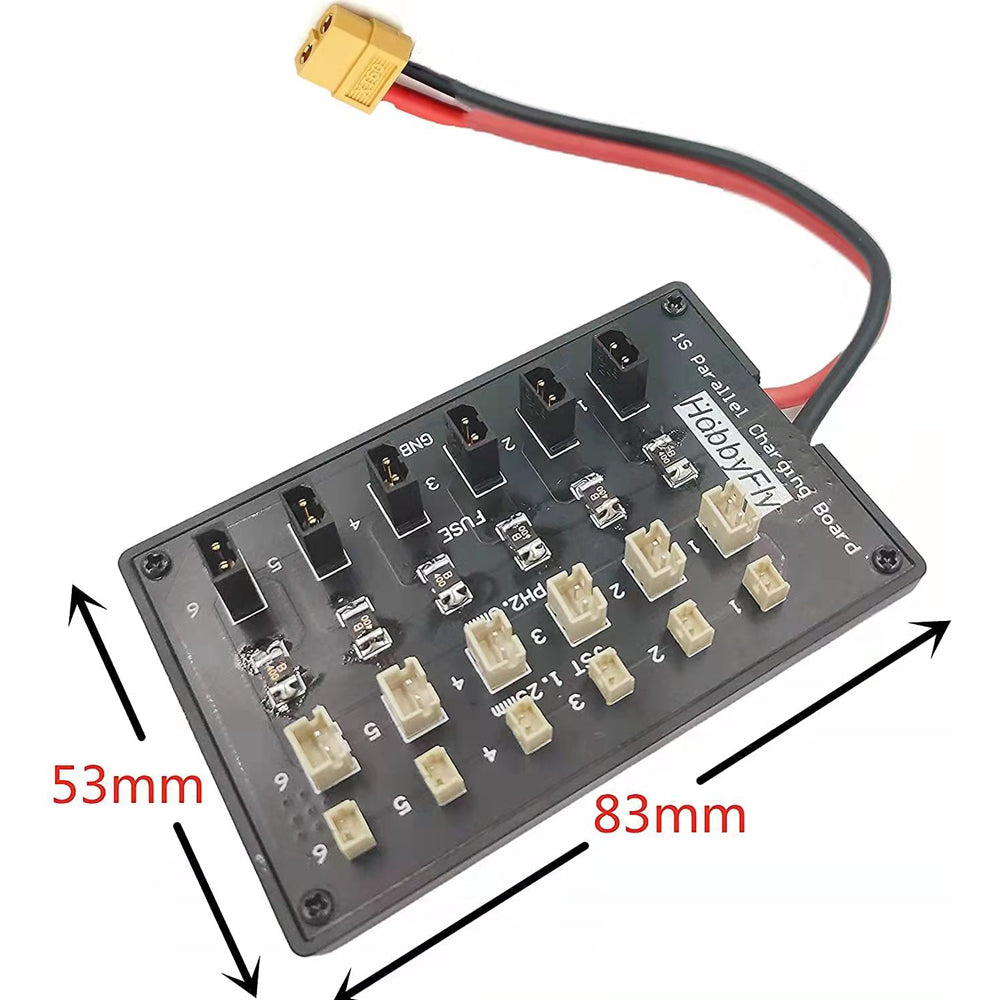

Item size: 83 * 53mm / 3.27 * 2.09in
Package size: 125 * 115 * 18mm / 4.92 * 4.53 * 0.71in
Package weight: 64g / 2.26ounce

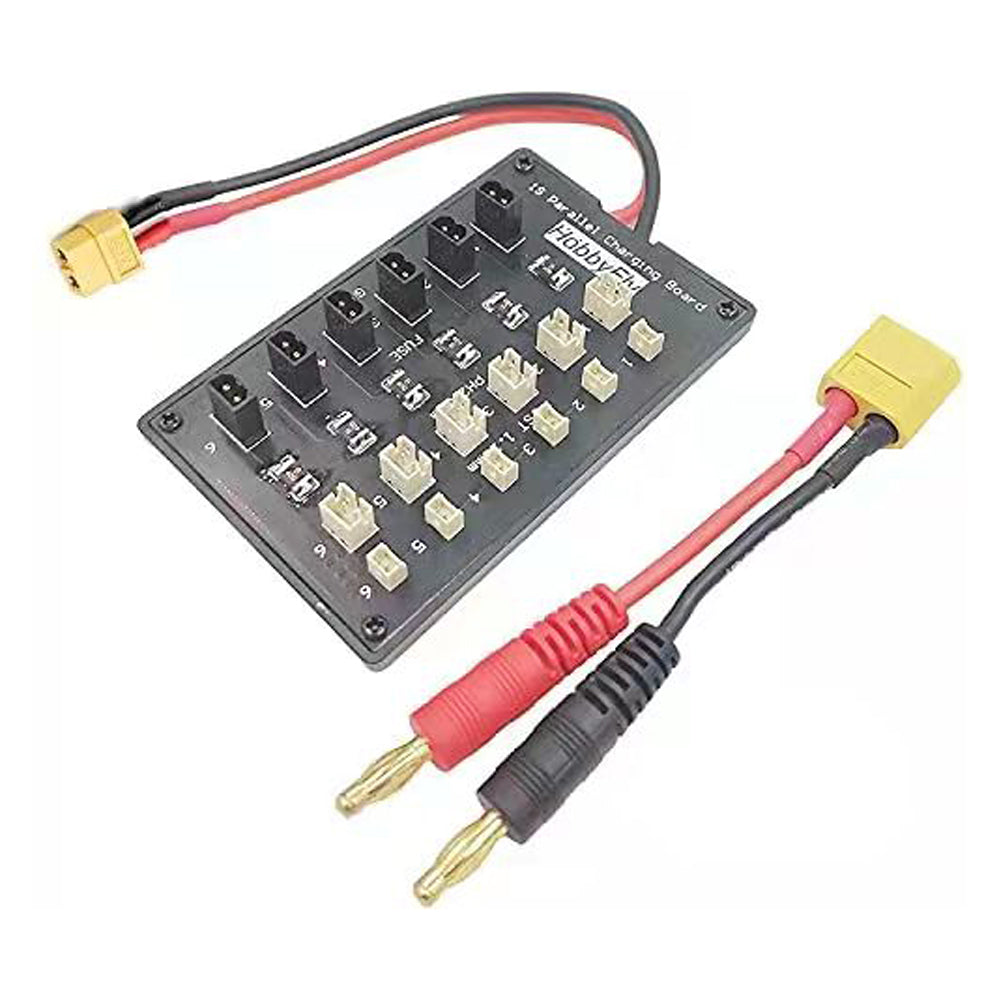

Packing List:
1 * 1S Lipo GNB27/PH2.0mm/ JST 1.25mm Battery Recharger Board
1 * 4.0mm Banana-plug to XT60 Male Cable
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
