Model: EK-300
Maximum output force: 6OKN
Crimping range copper: 300mm2/aluminum 240mm2
Working stroke: 17mm
Battery: DC 18V 4Ah lithium battery DC 18V 4Ah lithium battery
Crimping cycle: 3~6 seconds/time (depending on the diameter of the terminal)
Per saturated battery: about 310 times (Cu150mm2
Model: EK-400
Maximum output force: 120KN
Crimping range copper copper: 400mm2/aluminum 300mm2
Working stroke: 42mm
Crimping cycle: 6~15 seconds/time (depending on the diameter of the terminal)
About each saturated battery: 110 times (Cu150mm2)
Battery: DC 18V 4Ah lithium battery DC 18V 4Ah lithium battery
Charging time about 2 hours
Charging power AC 100V~240V 50~60Hz
Hydraulic oil 15# low condensation anti-wear hydraulic oil about 65ml
Ambient temperature -10~40°C
【EK-300 mold configuration】:
16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2
【EK-400 mold configuration】:
16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2

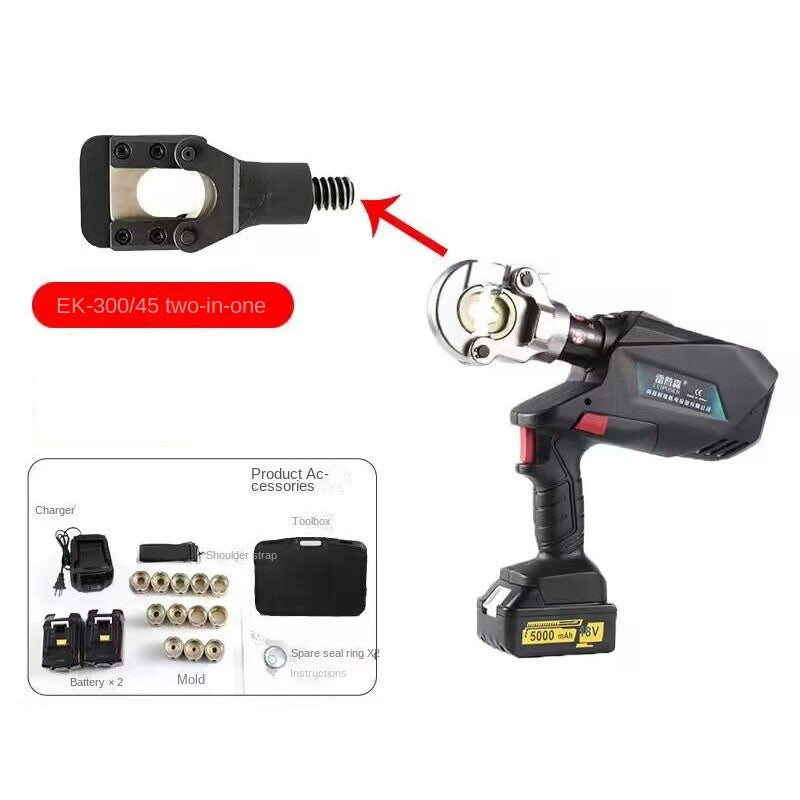

EK300 can press up to 30 square meters of copper wire and cut 45MM cables, steel core aluminum stranded wires

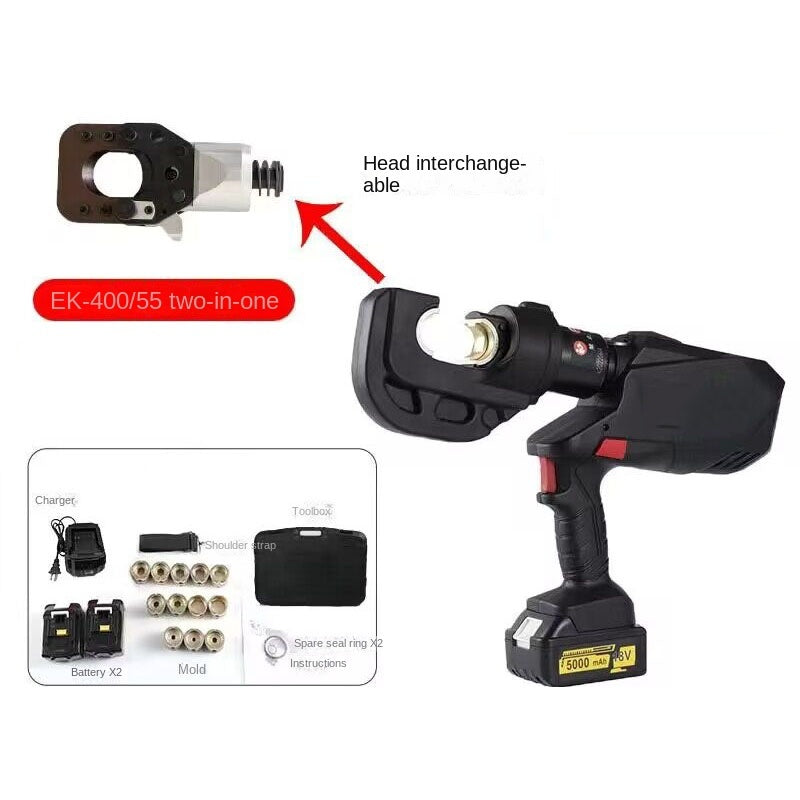

EK400 can press up to 400 square meters of copper wire and can cut 55MM Kaili cables and steel core aluminum stranded wires
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
