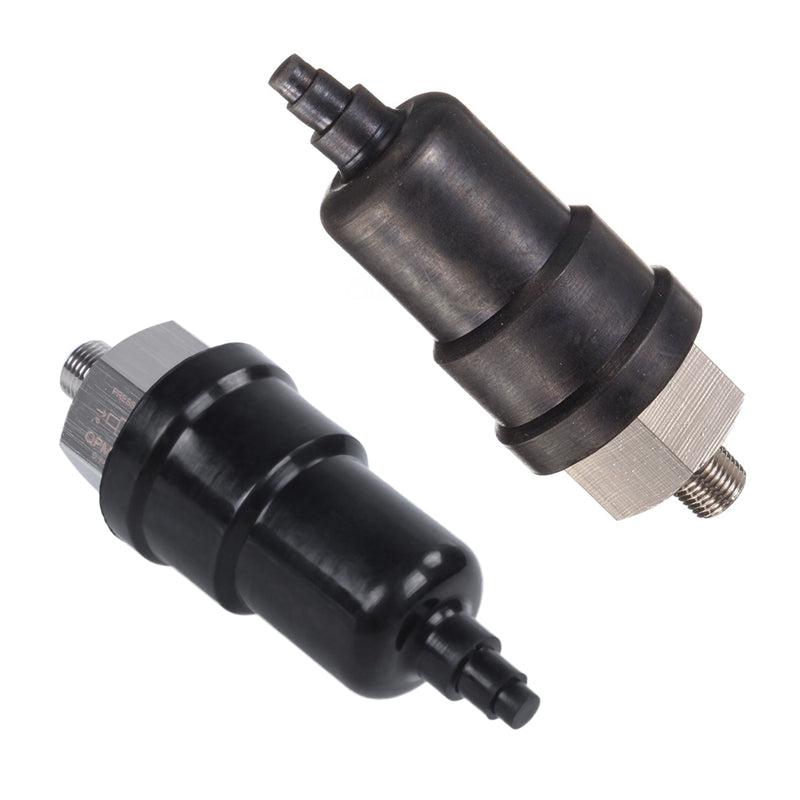

2 pcs pressure switch: 1 pcs QPM11-NO & 1 pcs QPM11-NC
Use medium: air
Use pressure range: 0.1-1.0Mpa
Environment and medium temperature: -5 -60 Celsius
Work form: pressure adjustable typeInstall
color: black
size: 85*30mm
Material: Plastic+Stainless Steel
connection mode: external thread
Nozzle diameter: 1/8 inch
Working voltage: 220V/AC, 48V/AC.DC
Maximum working current: 500mA
Maximum power: 24VA, 100VA
Insulation voltage: 500V, 1500V
Maximum pulse number: 200T/min
Service life: 100 millions cycles
Note:
Adjust the pressure of the size, please screw the two
terminals in the middle of the Hex.

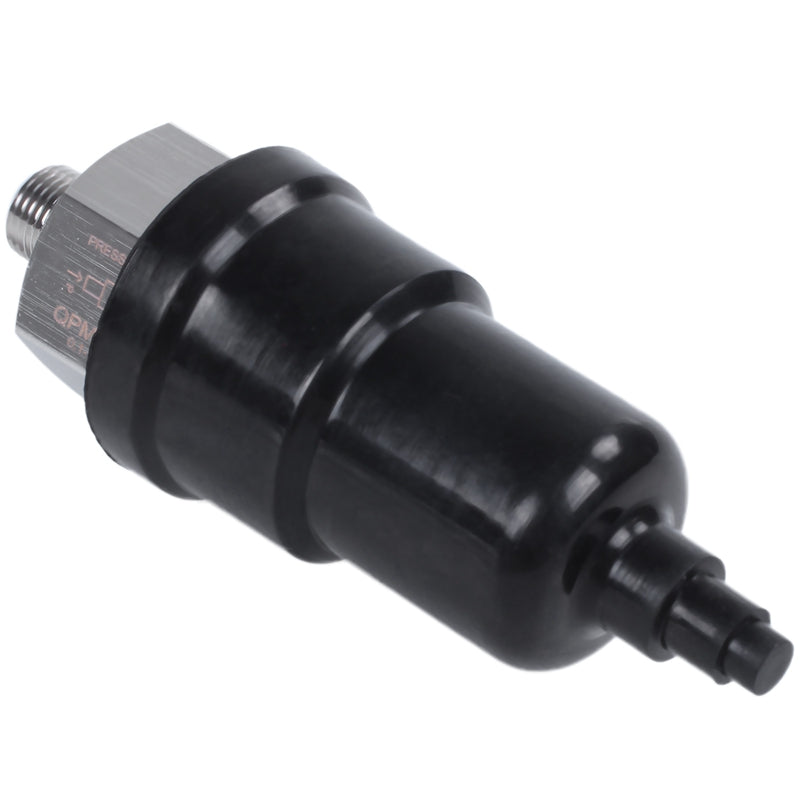

Model: QPM11-NO(Normal Open)
QPM11-NC:

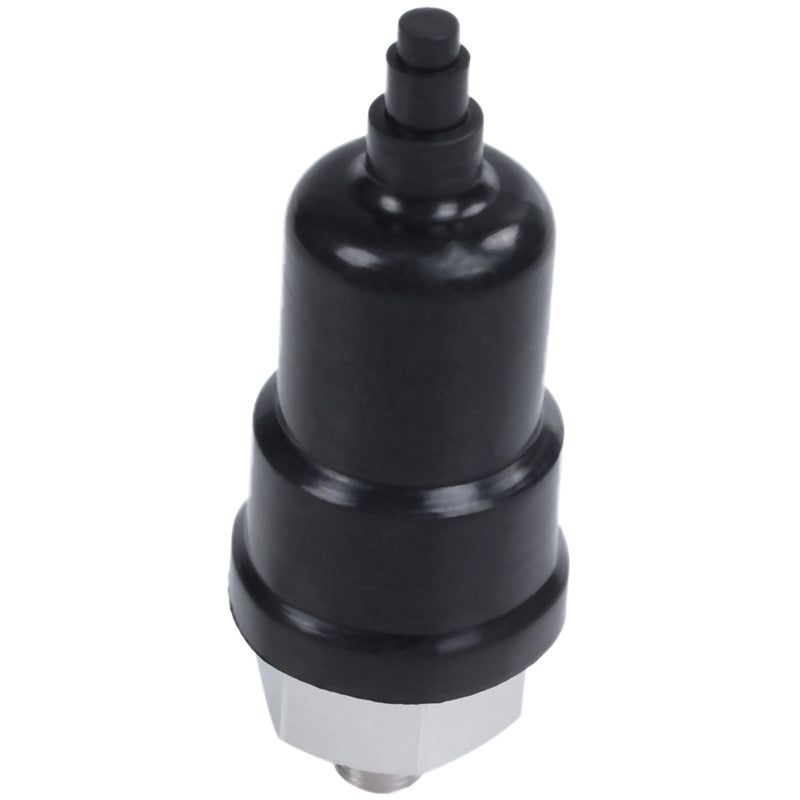

Model: QPM11-NC
QPM11-NC (Often shut down): that is, the pressure is not set,
the switch contacts are closed; to set the value, the switch
contacts are disconnected, the line is the state of power.
Package Contents:
2 * pressure switch
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
