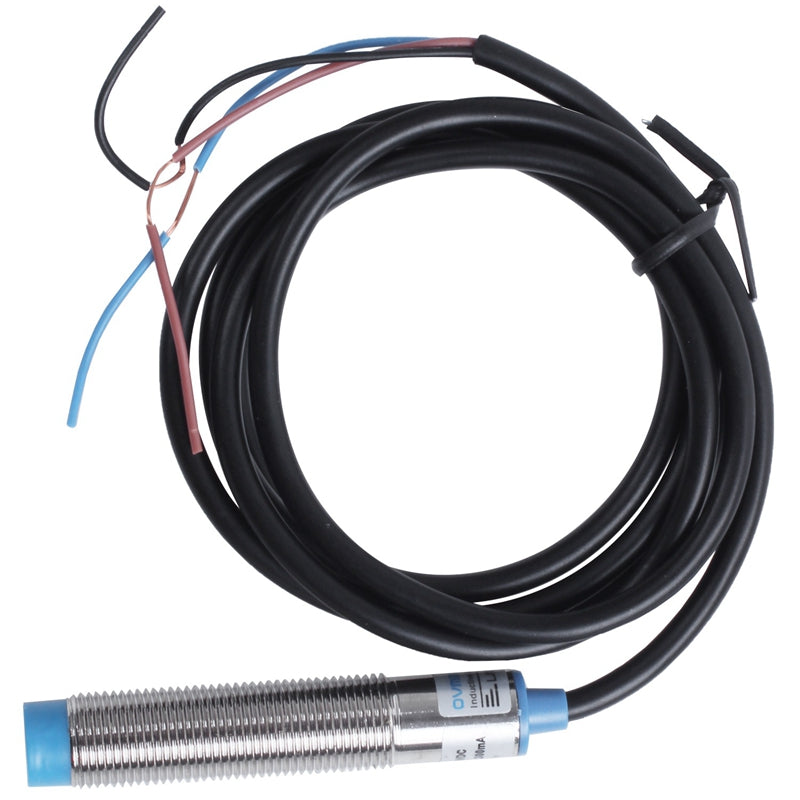

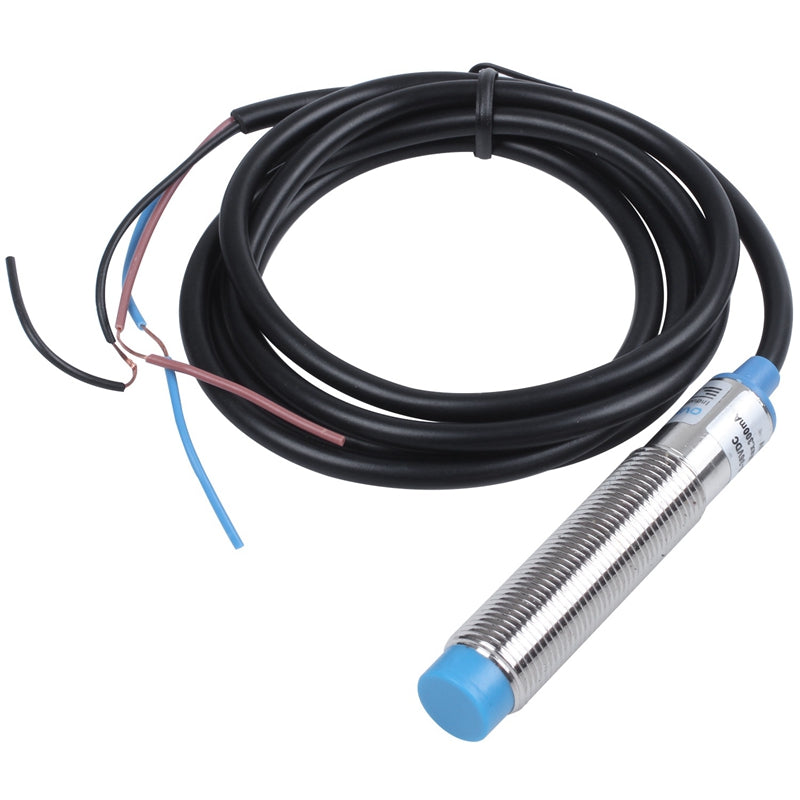

2 pcs Inductive Proximity Switch: 1 pcs LJ18A3-8-Z/BX 8mm & 1 pcs LJ12A3-4-Z/BY 4mm
It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
When proximity switch is close to some target object, it will send out control signal.
It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.
Metal shell, DC type, 4mm detecting distance, 3 wire system.Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
Product Name: Inductive Proximity Switch;
Theory: Inductive Type Sensor
Model: LJ18A3-8-Z/BX & LJ12A3-4-Z/BY
Switch Appearance Type: Cylinder Type
Wire Type: DC 3 Wire Type (Black, Brown, Blue);
Output Type: PNP, NO;
Detect Object: Iron
Current Output: 300mA;
Supply Voltage: DC 6-36V;
External Material: Plastic, Metal
Color: picture color
Diameter of Head: 18mm / 12mm
Detecting Distance: 8mm/ 4mm
Cable Length: 1.1M/43.3 inch
Package Content:
2 x Inductive Proximity Switch
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
