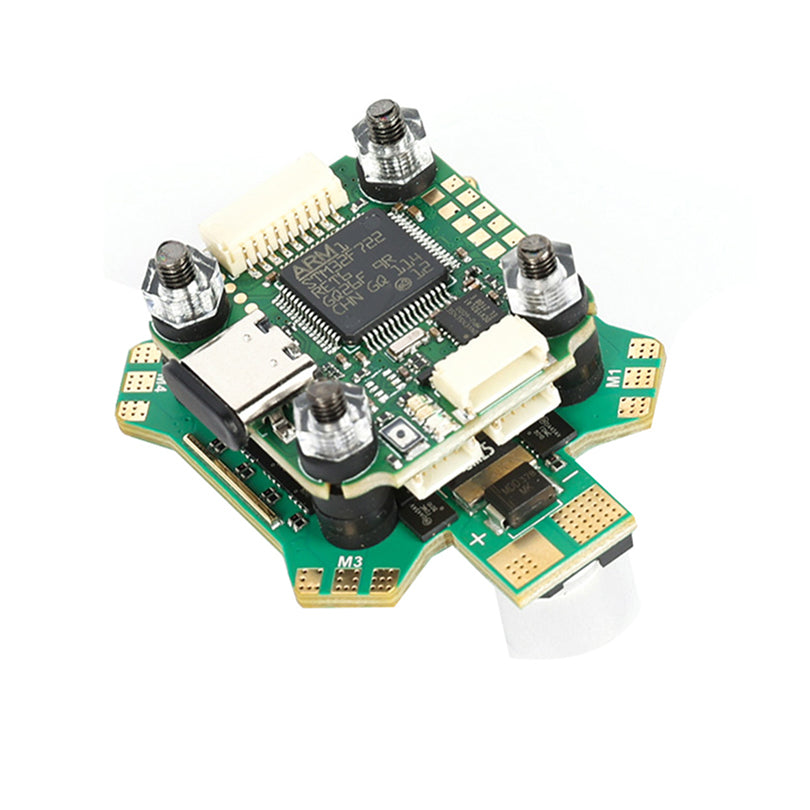

BLITZ Mini F7 Flight Controller
Top Features:
- BlackBox: 16MB
- DJI Air Unit Plug-and-Play. No need to solder tiny wires.
- BAT, +5V, 3.3, Start indicator
- With LC filter.
Specs:

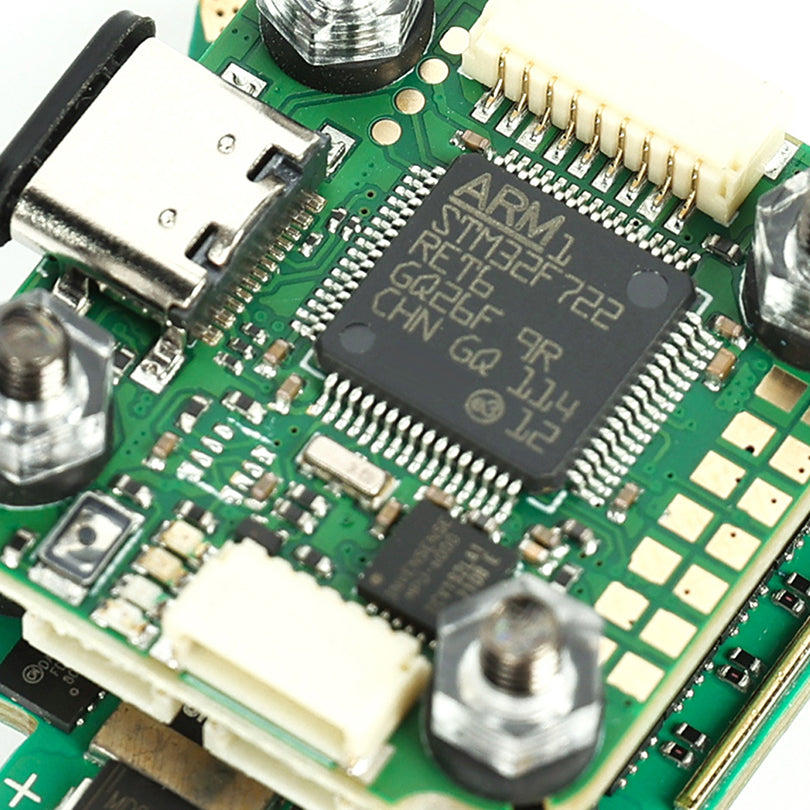

- MCU:STM32 F722
- Gyro:MPU6000
- Baro: BMP280
- Betaflight OSD:IFLIGHT OSD (AT7456E)
- Blackbox:16MB
- 5 X Uarts
- UART1 for VTX HD/Analog
- UART2 for Receiver
- UART3,UART4 for GPS or 0ther sensors that require a serial port
- UART6 for ESC Telemetry
- 4×Dshot/PWMoutputs
- 1×I2C
-1 xSH1.0 9pin connector for HD VTX/Analog VTX&CAM (5V/BAT/G/VO/T1/R1 /5V/G/VI)
- 1 xSH1.0 8pin connector for ESC(R6/CUR/M4/M3/M2/M1/BAT/G)
- 1xSH1.0 6pin connector for Any Receiver or DJI(3V3/R2i/5V /G/R2/T2)
- 1xSH1.0 4Pin connector GPS (T4/R4/G/5V)
- 1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
- Smartaudio&IRCTramp VTX protocol supported
- WS2812ledStrip:Yes
- Bepper:Yes
- Firmware: IFRC-BASEF4 4.X.X
- Mounting:20*20mm/φ4
- Dimensions:30.5*27mm
- Weight:5.0g
Package included:
1pc x BLITZ Mini F7 Flight Controller
1set x Wire harness

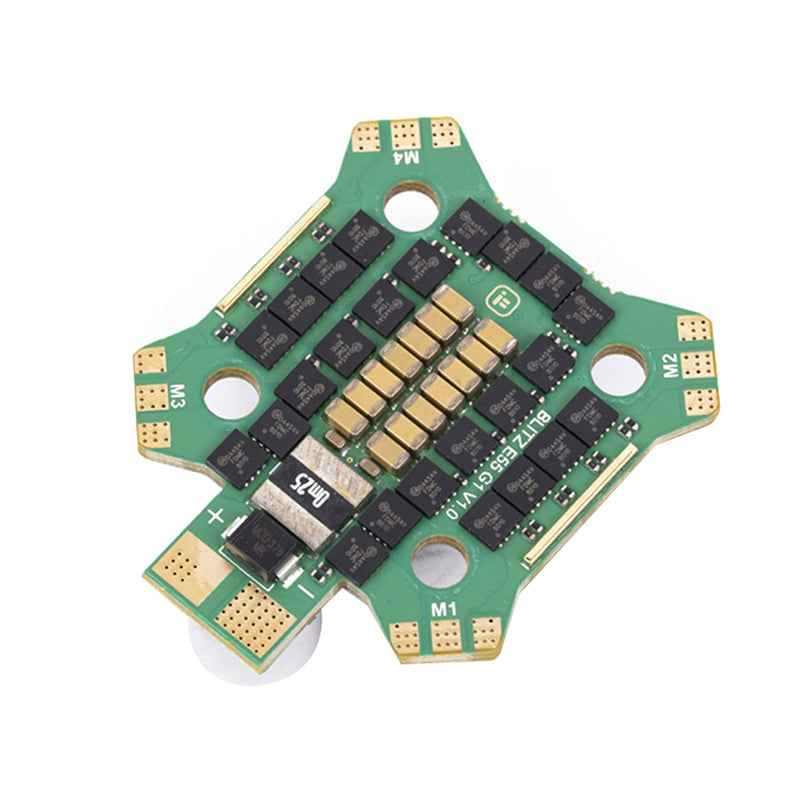

BLITZ Mini E55 4-IN-1 2-6S ESC
Specification:

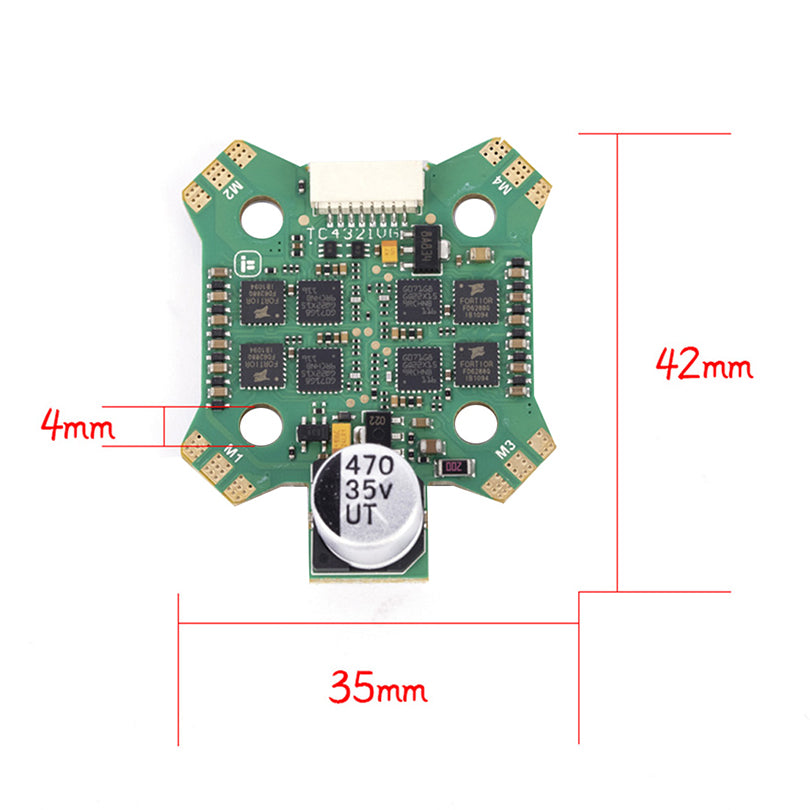

- Dimension: 35*42mm
- Mounting Holes: 20*20mm/Φ4mm
- Weight: 11.3g
- Supports 2-6S lipo input
- MCU:G071
- Constant: 55 Amps
- Burst: 60 Amps
- Current sensor: Yes
- BEC: No
- Current rate: 100
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Firmware: BLHeli 32
- Target: IFLIGHT_BLITZ_G1

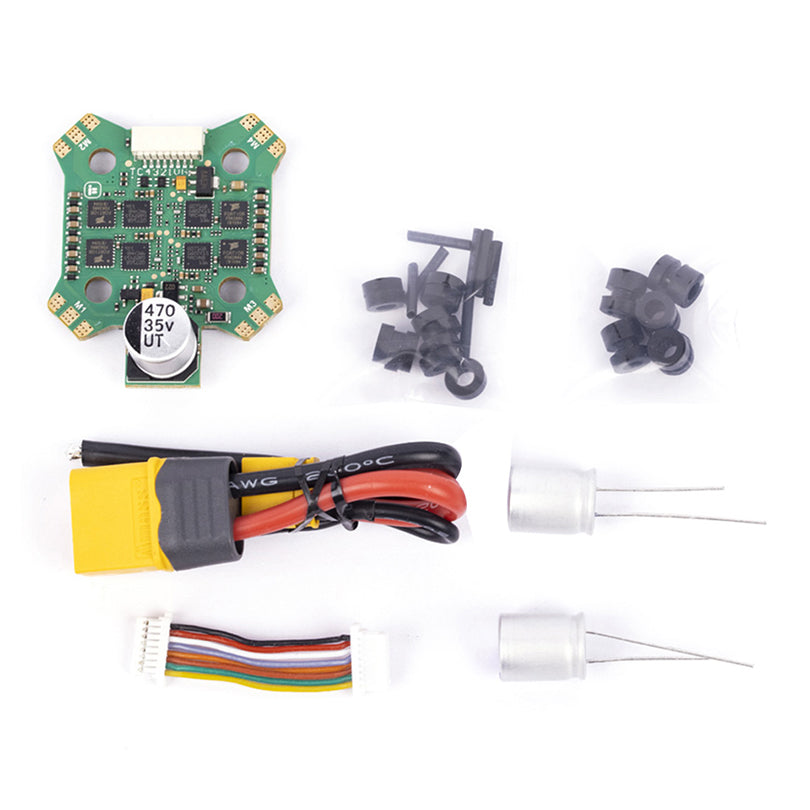

Package Included:
- BLITZ Mini E55 4-IN-1 2-6S ESC * 1pc
- Power cables & ESC signal wires * 1set
