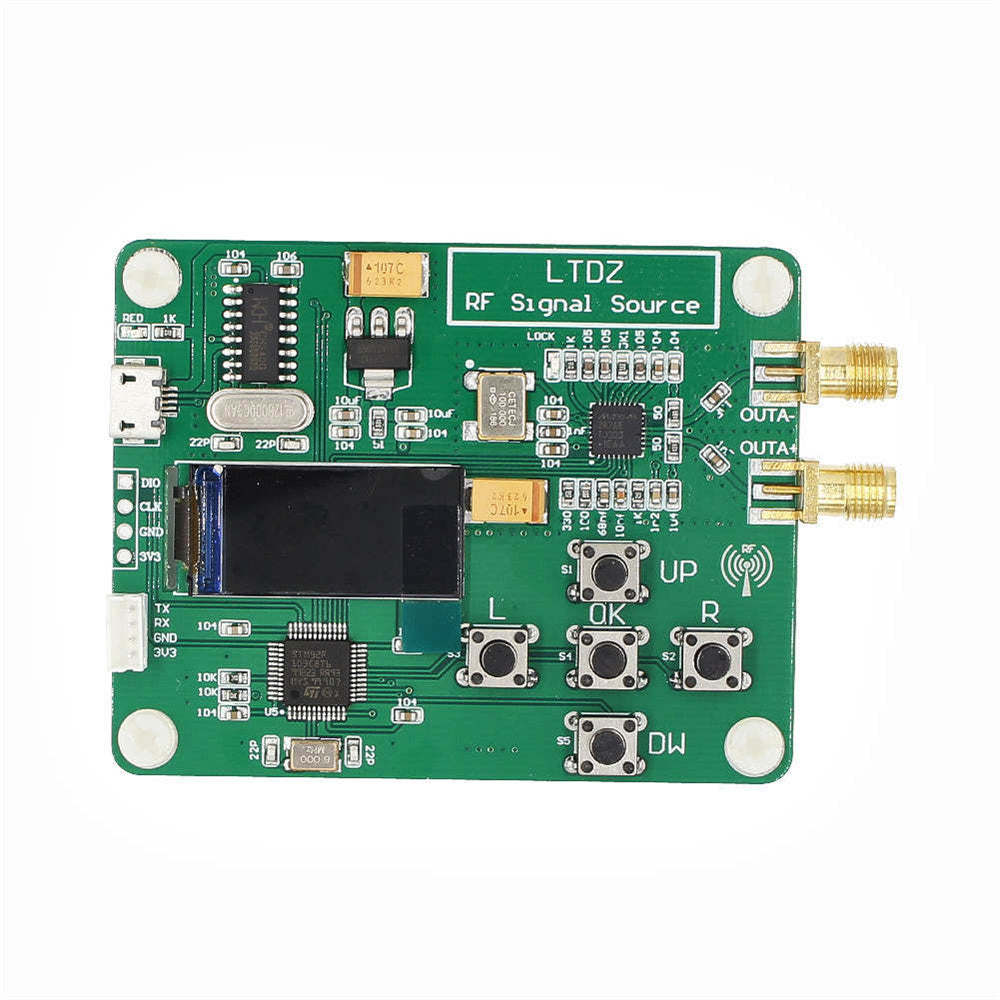

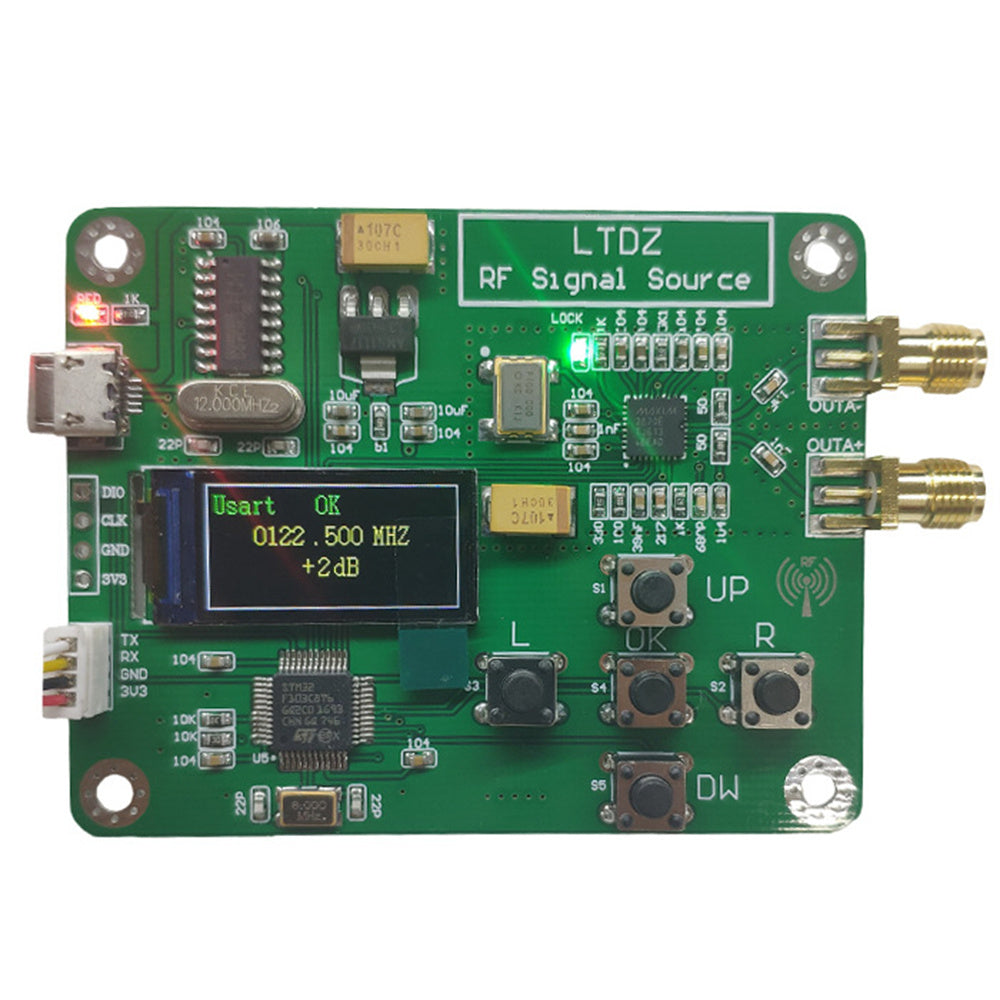

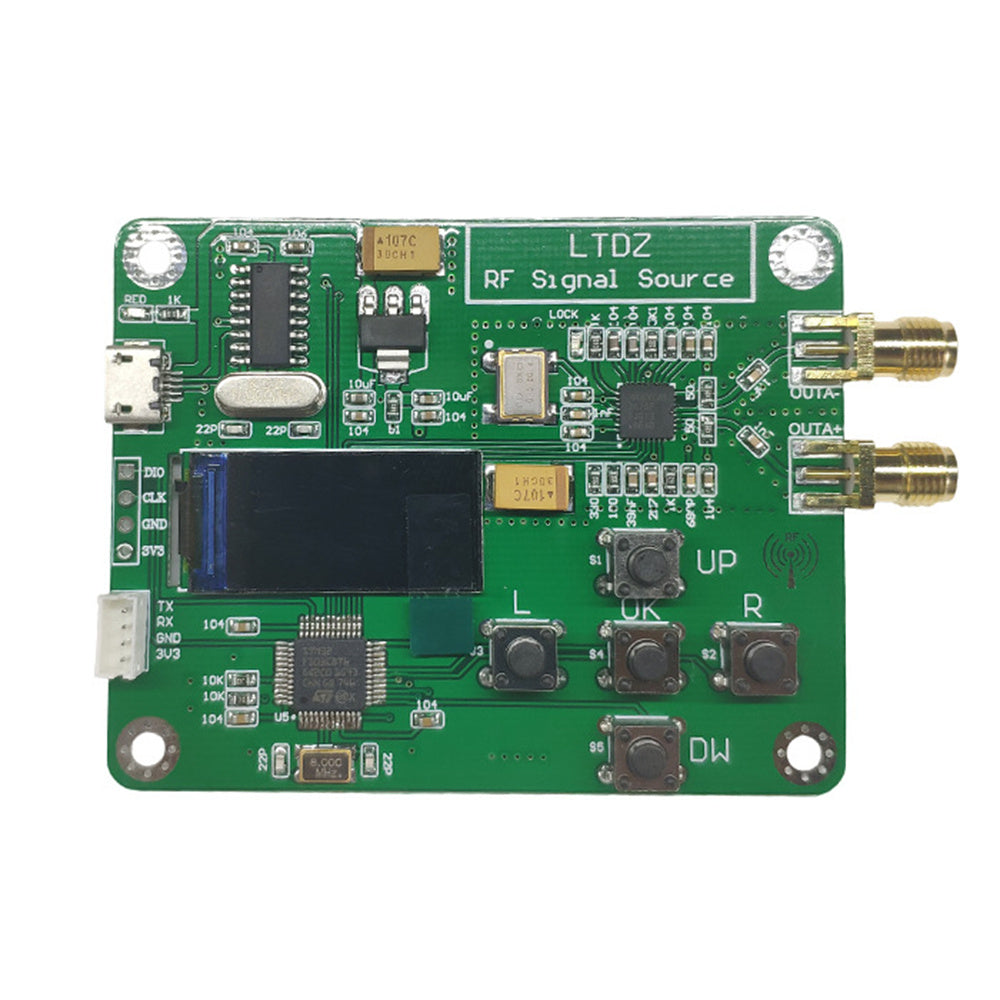

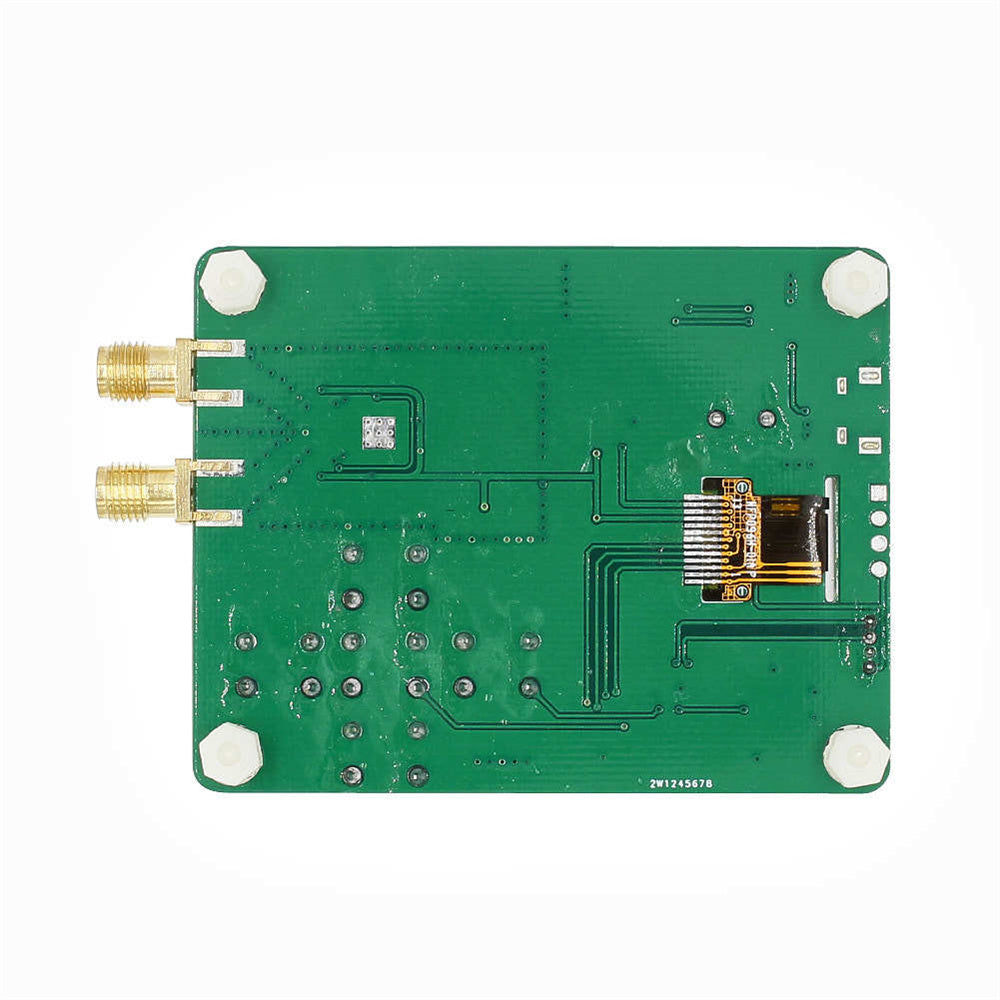

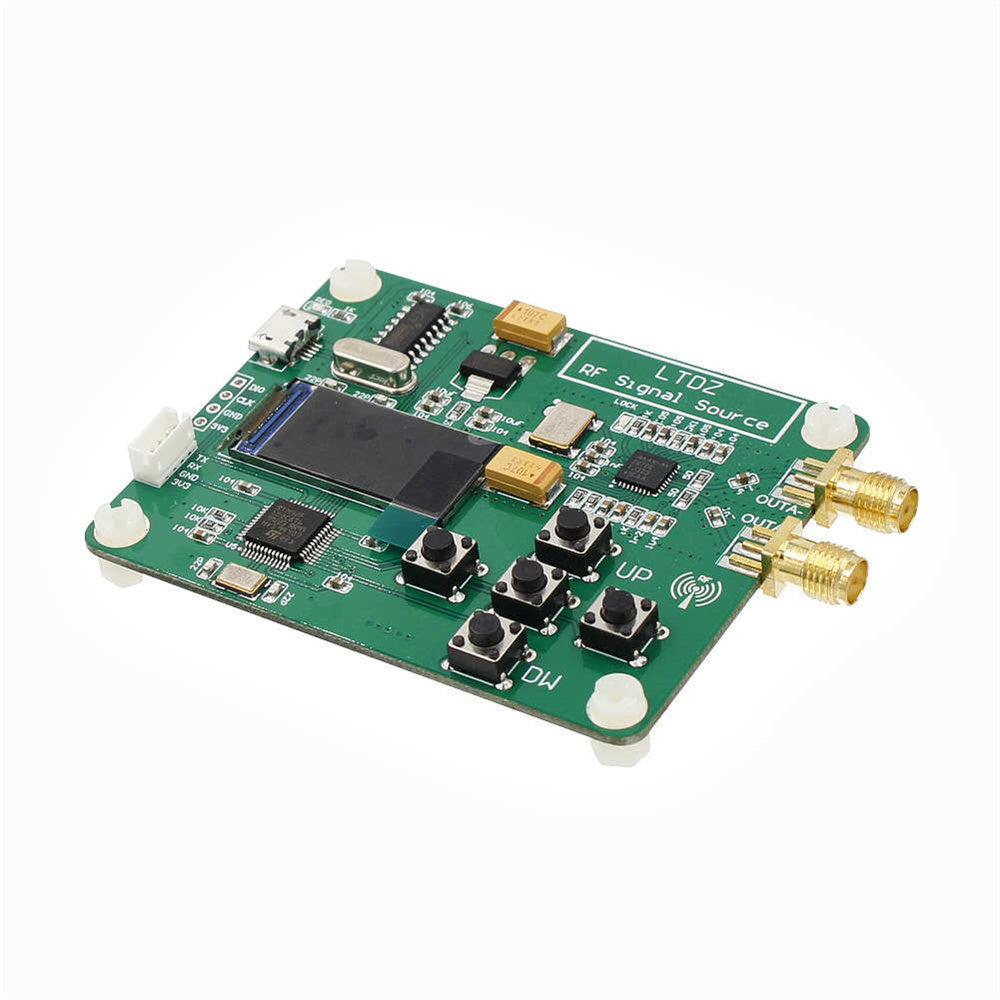

23.5-6000 MHz Signal Source Module LTDZ MAX2870 STM32 Signal Source Board Frequency and Modes Accessory USB 5V Powered
Features:
Made of fine quality material, has a long service life.
Frequency output range is 23.5-6000MHz.
There are two modes of frequency and sweep.
USB 5V power supply.
More professional, more stable and better performance.
Specifications:
Material: PCB
Color: green
Frequency output range: 23.5-6000MHz
Two modes: frequency and sweep
Minimum control accuracy: 0.001MHz
Amplitude control: -4dB -1dB +2dB +5dB
Power supply mode: USB 5V power supply
Size: 80 * 53 * 8mm / 3.1 * 2.1 * 0.3in
Package weight: 100g / 3.5ounce
Control method:
1. Adjust the frequency output through 5 on-board buttons.
2. Serial port control mode 1: onboard USB to serial port chip, the computer can be directly controlled, and no control software is provided.
3. Serial port control mode 2: it is controlled by other hardware devices through the serial port interface of the board. (provide serial control communication protocol)

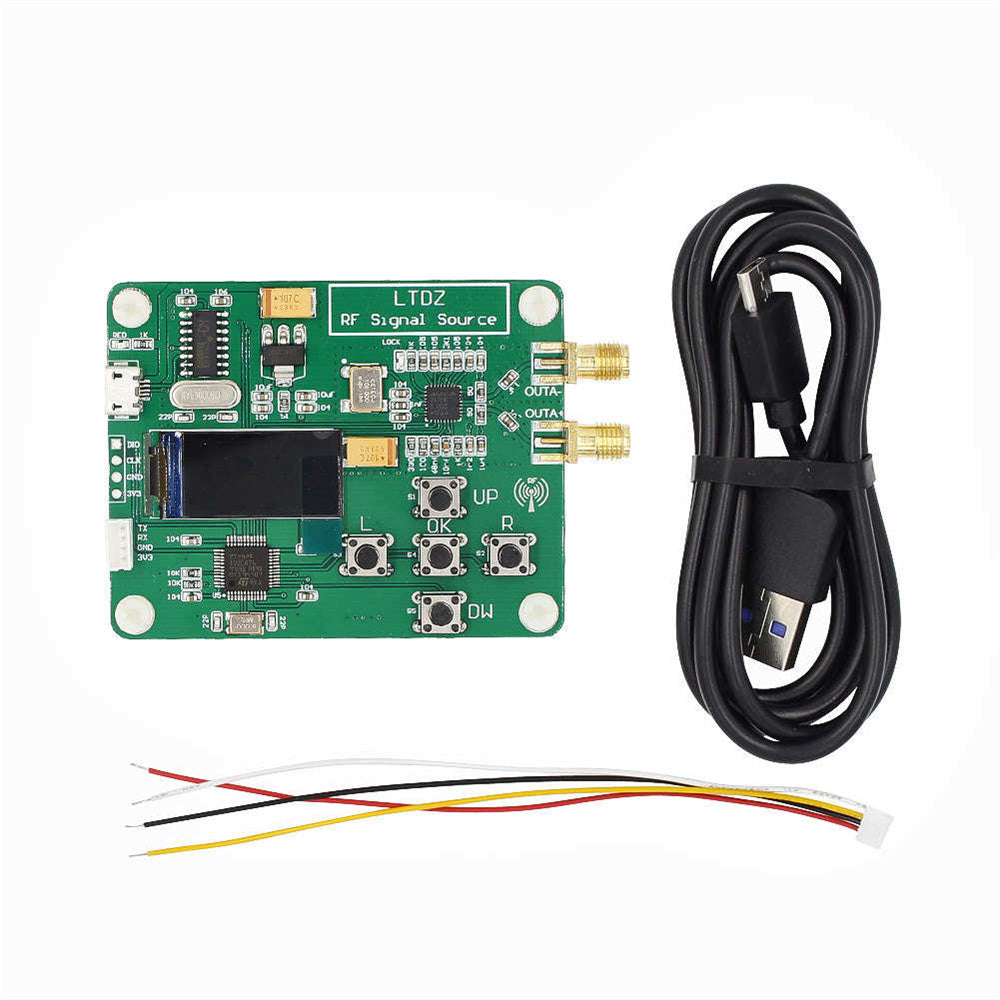

Packing List:
1 * LTDZ MAX2870 STM32 23.5-6000MHz Signal Source
1 * USB Cable
1 * Serial Cable
