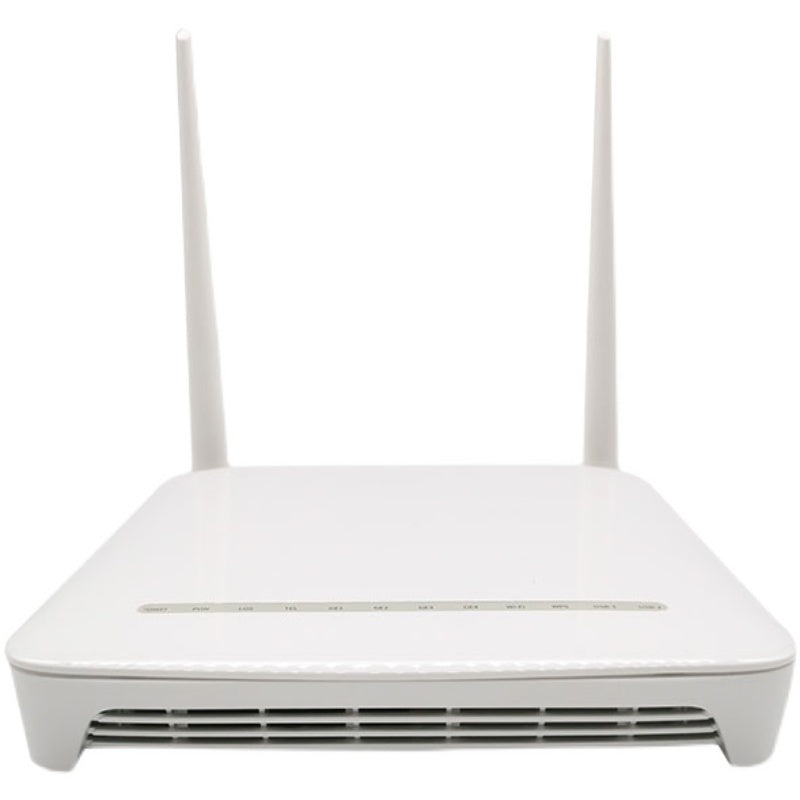

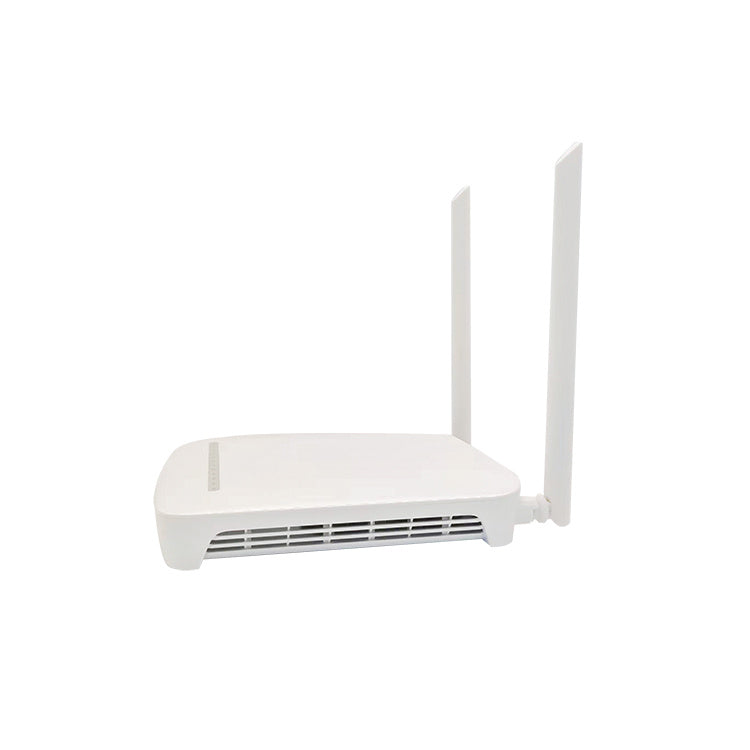

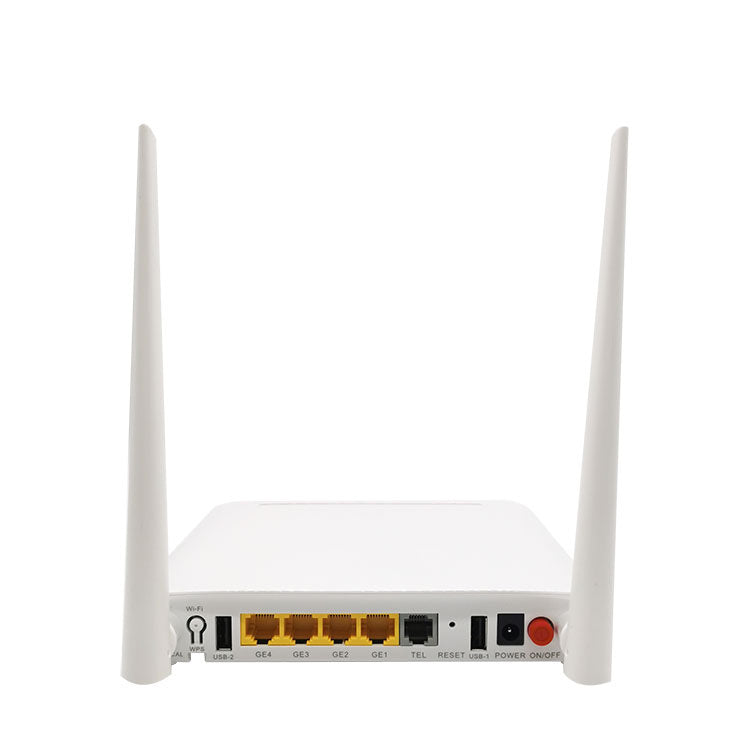

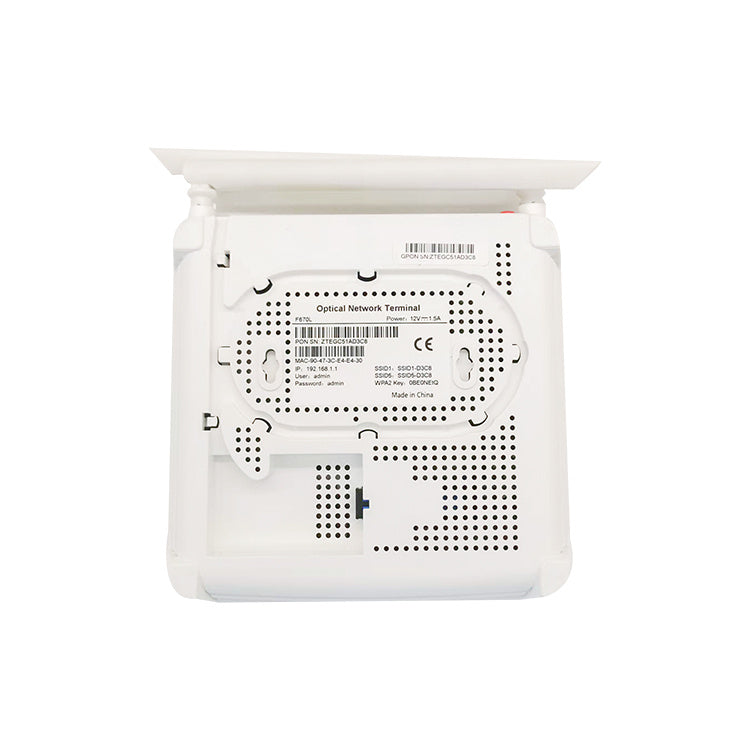

Gpon ont F670L GPON ONT series equipments are manufactured and developed by Huawei company, which is a leader in FTTH/ FTTO broadband access network field. They are properly manageable added with features such as high-bandwidth, high reliability, low power consumption and satisfy the users requirement to access broadband, voice, data and video etc.
-
Technical items
Descriptions
Fiber port
1 GPON interface, 4GE+1POT+1USB+WIFI,SC single-mode,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
wave
Tx 1310nm, Rx 1490nm
Fiber interface
SC/UPC
Rx Sensitivity
-27dBm (1490nm)
WLAN
IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G WIFI,external antenna(2dBi)
2.4GHz: 2 x 2 MIMO 802.11b/g/n ,5GHz: 2 x 2 MIMO 802.11a/n/ac
LAN
1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
ONT Detection and Isolation of Active/Passive Hooligans
Yes.
L2 forwarding capability
IPv4 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
IPv6 L3 forwarding capability
2Gbit/s with any length packets in downstream direction
1Gbit/s with any length packets in upstream direction
Configuration method
NMS, Web, or TR069
Voice protocol
SIP, H.248
DC power supply
Adapter input: 100-240 V AC, 50 - 60 Hz ;
Adapter output: 11 – 14 V DC, 1 A
Button
Reset, power
Power
≤ 8w
Operation
Working temperature: -0-+40℃
working humidity:5-95%(non-condensation)
Dimension
250*220*65mm(length*width*height)
Net weight
≤ 0.8kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
