Type: Test Board kit
Model Number: Testboard kit

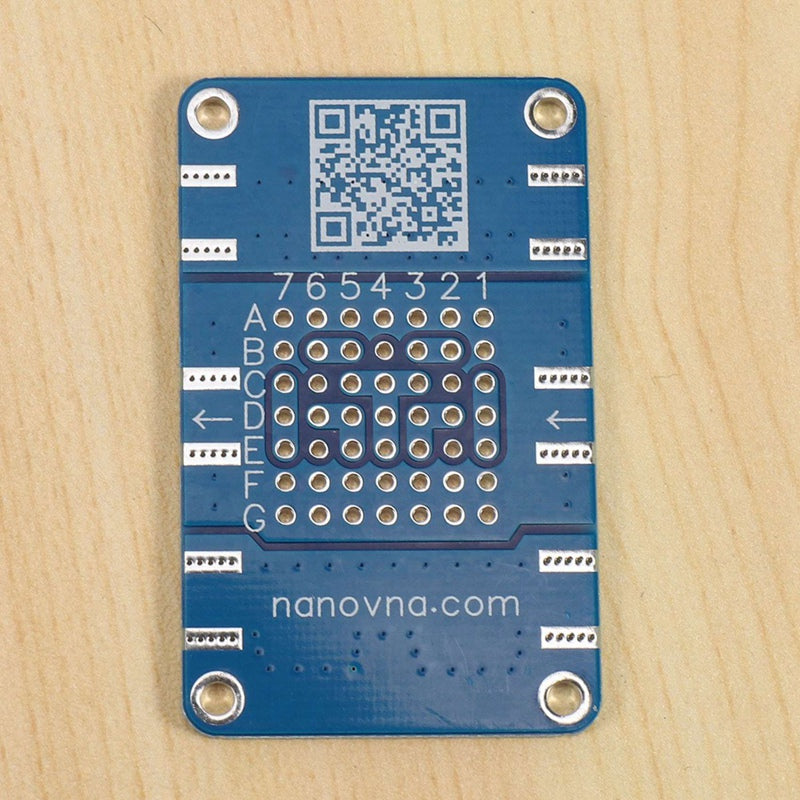

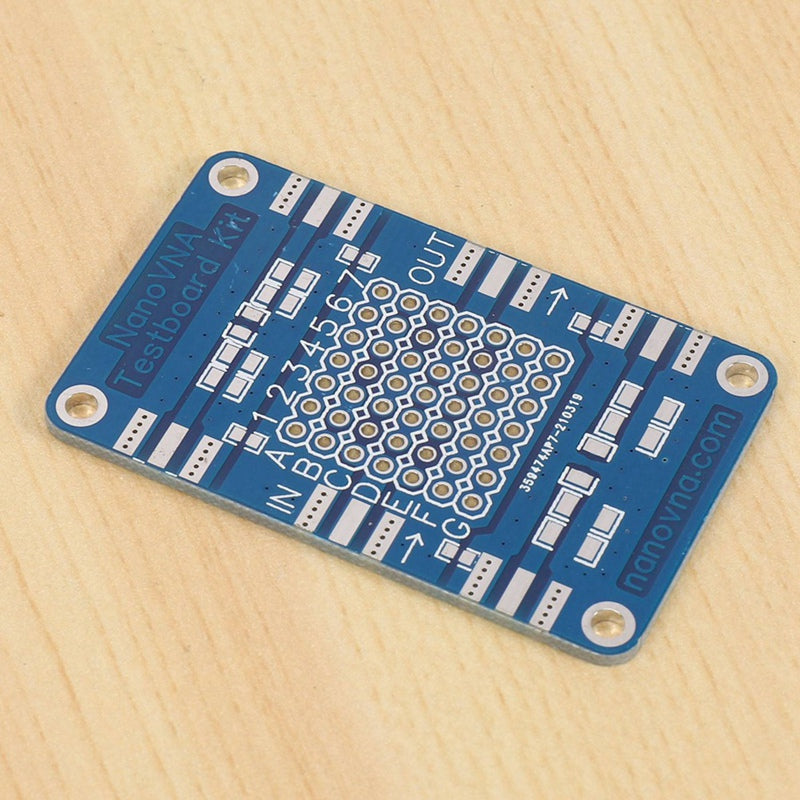

This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added. The SMT circuit cannot fully consider various test conditions. Some parts of the test may need to be cut over.
Please ensure that you have enough Hands-on ability. This circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs, our store is not responsible for circuit guidance.
Demonstration of measuring DIP devices using circular busbars, matching resistance needs to be soldered on the back.
Demonstration of measuring SAW filters using SMT pads requires direct cutover of SMT circuits.
colour:blue
Material:Metal + plastic
Package Contents:

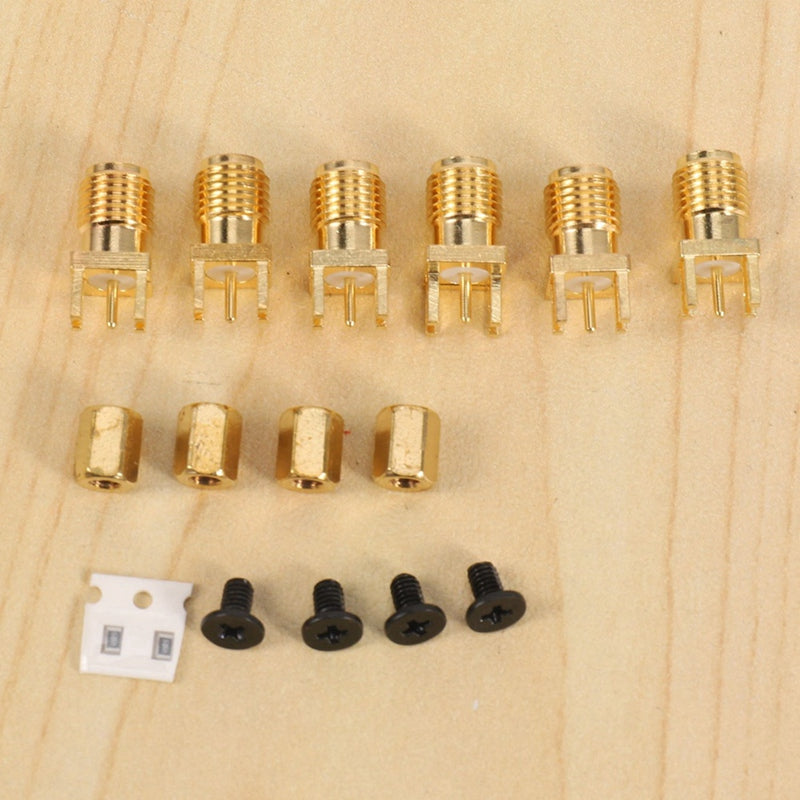

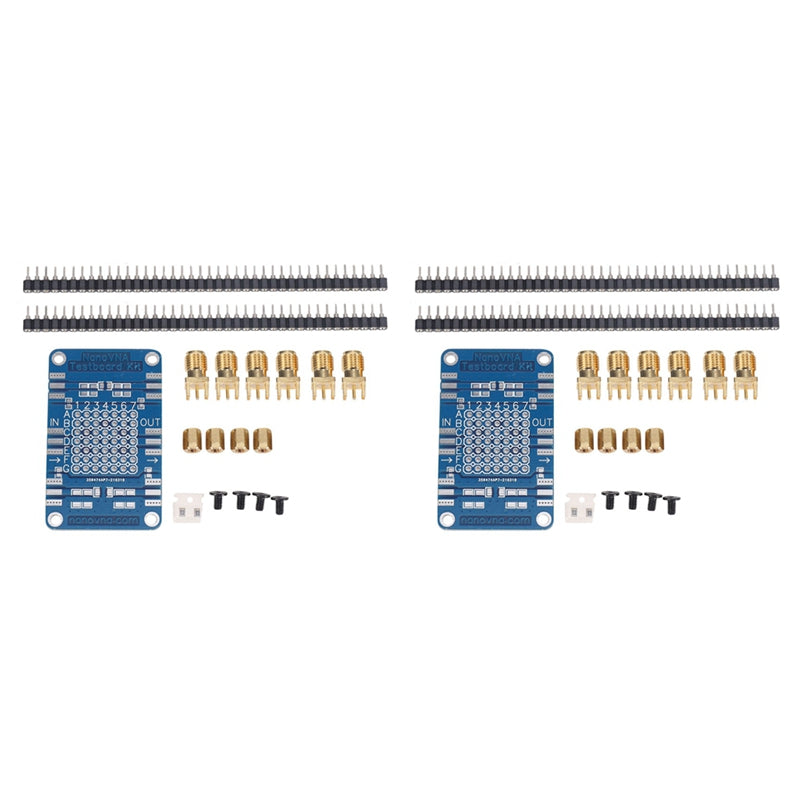

2 x Testboard main board
12 x SMA female head
8 x 6mm copper stud
8 x M2.5 screw
4 x 40pin round row seat
4 x 0805 49R9 Calibration resistance
