Two performance parameters:
Operating voltage 5V/PD protocol. Compatible with USB Type-C PD3.0/3.1. Automatic identification of charger fast charge protocol features, support 100W PD protocol power charger; Current 2~5A. (Requires C TO C charging cable to support PD protocol)

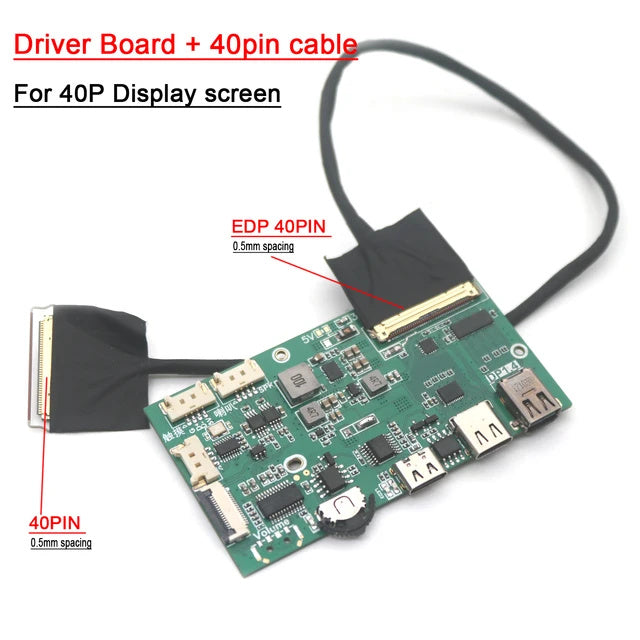

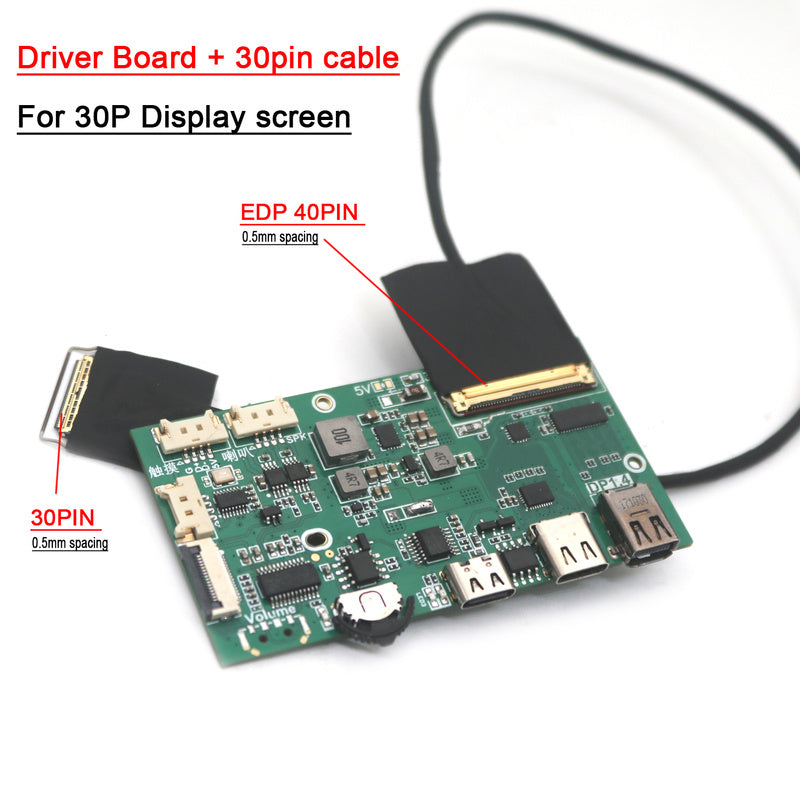

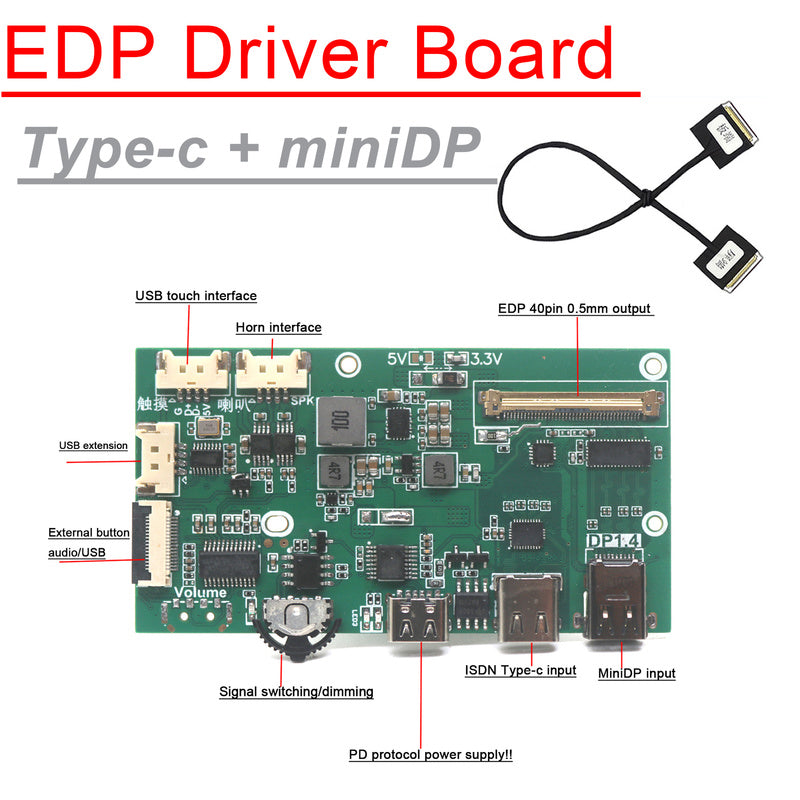

TYPE-C is the power input. It Supports the PD protocol, DP/ Thunder 4 as the signal input, and EDP40 as the signal output. It supports 40P to 30P screen-wire conversion (2LAN for 30PIN and 4LAN for 40PIN), the default backlight voltage is 12V, and the drive logic voltage is 3.3V.
keystrokes: 50,000 times.
Operating temperature: -40-85℃
Support 5V/3.3V LCD logical voltage selection, suitable for different panels.
EDP30 -- 2lan (40P to 30P switching screen cable) resolution is 1920*1080, EDP40 --, -4LAN supported resolution 1920*1080 300HZ 2560*1440 240HZ 3840* 2160,120 HZ, 5120*2880 60HZ backward compatible.
Supports the reverse power supply for the mobile phone with an anti-adapter, reserving 15W power for the device during charging, and supports the PD 9V/12V/15V protocol fast charging.
Support key control volume and mute (SW1 dial switch)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
