1.Compact product
2. Simple to use
3. Long service life
4. High quality
Product parameters:
Wiring description:
L:Firewire input
OUT L:Firewire output
Technical specifications:
Input voltage: AC85V-AC220VRF
Operating frequency: 315M, 433M optional.
RF working mode: ultra-aberrant reception
Receiving sensitivity: -107dbm
Remote control distance: greater than 100 meters in the open ground.
Storable remote control quantity: 24
Support remote control type: learning code, fixed code
Wiring mode: fixed terminal block

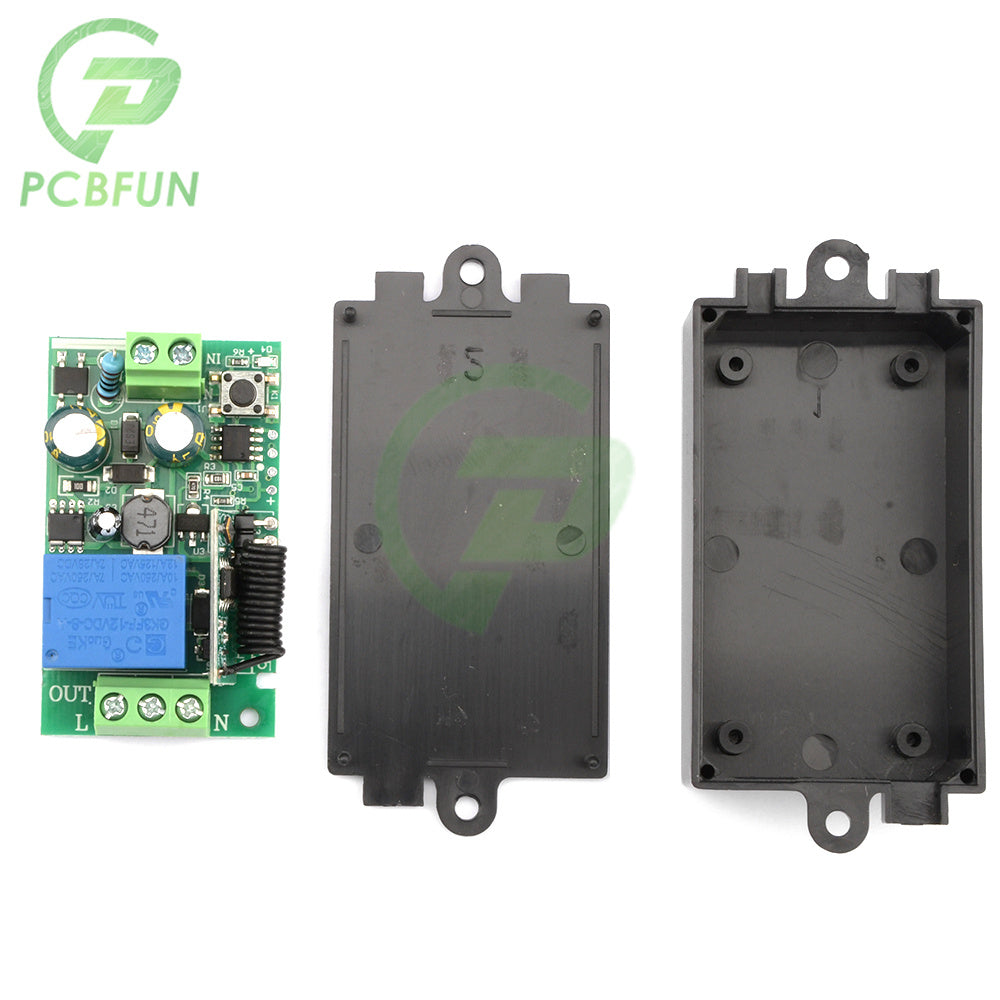

Dimensions with housing: L81mm*W39mm*H22mm (The dimensions are hand-measured, there will be a slight deviation.)

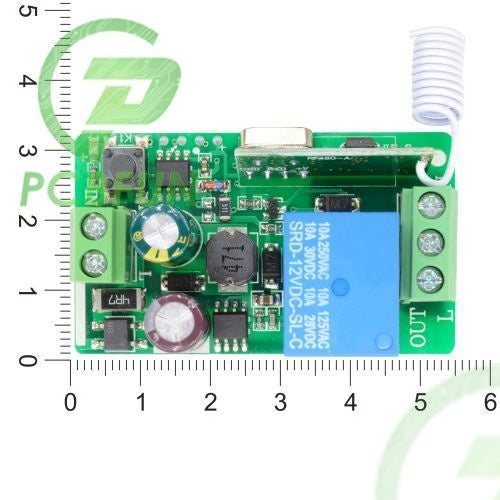

Board size: length 55mm * width 32mm * height 17mm (size are hand-measured, there will be a slight deviation.)
Clear and code pairing: (before switching modes, to clear the code)
