Key Feature:

     7X~45X zoom magnification power with crisp sharp images

     Super widefield high-eyepoint optics

     widefield of view

     4" (100mm) working distance

     Sturdy all-metal pillar stand

     Powerful 56-LED ring light with dimmer

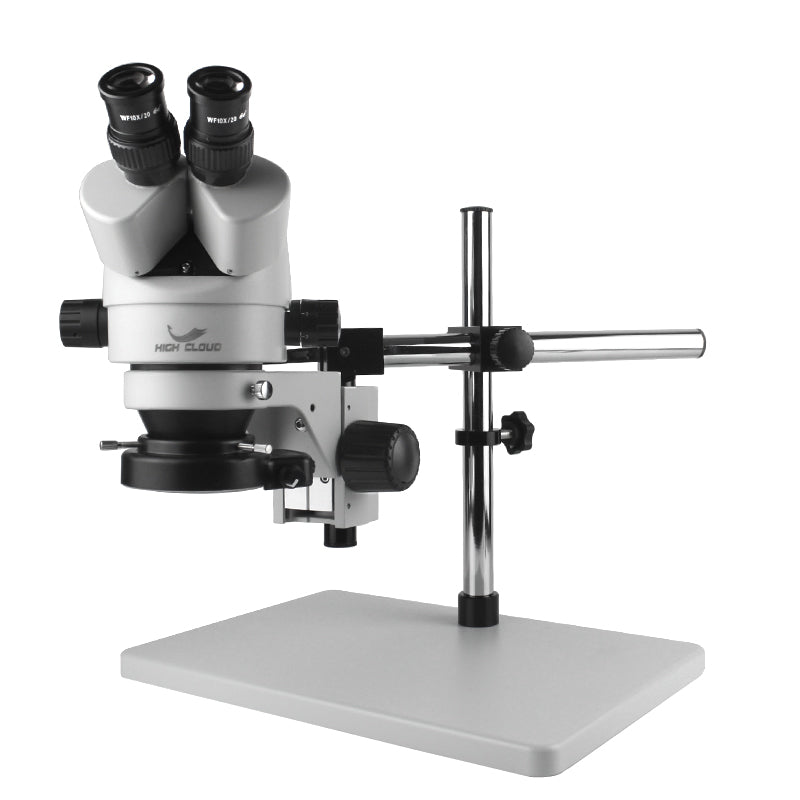

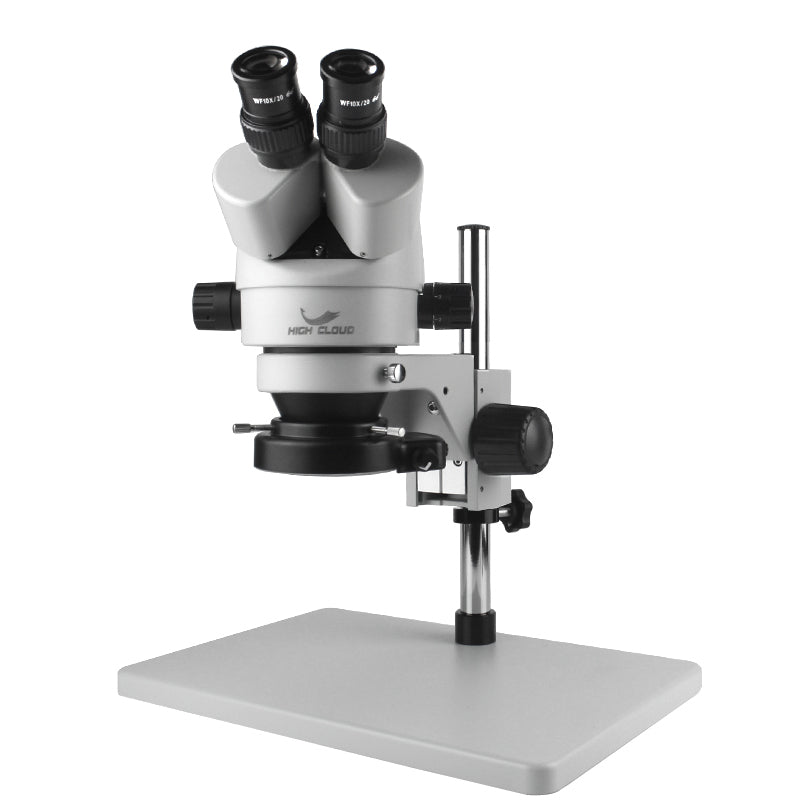

     This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

     Key Feature:

     An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light

     7x-45x super wide zoom magnification power

     Bright cool light 56-LED illumination system

     High resolution with great flatness and contrast, giving sharp and clear images

     Binocular head with 45 degree inclined 360 degree swiveling eye tubes

     Sharp stereo erect images with a wide field of view

     Crystal clear original true color microscope images

     Dual eye tubes with adjustable diopters

     Large working distance

     Sturdy all-metal table stand

     Accurate alignment reduces eye strain for longer periods of viewing

     Full optical glass elements

     Precise ground glass lenses

     Full metal chrome-plated mechanical components

     Adjustable interpupillary distance

     Rubber eye-guards included

         Specification:

    Head: 360 degree rotatable 45 degree inclined binocular

    Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM

    Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses

    Working Distance: 4" (100mm)

    Diopter Adjustment: +/- 5dp

    Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

    Round Plate: 3-3/4" (95mm) in diameter

    Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

    Illumination: 56-LED Ring Light

    Power Input: 110-240V, 50-60HZ, Automatic Switching

    Accessories: Paired eye-caps

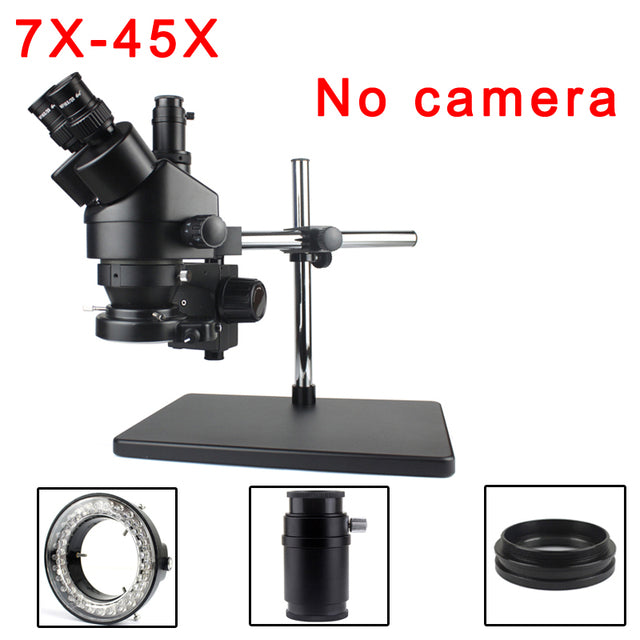

   Package incluede: 7X-45X（Camera not included）

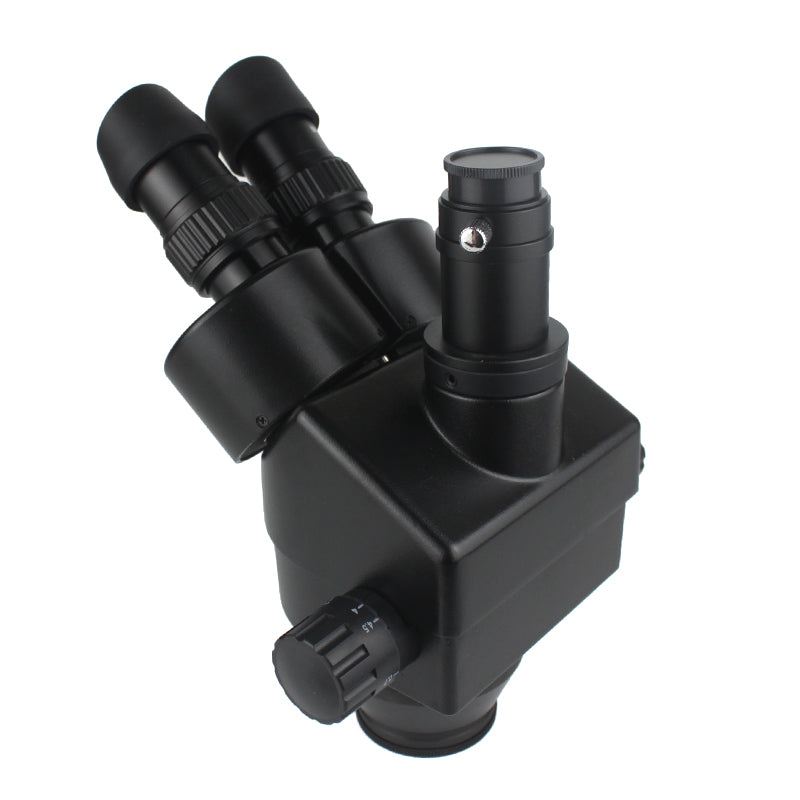

   1 x Trinocular Stereo Zoom Head

   1 x Pair of Super Widefield 10X Eyepieces

   1 x 56-LED Ring Light with Adapter (12V)

   1 x Table Stand

   1 x Focusing Rack

   1 x C-mount Adapter

   1 x Pair of Eye-Guards

   1 x Dust Cover

   1 X Blue mat

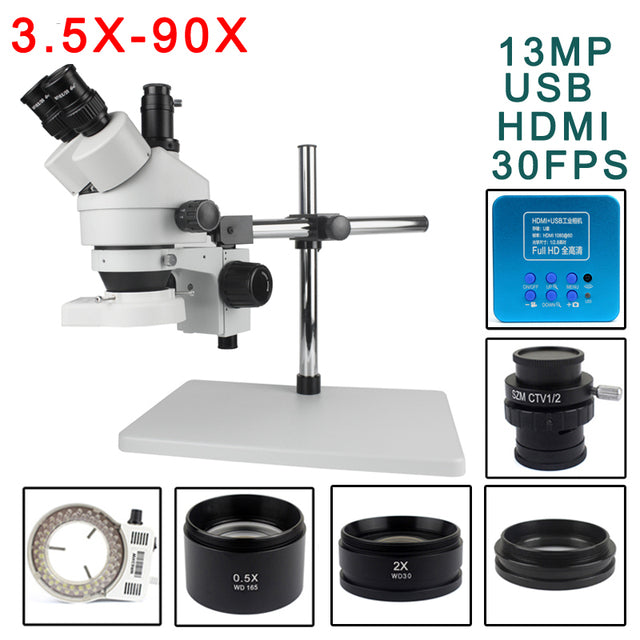

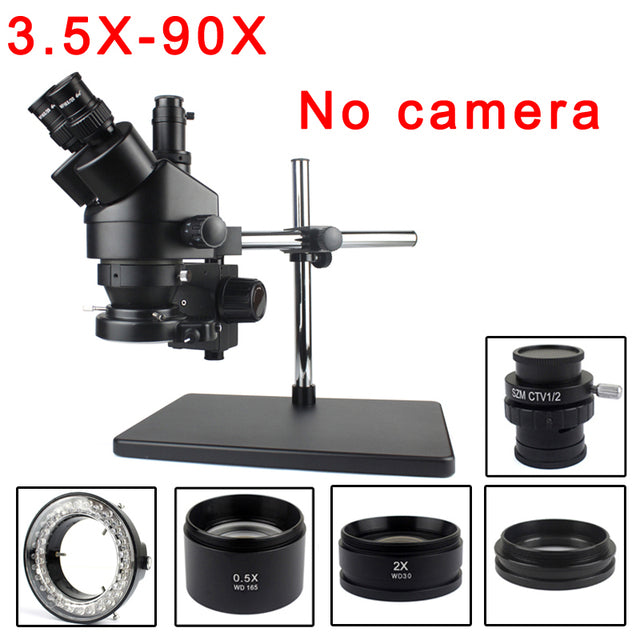

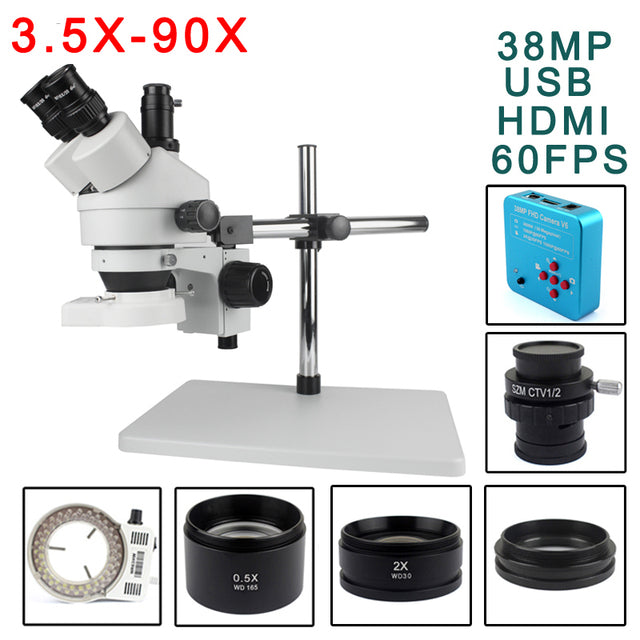

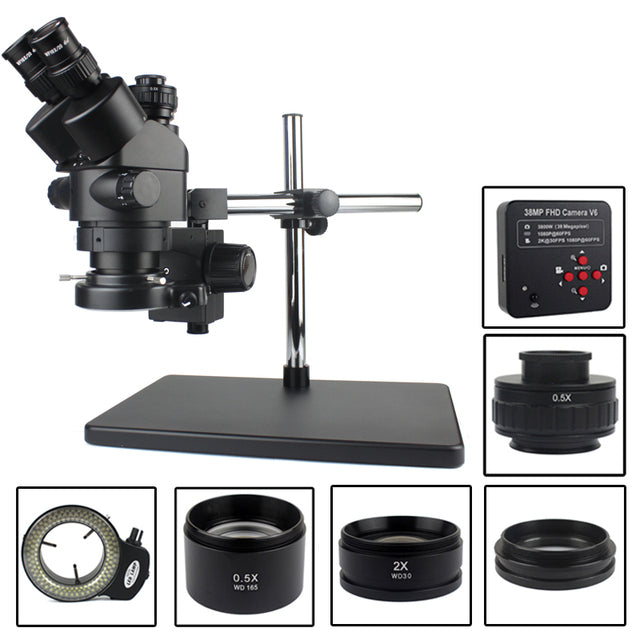

   Package incluede: 3.5X-90X

   1 x Trinocular Stereo Zoom Head

   1 x Pair of Super Widefield 10X Eyepieces

   1 x 56-LED Ring Light with Adapter (12V)

   1 x Table Stand

   1 x Focusing Rack

   1 x C-mount Adapter

   1 x Pair of Eye-Guards

   1 x Dust Cover

   1 X Blue mat

   1 x 0.5x lens

   1 x 2.0x lens

   1 x CTV 1/2 Adapter

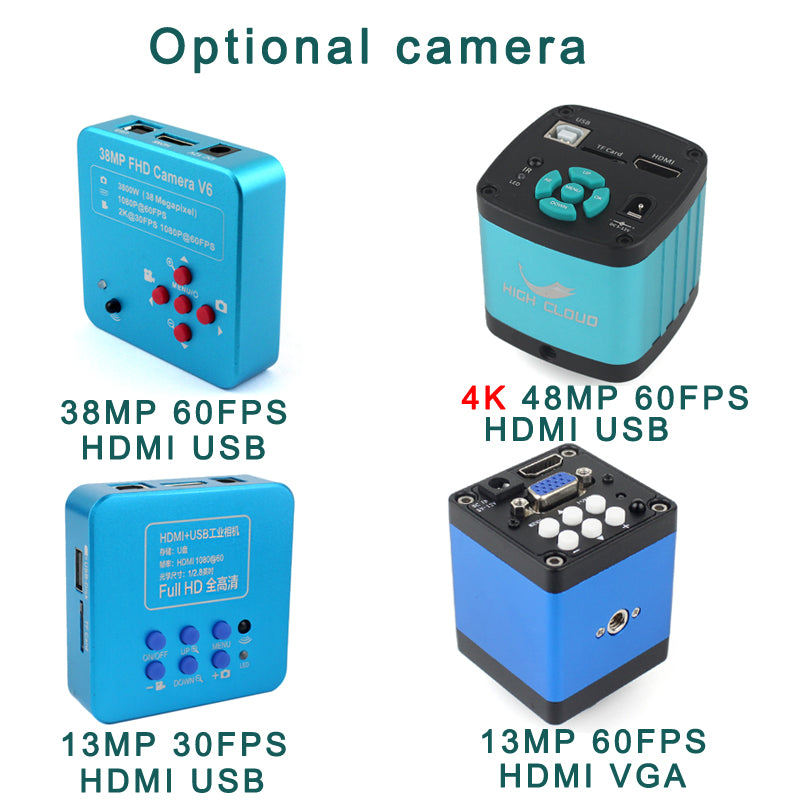

   1x camera set (4 specifications as option selection)

   2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)

0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)

1.0X Microscope Auxiliary Objective Lens(Protective Function Lens)

   38MP 2K 60Fps HDMI USB

   Sensor Panasonic:38 MegaPixel, 38 million pixels CMOS

   Optical format:1/2.3 inch

   pixel size:1.335μm x1.335μm

   Interface:HDMI(Type A).USB(Type B).TF Card

   Image resolution:21MegaPixel

   Video record resolution:2K@30FPS 1080p@60FPS

   HDMI resoltion:1920*1080p 60FPS

   Can output with USB at the same time

   HDMI scale:Support 4:3,16:9,16:10 screen

   USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

   Can output with HDMI at the same time

   TF card:MAX 64GB

   AWB:WB color correction/Auto/Manual

   R.G.B value setting independent

   Exposure:Auto/Manual.AE value can set

   Cross lines:8lines.Can set color& width& position

   Scale mark lines:2lines.

   Dotted lines:2lines.Can set color& width& position

   Sharpness Contrast Color gain:Support

   Mono Negative:Support

   Mirror:Horizontal vertical mirror

   Language:English/simplified Chinese

   Digital Zoom:Support

   IR remoter:Support

   Voltage in:DC 12V 55-21mm size

   Power consumption:MAX 0.15W 12V,0.12A

   Lens interface:C/CS口

   Net weight:180g

   Gross weight:400g

   Camera size:74*74*35mm

   Packaging size:160*100*80mm

   Questions Solutions:

   LCD no video or flicker

   1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

   2.Check lens cover. Increase the lighting.

   LCD have black bar Image warp

   1.change resolution of LCD

   2.change resolution of camera

   Have dirty spot

   1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

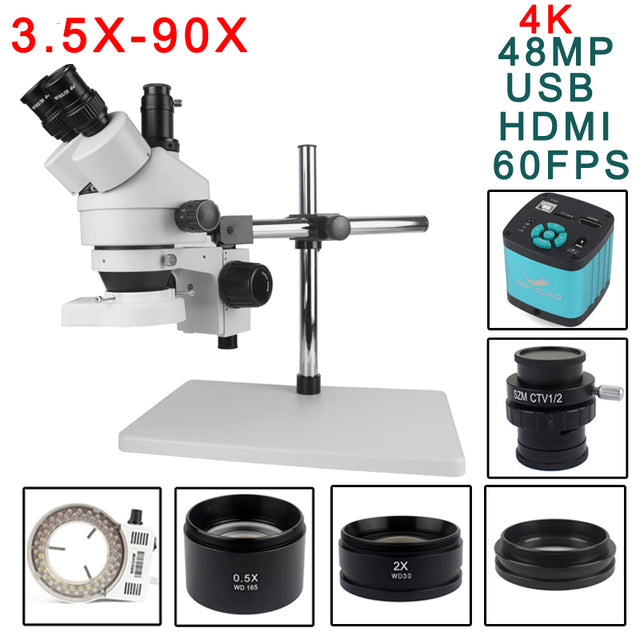

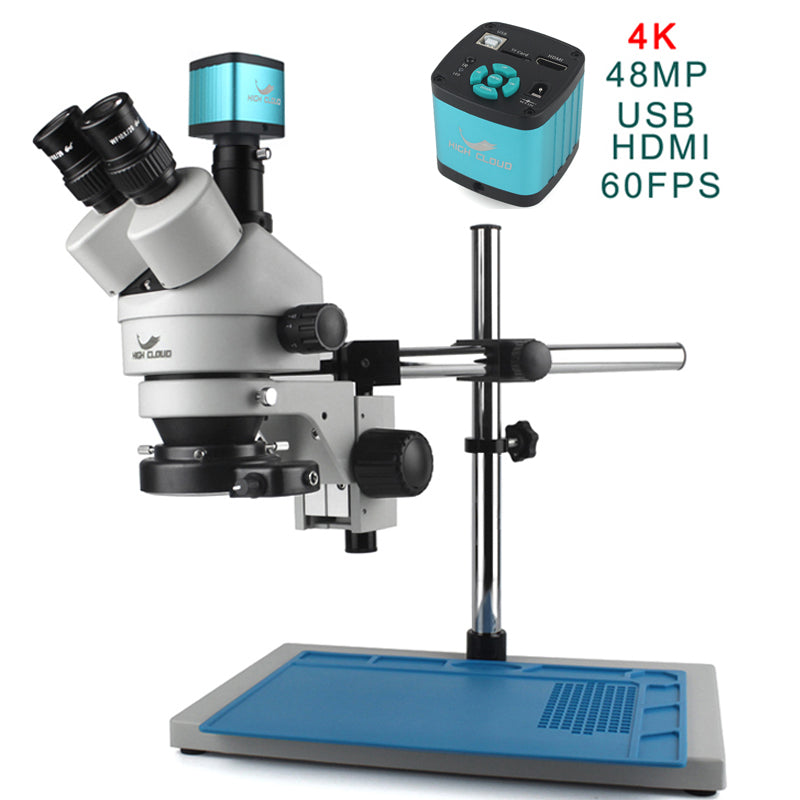

   48MP 4K 60Fps HDMI USB

   ◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

◆USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

◆48 million photos, JPG format, photo size 4608x3456;

One-click freezing/thawing function;

◆48 megapixel photography and 1080P video recording;

Electronic zoom function;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

◆ Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

◆ Strong metal shell;

Camera specifications:

The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor

Pixel size : 1.335µm × 1.335µm

HDMI output : 1920*1080 60PFS

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Camera interface : C/CS

Exposure : Automatic/manual

Exposure compensation : Support

White balance : Automatic/manual, RGB adjustable

Storage : Supports a maximum of 64GB

Input voltage : Dc 5v-12v

line : Supports 8 straight lines with adjustable color, thickness and position

Center line : Support

Menu language : English/Chinese

Remote control : Support remote control operation

Net weight : 250g

Rough weight : 450g

Product size : 66*66*49mm

Packing size : 145*130*70mm

   13MP 60Fps HDMI USB

   Feature:

The sensor: gc2053

Overall dimension: 20*70*70mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

   13MP 60Fps HDMI VGA

   Feature:

The sensor: gc2053

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
