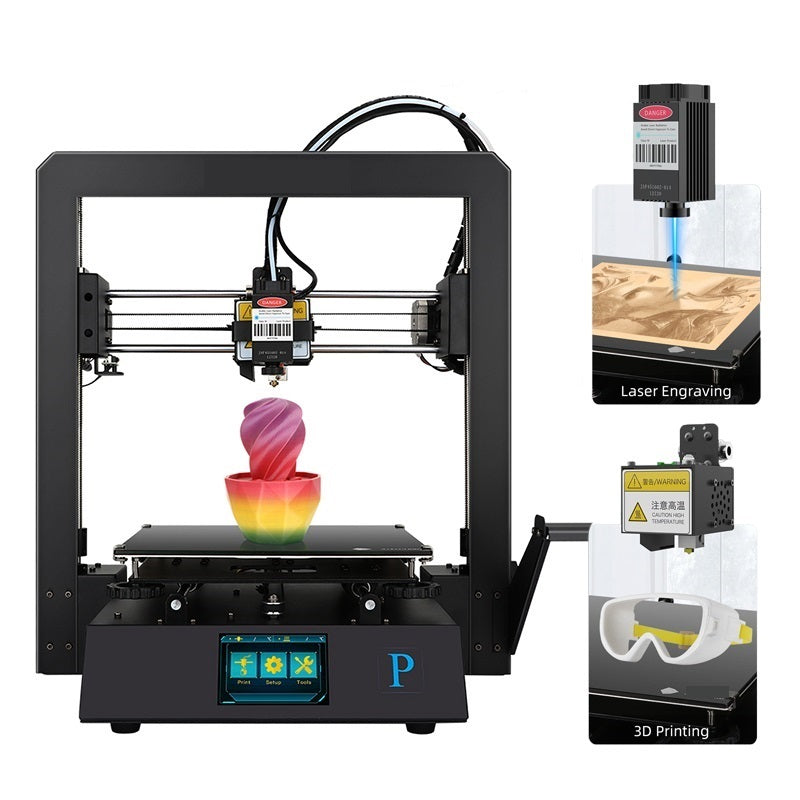

Technical Specification:
3D printing:
Printing Technology: FDM (Fused Deposition Modeling)

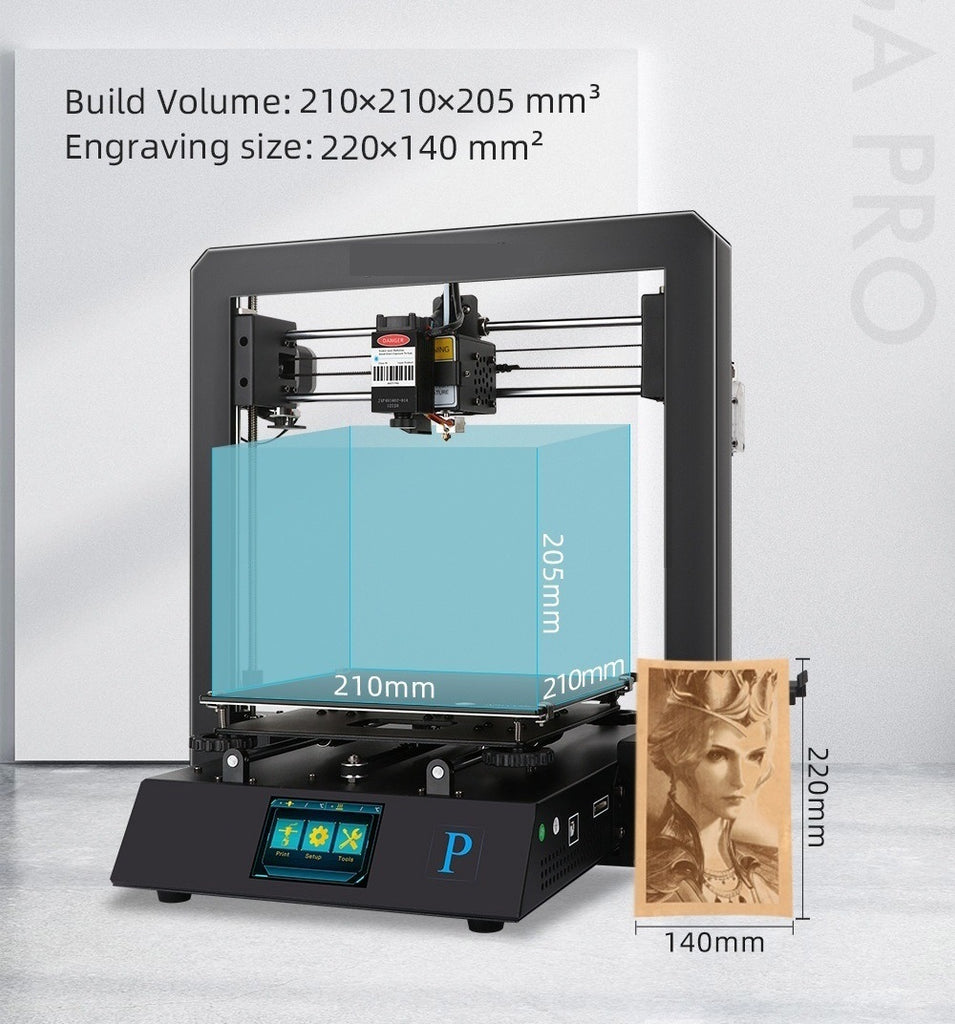

Build Volume: 210×210×205 mm3;
Layer Resolution: 0.05-0.3 mm
Positioning Accuracy: X/Y- 0.0125mm;Z- 0.002mm
Extruder Quantity: Single
Nozzle Diameter: 0.4 mm
Print Speed: 20~100mm/s (suggested 60mm/s)
Travel Speed: 100mm/s
Supported Materials: PLA, TPU, etc
Temperature
Ambient Operating Temperature: 8°C - 40°C
Operational Extruder Temperature: max 260°C

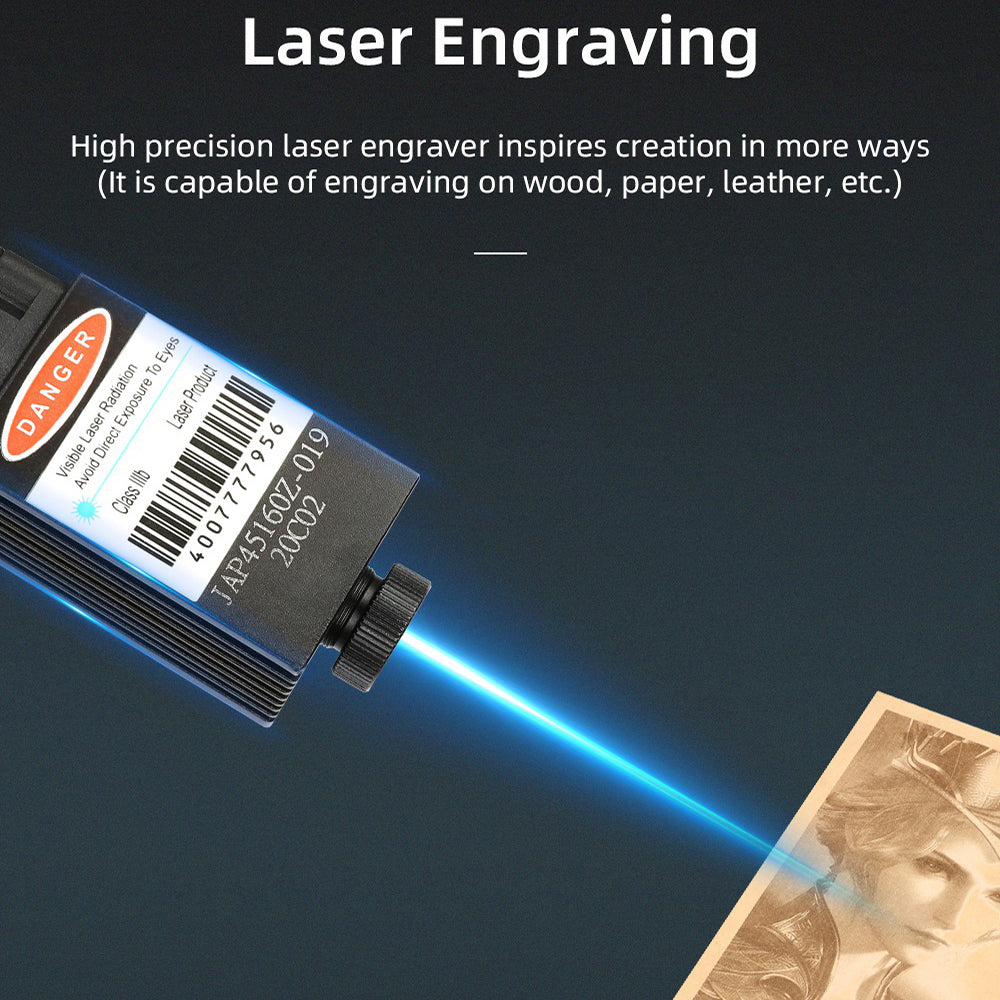

Laser engraving:
Image format: bmp
Engraving size: 220×140 mm2;
Engraving mode: bitmap
Pixel size: 0.05-0.4mm (suggested 0.1mm)
Recommended laser intensity: Brown paper - 15%;Wood - 25%
Laser height: 1-100mm(suggested 50mm)
Mirror image: the default value is recommended
Rated power: 1500mw
Supported Materials: Leather, Paper, Wood, etc
Software
Slicer Software: Cura
Software Input Formats: .STL, .OBJ,.DAE, .AMF
Software Output Formats: GCode
Connectivity: SD Card; USB cable(expert users only)
Electrical
Input rating: 110V-220V AC, 50/60Hz
Physical Dimensions
Printer Dimensions: 405X410X453mm3;
Weight: ~15kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
