Features Highlights:

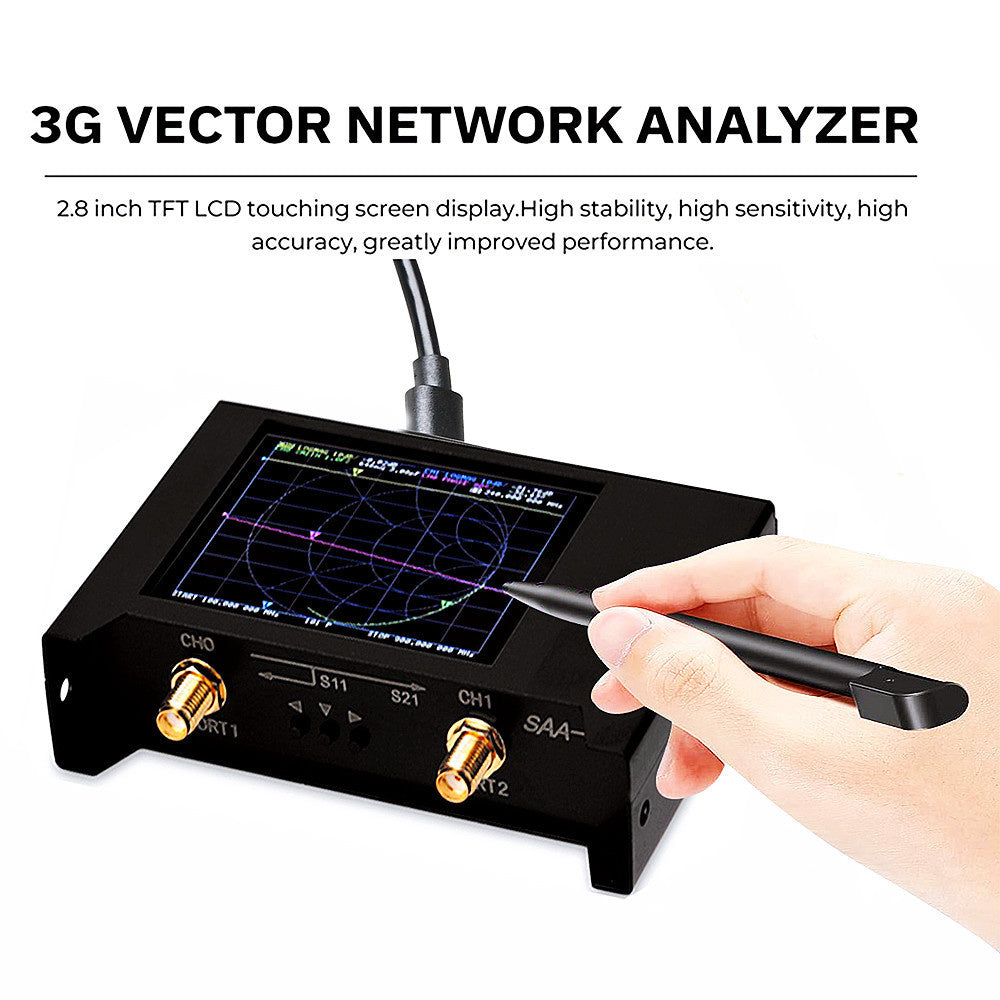

Nanovna V2 2.8 inch TFT touch screen 3G vector network analyzer SAA2 shortwave antenna analyzer HF VHF network analyzer. Made of high-quality materials, with strong practicality and long service life. Portable and compact, easy to operate and carry. 2.8 inch TFT LCD screen for more precise touch.The measurement frequency range is 50KHz-3GHz. High stability, high sensitivity, high accuracy, and greatly improved performance.

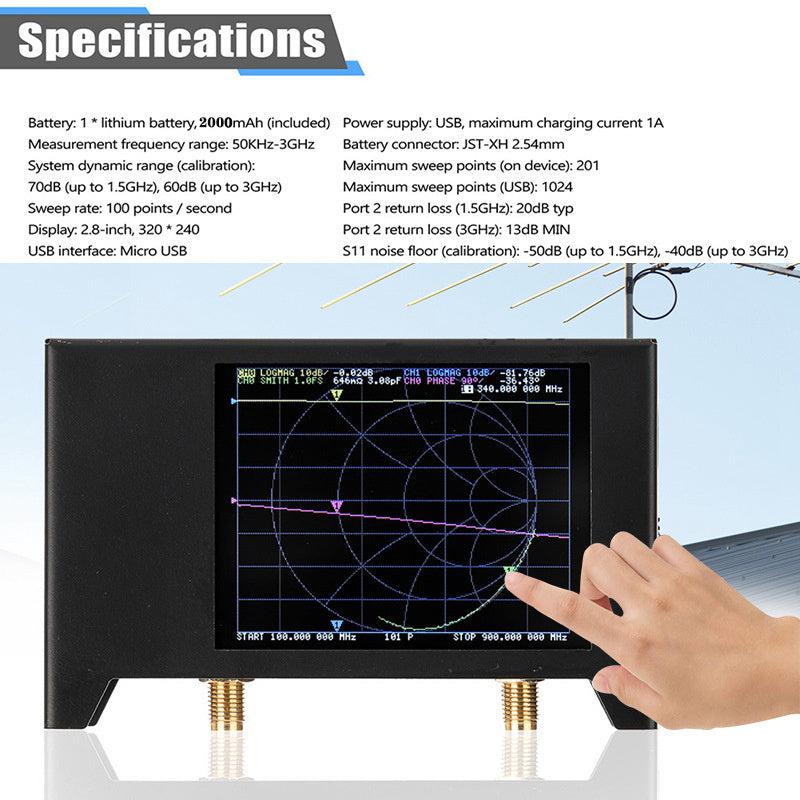

Product Performance:
● Frequency range: 50kHz to 3GHz
● System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
●
● Scanning speed: 100 points/second
● Display: 2.8 inches, 320 x 240
● USB interface: Micro USB
● Power supply: USB, maximum charging current 1A

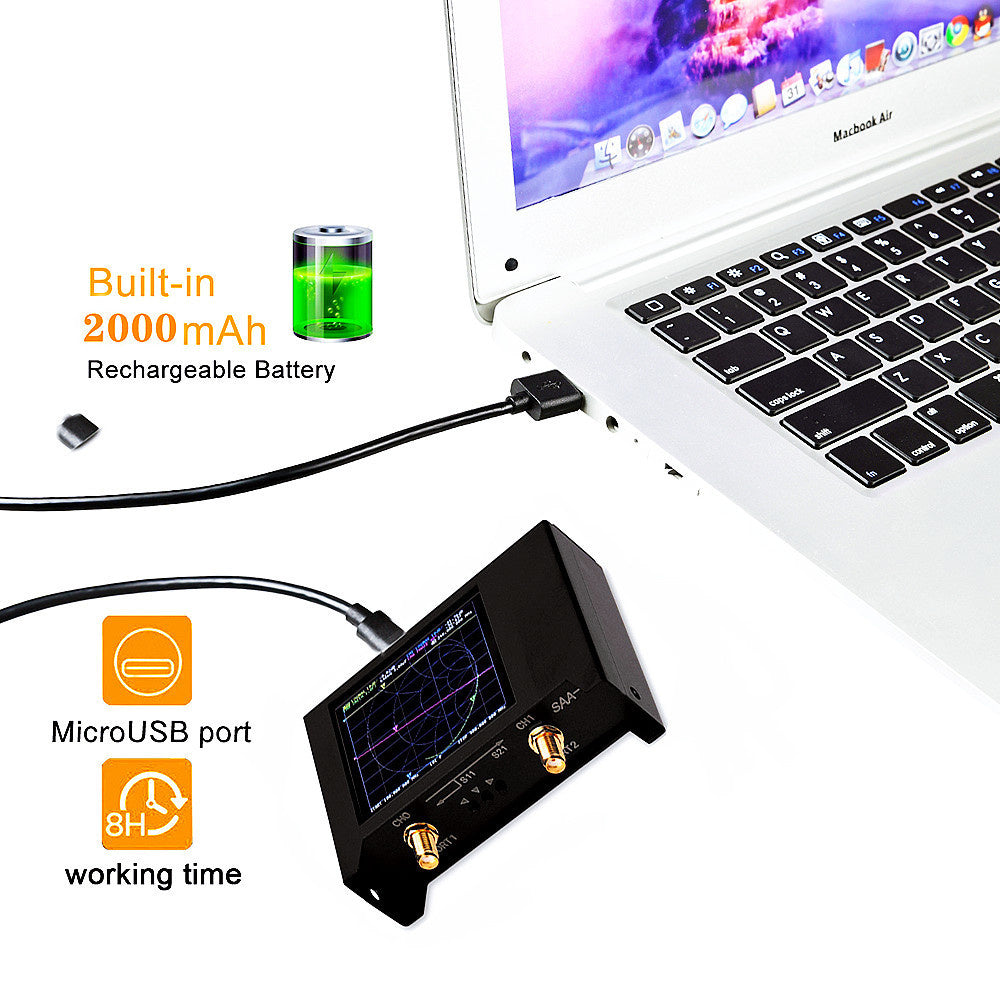

● Battery: 2000mAh lithium-ion
● Battery connector: JST-XH 2.54mm
● Maximum scan point (on device screen): 201
● Maximum scan point (USB): 1024
● Port 2 return loss (1.5GHz): 20dB typ
● Port 2 return loss (3GHz): 13dB MIN
● VNA-QT software compatible systems: Linux, Windows (7+), Mac OS planned
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
