Features:
【3in1 Design Comprehensive Measurement】:
【Oscilloscope Function】:
【Signal Source Function】: Arbitrary signal waveform measurement of sinewave, squarewave, positivewave, pulse signal, sinusoidal signal, sawtoothwave, arbitrarywave, noise, direct current, etc. This offers high flexibility and practicality for emulating various signal environments, assessing system responses, and enhancing teaching demonstrations.
【Multimeter Functions】:
【Premium Material Digital Display】: The compact, lightweight, and portable body design, makes it easy to carry around. Protective silicone coating is resistant to slip, drop, and impact, with a comfortable hand feel. The changes in various measurement parameters are captured and displayed on the 480*320 3.98-inch TFT IPS display in real-time, forming a clear and concise data trend graph, making data analysis more intuitive and accurate.
【Rechargeable Battery Wide Applications】:

Specifications:
Name: 3in1 Multimeter
Material: plastics+silicone+glass

Basic Parameter

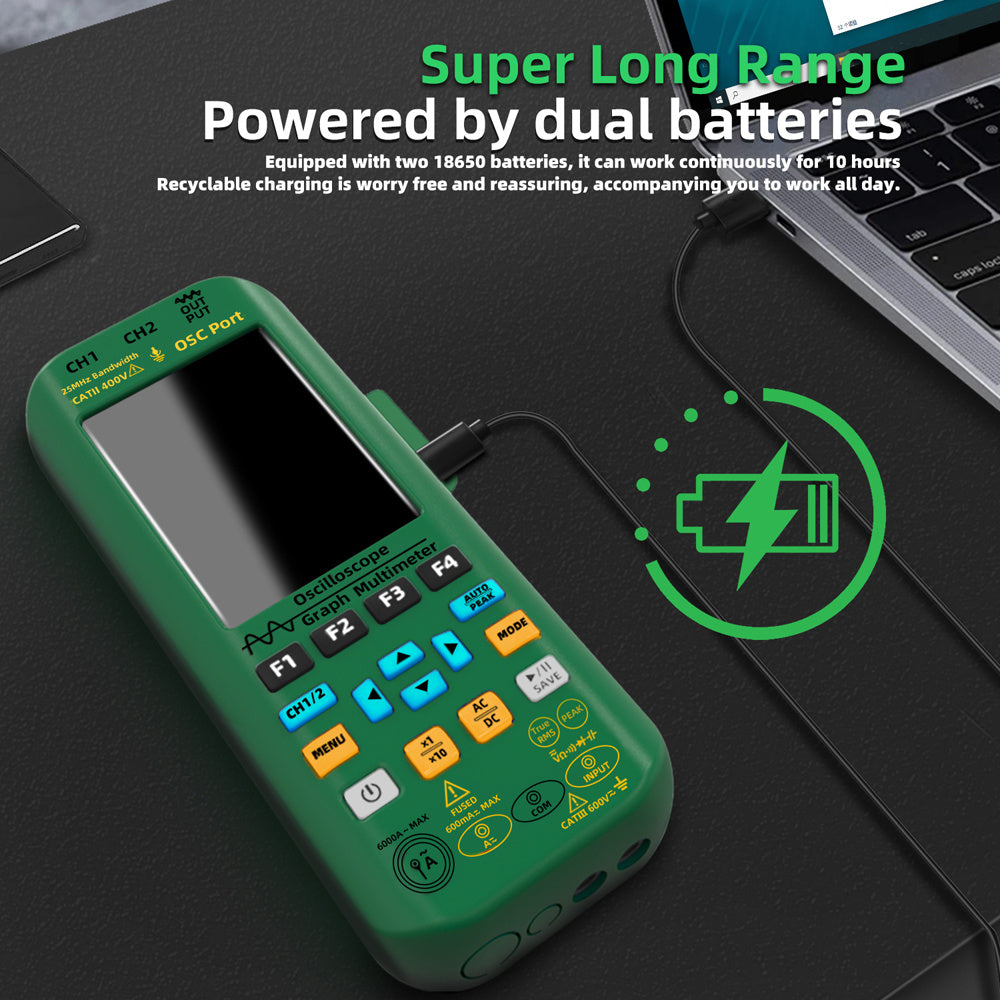

Battery: 2 * built-in 6000mAh battery (included)
Screen size resolution: 3.98 Inch (480*272 pixels) IPS display
True RMS measurement: 6000 count
Data hold: √
Screen backlight: √
Low battery reminder: √
Automatic shutdown: √
Working environment: 0-40℃, 75%RH
Storage environment: -20℃ to 60℃, 80%RH
Item size: 216.6 * 84.5 * 36mm / 8.53 * 3.33 * 1.42in
Item weight: 477g / 1.05lb
Package size: 240 * 128 * 73mm / 9.45 * 5.04 * 2.87in
Package weight: 945g / 2.08lb

Multimeter
DCvoltage: 6.000V/60.00V/600.0V/1000V, ±(0.8%+3); 60.00mV/600.0mV, ±(1.0%+5)
ACvoltage: 6.000V/60.00V, ±(1.0%+3); 600.0V/750V, ±(1.2%+5); 60.00mV, ±(1.2%+5); 600.0mV, ±(1.0%+3)
AC voltage frequency response: 40Hz-1kHz
DCcurrent: 60.00mA/600.0mA, ±(1.0%+3)
ACcurrent: 60.00mA/600.0mA, ±(1.2%+5)
Flexible current clamp/AC Current(A): 600.0A/6000A, ±(1.0%+5)
Resistance: 600.0Ω, ±(1.2%+5); 6.000KΩ/60.00KΩ/600.0KΩ, ±(1.0%+3); 6.000MΩ/60.00MΩ, ±(1.5%+5)
Capacitance: 999.9n, ±(5.0%+20); 9.999uF/999.9uF, ±(4.5%+5); 99.99mF, ±(5.0%+10)
Temperature: (-20~1000℃)/(-4~1832℉), ±(2.5%+5)
Diode: √
Connectivity: √

Signal Generator
Channel: Single channel
Frequency: 0-2MHz
Channel: 1
Amplitude: 0.1V-3.0V
Squarewave duty cycle: 1-99%
Signal type: sinewave, squarewave, sawtoothwave, halfwave, fullwave, direct current signals, direct current

Oscilloscope
Channel: Dual channel
Analogue bandwidth: 25MHz
Real-time sample rate: 208MSa/s

Storage depth: max 64kByte
Input impedance: 1MΩ,@16pf
Probe attenuation: 1x/10x
Maximum input voltage: X1 150V, X10 300V

Waveform interpolation: (sinx)x
Sweeprange: 100ns/div-20s/div
Displacement ranges: 4 frames (positive and negative)
Analogue bandwidth: 25MHZ
Low frequency response: 10HZ
Rise time: 10ns
Direct current gain accuracy: ±3%
Automatic measurement: period, frequency, peaktopeak, maximum value, minimum value, duty cycle, root meansquare
Trigger mode: automatic/normal/single

Signal generator output: squarewave, sawtoothwave, halfwave, fullwave
Afterglow time: Min, 500ms, 1s,10s, Unlimited

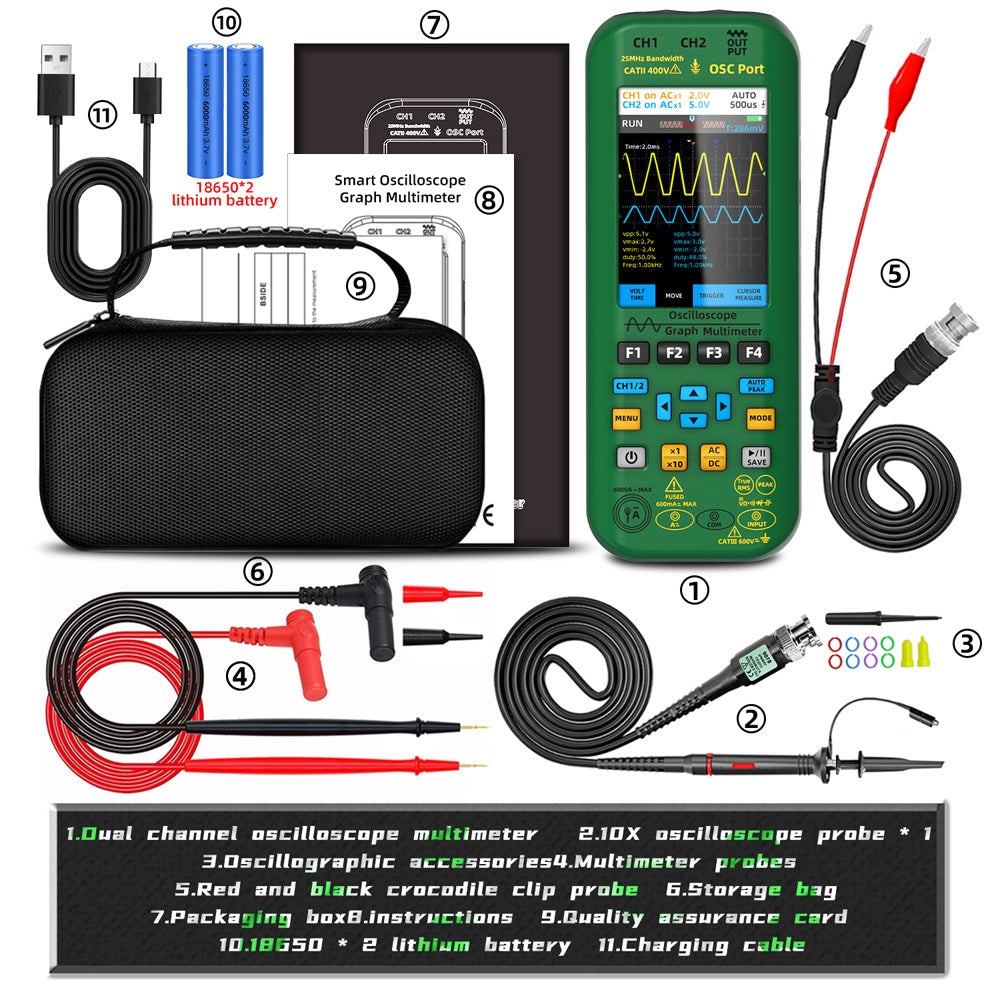

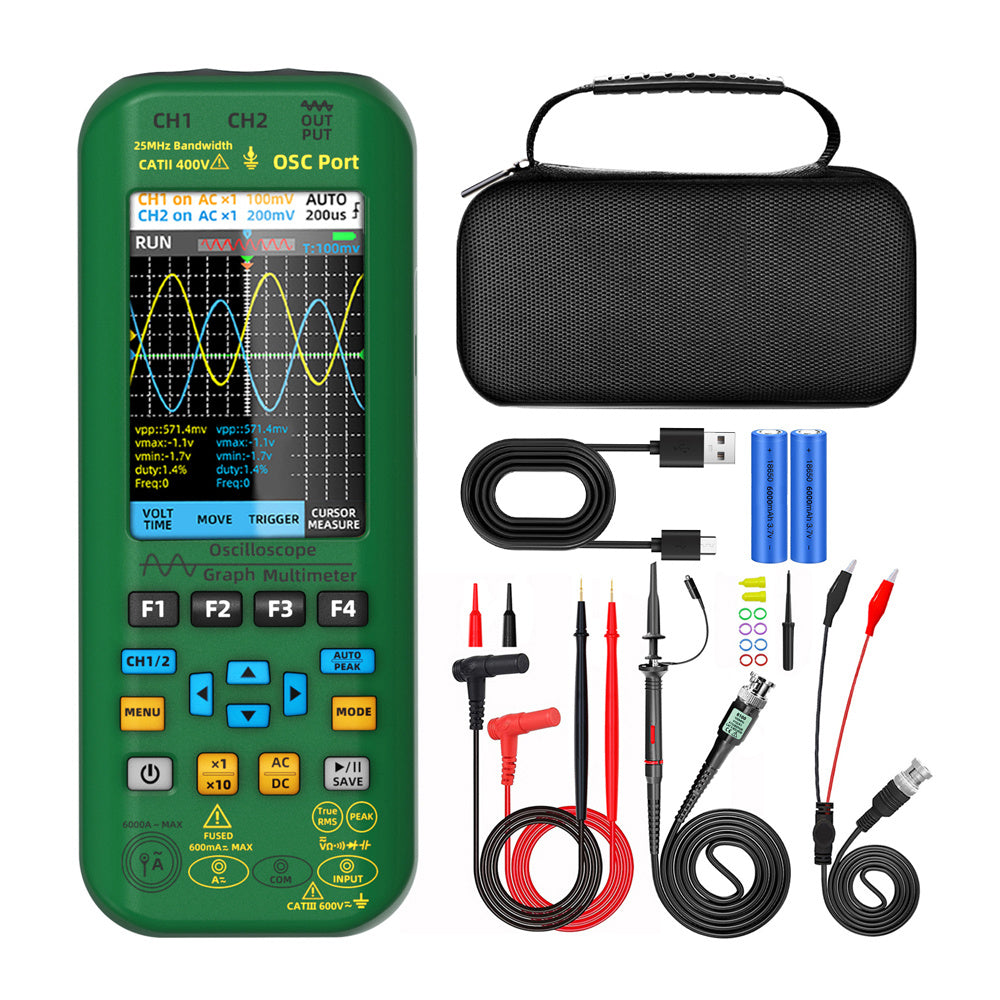

Packing List:
1 * 3in1 Meter
2 * Probe
1 * Multimeter Pen
1 * Clip Probe
1 * Cable
1 * EVA Bag
