Features:
【3in1 Design Comprehensive Measurement】:

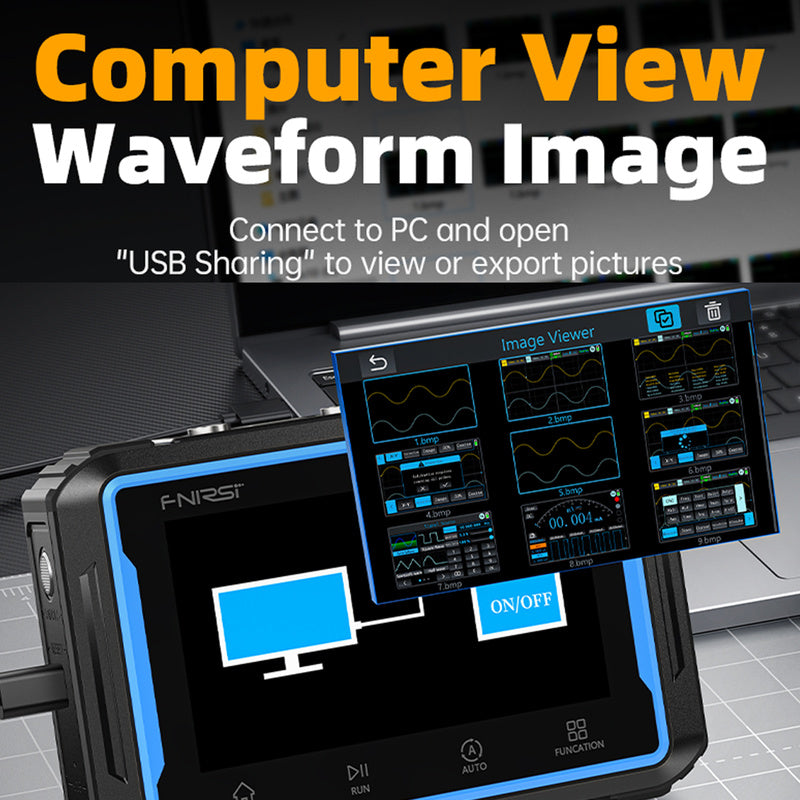

【Oscilloscope Function】: Easy to manage oscilloscope imaging, which can be connected to the computers via USB cable for secondary analysis, making professionalism more convenient. Support saving/viewing/deleting imaging to ensure professional and convenient data management. Powerful waveform computing ability, real-time, accurate addition, subtraction, multiplication, and division operations, in-depth analysis and processing of complex signals, waveform computing display clearer, help in signal processing and troubleshooting.
【Signal Generator Function】: This signal generator featuring a 12-kind adjustable waveforms, encompassing sine waves, rectangular waves, sawtooth waves, half waves, full waves, positive stepped waves, inverse stepped waves, direct current signals, exponential rise/fall, multiple audio signals, and sink pulses. This offers high flexibility and practicality for emulating various signal environments, assessing system responses, and enhancing teaching demonstrations.
【Multimeter Functions】:

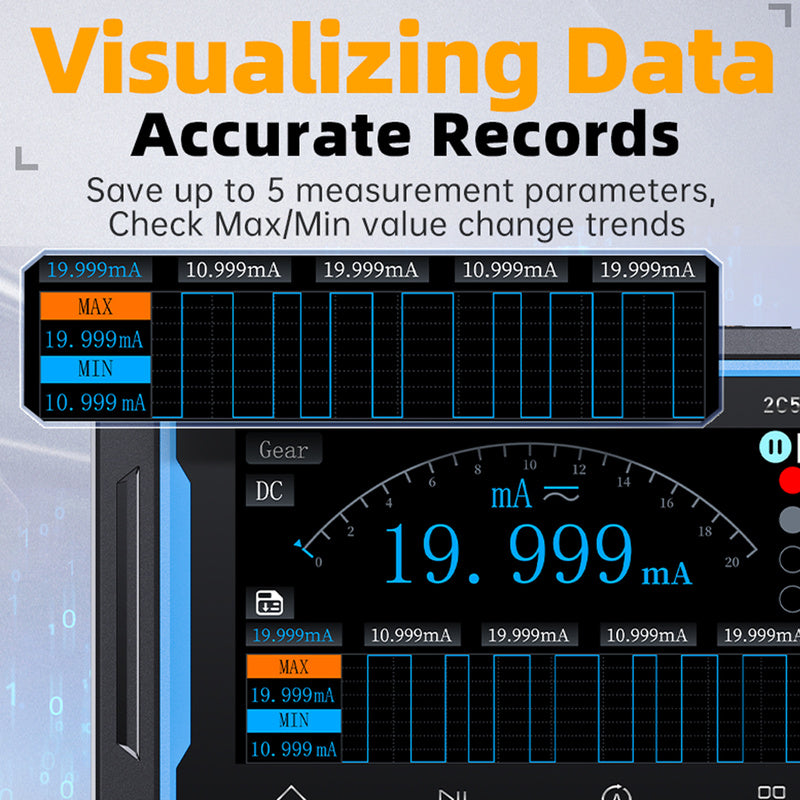

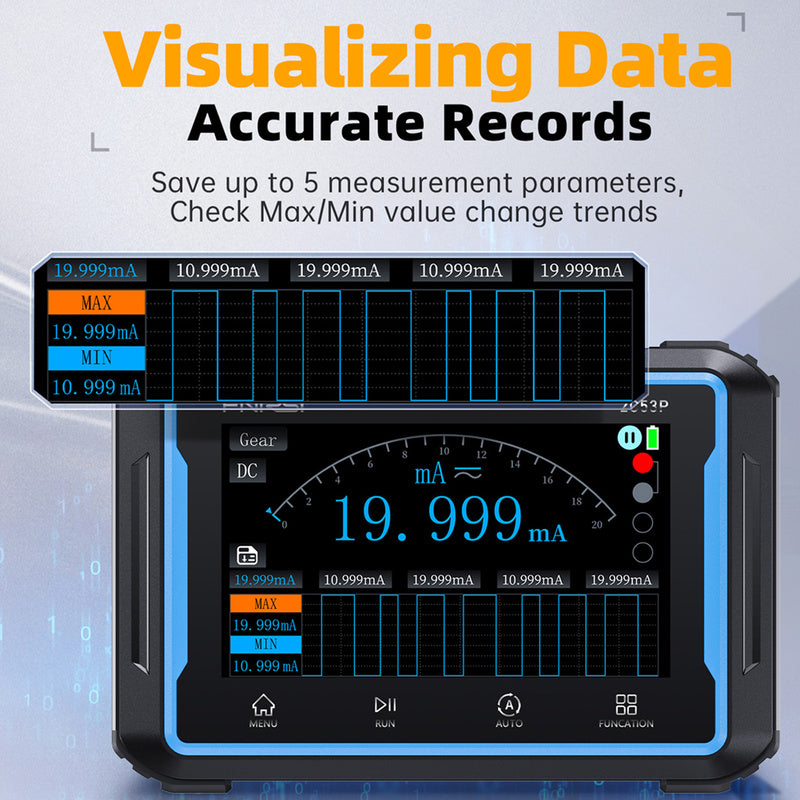

【Powerful Data Analysis Storage】: This device supports FFT spectrum analysis, mathematical operations, cursor measurement, X-Y mode, and other functions. It is equipped with 19.6K LUTs logical resources and real storage depth, and can save up to 5 groups of measurement data. This allows for in-depth analysis and visualization of data management.
【Convenient Operation Efficient Triggering】: The operation interface is simple and intuitive, with one-button Auto function for quick setup, 20M bandwidth limiting function for precise positioning of weak signals, and multiple triggering modes to adapt to complex measurement needs, so that every measurement is efficient and accurate. Through data visualization and precise memory function, changes in various measurement parameters are captured and displayed in real time, forming a clear and concise data trend graph, making data analysis more intuitive and accurate
【Rechargeable Battery High Portability】:

Specifications:
Name: 3in1 Multimeter
Material: plastics+silicone+glass

Basic Parameters
Battery: 1 * built-in 4000mAh battery (included)

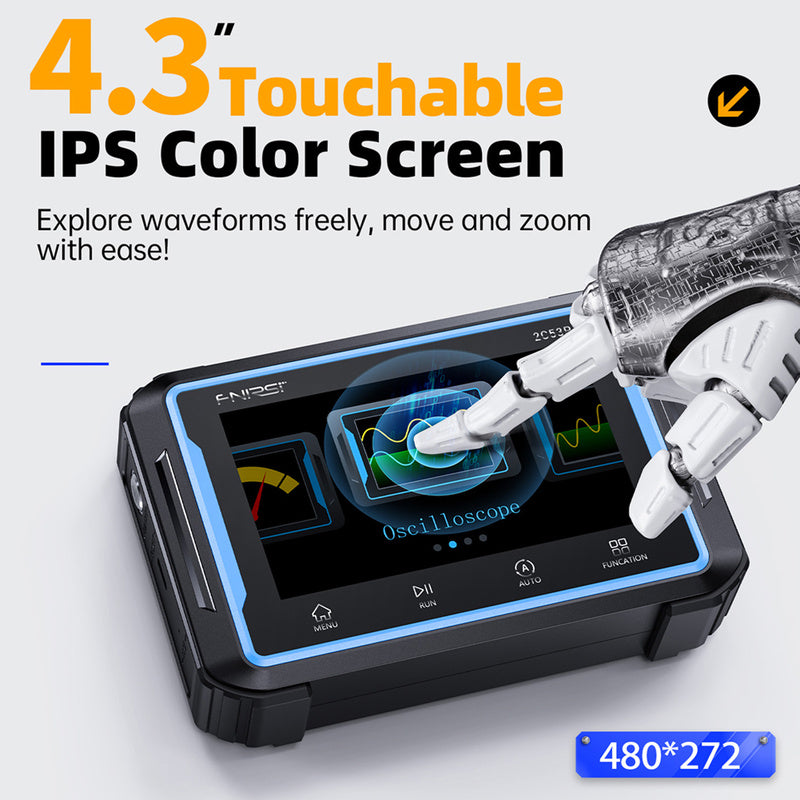

Screen size resolution: 4.3 Inch (480*272 pixels) IPS display
Screen material: surface tempered glass
Architecture: ADC+MCU+FPGA

Charging interfave: TYPE-C(5V/2A)
Language: Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
Item size: 145 * 98 * 35mm / 5.71 * 3.86 * 1.38in
Item weight: 360g / 0.79lb
Package size: 230 * 135 * 68mm / 9.06 * 5.31 * 2.68in
Package weight: 830g / 1.83lb

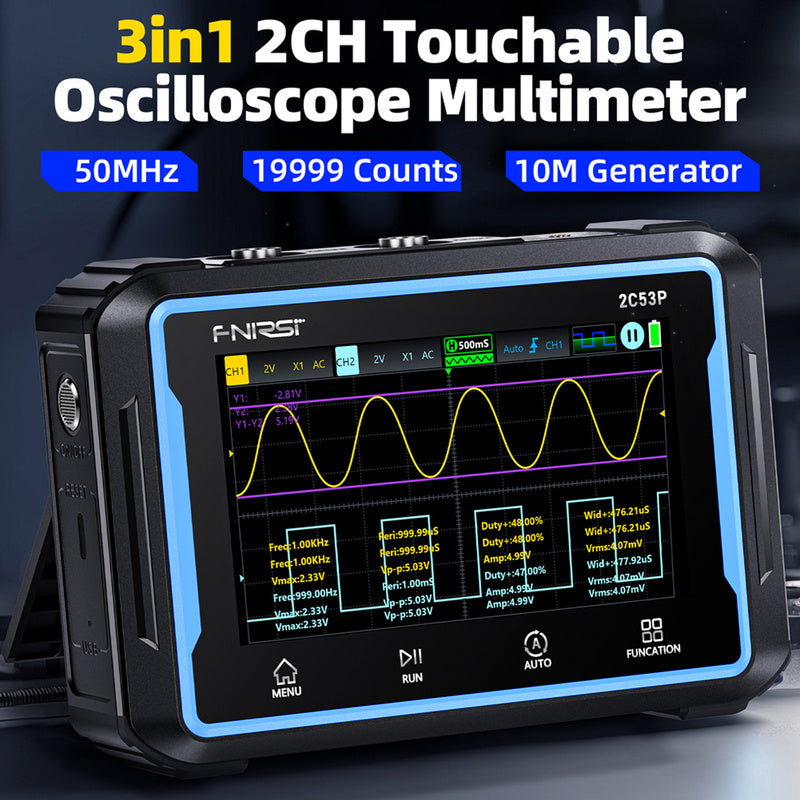

Oscilloscope
Channel: Dual channel
Analog bandwidth: 50MHz
Real-time sample rate: 250MSa/s
Storage depth: Up to 64kByte
Input mpedance: 1MΩ
Time base range: 10ns/div - 10s/div
Vertical sensitivity: 10mv/div - 10v/div
Vertical resolution: 8 bits
Maximum measured voltage: ±400V
Probe: 1x/10x
Storage space: 13M
Bandwidth limit: Support 20MHz limit
Trigger mode: AUTO/Normal/Single

Trigger level range: 8 cells (positive/negative)
Waveform display mode: XY/YT/Scroll

Measured data: Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width
Math alculations: 1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT
Save waveform screenshot: Yes
Export waveform images from computers: Yes

Multimeter
DCvoltage: 1.9999V/19.999V/199.99V/1000.0V, ±(0.5%+3)
ACvoltage: 1.9999V/19.999V/199.99V/760.0V, ±(1%+3)
DCcurrent: 19.999mA/199.99mA/1.9999A/9.999A, ±(1.2%+3)
ACcurrent: 19.999mA/199.99mA/1.9999A/9.999A, ±(1.5%+3)
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ, ±(1.5%+3); 1.9999KΩ/199.99Ω, ±(0.5%+3)
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF, ±(2.0%+5); 9.999mF/99.99mF, ±(5.0%+20)
Temperature: (-55~1300℃)/(-67~2372℉), ±(2.5%+5)
Diode: Yes
Continuity test: Yes

Signal Generator
Channel: Single channel
Frequency: 0-10MHzSinewave: 10MHz, other waveforms 5MHz
Amplitude: 0.1V-3.0V
Squarewave duty cycle: 0-100%
Signal type: sinusoidal waves, squarewaves, sawtooth waves, half waves, full waves, positive stepwaves, negative stepwaves, direct current signals, exponential rises, exponential falls, multi-audio signals, and sync pulses

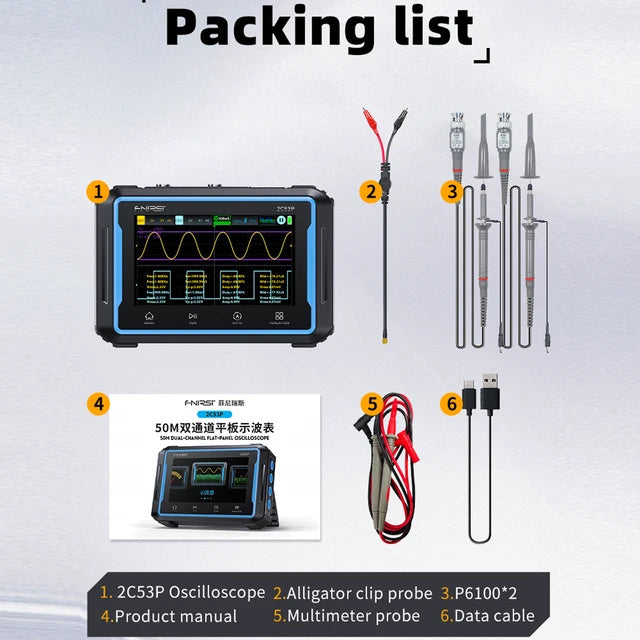

Packing List:
1 * 3in1 Meter
2 * P6100 Probe
1 * Multimeter Pen
1 * Clip Probe
1 * Cable
