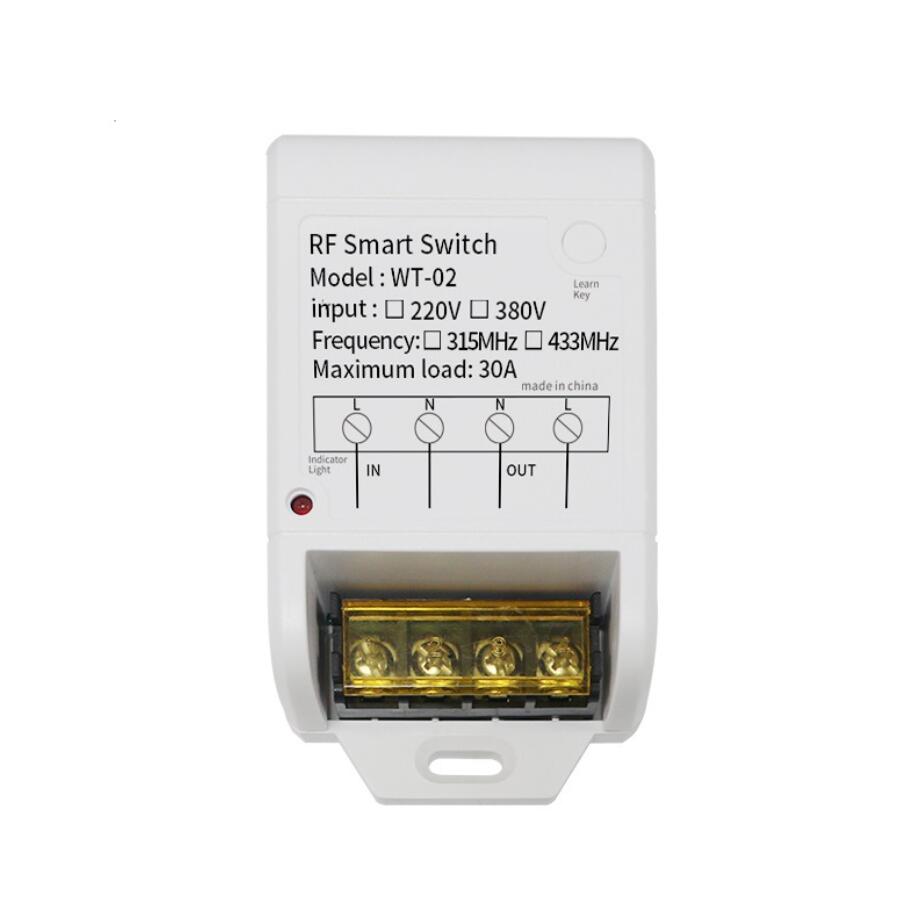

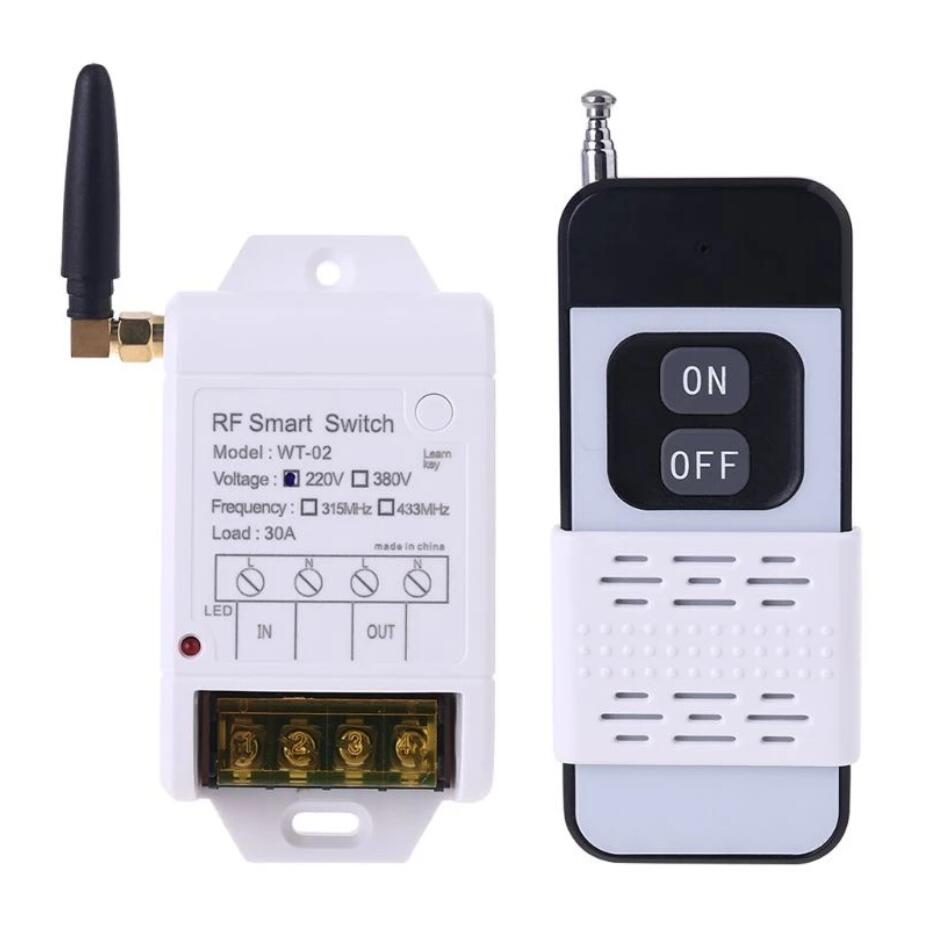

Model: WT-02

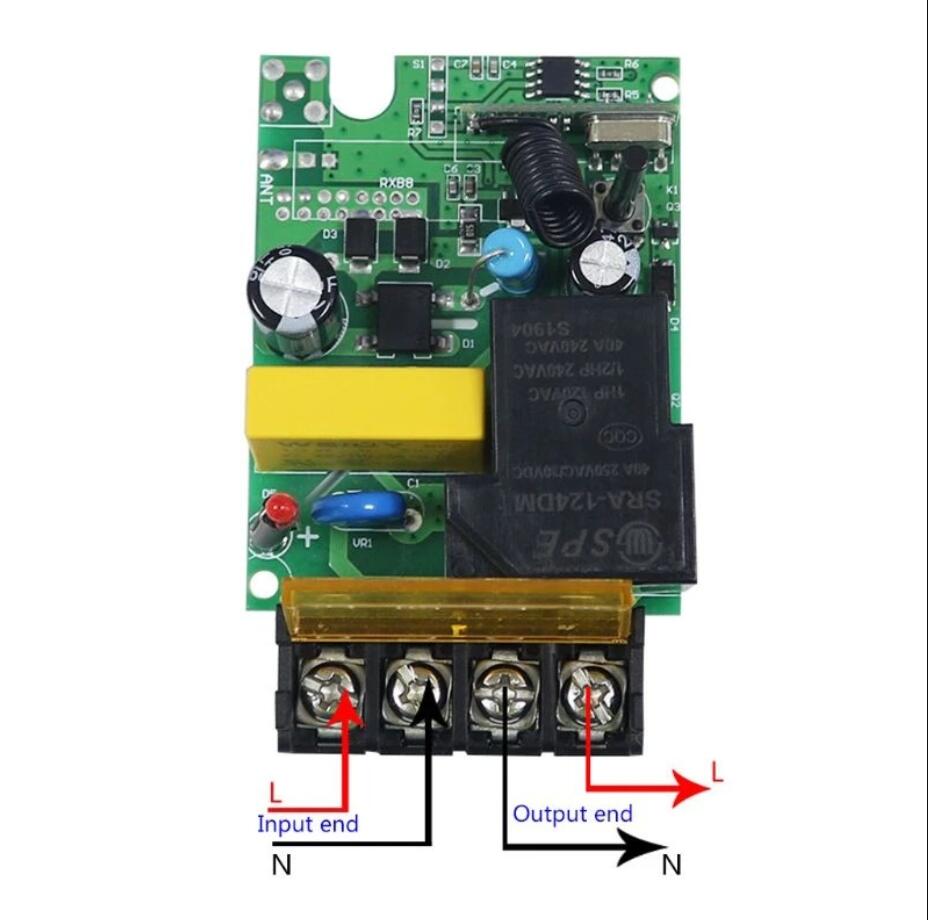

Product specifications: circuit board: 50*82*29mm shell: 55*110*35mm
Product frequency: 315/433MHz other frequencies support customization
Working voltage: AC220V
Working mode: interlock (default)
Remote control distance: 2000M in open environment
Product weight: 150g
Application fields: water pumps, motors, high-power lamps, etc.
Instructions
learning function
Jog mode: Long press the learning button, the indicator light will be on and enter the learning state, press the remote control to transmit the signal,
The indicator light flashes slowly 5 times and the learning is successful.
Interlock mode: long press the learning button, let go after the indicator light is on
Short press the learning button once, the indicator light flashes slowly once to enter the interlock learning state, press the A button on the remote control, and point to
The indicator light flashes slowly 3 times, and then press the B button again, the indicator light flashes slowly 3 times and the learning is successful.
Self-locking mode: long press the learning button, the indicator light is on, short press the learning button 2 times again, the indicator light slows down
Flash 2 times to enter the self-locking learning state, press the remote control to send a signal, the indicator light flashes 5 times slowly and then the learning is successful.
Clear code operation
Press and hold the learning button on the control panel for about 8 seconds, the indicator light will turn from off to on, let go and press it
Learning key, which means clear code is successful.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
