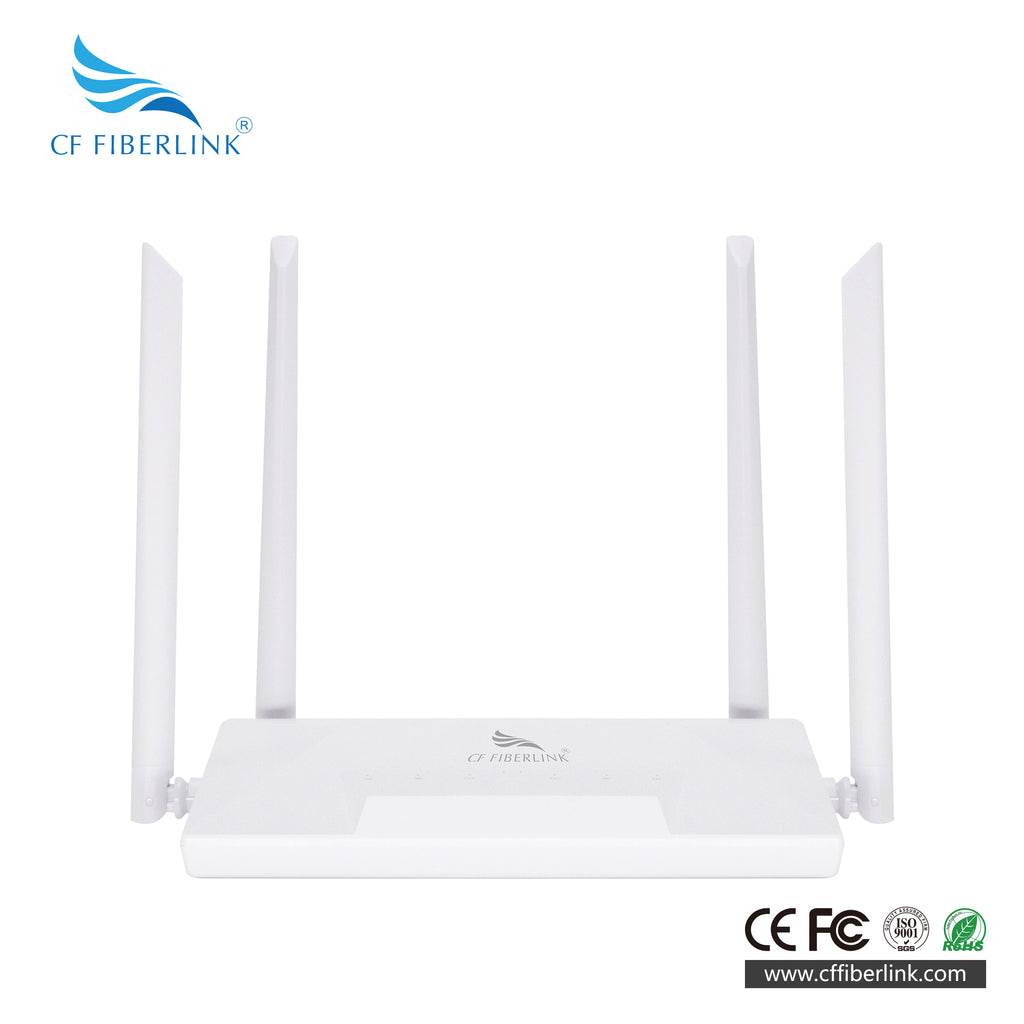

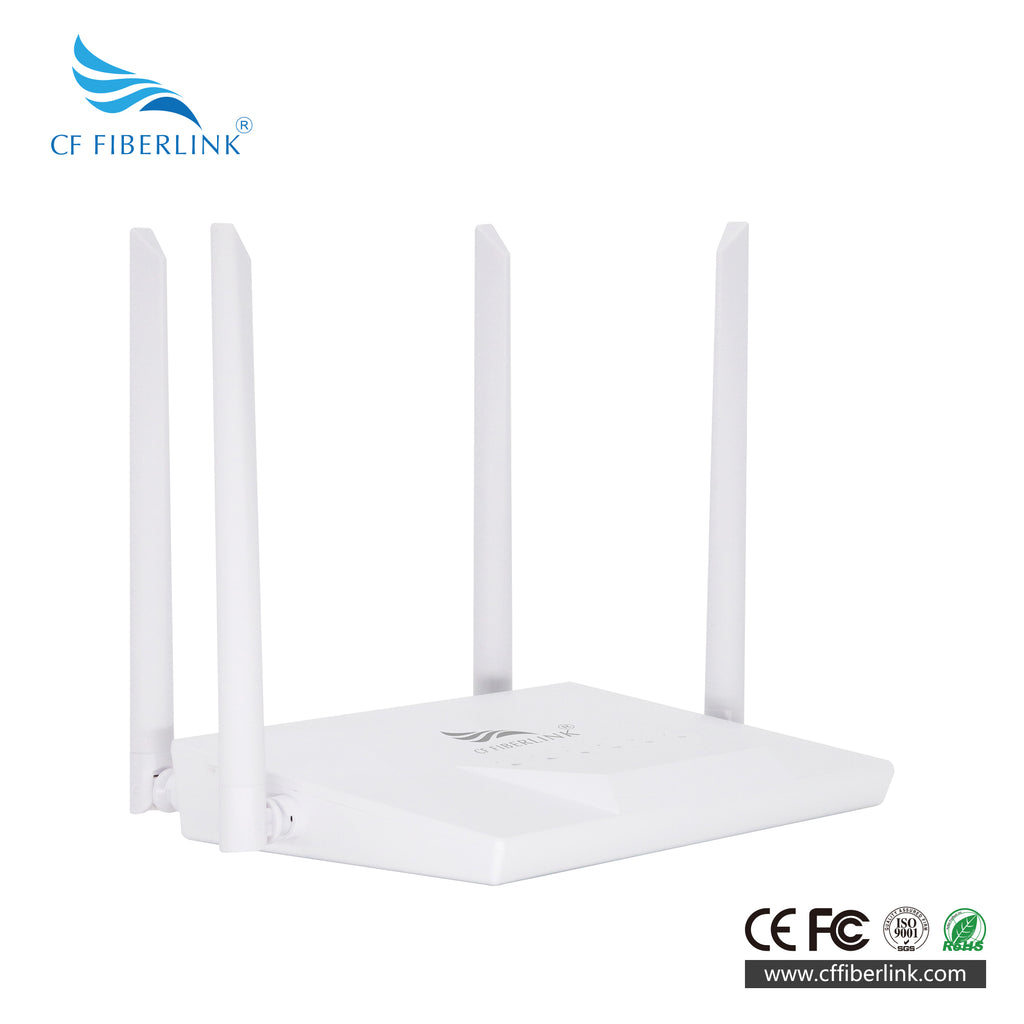

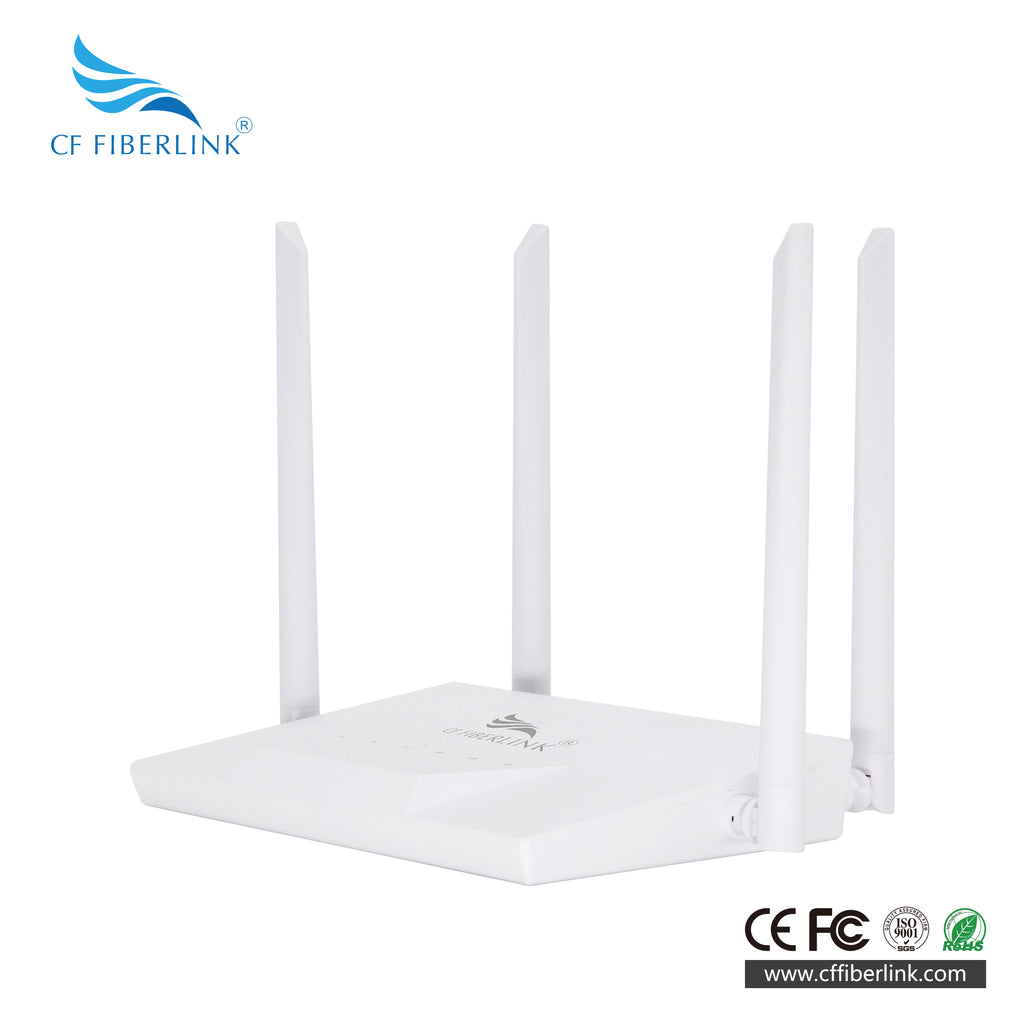

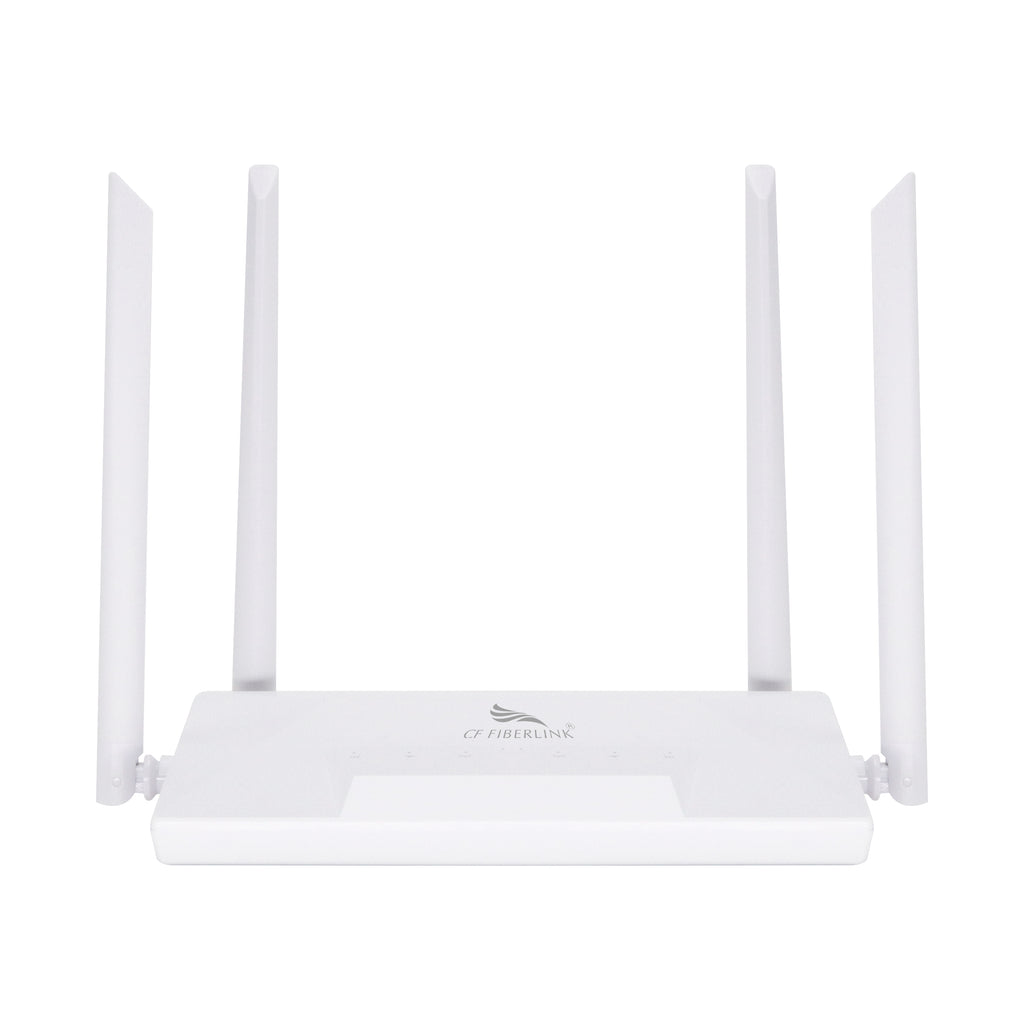

Model
|
TechnologyCF-ZR300
|
|

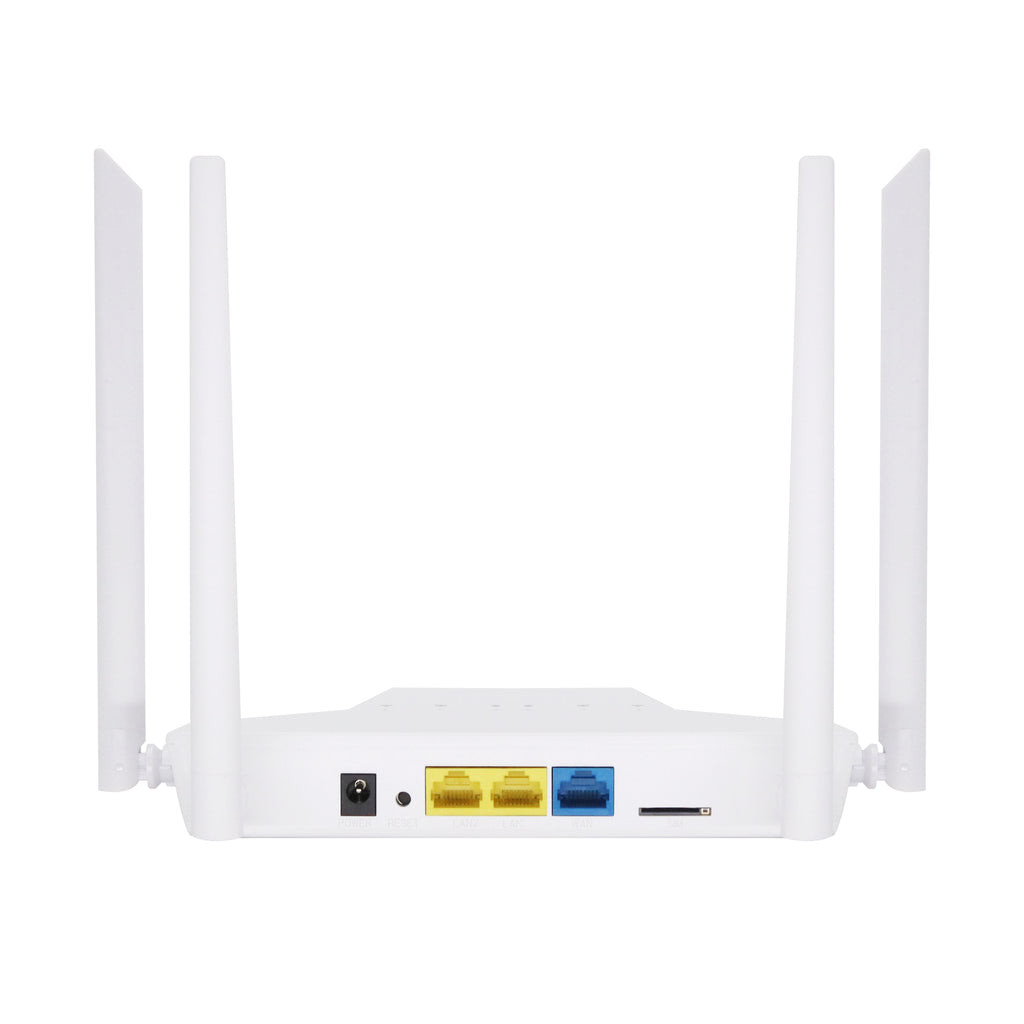

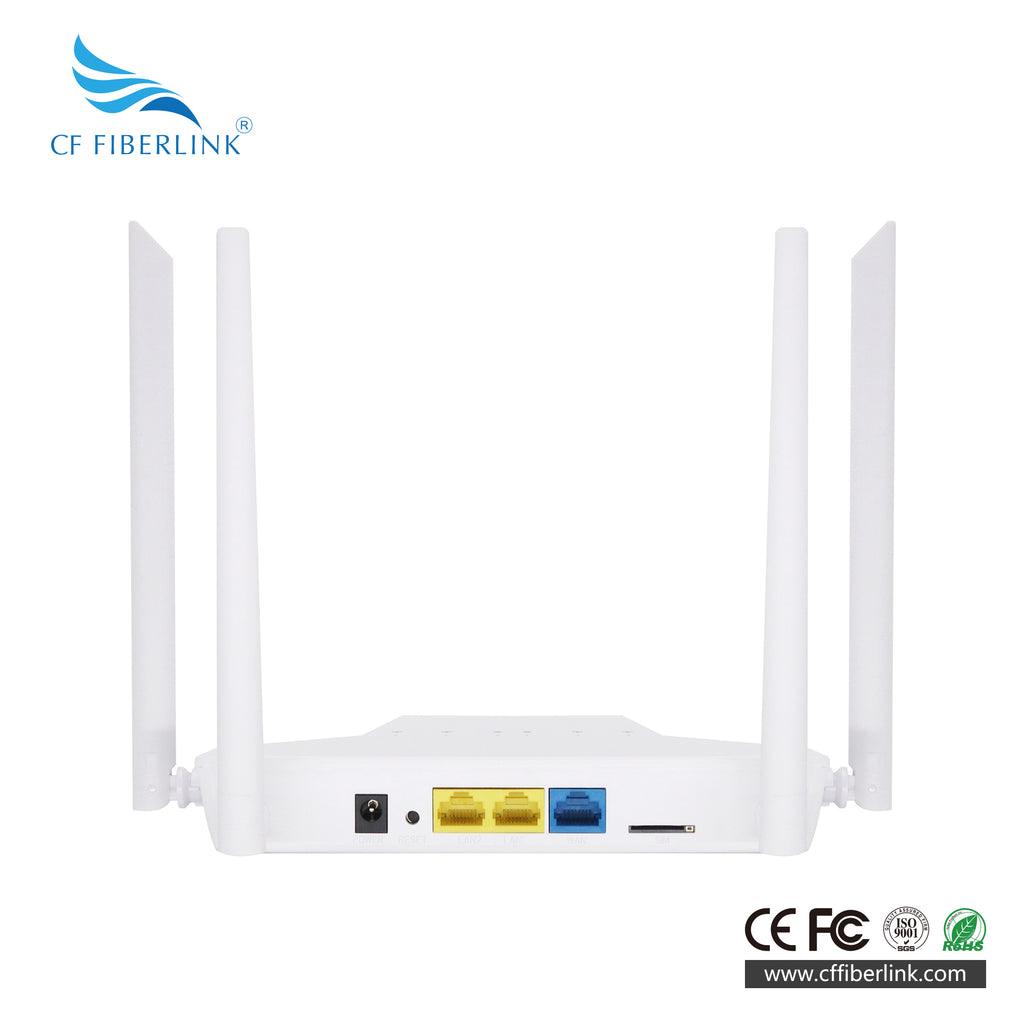

Fixed Port
|
1*10/100M WAN port
2*10/100M LAN ports |
|
SIM Card Slot
|
1
|
|
Ethernet Port
|
10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
|
|
Network Protocol
|
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u100Base-TX, IEEE802.3x |
|
Chip
|
MTK7628KN 300M
|
|
Wireless protocol
|
802.11b/g/n 300M MIMO
|
|
Flash
|
2MB
|
|
DDR2 Memory
|
8MB
|
|
Antenna
|
2.4G 2 pcs, 4G antenna 1 pc
External omnidirectional antenna: 2.4G 3dBi, 4G 3dBi |
|
Transmission Rate
|
11b:11Mbps, 11g: 54Mbps, 11n:300Mbps
|
|
Reset Switch
|
Press and hold for 3 seconds to restore factory settings. Press and hold for 1-2 seconds to enter the WPS adaptation connection
process |
|
LED Indicator
|
Power: PWR (green), Network: WAN, LAN (green), 4G connection: 4G (green),
Wireless: WIFI (green) |
|
Dimension (L*W*H)
|
180mm *128mm*28mm
|
|
WiFi Features
|
|
|
RF Frequency Range
|
802.11b/g/n:2.4~2.4835GHz
|
|
modulation mode
|
11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps11g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
|
|
Transmission Rate
|
11b: 1/2/5.5/11Mbps11g: 6/9/12/18/24/36/48/54Mbps11n: Up to 300Mb
|
|
Receiving Sensitivity
|
11b: <-84dbm@11Mbps；11g: <-69dbm@ 54Mbps；11n: HT20<-67dbm
|
|
Transmit Power
|
11b: 18dBm@ 1~11Mbps11g: 16dBm @ 6~54Mbps11n: 15dBm@ MCS0~7
|
|
Communication standards
|
IEEE 802.3(Ethernet)；IEEE 802.3u(Fast Ethernet)；IEEE 802.11b/g/n(2.4G WLAN)
|
|
4G Features
|
|
|
GNSS
|
EC20 CE FHKG
|
|
LTE-FDD
|
B1/B3/B5/B8
|
|
LTE-TDD
|
B38/B39/B40/B41
|
|
WCDMA
|
B1/B8
|
|
TD-SCDMA
|
B34/B39
|
|
CDMA
|
BC0
|
