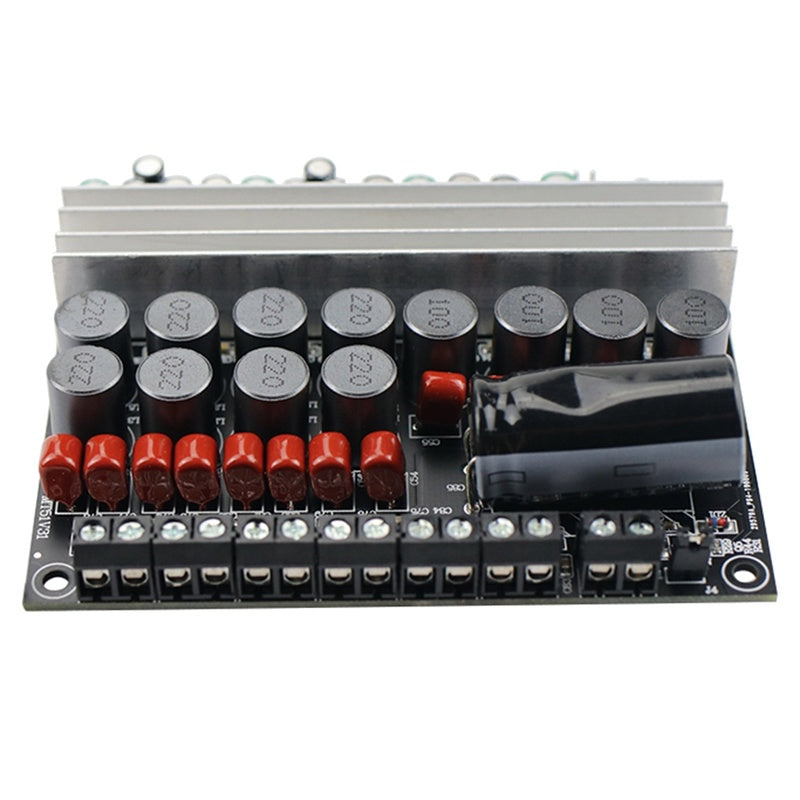

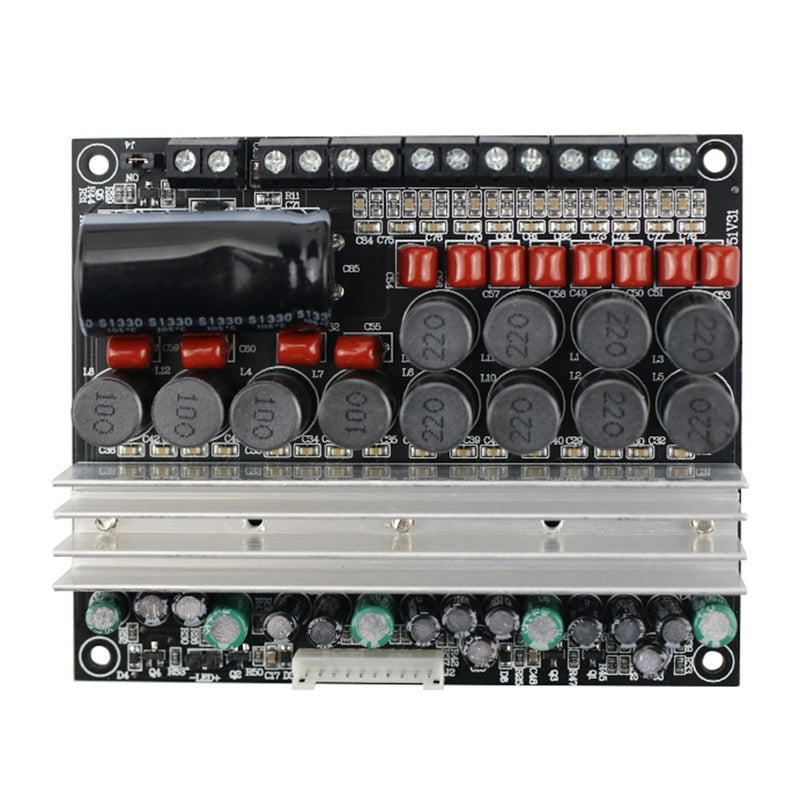

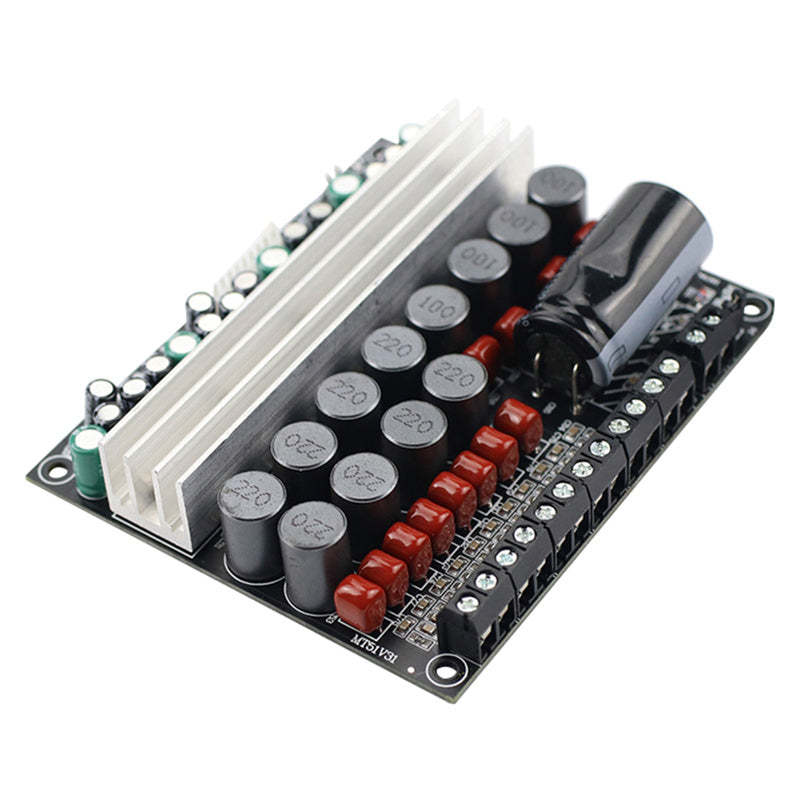

1.This product is the cinema 5.1 6 channel finished board, connected to the power supply, speakers, sound source can work with 7-pin input signal adapter cable.
2.Independent 6 into and 6 out, Pure power amplifier. 4-way 50W; 2-Way 100W
3.This is a used to assemble the Mid power 5.1 amplifier, to adapt to most of the home audio-visual environment
4.Theater style, treble noisy, bright voice, bass strong, low noise control
5.You can directly connect the computer sound card, Decoder, DVD, HD player, you can also upgrade most of the AV power amplifier, you can connect a single signal and differential signal, with the power supply of the Pre-amplifer board, easy to use
There are ACC control delay delay, power on no sonic boom. Can be an external control switch, an external LED indicator interface
Use pure copper, large hole terminal, reliable connection
Input characteristics:

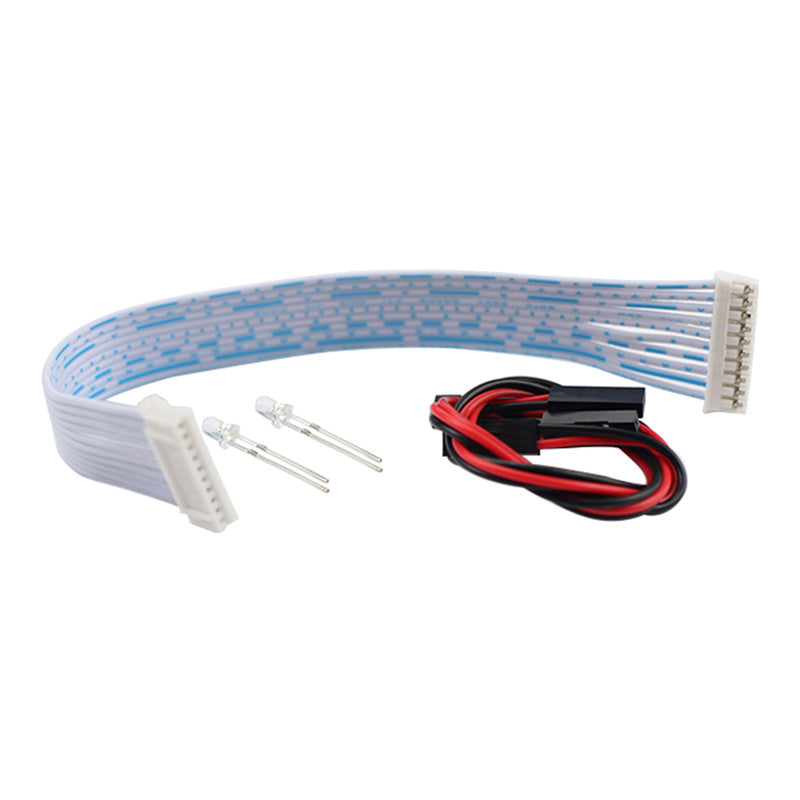

Input high impedance, high sensitivity, adapt to computer sound card, decoder, DVD, car navigation, etc. 5.1 input
Output characteristics:
4R-8R Max 50W * 4 (main box and surround), 3R-8R Max 100W * 2 (center and bass)
Power needs to match the horn, power supply
Power supply requirements:
Can be used to connect a wide power supply 12-24V DC power supply (can not be directly connected to AC), ACC switch (received power positive boot work, indicating LED light; not connected) compatible vehicle control signal;

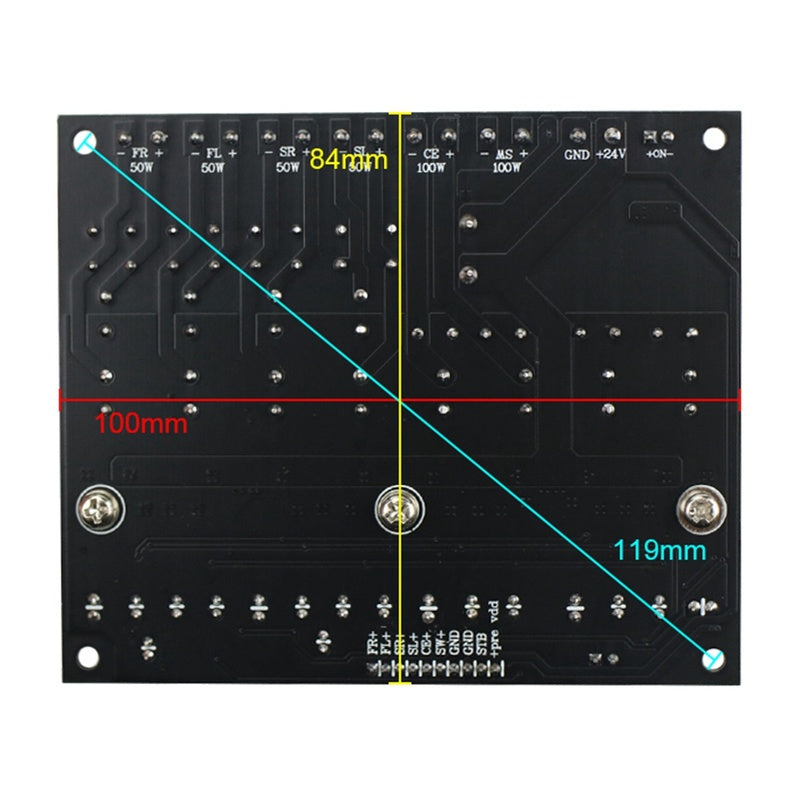

Length and width 100 x 80MM x plate height 30MM
Colour:Photo Color
Material: ABS
Package Contents:
1 x Amplifier Audio Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
