Features

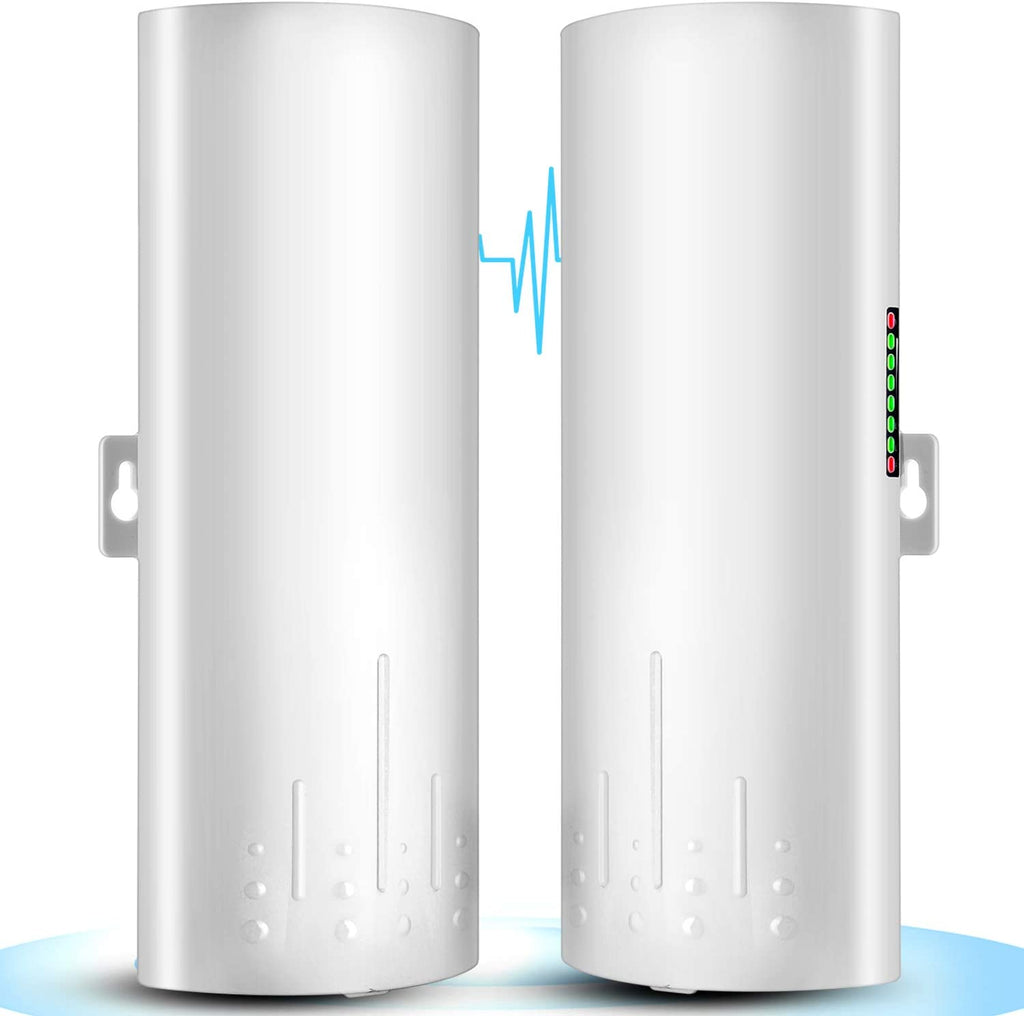

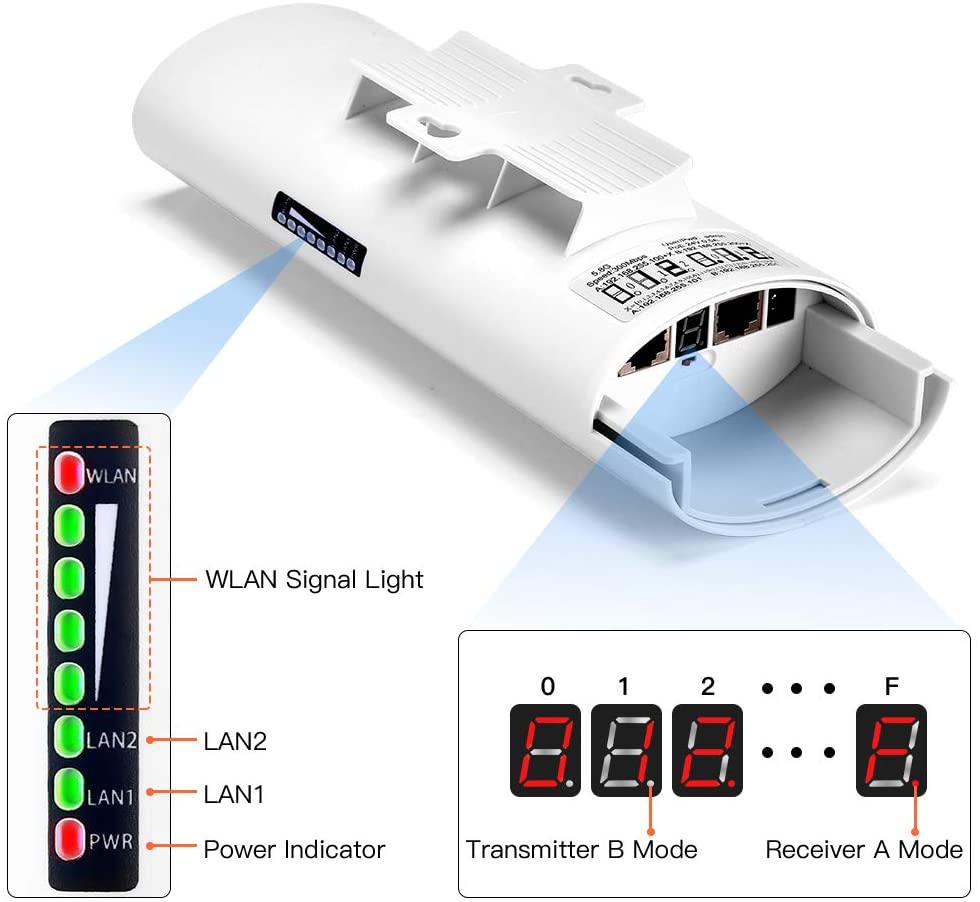

CPE450 is a 5.8G Long Range WiFi Extender Outdoor Wireless Bridge CPE with LED display. Point-to-point pairing can be done by dialing without having to access the GUI, avoid the complex setup program, save much human work and cost, make the long-range wireless coverage, data transmit and wireless monitoring simple and professional

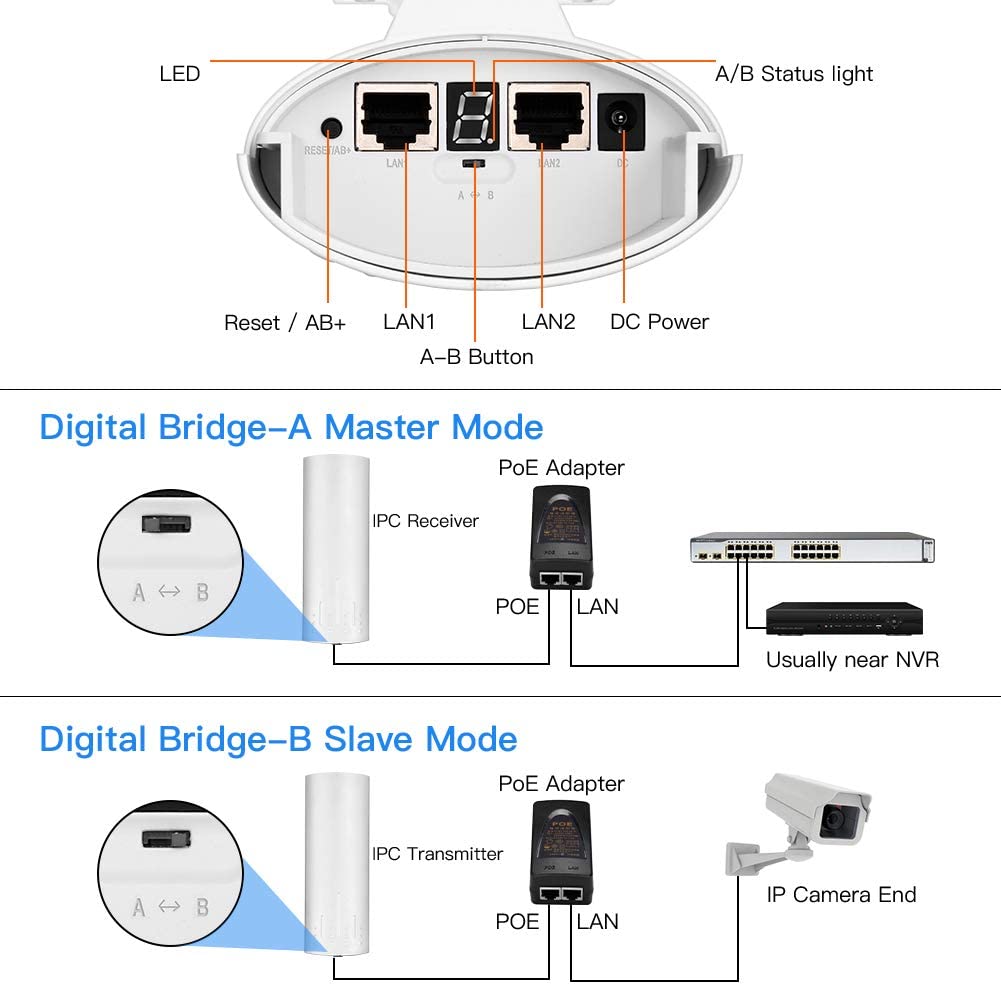

300Mpbs digital display wireless bridge, transmission/receiver automatic networking, support point-to-point, point-to-multipoint, transmission/receiver flexible switching. WDS networking mode, video network dual compatible.The transmission speed between 2 bridges max is 300Mbps. The highest network speed that can be achieved max is 100Mbps.
Deep protocol optimization for wireless video surveillance transmission to ensure high-speed video transmission and smooth video surveillance, and the underlying wireless driver is optimized in-depth, with stronger anti-interference ability and better stability
Adopting low power consumption and high-performance design, the RF index and radiation index are in full compliance with national standards. Supports dynamic MIMO power saving mode (DMPS) and automatic power-saving transmission (APSD)，support 24V POE power supply, easy to install and deploy, simplify construction, safe and reliable
Automatic power adjustment to adapt to environmental changes, ensuring smooth video regardless of ultra-close distance, transmission distance up to 3km(Barrier-free), actual application distance should be less than 3KM
Specification:
Master control： AR9344
DRAM： DDR2 64MByte
FLASH：8MByte
Wired Interface：10/100Mbps LAN*2
Transfer method: Direct Sequence Spread Spectrum (DSSS)
Modulation: OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK
Network Standard：IEEE802.11n,IEEE802.11a ,IEEE802.3u
Supporting agreement: CSMA/CA,TCP/IP,IPX/SPX,NetBEUI,DHCP,NDIS3,NDIS4,NDIS5
Frequency Range:4900～6100MHz
Power consumption: ≤3W
Power scheme: POE 24V 1A
Antenna gain:14DBi
Management settings：WEP management，Telnet，Serial
Encryption：WEP encryption 64/128bits, WPA, WPA2, 802.1x
Operating temperature：-30℃～65℃

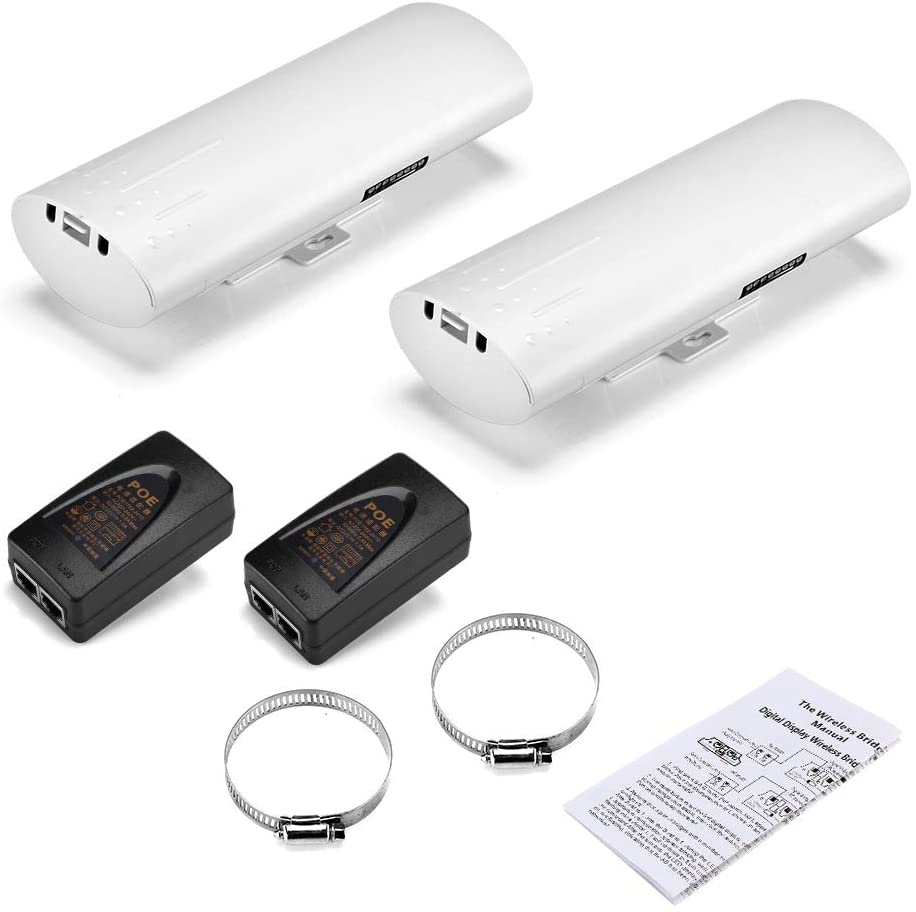

Package include:
2 * CPE450 Bridge
2 * POE Power Adapter (24V)
2 * Metal Hoop
2 * Ethernet Cable
1 * User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
