Feature
Guide: 12mm or 16mm
Duration of travel: 50-400mm

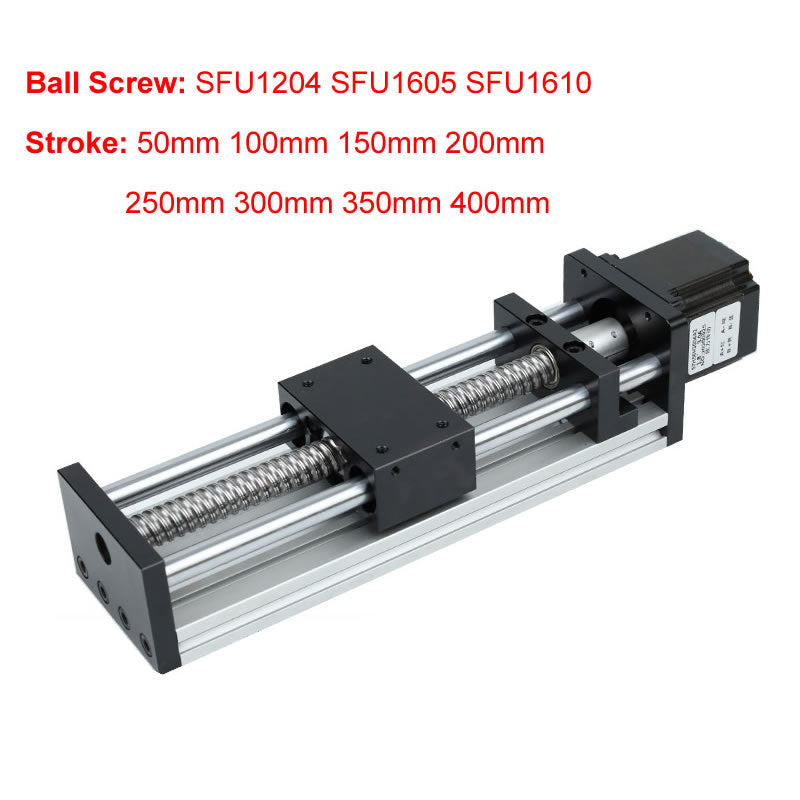

Ball screw type: SFU1204 SFU1605 SFU1610
Level ball screw: C7
Stepper motor: NEMA 23 57*56MM DC12-24v 3.0A
High precision, heavy load resistance;
Repeat positioning accuracy: ± 0.05mm

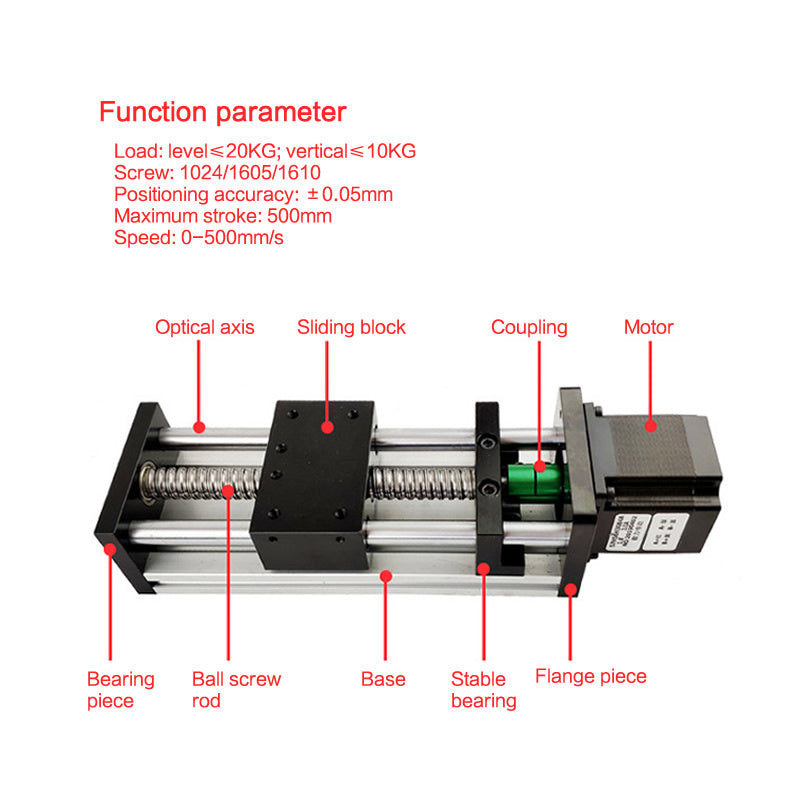

Beads screw for movement structural elements executed. With high precision, high efficiency, Long life, low coefficient of friction, versatility, etc.
Speed:0-100mm/s
Horizontal load: max 30kg
Vertical load: max 15kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
