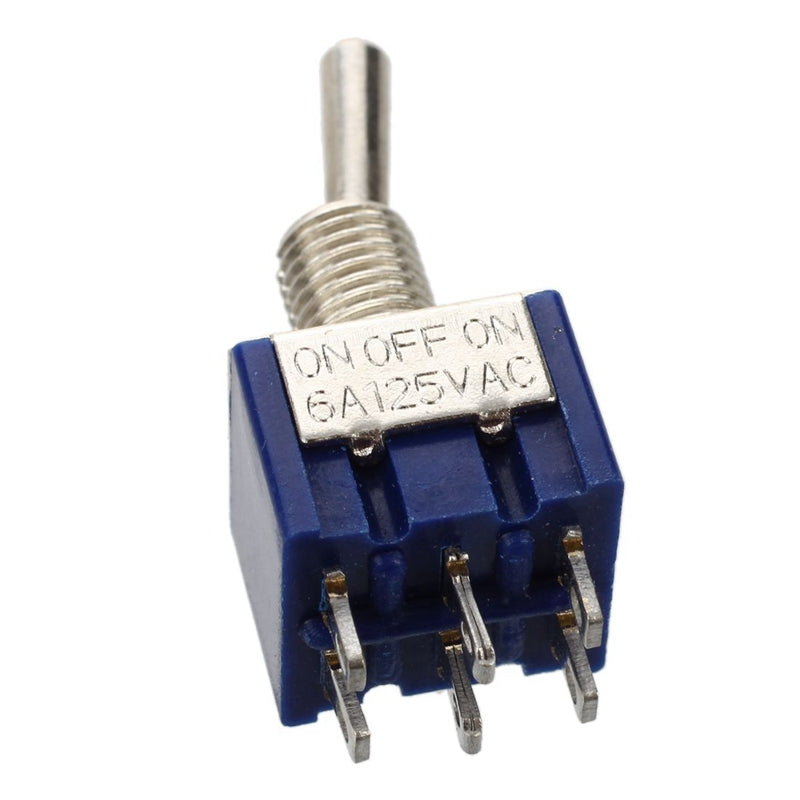

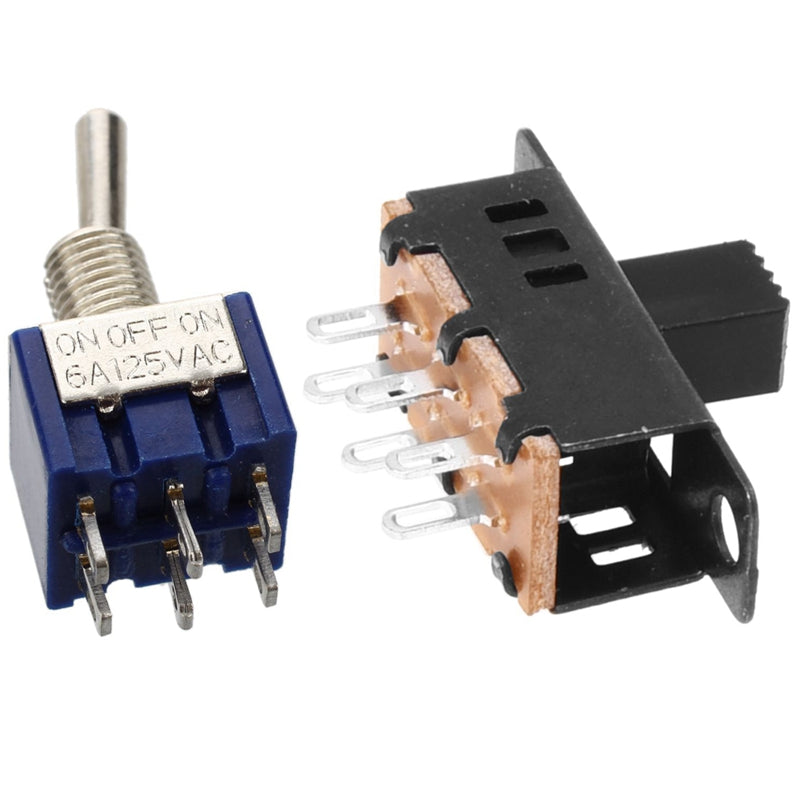

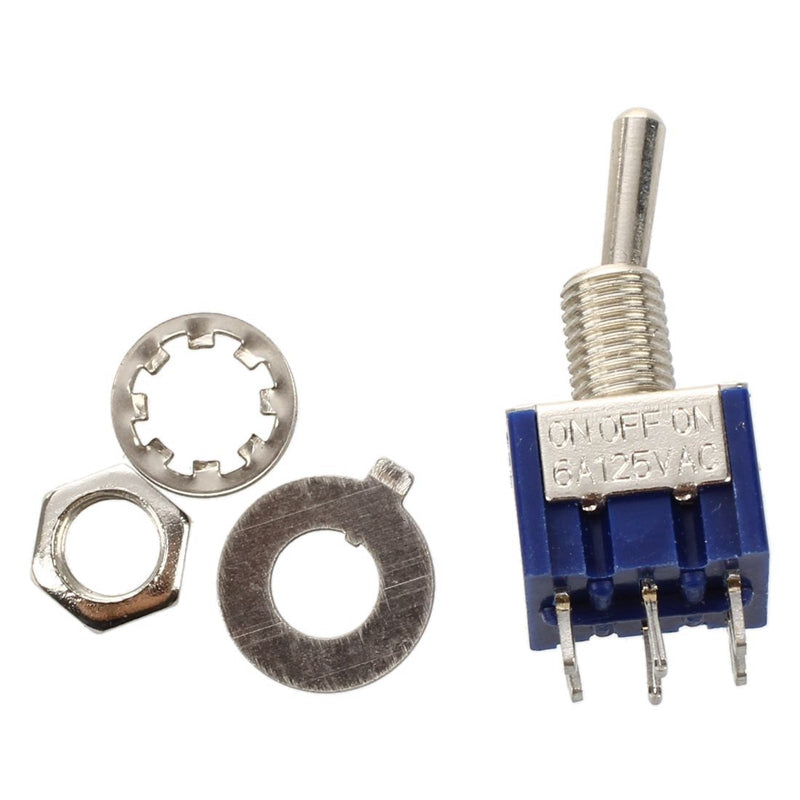

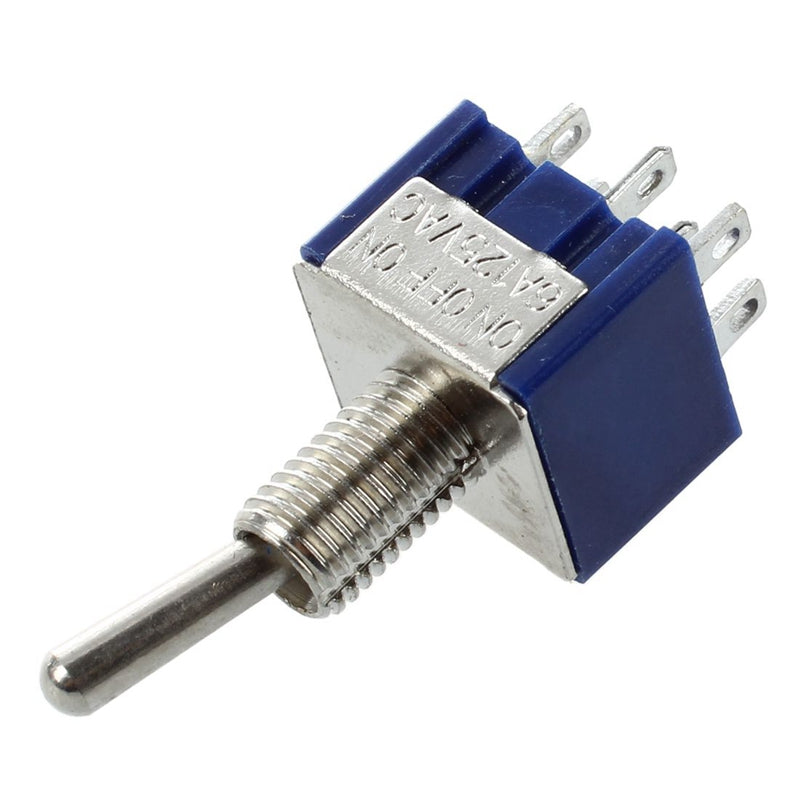

2 set Switch:5 x Toggle Switch & 10 x Slide Switch
There are 10 Pcs sliding switches here, thay are 6 terminals, DP3T action type and 3 on/off/on positions.
Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights.
6 solder lug terminals.
Can be used on low voltage or high voltage circuits.Perfect for switching lights or motors.Easy installation.
Product Name: Slide Switch + Toggle Switch
Model: SS-23D32G6
Action Type: DPDT
Contact Type: ON/OFF/ON, 3 Positions
Terminals Quantity: 6
Working Power: 0.5A 50V DC
Contact Resistance: 30mohm Max
Insulation Resistance: 100ohm Min at 500V DC
Withstand Voltage: AC 500V for 1 min
Terminals Size(Each One): 4 x 1.6mm/ 0.16inch x 0.06inch ( L x W)
Switch Total Size: 2.3 x 0.75 x 1.7cm/ 0.9inch x 0.3inch x 0.7inch(L x Wx H) + 12.9 x 12.7mm / 0.51inch x 0.5inch(LxW)
Knob Size: 5.5 x 4 x 6mm/ 0.22inch x 0.16inch x 0.24inch (L x W x H)
Material(External): Plastic, Metal + Resin
Position: 3
Mounting Hole Diamter: 5.8mm / 0.228inch
Voltage & Current: 3A/250VAC;6A/125VAC
Overall Height: 32.5mm / 1.28inch
Main Color: Blue + Black

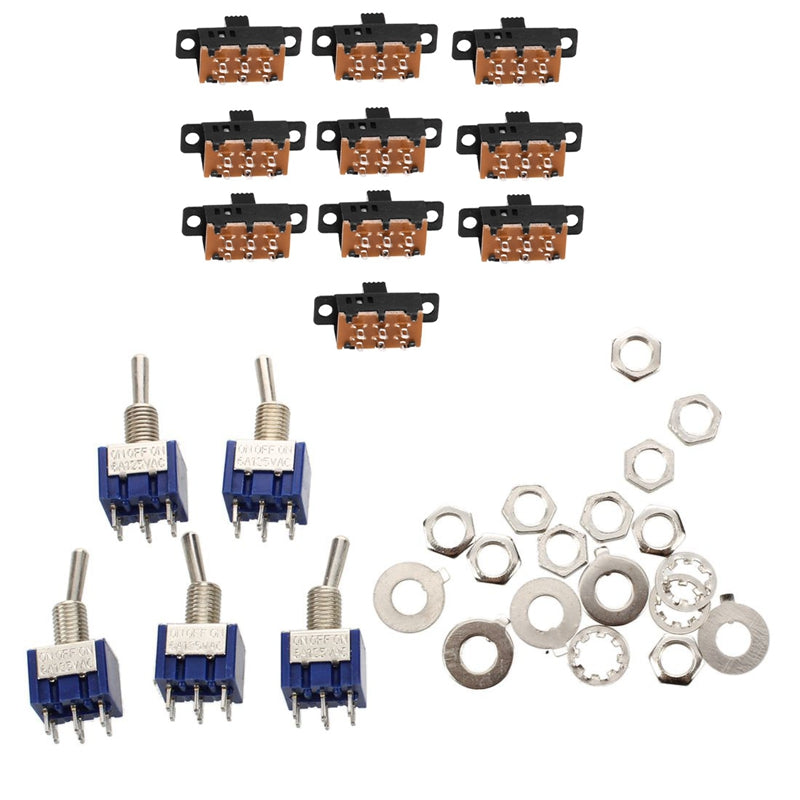

Package Content:

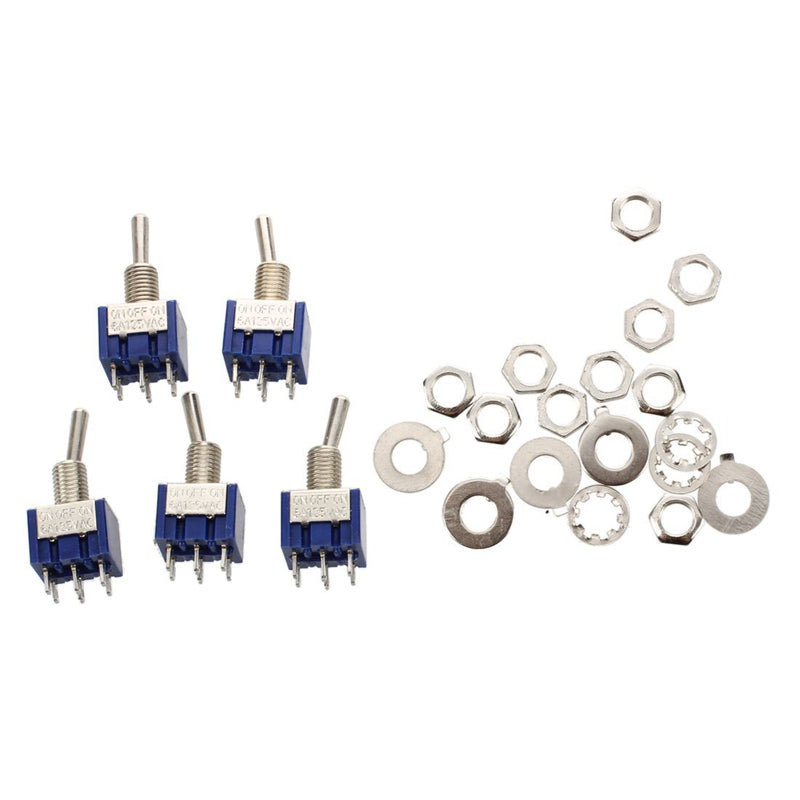

5 x Toggle Switch
10 x Slide Switch
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
