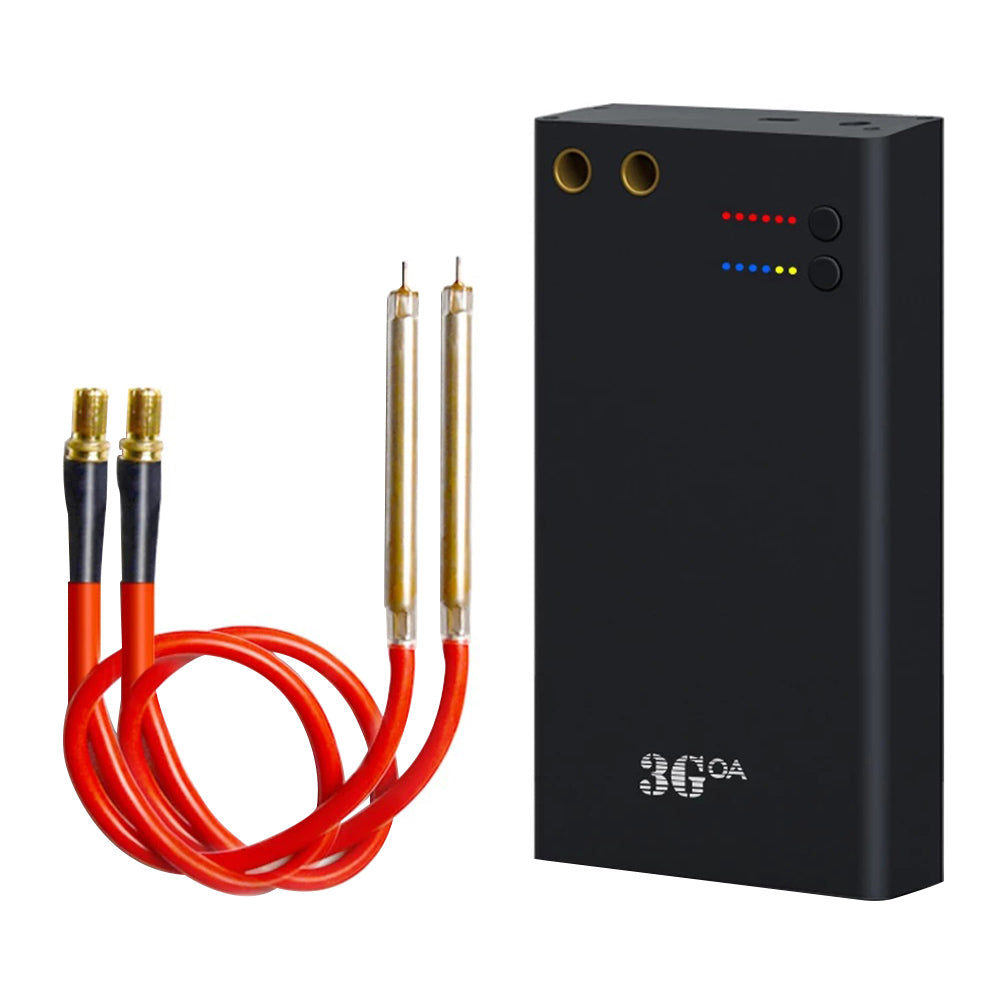

Portable 6 Gears DIY Mini Spot Welding Machine for 18650 Lithium Battery Adjustable Spot Welder with Nickel Sheet Welding Tool Kit

Feature:

- Made of aluminum alloy material, with anodic oxidation surface, wear resistant and beautiful.

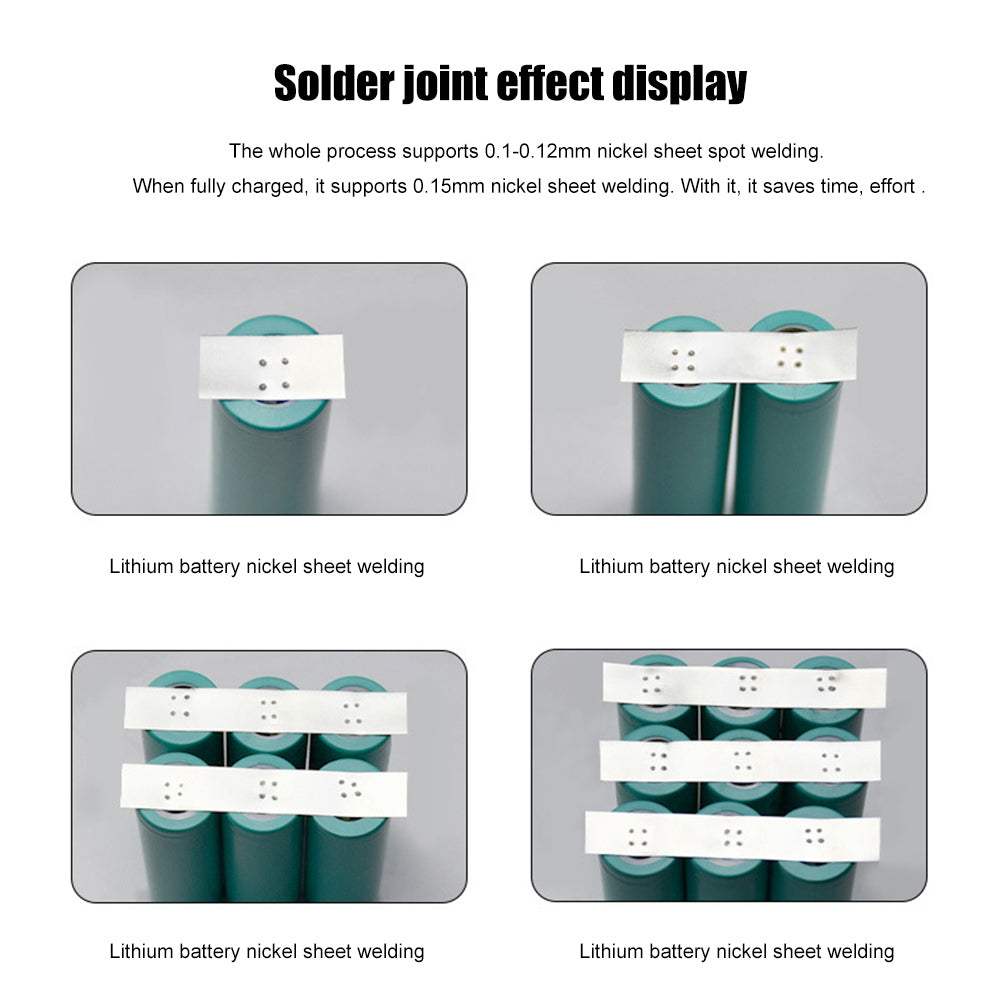

- It can welding hundreds of welding points on commonly used nickel-plated sheets within 0.1mm-0.12mm.

- 6 gears of output power adjustable, welding more accurate.

- Output gears indicator light(red), the number of indicator light corresponding the output gears.

- Equipped with electricity indicator light(blue), different numbers to shows different electric quantity, 1 light(5-25%,flash<5%), 2 lights(25-50%), 3 lights(50-75%), 4 lights(75-100%).

- Automatic mode and manual mode adjustable, with output mode indicator light, automatic mode-left yellow light turn on, manual mode-right yellow light turn on.

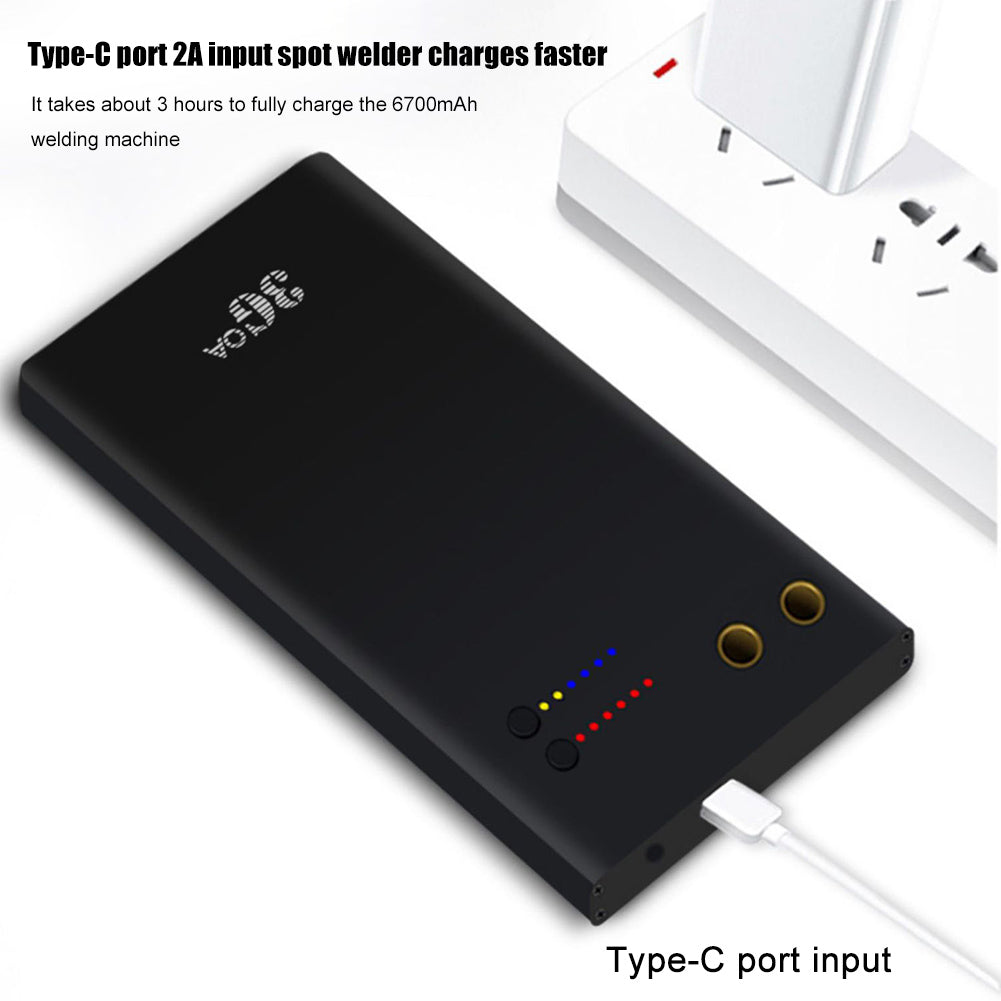

- Type-C interface 2A input, 6700mAh spot welding machine can be fully charge within 3 hours.

- 400mm long spot welding pen for flexible operation.

- Mainly used in the welding of nickel sheet of cylindrical battery, NI-MH battery, nickel cadmium battery like 18650 and etc..

- Gold-plate terminal welding pen, with fine conductivity and low contact resistance, quickly detachment and easy carring.

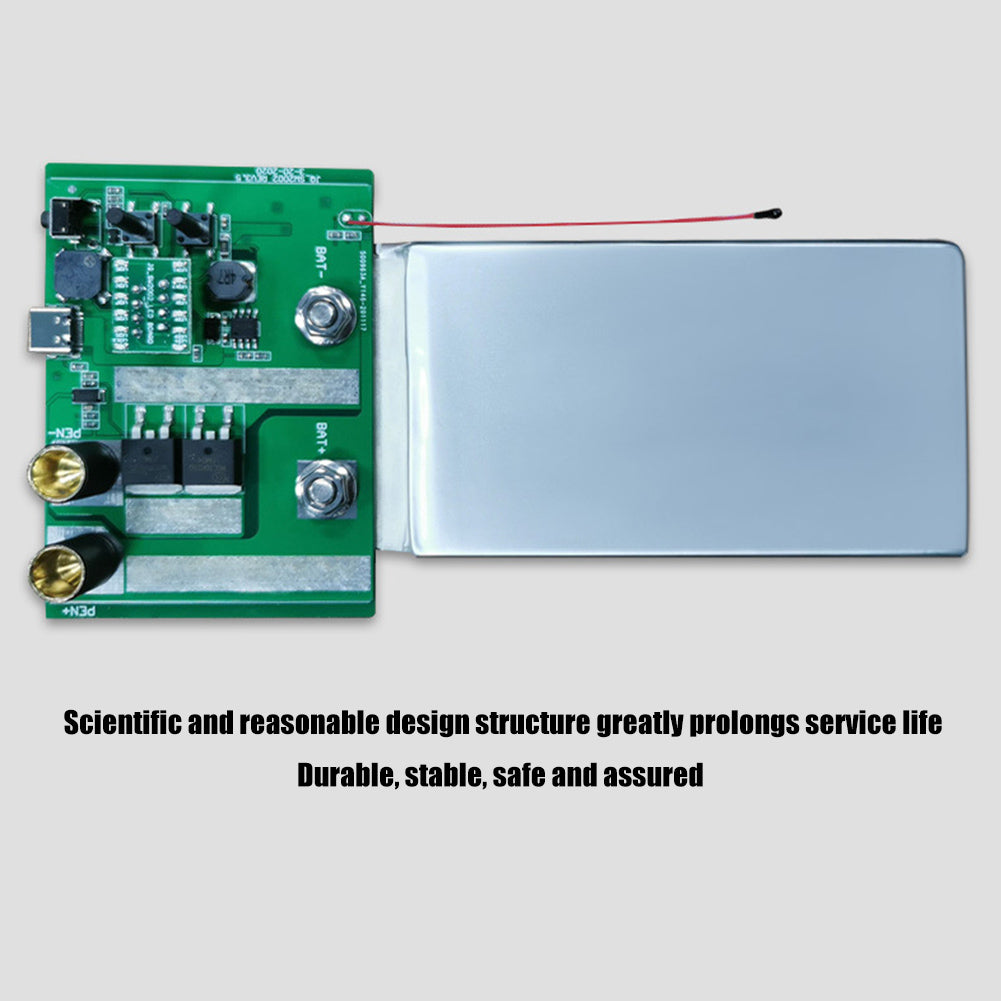

- 2mm thicken pure copper strip, supperlow internal resistance to increase overcurrent capability.

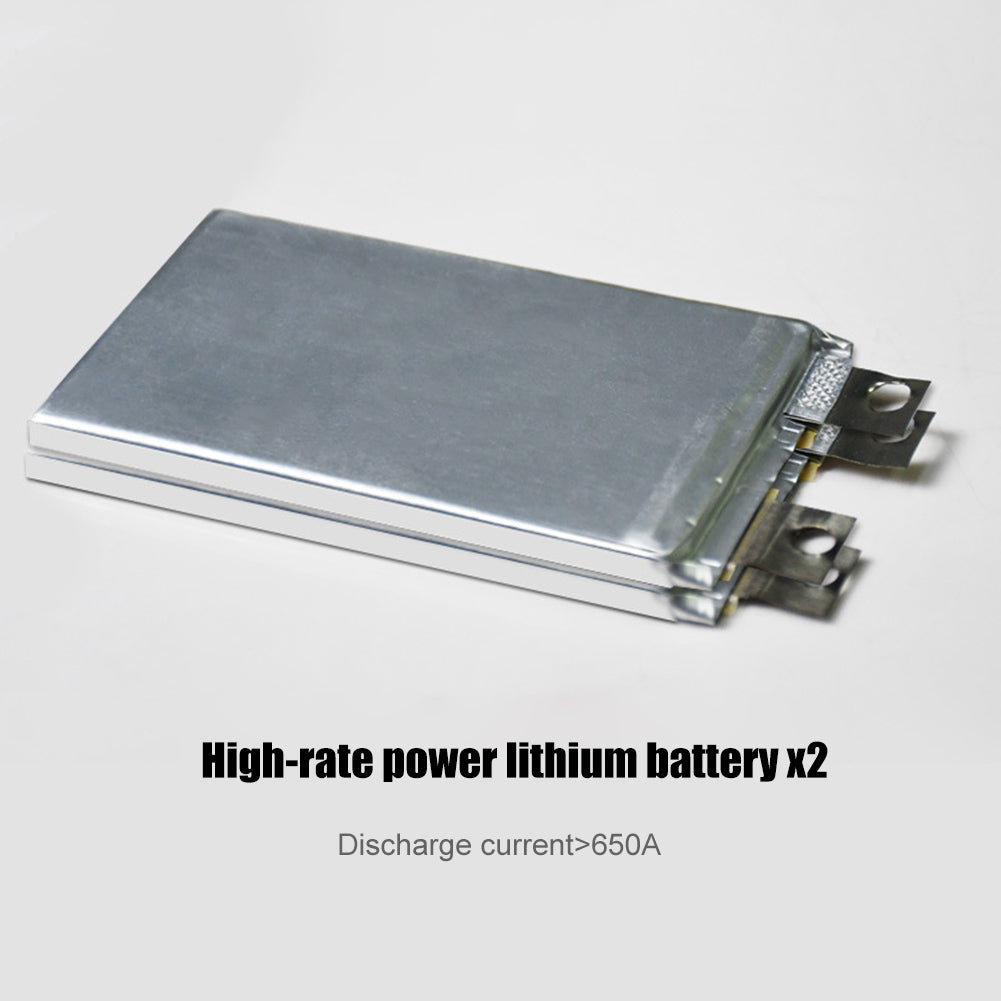

- Built-in high-rate polymer power cell, the max output current is up to 650A, and it can continuously weld thousands of points after being fully charged.

- Temperature control probe for temperature control protections, automatically shutoff when the temperature is higher than 60℃.

Specification:

Battery: 2 x 5V, 6700mAh lithium battery

Gears: 1-6 gears

Input interface: Type-C

Input current: 5V/2A

Welding output voltage: 4.2V (max)

Welding output current: 650A (max)

Design welding current: 1000A

Welding thickness: 0.1-0.12mm

Item size: 178 x 87 x 27mm

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-3cm measuring deviation due to manual measurement.

 1 X Spot Welding Machine

1 X Spot Welding Pen

1 X English Manual

1 X Type-C Cable

1 X File

1 X 5m Nickel Sheet
