Features:

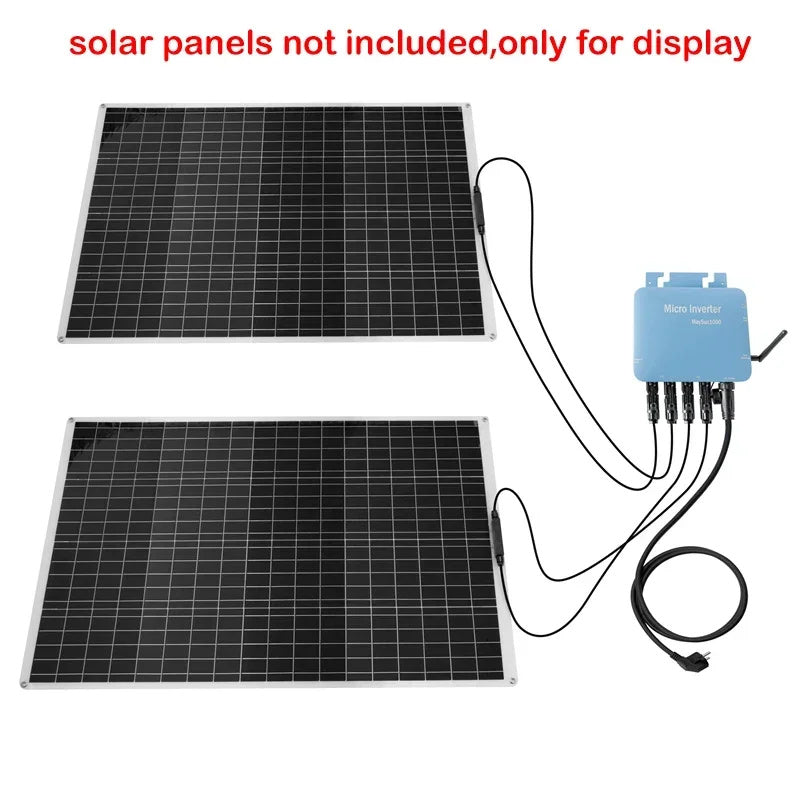

* Two independent input (MPPT)

* Standard input port, simple and secure connection

* Integrated AC output port

* The island protection function is 10 milliseconds, the inverter automatically stops output

* Built -in WIFI communication, mobile app monitoring

* Global power grid voltage/frequency automatic recognition

* The shell is made of high -quality aluminum alloy, which can better protect the inverter and extend the service life of the inverter.

* IP65 waterproof level.

* Built -in imported waterproof rubber ring

* TUV waterproof joint

* Stainless steel nut

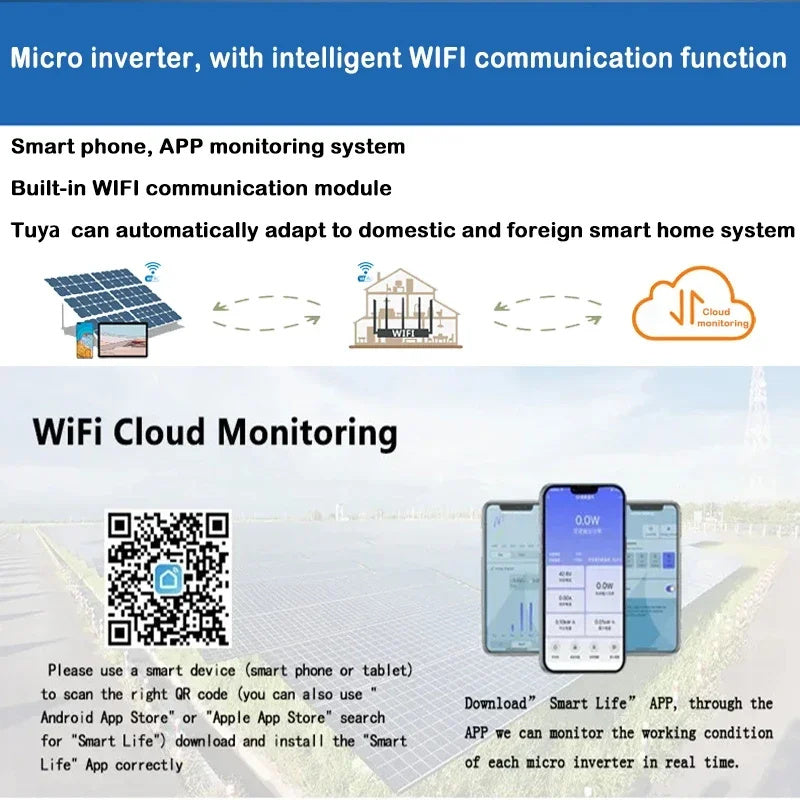

* Smart mobile phone APP monitoring system, built -in WIFI communication module, can automatically adapt to domestic and foreign smart home systems.



Specification:

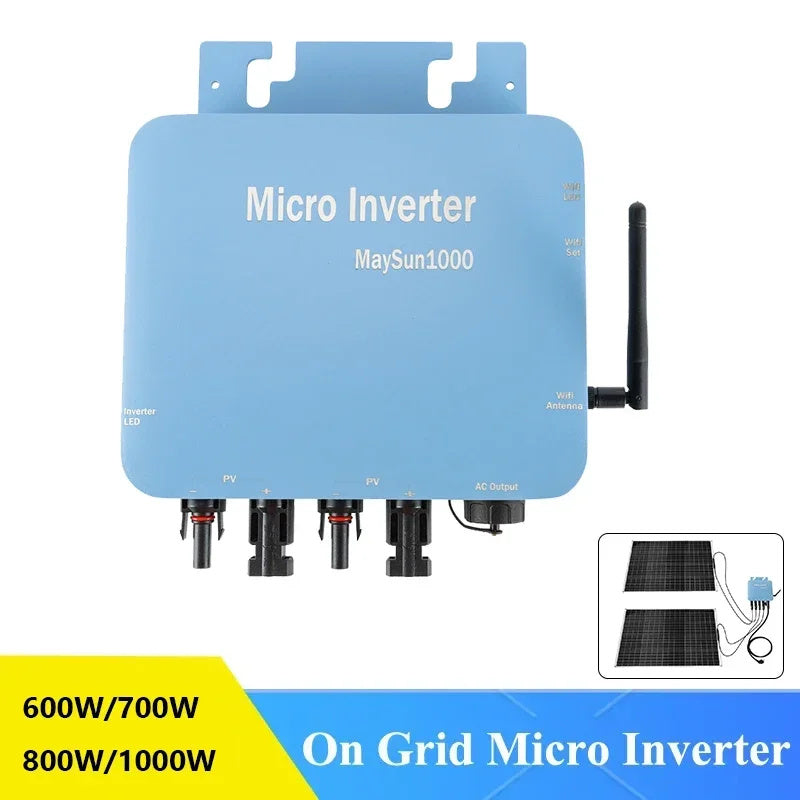

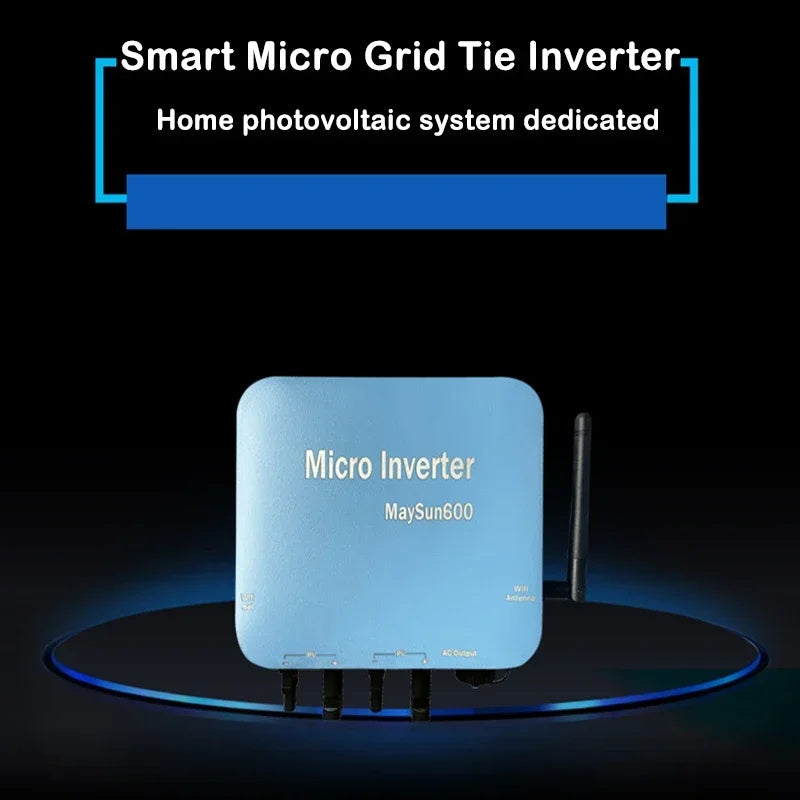

Model: Mansun600



Photovoltaic input (DC, PV)

Input terminal connector quantity: 2 groups

MPPT maximum power point tracking voltage range: 28V-55V

Work voltage range: 20V-60V

Maximum tributary input voltage: 60V

Starting voltage: 20V

Maximum DC input current: 2*10A



AC input (AC)

Single -phase grid type: 220V

Rated output power: 580W

Maximum output power: 600W

The rated AC current: 2.52A

Rated AC voltage: AC 220V

Output voltage range: 180V-280V

Rating communication frequency: 50Hz

Export frequency range: 47.5Hz-52.5Hz

Output power factor: 0.99

Total harmonic distortion of output current: THD 5%



Efficiency

Most conversion efficiency: 95%

CEC weighted efficiency: 93.5%

MPPT tracking efficiency: 99.9%

Night loss: 700mW



Working environment temperature: -40 ℃ ~+65 ℃

Storage environment temperature: -40 ℃ ~+85 ℃

Maximum current of AC cable: 20A

Protection level: IP65

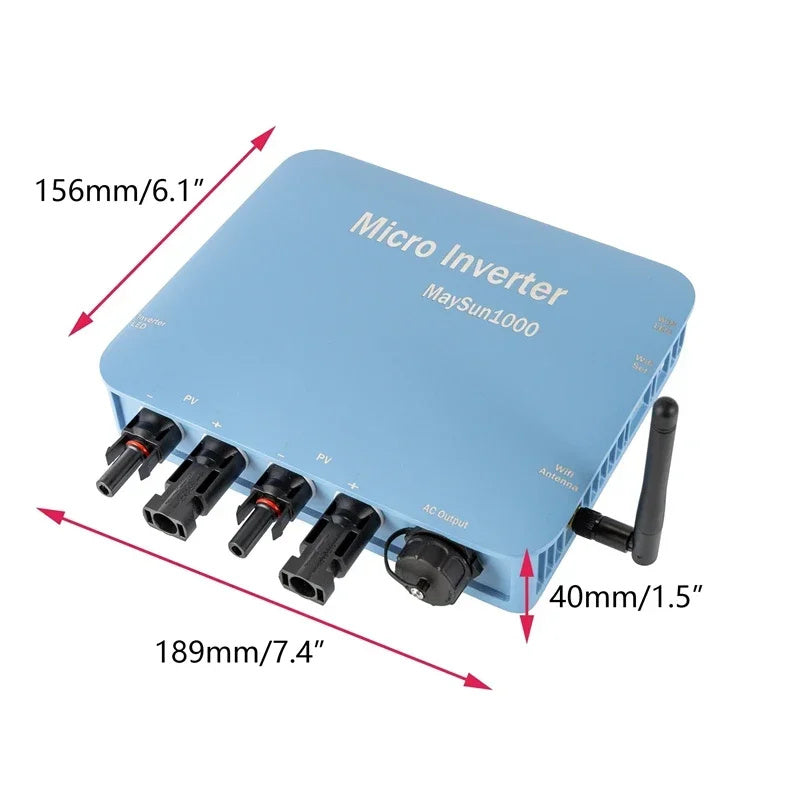

Size: 21.5 * 23 * 4cm



Communication method: WIFI Wireless Communication (Yun Monitoring)

Isolation characteristics: high -frequency transformer isolation



Protection method: island protection, voltage protection, frequency protection, temperature protection, current protection, etc.

Design standard: CE, etc.

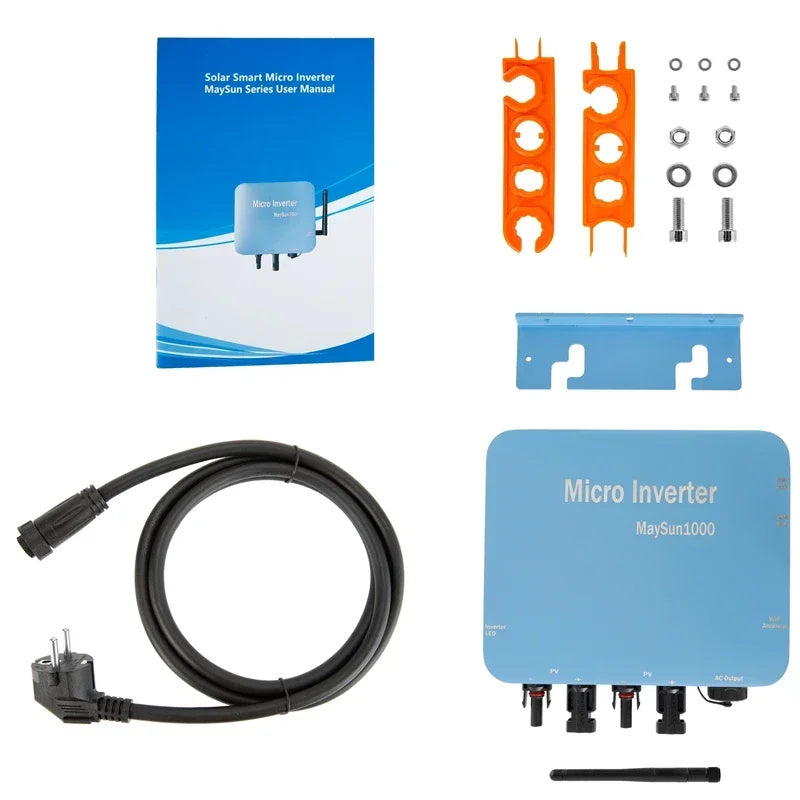

Packing included:



1 * AC Power Cord

1 * Installation Accessories

1 * Inverter User Manual



Note:

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
