725MHz 703-748MHz SAW bandpass filter, 45MHz bandwidth, 1dB bandwidth, SMA interface
725MHz 703-748MHz SAW bandpass filter, 45MHz bandwidth, 1dB bandwidth, SMA interface
This filter has a 1dB bandwidth of 45MHz and a steep cut-off characteristic. For RF signal testing in the 703 - 748 MHz frequency range, it can effectively filter out out-of-band signals, reduce noise, and increase dynamic range.

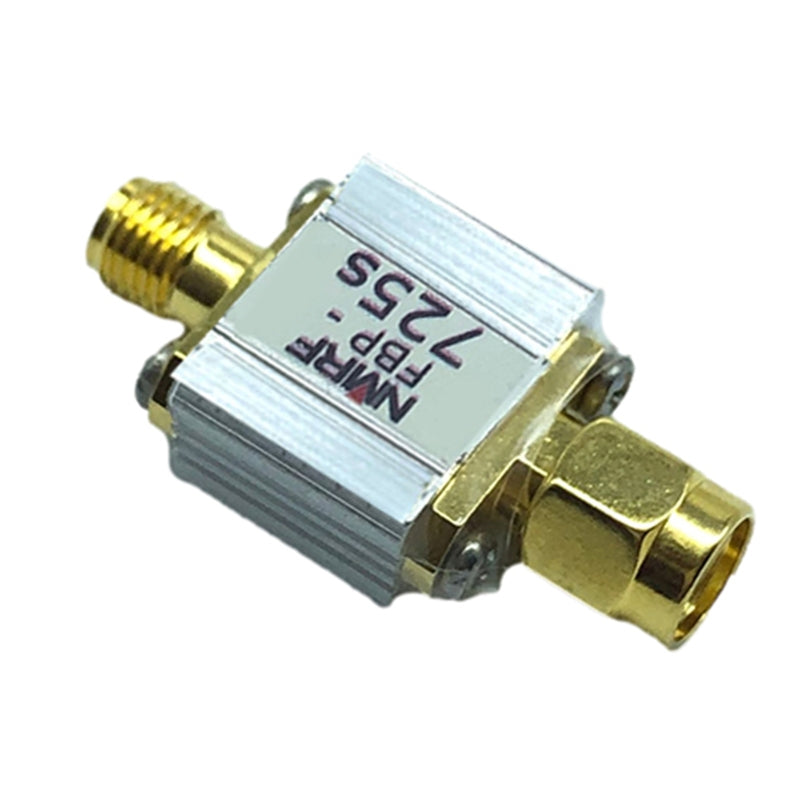

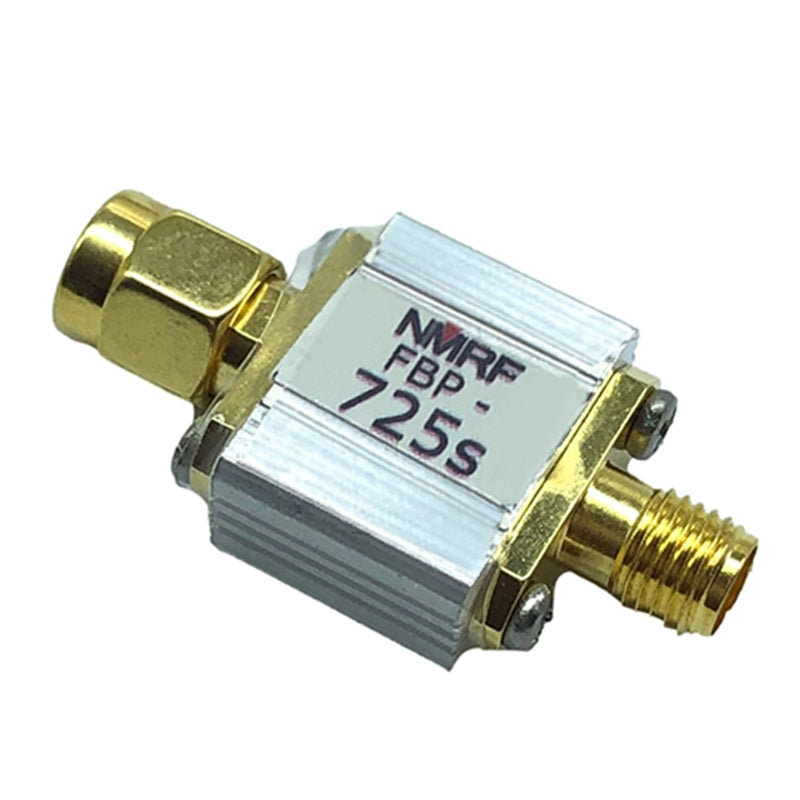

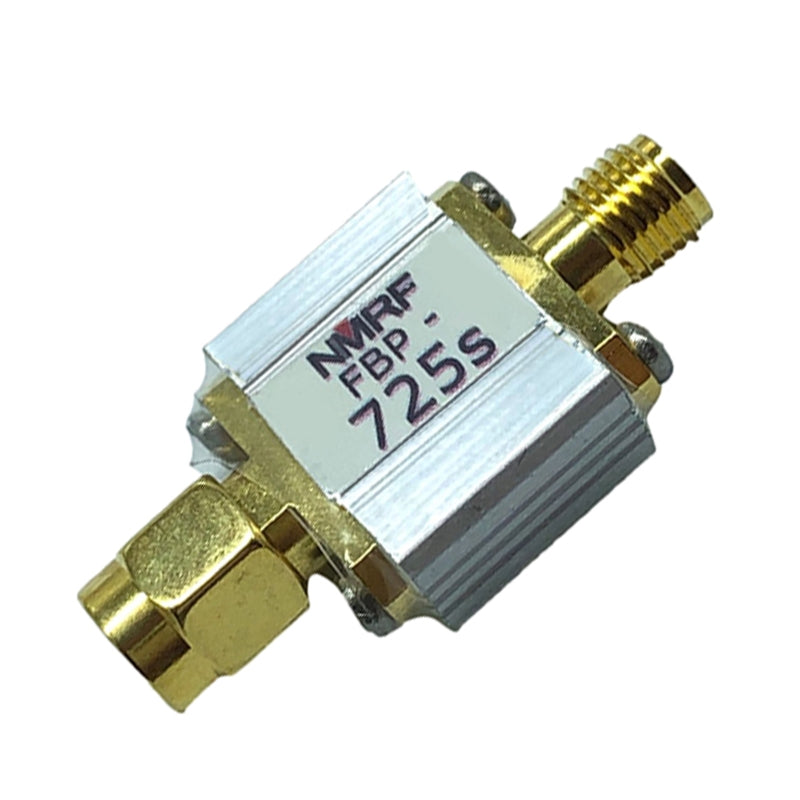

Model: FBP-725s
Impedance: 50 Ohms
Center frequency: 725 MHz
Passband (1dB bandwidth): 703 to 748 MHz
In-band insertion loss: < 3.5 dB (typ: ~ 3.0 dB)
Maximum Carrying Power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F

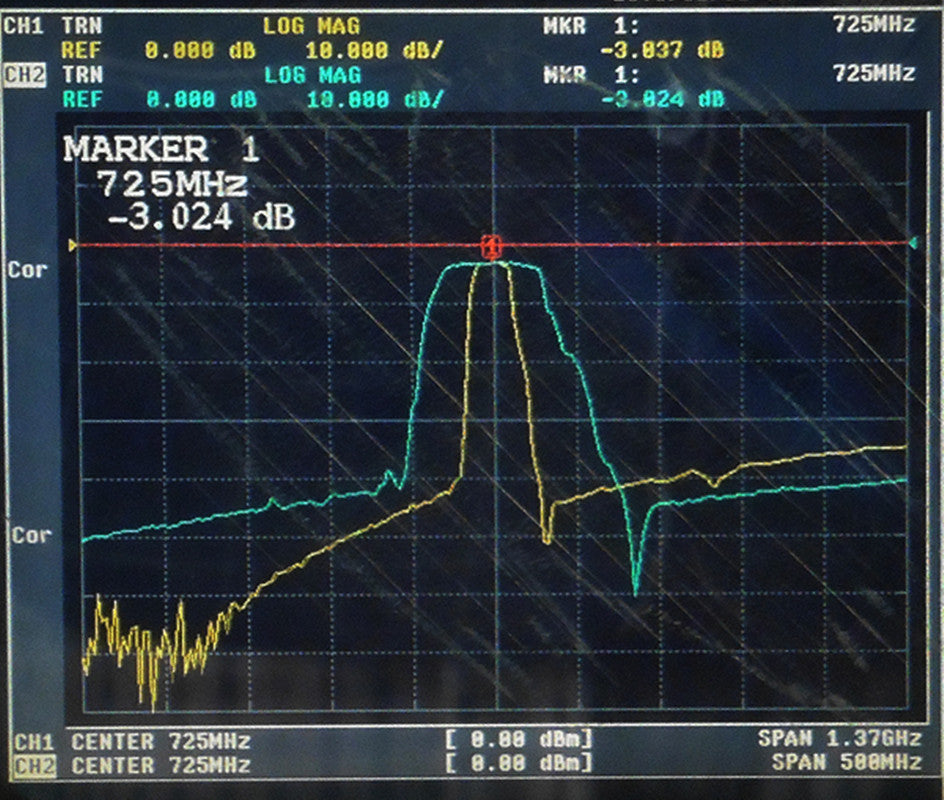

Frequency response diagram:
