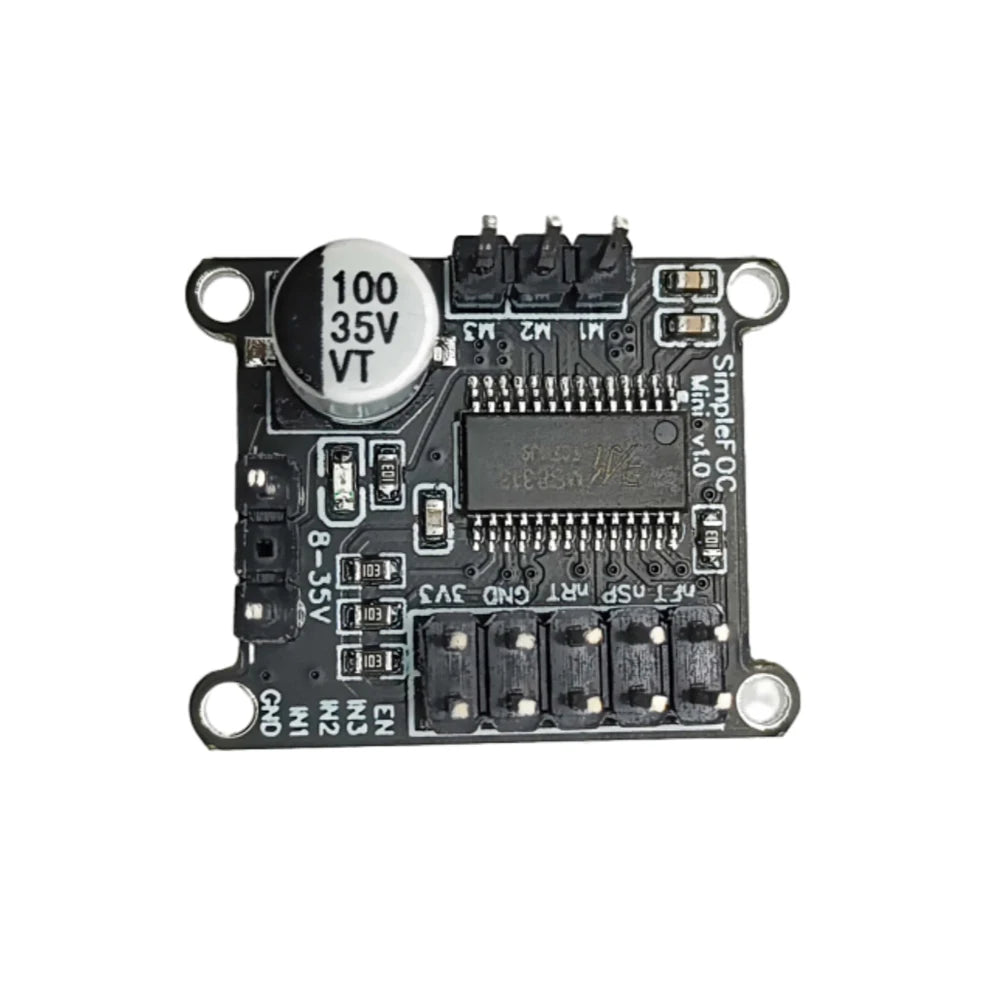

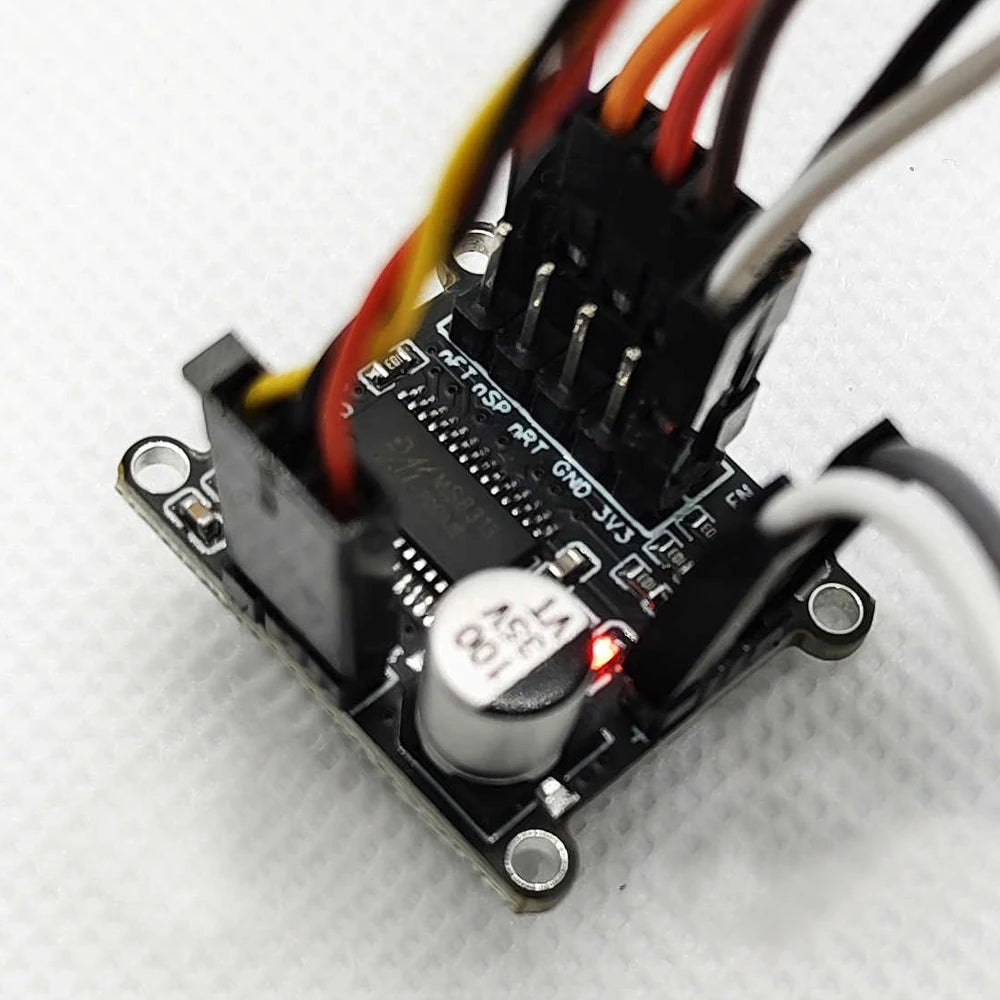

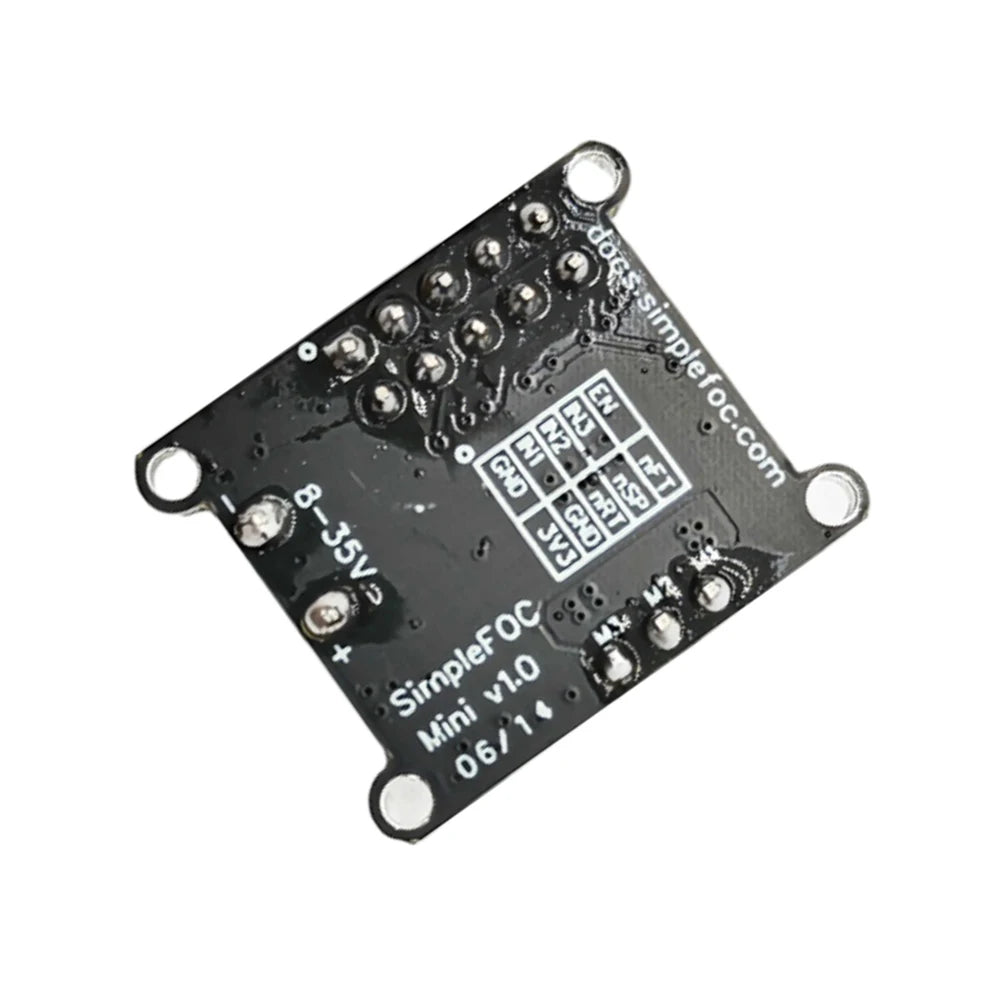

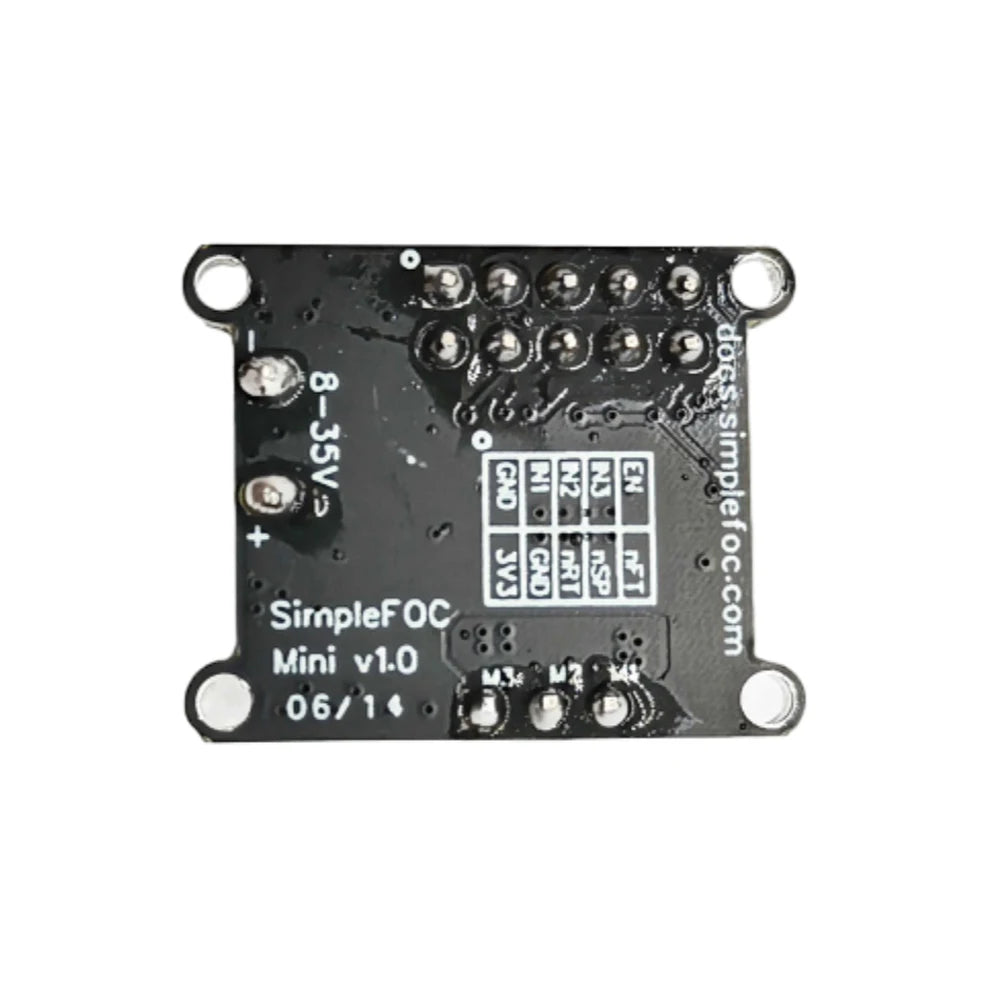

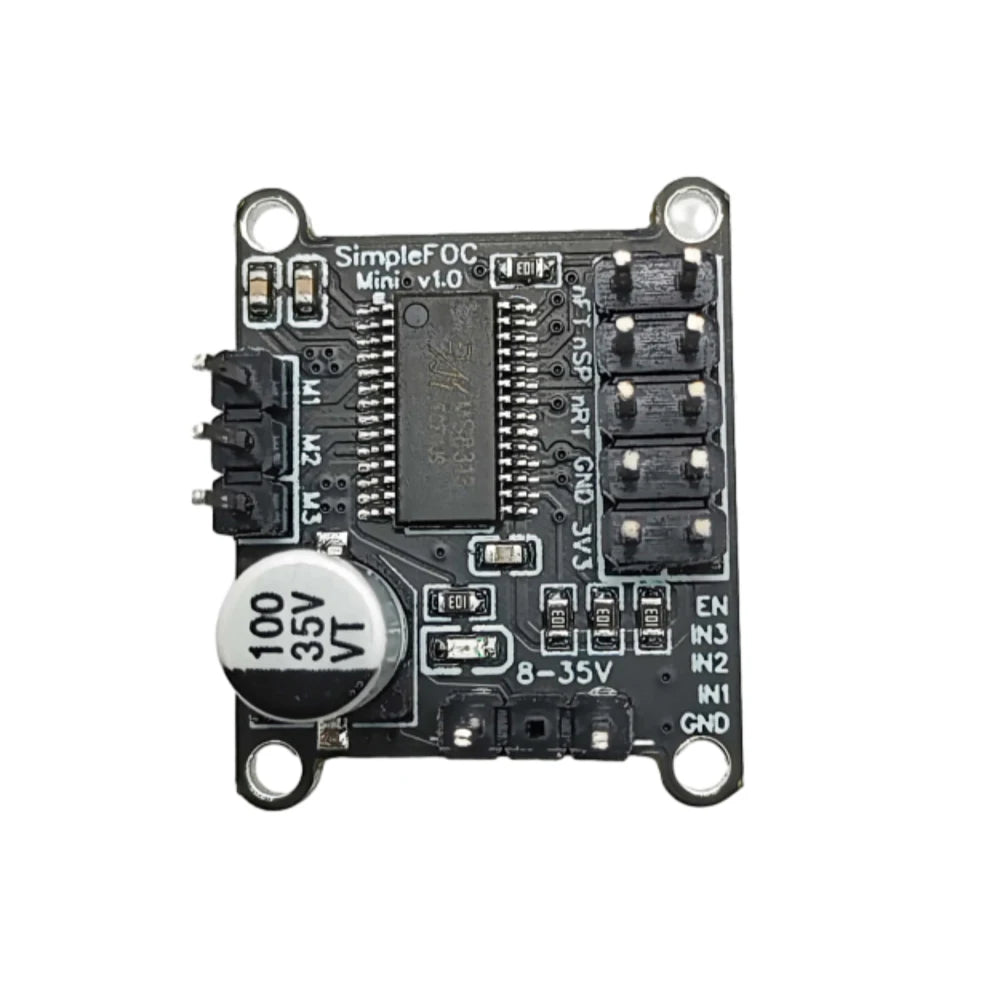

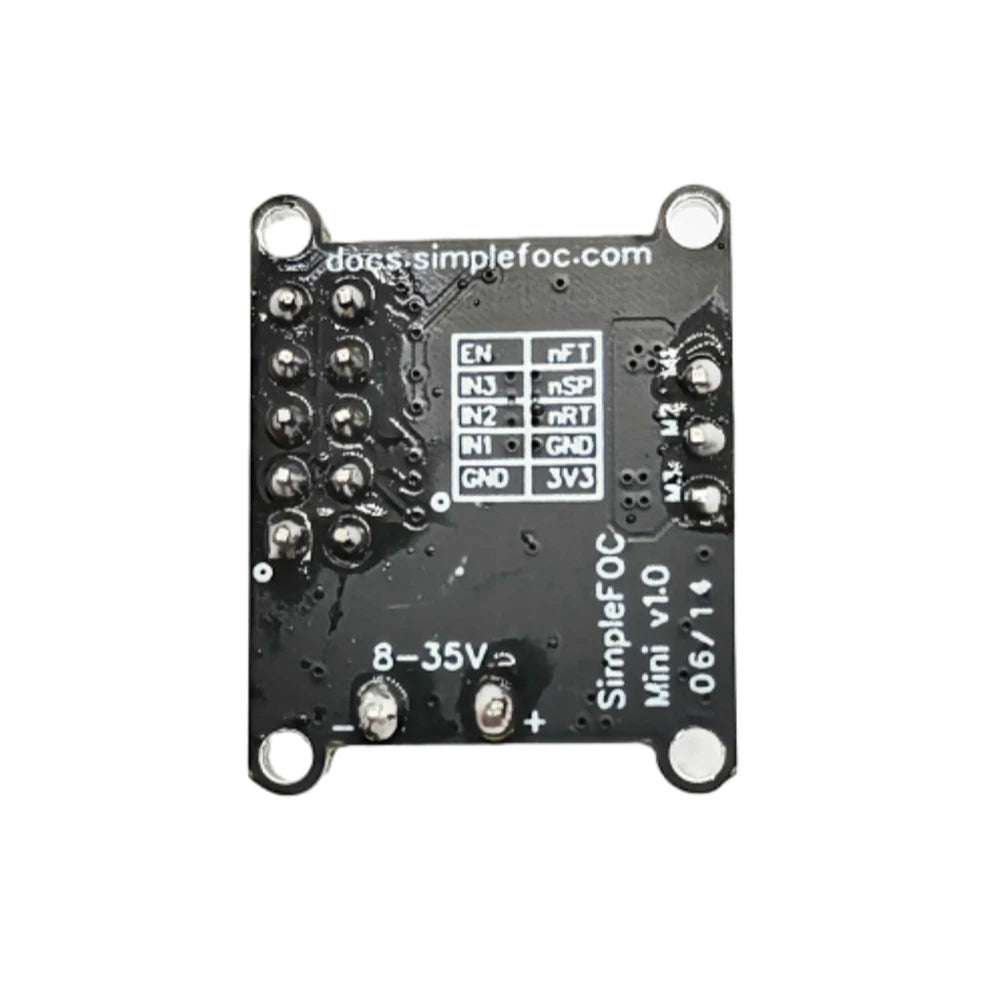

SimpleFOCMini 1.0 DC brushless motor driver board uses domestic chip MS8313, packaged in eTSSOP28, which can be completely pin=pin with DRV8313, and perfectly replaces DRV8313.
MS8313 provides three independently controllable half-H bridge drivers, mainly used to drive DC brushless motors. Only need to connect the control signal and the motor UVW three-phase line to control the motor rotation.
Supports SPWM and SPVMW control algorithms, but does not support the traditional 6-step commutation control algorithm.
Can be quickly used through Arduino simpleFOC, can be connected to MCUs such as ESP32, STM32, Arduino, Teensy, etc.
Specifications:
Voltage: 8-30V
Current: 2.5A
Size: 25.8mmx21mm
Onboard 3. 3 LD0 output, maximum current 10mA
Input control signal compatible with 3.3V and 5V
Support SPWM and SPVMW control algorithms
Powerful open source library, a large number of engineering application cases and video tutorials, quick to get started
This control board is a simplefoc mini version, without current feedback chip, does not support current feedback
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package Includes:
1x DC Motor Driver
SimpleFOCMini 1.0 DC brushless motor driver board uses domestic chip MS8313, packaged in eTSSOP28, which can be completely pin=pin with DRV8313, and perfectly replaces DRV8313.
MS8313 provides three independently controllable half-H bridge drivers, mainly used to drive DC brushless motors. Only need to connect the control signal and the motor UVW three-phase line to control the motor rotation.
Supports SPWM and SPVMW control algorithms, but does not support the traditional 6-step commutation control algorithm.
Can be quickly used through Arduino simpleFOC, can be connected to MCUs such as ESP32, STM32, Arduino, Teensy, etc.
Specifications:
Voltage: 8-30V
Current: 2.5A
Size: 25.8mmx21mm
Onboard 3. 3 LD0 output, maximum current 10mA
Input control signal compatible with 3.3V and 5V
Support SPWM and SPVMW control algorithms
Powerful open source library, a large number of engineering application cases and video tutorials, quick to get started
This control board is a simplefoc mini version, without current feedback chip, does not support current feedback
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 1mm-1cm differences due to manual measurement.
Package Includes:
1x DC Motor Driver
