Features:

 Temperature Recorder: 0.2℃ high accuracy, -200℃~1820℃ wide temperature measuring range. Built in 8G large memory, up to 64 temperature data can be recorded at one time, each file can store 13000 sets of data, 1-9999 seconds settable record interval.

 5-inch Color Screen & Comfortable Buttons: 5-inch IPS color LCD industrial touch screen, with 854*480 resolution, easy to read, clear at a glance. With comfortable buttons for easy setting and operation.

 Display Form & Multiple Interface Display: Real-time list, bar graph, curve (history curve), current alarm (history alarm), file record, record list, etc. Supports 4/ 8/ 16/ 32 multi-interface real-time value display.

 Quick Response & Stable Performance: Adopts advanced 32-bit CPU and 24-bit measuring chip, features about 0.1s quick response each channel, with high accuracy and stable performance.

 Wide Use: Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical, electricity and more fields.

 Supports a Variety of Thermocouples: K-type, J-type, E-type, T-type, N-type, S-type, R-type and B-type thermocouple. Each channel can be set with different types of thermocouples. The name of each channel can be changed and be exported to Excel sheet.

 Multi-channel Design: 8 channels per module, supports maximum 64 channels. The voltage between each channel can be as high as 350V, with strong anti-interference ability. Each channel can set high and low alarm value, with sound and light alarm function. Each channel can modify the error value according to the formula "Y=KX+B".

 File Export: Record files can be single-select or multi-select to delete and export. Use U disk and PC to export Excel files directly.

 Communication Interface: Supports USB and RS485 interface, with independent relay outputs and alarm function. With communication address code setting, machines can be connected to each other, communication protocol can be provided.

 Multi-level Alarm Instruction: HH, H, L, LL alarm setting and alarm instruction (with relay output). And you can view historical alarm records.

 Note:

 1. Please read the user manual carefully before use.

 2. Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

 Specifications:

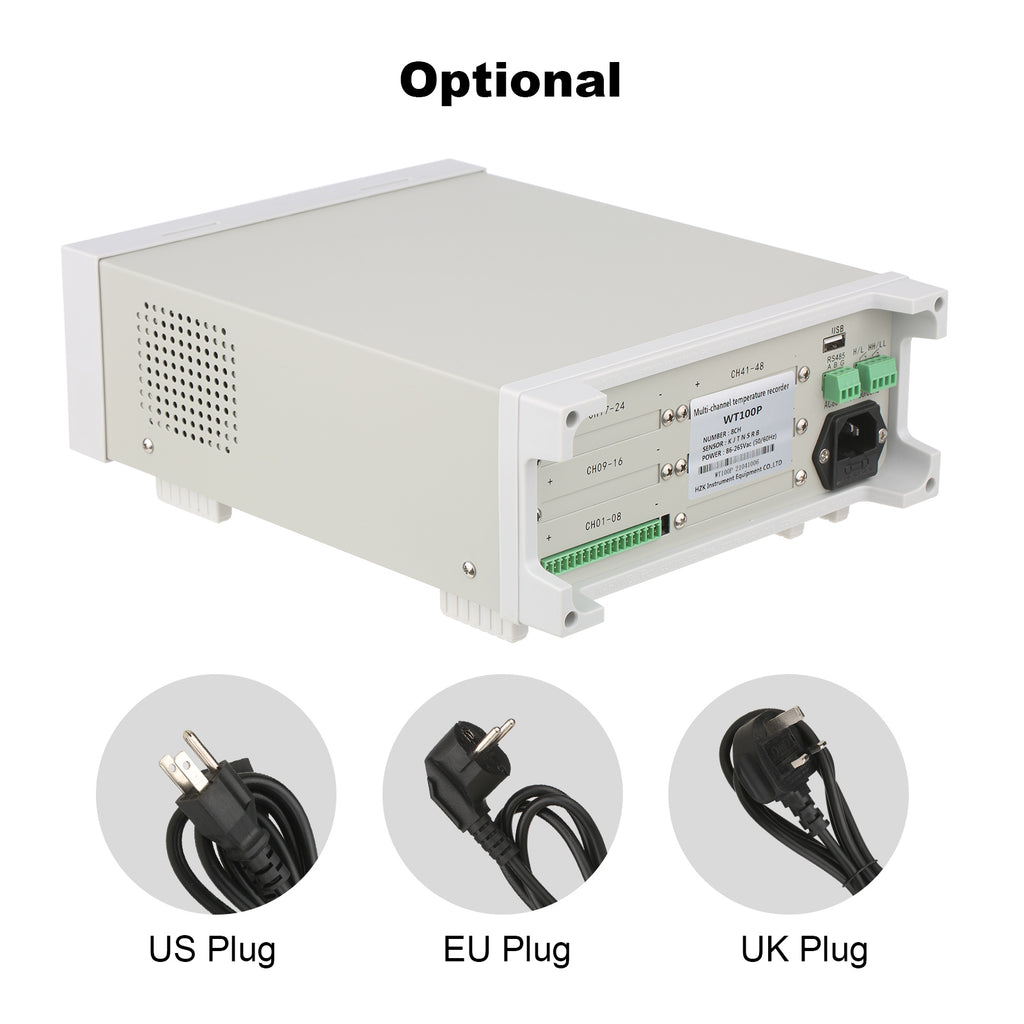

 Power Adapter: US/ EU/ UK (Optional)

 Color: Grey

 Material: Metal + Plastic

 Voltage: AC 86-265V, 50/ 60Hz

 Screen: 5-inch, 854*480 Resolution, IPS Touch Screen

 Number of Channels: Each module has 8 channels and supports up to 64 channels

 Thermocouple: KJETNSRB

 Basic Accuracy: 2 words at 0.2℃ (excluding thermocouple error)

 Measuring Range: -200~1820℃ (depending on the scale of thermocouple)

 Cold End Compensation: Accuracy 0.5℃

 Number of Files: 64 (circular record)

 File Capacity: 13000 sets (channel numbers are not distinguished)

 Interchannel Isolation: up to 350V

 Control Output: Independent Relay Outputs-- H/L, HH/LL

 Alarm Sound: Can be set to mute

 Record Interval: 1-9999 seconds settable

 Communication Interface: Standard USB, RS485

 Environment Conditions: 5~40℃, 20-80% RH (no condensation)

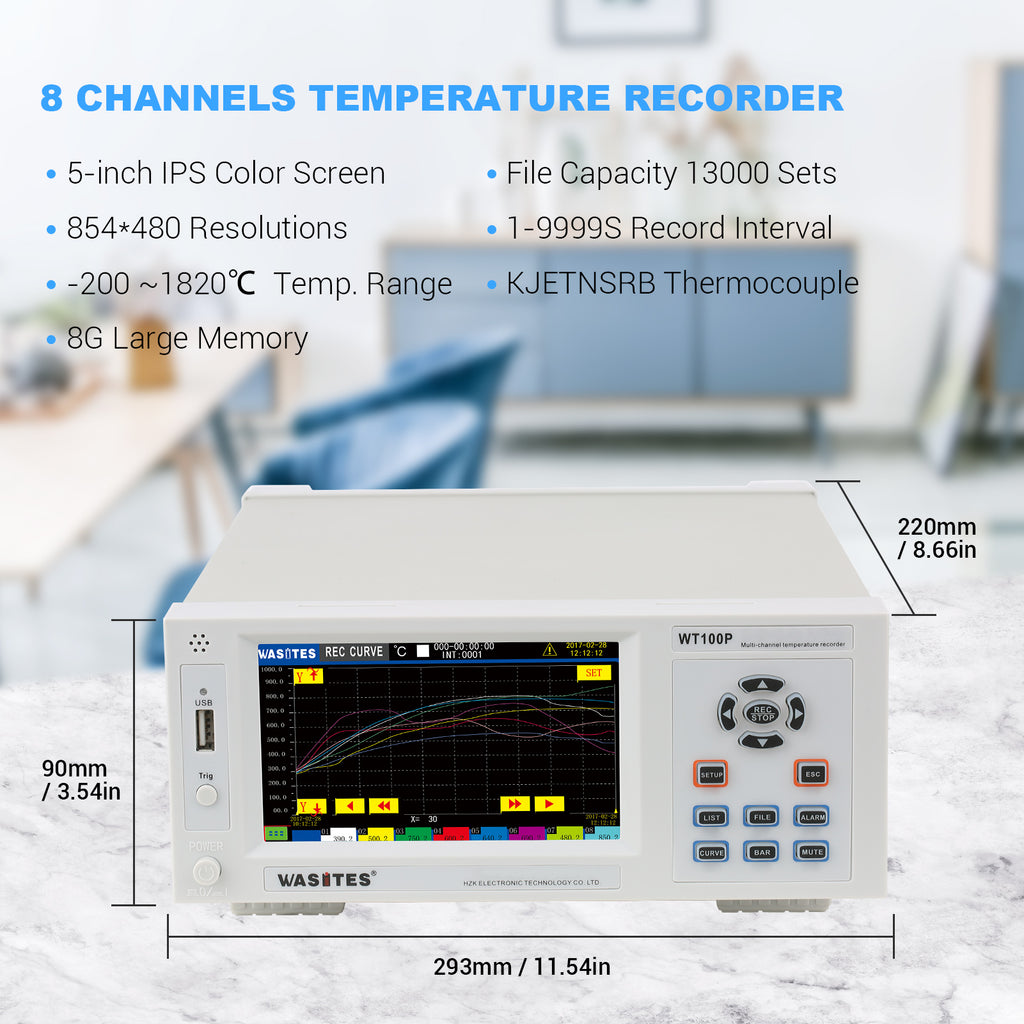

 Item Size: 293 * 220 * 90mm / 11.54 * 8.66 * 3.54in

 Item Weight: 1887g / 4.16lbs

 Package Size: 37 * 28 * 19cm / 14.57 * 11.02 * 7.48in

 Package Weight: 2840g / 6.26lbs

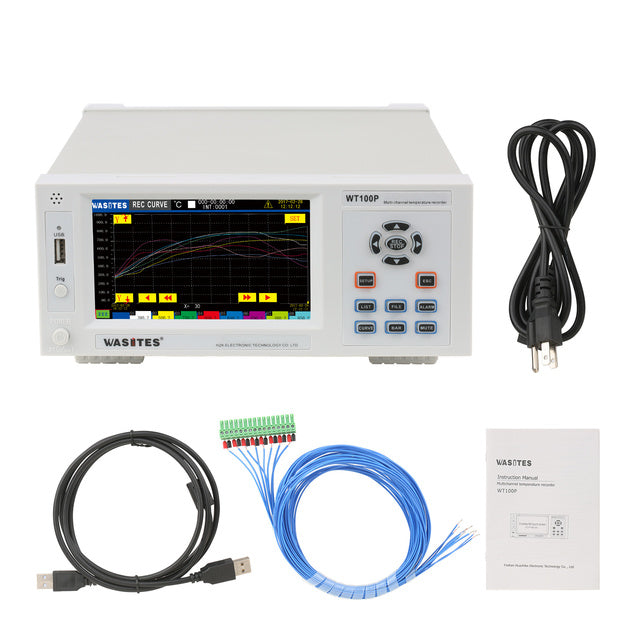

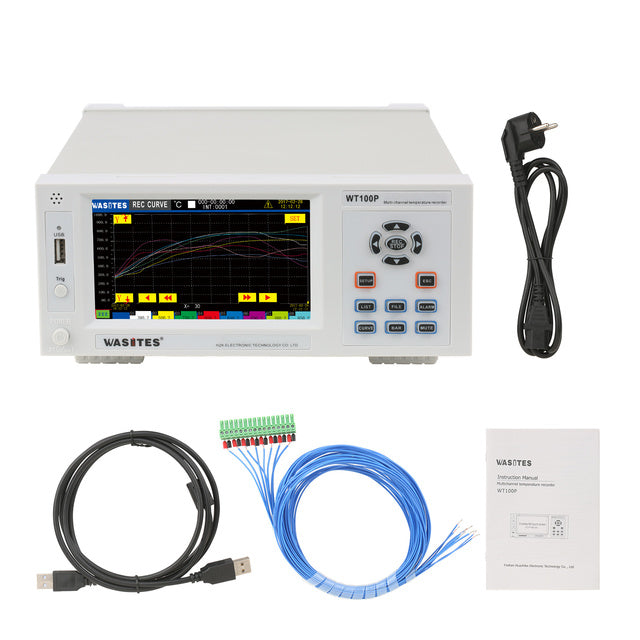

 Package List:

 1 * Multi-channel Temperature Recorder

 1 * Power Adapter

 1 * USB Cable

 1 * K-type Thermocouple (2m)

 1 * User Manual (English)
