8.0" PD080SL3 800X600 LCD Screen:

Display New Mode TN, Normally White, Transmissive

Resolution 800(RGB)x600

Outline Size 200x152x10.8 (HxVxD)mm

Display Area 162x121.5 (HxV)mm

Brightness 420 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 60/60/45/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 6/8-bit), 20Pins Connector

Backlight  WLED

Input Voltage 3.3V (Typ.)

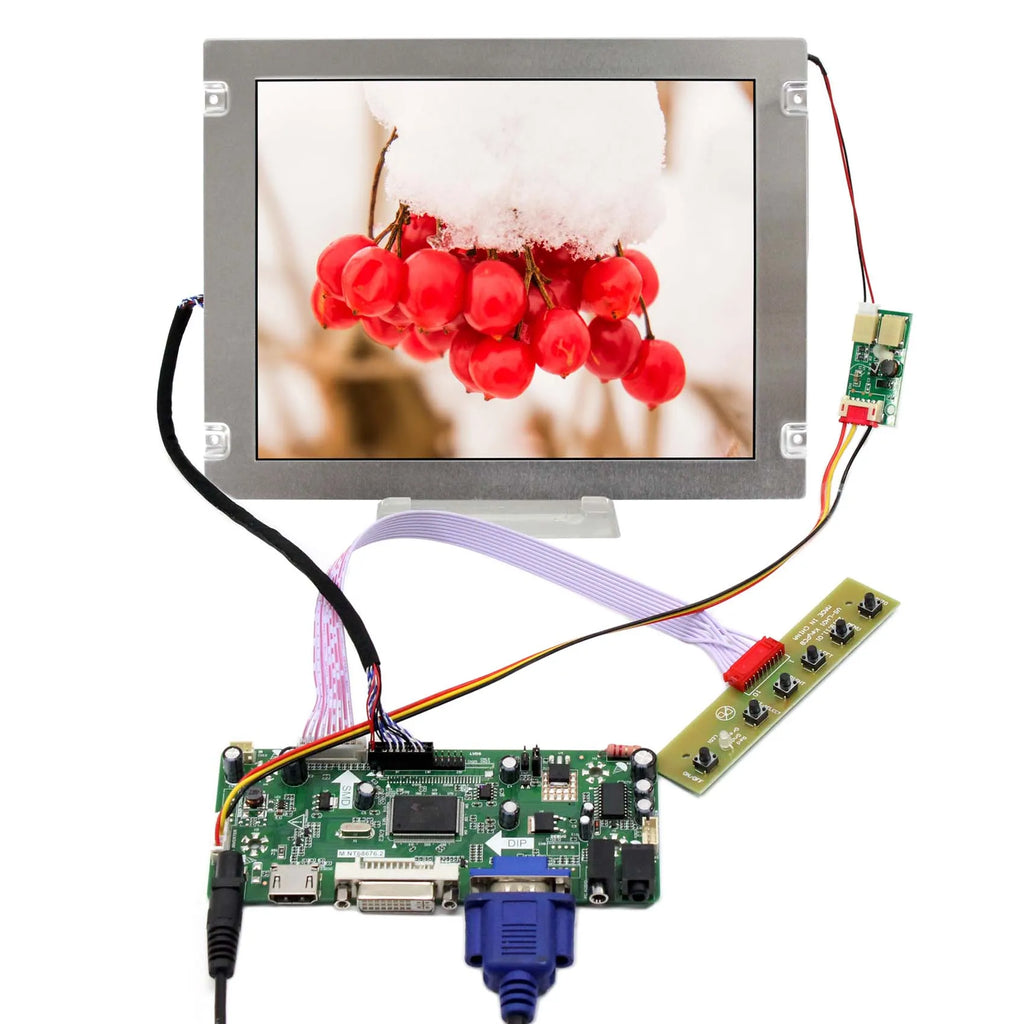

LCD Controller Board:
K002615

H-D DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: H-D DVI VGA

Audio Input: H-D

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 58mm x 17mm

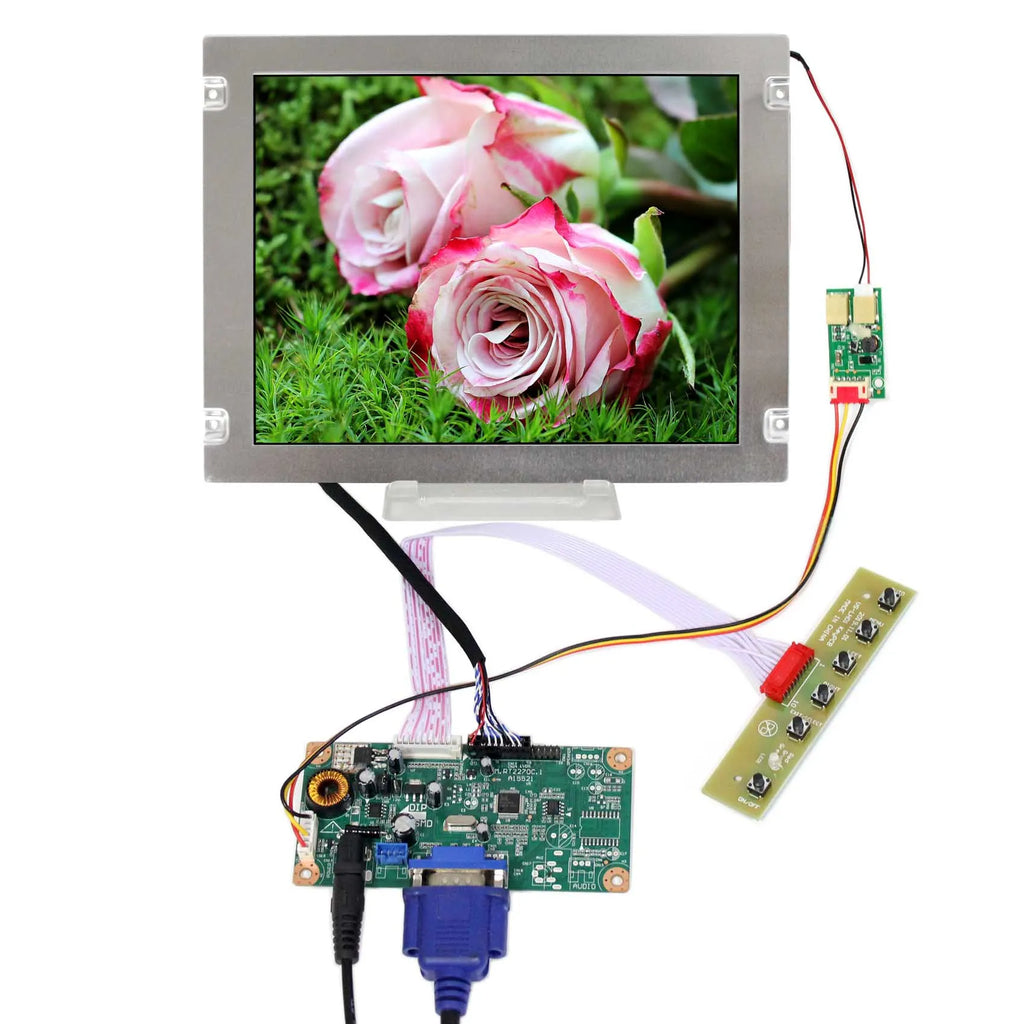

K002616:

VGA LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: VGA

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 107mm x 52mm x 18mm

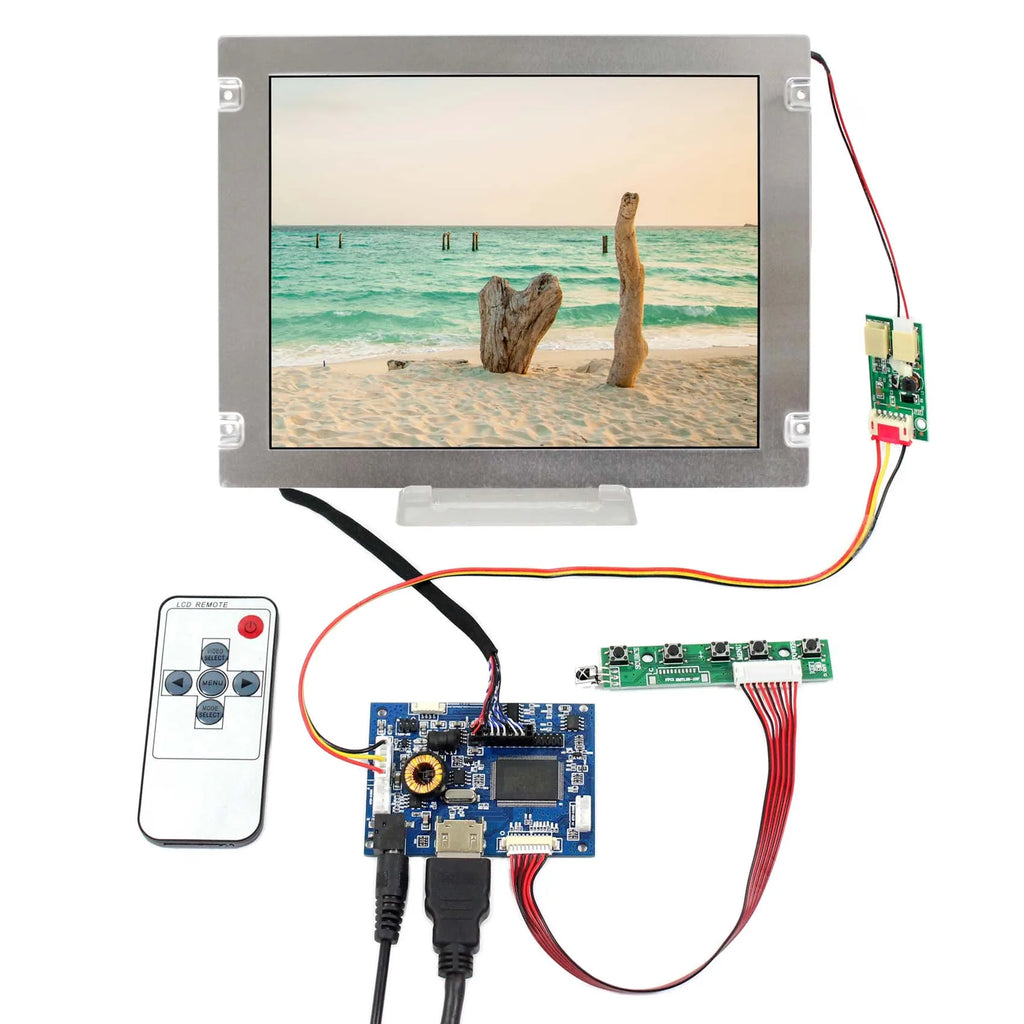

K002617:

H-D LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 5A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: H-D

Audio Input: H-D

Audio Output: Speaker (4Pin PH1.25 connector)

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 74mm x 53mm x 12mm

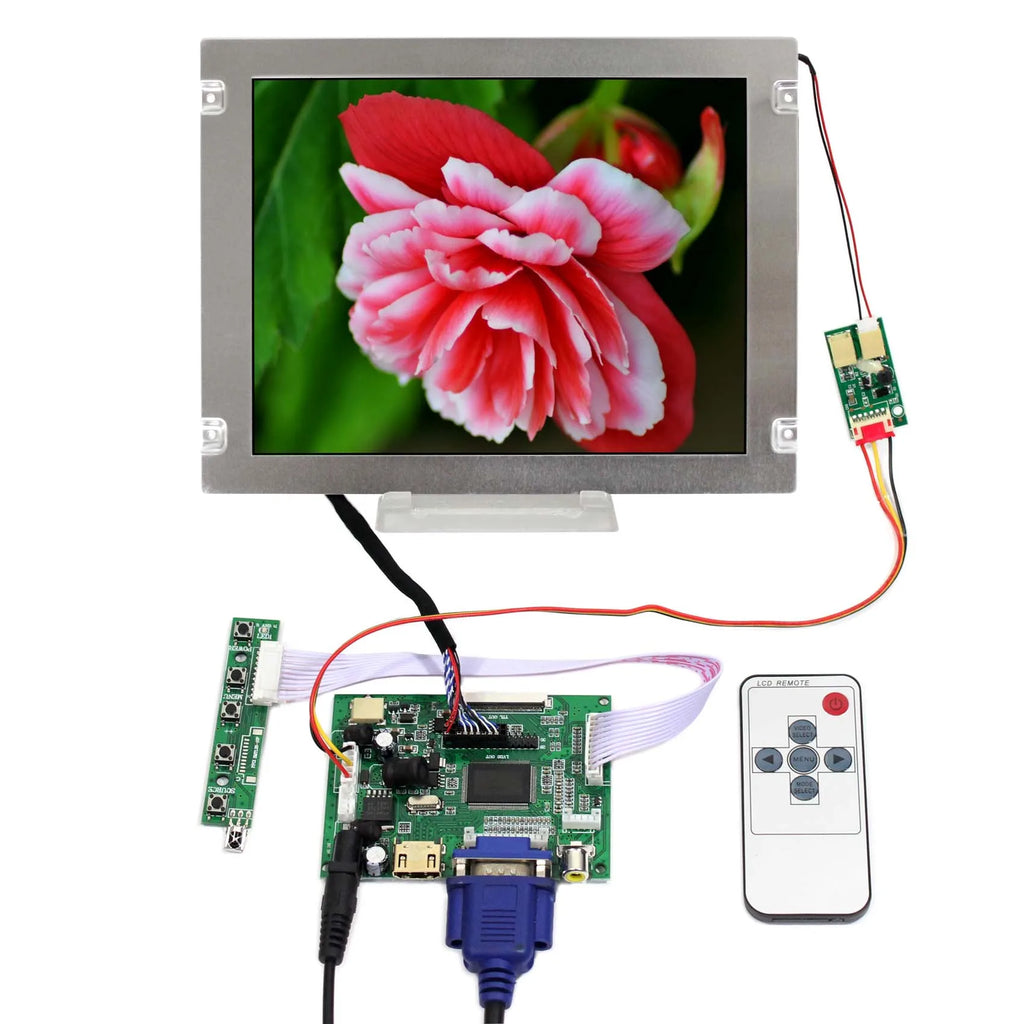

K002618:

H-D VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: H-D VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 91mm x 66mm x 12mm

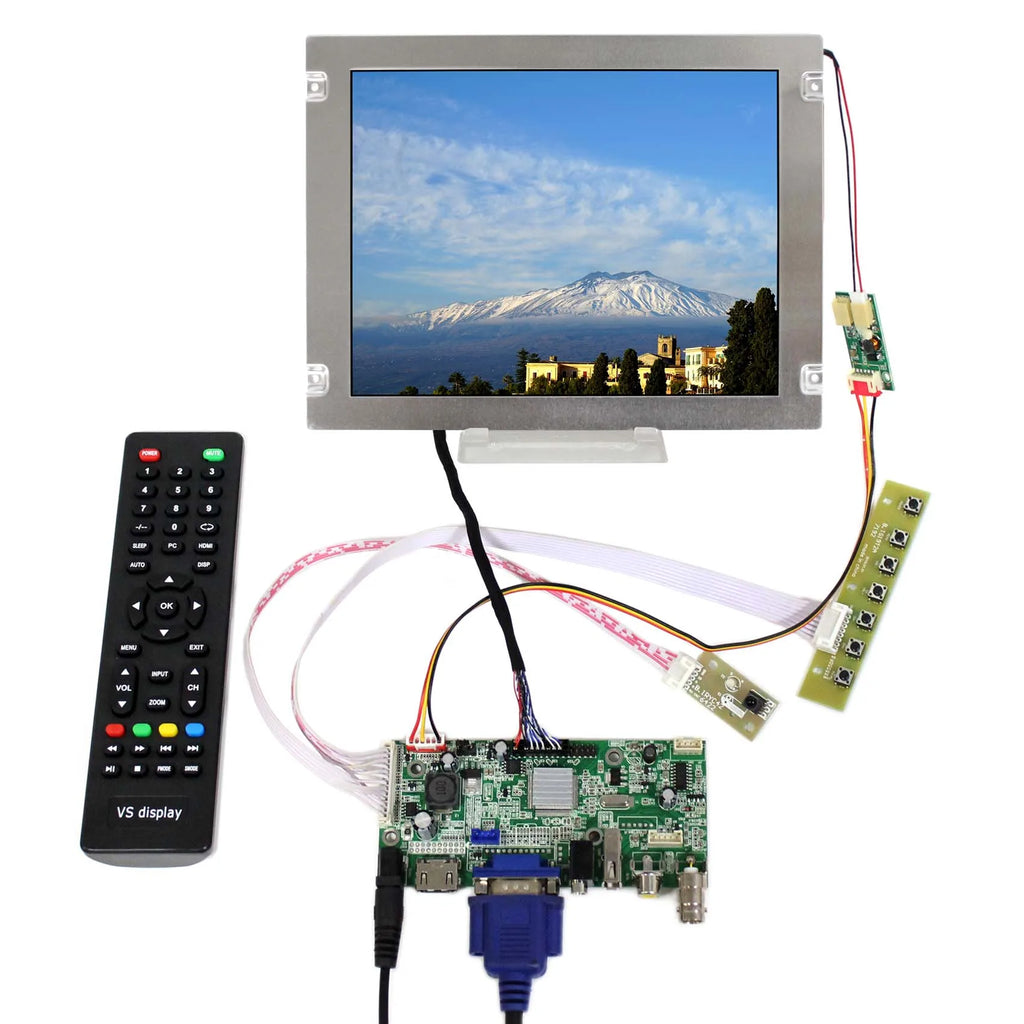

K002619

H-D VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

H-D Port Support Transform Audio Compatible With H-D 1.3/1.4，HDCP 1.2

USB Support Video

AV1 AV2 Compatible With PAL And NTSC

Video Input: H-D VGA AV1 AV2 USB

Audio Input: H-D PC-Audio

Audio Output: Speaker Connector

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 118mm x 54mm x 17mm
