Feature:
1. CURRENT VOLTAGE: 8 string PV combiner box, the maximum current of a single PV input array is 10A, the rated continuous load of each string is 250VDC.

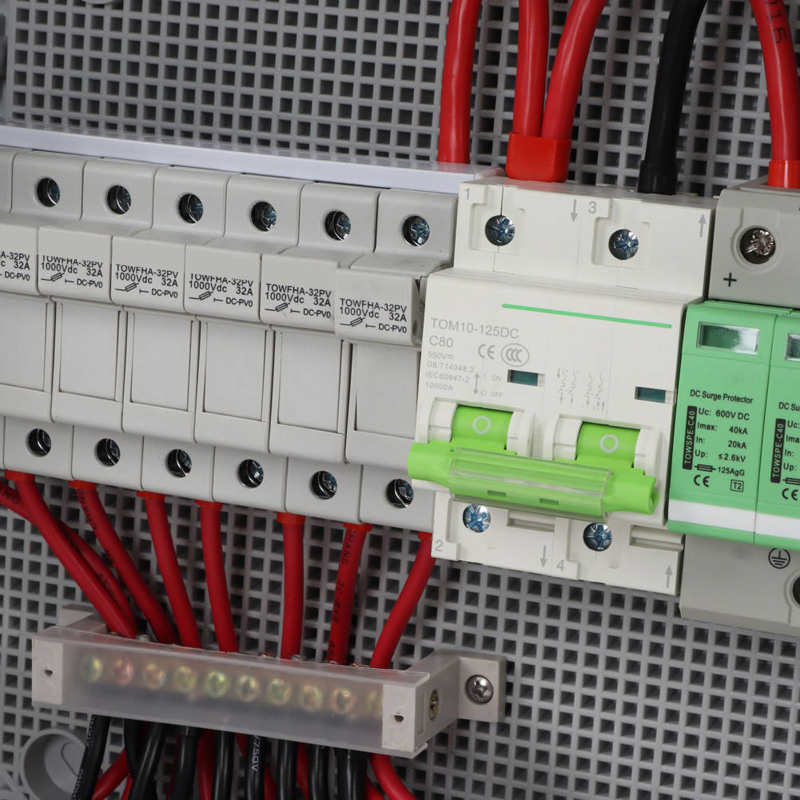

2. 10A FUSE: Single PV input array mounted high voltage fuse, 10A rated current fuse, with overload and overcharge protection functions.
3. REVERSE PROTECTION: Backflow prevention diode is used to provide reverse protection, with contact safety circuit breaker and non conductive box.
4. DC BREAKER: 80A solar DC circuit breaker controls the output, with short circuit protection, making the solar system more safe and reliable.

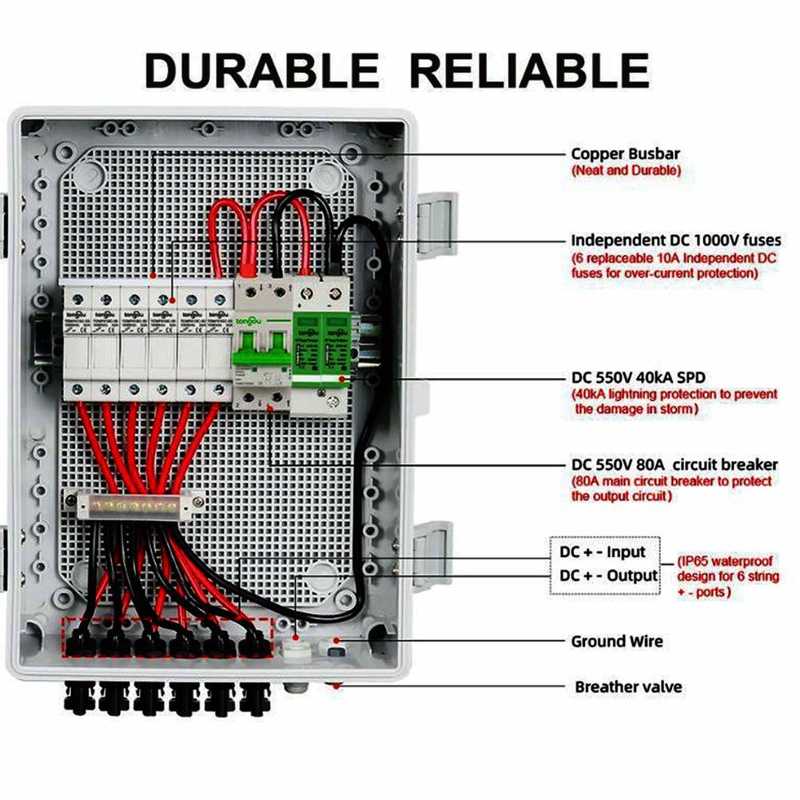

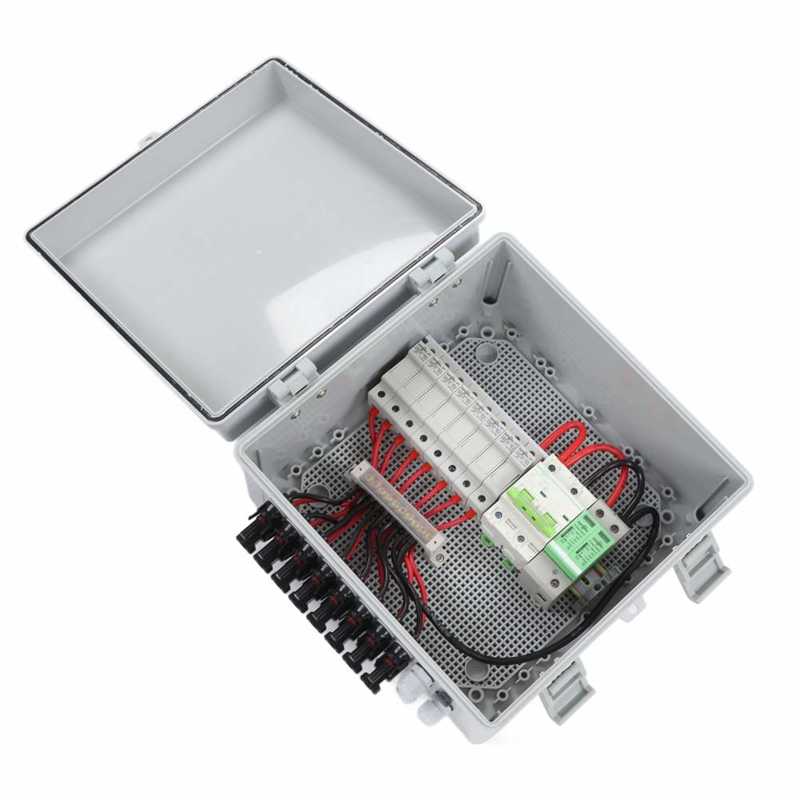

5. PRODUCT STRUCTURE: The PV junction box includes output cable connector, safety label and arrester module, with stable performance.
Specification:
Item Type: PV Combiner Box
Connected PV Array: Maximum 8
Single PV Array Input Current: Maximum 10A
PV Array Total Input Current: 80A
PV Array Total Maximum Input Voltage: 1000V
Protection Grade: IP65
Working Ambient Temperature: -30-70℃
Relative Humidity: 0-95%
Cooling Mode: Natural Cooling
Arrester Surge Protection: Yes

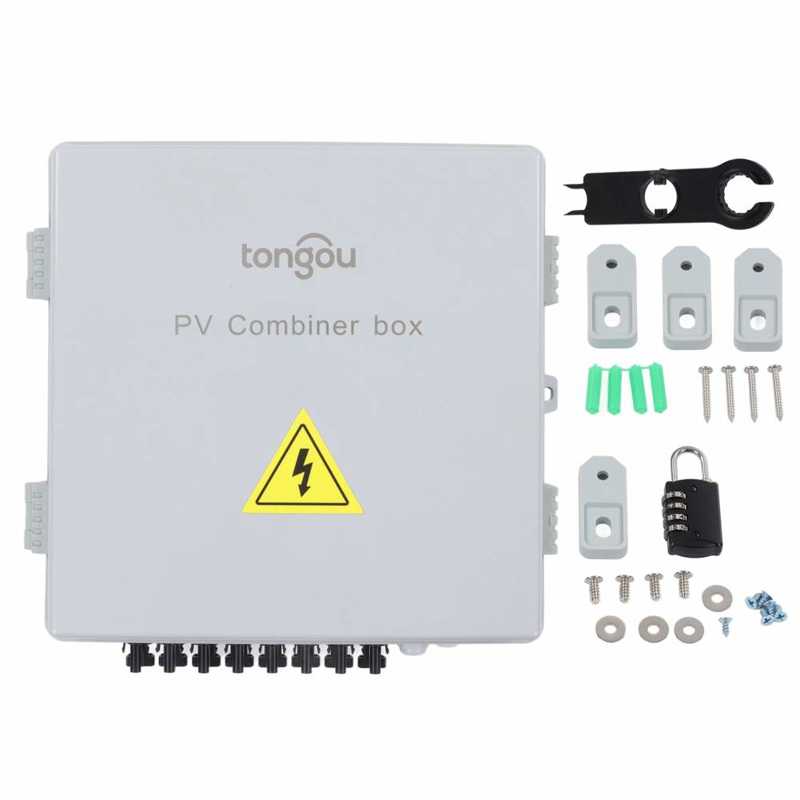

Package List:
1 x Electric Box
1 x Password Lock
4 x Fixing Pieces
14 x Screws
4 x Gaskets
4 x Screw Sleeves
1 x Wrench
1 x User Manual
