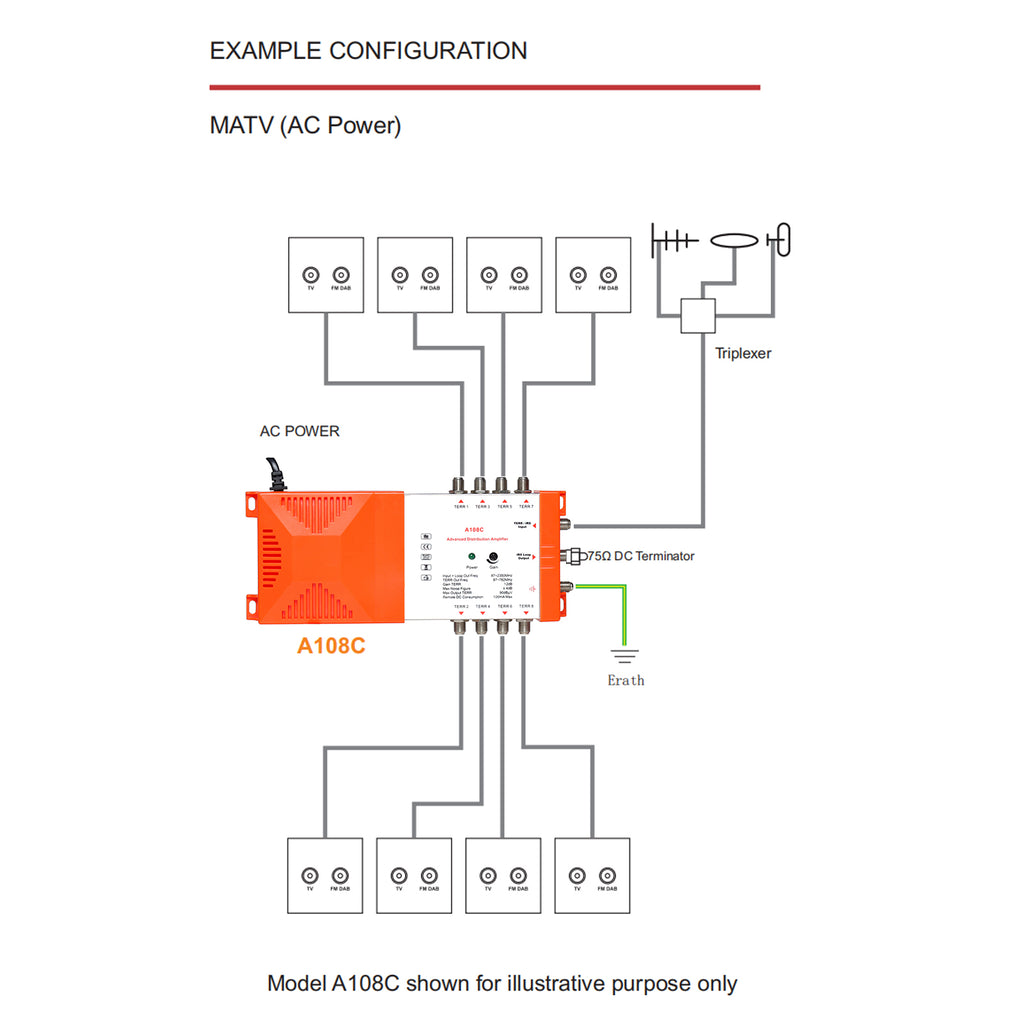

  Professional 8-way distribution amplifier with IRS Loop-through can be connected directly to a Multiswitch subscriber output whereby the SAT and TERR/Radio signals are passed through the distribution amplifier before terminating at the outlet plate. The IRS Loop-through can also be used to cascade multiple units to create large scale Master Antenna TV systems (MATV). When used a s a standard TERR and Radio distribution amplifier, it offers a professional, low noise, high gain solution.

 Features:

 The distribution amplifier is designed to meet the requirements of the modern Integrated TV & Satellite Integrated Reception System.

 The range features an IRS Loop-through which enables the 8-way distribution amplifier to be connected directly to a Multiswitch subscriber output.

 Used as a Terrestrial TV and Radio Distribution Amplifier (MATV), the distribution amplifier provides unrivalled low noise, high gain performance and reliability. The RED compliant distribution amplifier includes a high rejection 4G Filter and features a 15dB Gain Control which ensure that the 8-way distribution amplifier can be applied to most signal level scenarios.

 The unit can be powered via the AC mains lead supplied or, in the absence of mains supply can be remotely powered via any of the TERR Outputs using a suitable PSU (not included).

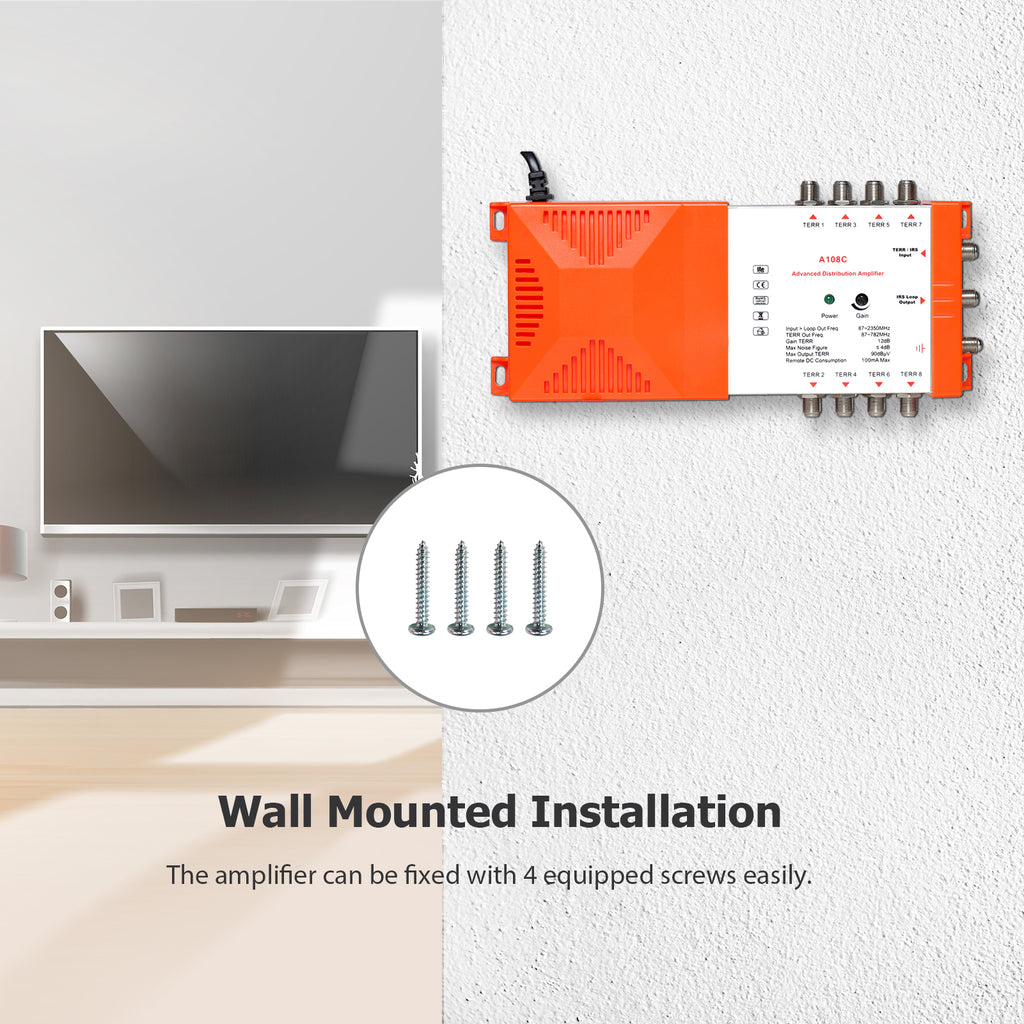

 Wall mounted installation; the amplifier can be fixed with 4 equipped screws easily to the relevant wall, surface, or cabinet. It’s intended for indoor use only.

 Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

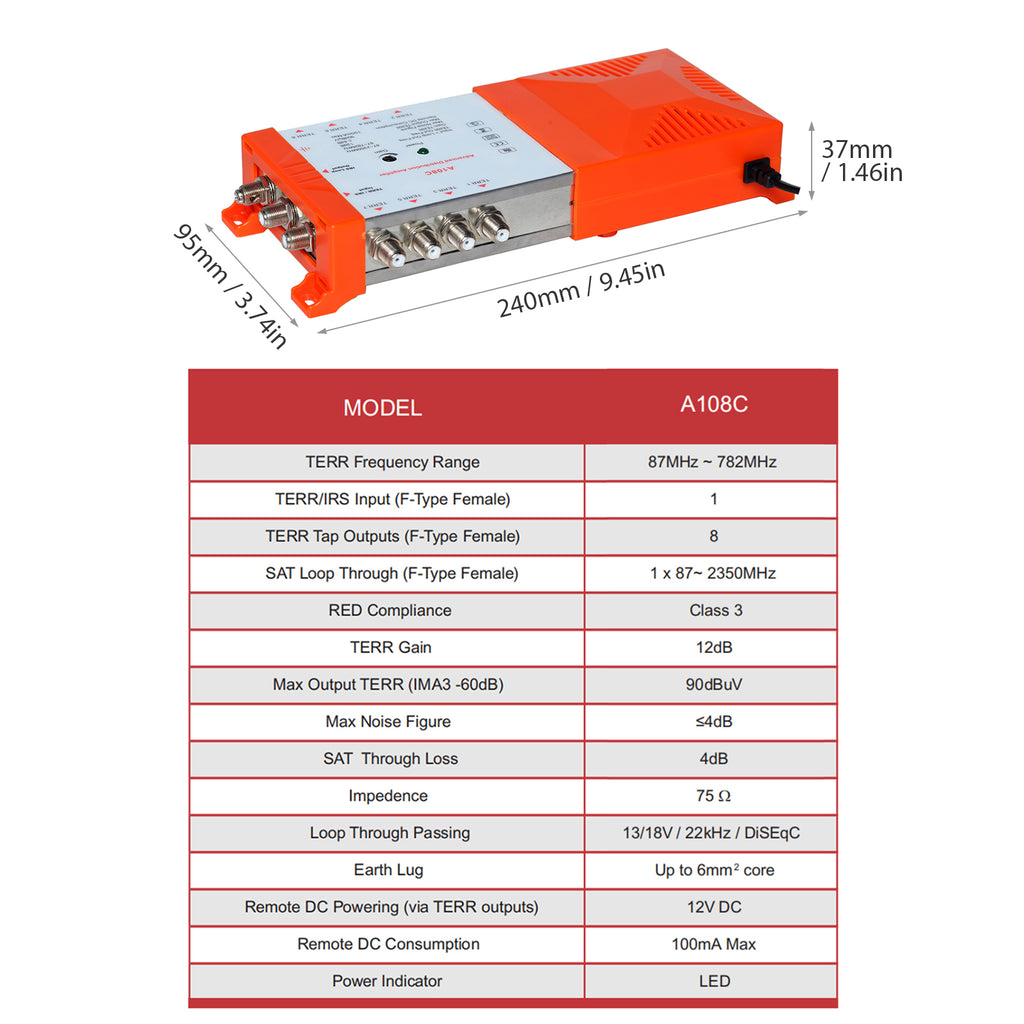

 Specifications:

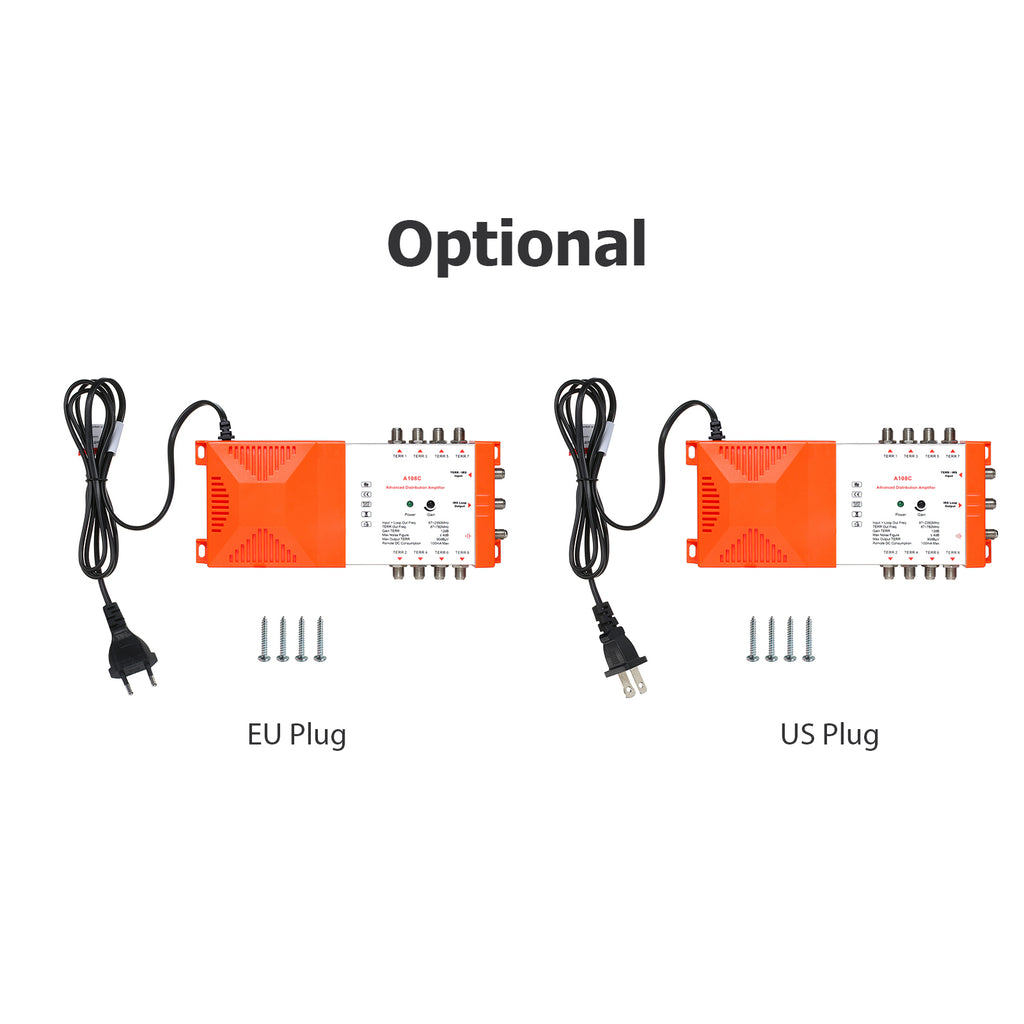

 Plug: EU/ US (Optional)

 Color: White & Orange

 Material: ABS + Metal

 Input＞Loop Out Frequency: 87~2350MHz

 TERR Out Frequency: 87~782MHz

 Gain TERR: 12dB

 Max. Noise Figure: ≤4dB

 Max. Output TERR: 90dBμV

 Remote DC Consumption: 100mA Max.

 Item Size: 240 * 95 * 37mm / 9.45 * 3.74 * 1.46in

 Power Cord Length: about 135cm / 53in

 Item Weight: 509g / 1.12lbs

 Package Size: 25.5 * 12 * 5cm / 10.04 * 4.72 * 1.97in

 Package Weight: 596g / 1.31lbs

 Package List:

 1 * Distribution Amplifier

 4 * Screw
