Feature:
1. MPPT Technology: The built in high accuracy maximum power point MPPT tracking can better track the change of sunlight to obtain the best power, realize stable power output, and enable the inverter to discharge to the grid with high efficiency.
2. APP Real Time Monitoring: The MPPT micro solar inverter has a built in WiFi module, intelligent APP monitoring, can monitor inverter data in real time.
3. Multiple Safety Protections: Support island protection, over temperature protection, AC voltage over and under protection, DC over voltage protection.

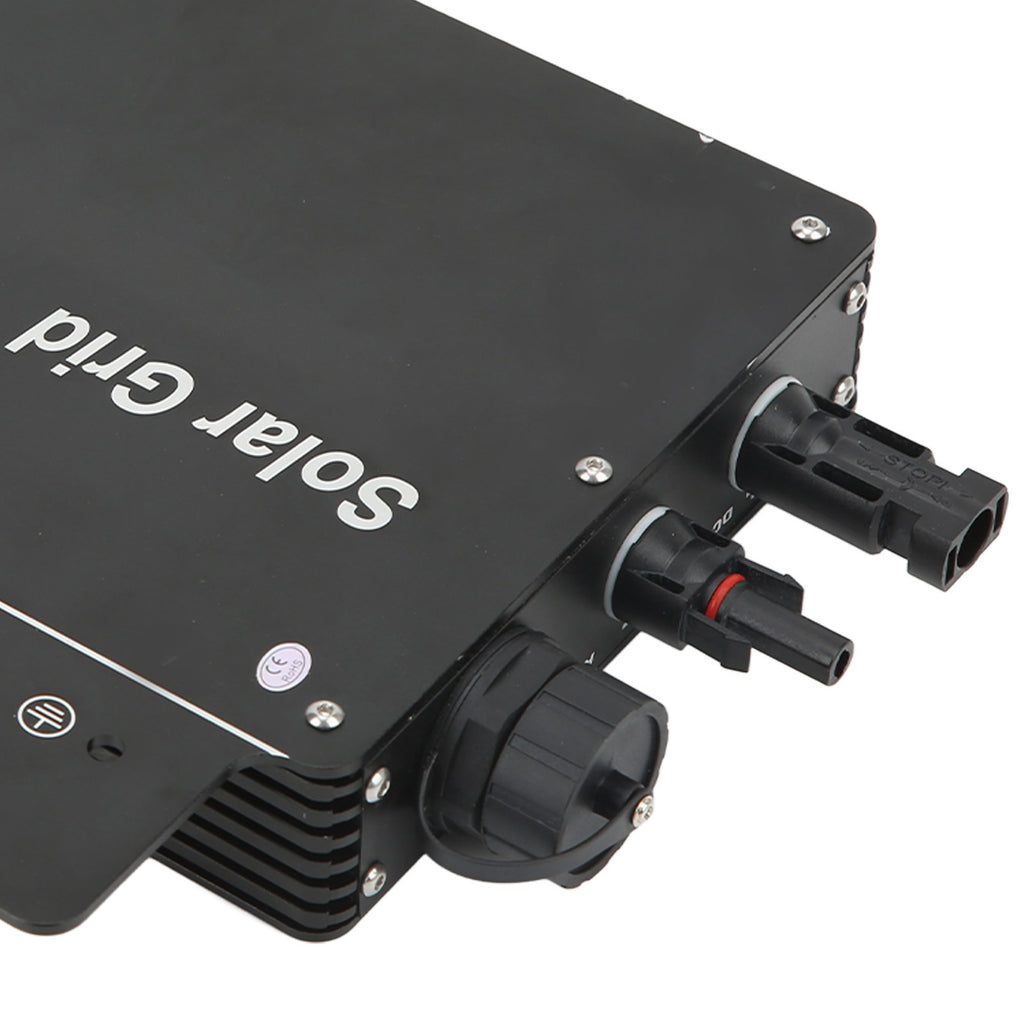

4. High Efficiency: IP67 waterproof interface, high strength, not easy to age; equipped with high accuracy electronic components inside to provide strong power output for the inverter; high frequency conversion to make the output more efficient.
5. Heat Dissipation: Aluminum alloy housing, excellent heat dissipation performance, can provide better protection for the runing of the inverter, long service life.
Specification:
Item Type: Solar Grid Tie Inverter
Material: Aluminum alloy
Gross Weight: 2495g / 88.0oz
Plug: Eu plug
DC Input:
Maximum DC Input Voltage: 52V
Work Voltage Range: 20-50V
Starting Voltage: 18V
MPPT Tracking Voltage: 22-48V
MPPT Tracking Accuracy:> 99.5%
Maximum DC Input Current: 12Ax2
AC Output:
Rated Power Output: 750W
Maximum output power: 800W
Rated voltage: 230V
Output Voltage Range: 190-270V
The Rated AC Current (AT 230V): 3.47A
Rating Output Frequency: 60Hz
Export Frequency Range: 58.9-61.9Hz
Total Harmonic Distortion: <5%
Power Factors:> 0.99
Maximum Number of Branch Circuit Connections: at 230V AC: 10 Set (single phase)
Maximum Conversion Efficiency: 94%
CEC Efficiency: 92%
Night Losses: <80MW
Number of Work Indicators: 1pc working state LED light, 1 pc wifi signal light
Communication Connection Method: Wifi 2.4G
Electric Transmission Mode: Reverse transmission, load preferred use
Heating Method: Natural cooling (non electric fan)
Working Environment: Indoor, outdoor

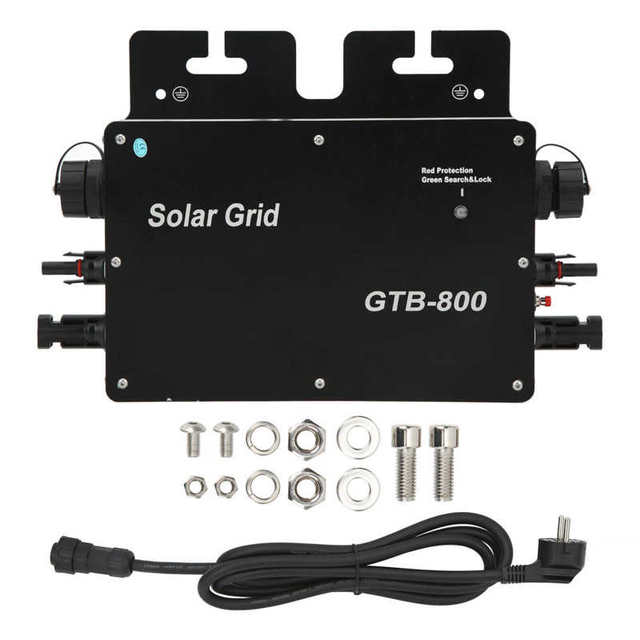

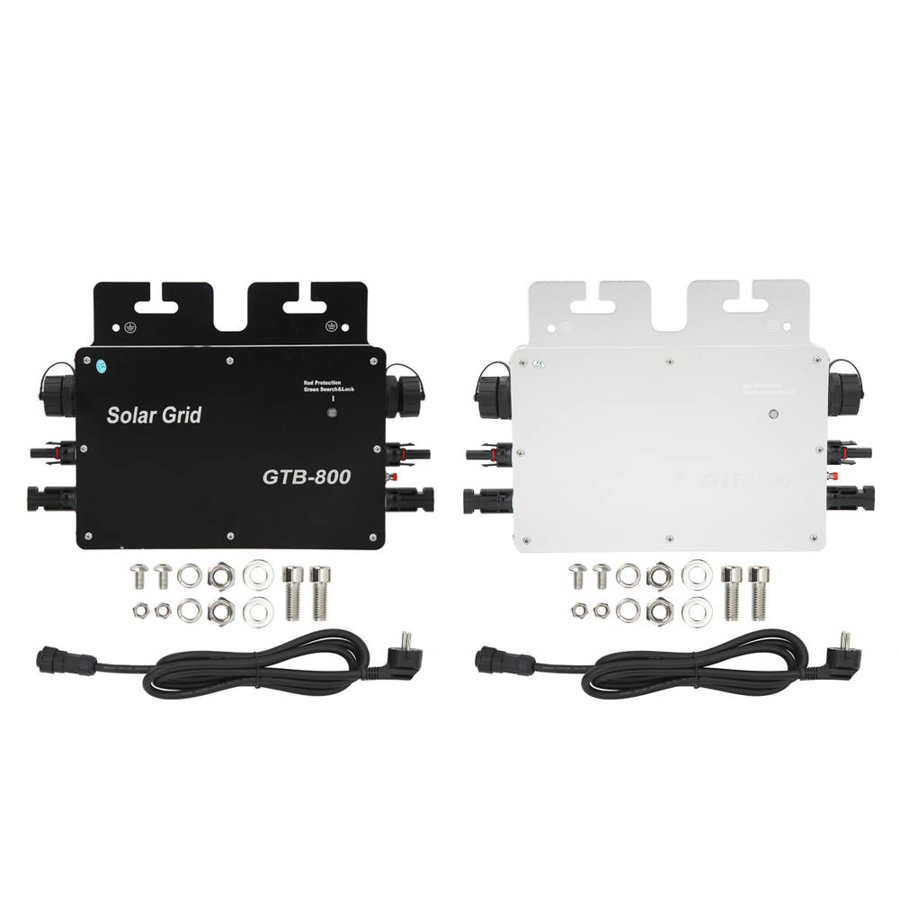

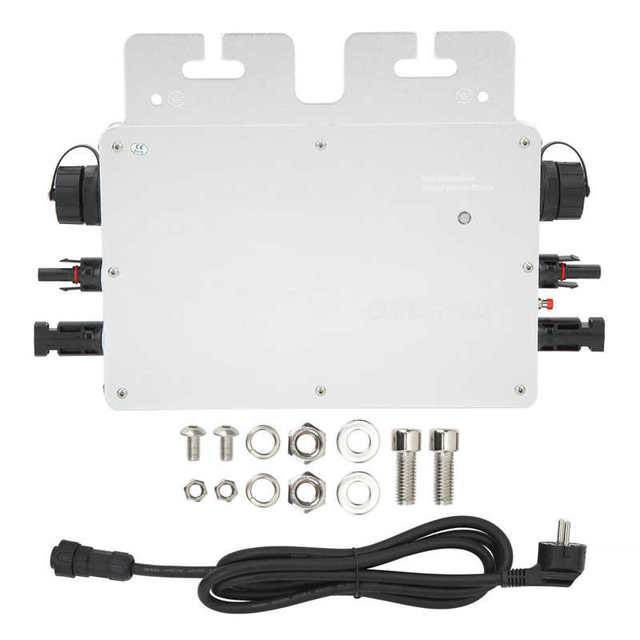

Package List:
1 x Inverter
4 x Screw
4 x Nut
4 x Accessories

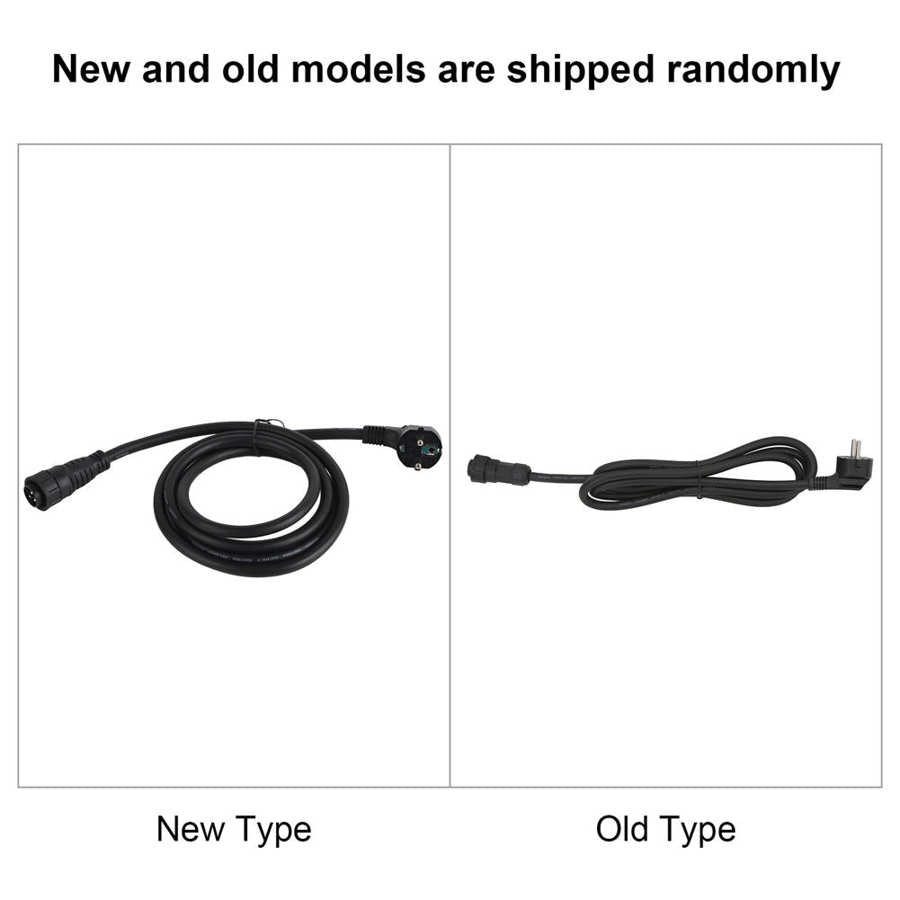

1 x Power Cable
1 x Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
