Features:

 Automatic identification for system voltage: 12V/ 24V. The solar controller is suitable for various specifications of solar panel, applicable to both home and commercial use.

 Uses brand new electronic components and advanced chip, features stable performance and low error rate.

 Different working modes facilitate the solar controller's application to different types of load, such as streets lights and monitoring devices.

 PWM charging mode improves charging efficiency than ordinary solar controllers and the battery being charging is not easy to get damaged.

 Multiple protections provide safe use, such as over-charge, over-discharge, overload protection, as well as short circuit and reverse polarity protection.

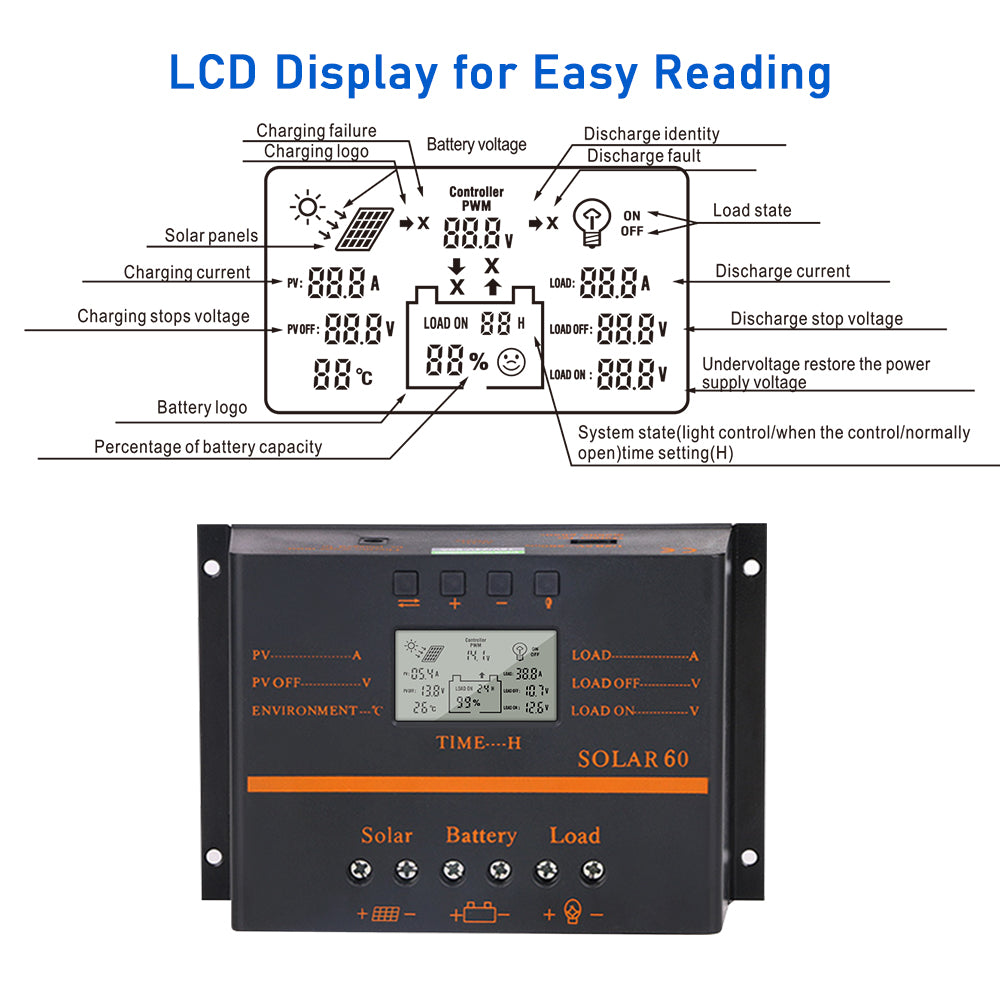

 Easy-to-read LCD screen and user-friendly operating keys ensure convenient and intuitive operations.

 With temperature compensation employed, charging parameters can be automatically adjusted.

 Selected ABS casing is wear-resistant, anti-impact and weather resistant; aluminum alloy heat sink provides rapid heat dissipation to prolong service life.

 5V USB output interface for easily charging smart phone or other electronic devices.

 Note: Size and color may be slightly different because of manual measurement and different light conditions. Thanks for understanding.

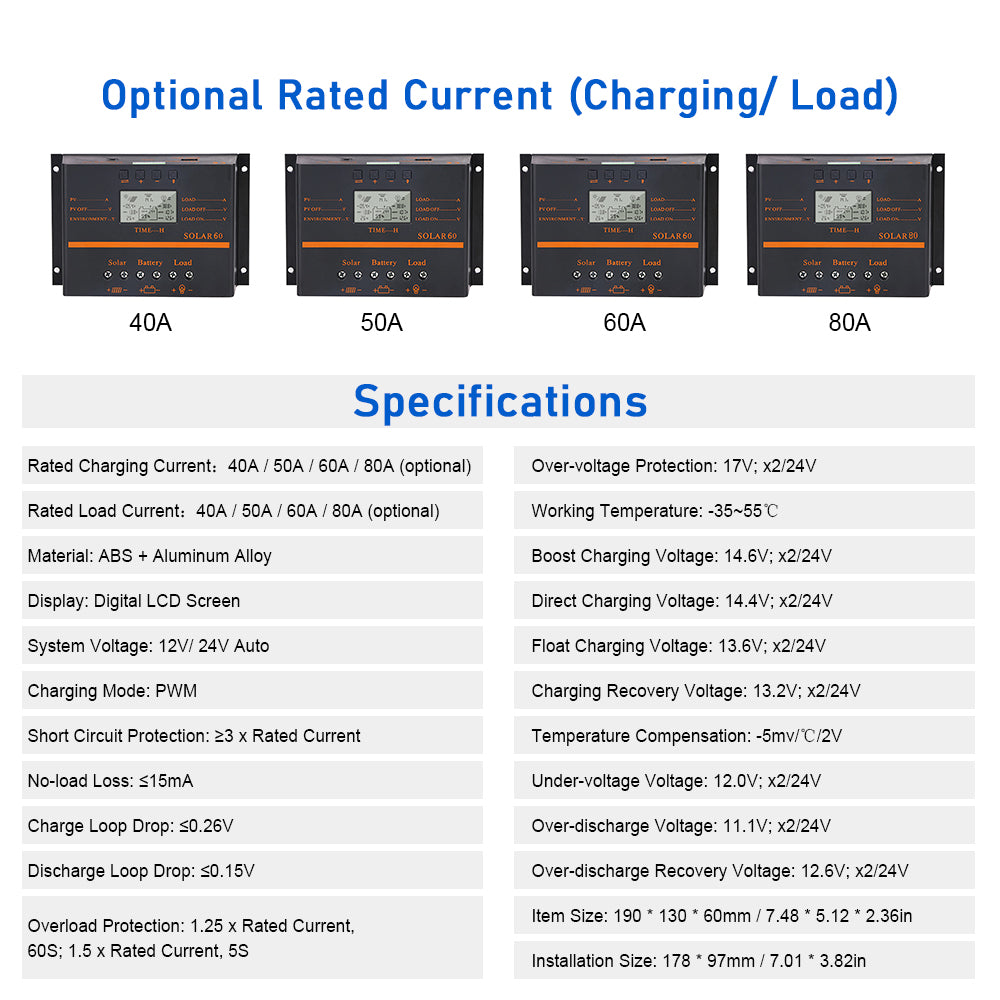

 Specifications:

 Rated Current (Charging/ Load): 40A/ 50A/ 60A/ 80A (Optional)

 Color: Black

 Material: ABS + Aluminum Alloy

 Display: Digital LCD Screen

 System Voltage: 12V/ 24V Auto

 Charging Mode: PWM

 Overload Protection: 1.25 x Rated Current, 60S; 1.5 x Rated Current, 5S

 Short Circuit Protection: ≥3 x Rated Current

 No-load Loss: ≤15mA

 Charge Loop Drop: ≤0.26V

 Discharge Loop Drop: ≤0.15V

 Over-voltage Protection: 17V; x2/24V

 Working Temperature: -35~55℃

 Boost Charging Voltage: 14.6V; x2/24V

 Direct Charging Voltage: 14.4V; x2/24V

 Float Charging Voltage: 13.6V; x2/24V

 Charging Recovery Voltage: 13.2V; x2/24V

 Temperature Compensation: -5mv/℃/2V

 Under-voltage Voltage: 12.0V; x2/24V

 Over-discharge Voltage: 11.1V; x2/24V

 Over-discharge Recovery Voltage: 12.6V; x2/24V

 Item Size: 190 * 130 * 60mm / 7.48 * 5.12 * 2.36in

 Installation Size: 178 * 97mm / 7.01 * 3.82in

 Package Size: 21 * 14 * 7cm / 8.27 * 5.51 * 2.76in

 Package Weight: 612g / 1.35lbs

 Package List:

 1 * PWM Solar Charge Controller

 1 * User Manual (English)
