P.S: The jar and cans is for reference and is not included in the machine.
Introduction

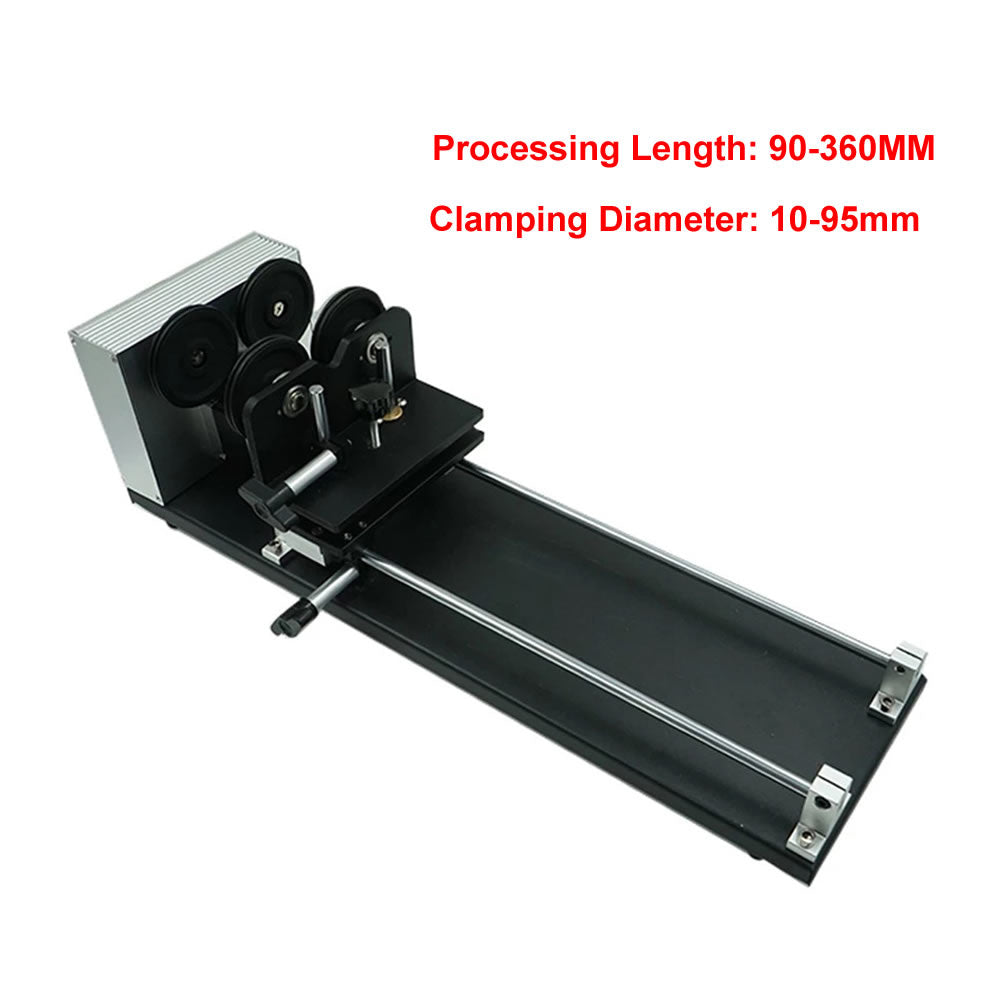

Minimum processing length:90mm
Maximum processing length:360mm (the length of the engraved object can exceed 360mm)
Minimum clamping diameter:10mm
Maximum clamping diameter:95mm
Thicken the bottom plate, more stable when working.
Ratio: 2.5 synchronous belt wheel induction
Voltage: 2.07V Dc
Maximum static torque = 780mn.M
Vibration (see A axis): clockwise a-ab-B direction
Maximum no-load operating frequency = 2500pps
Power: Ac600v / 1ma / 1s
Step angle: 1.8°±0.09°
Current: DC 1A
Inductance (1khz): 30×(1±20%)
Torque: 320 grams Cm
-Maximum no-load frequency = 1500
Insulation degree: B
Pulley material: H62
Tooth shape: Mxl
Number of teeth: Z = 20
Tooth pitch: P = 2.032
Outer circle: phi; 12.428±0.003

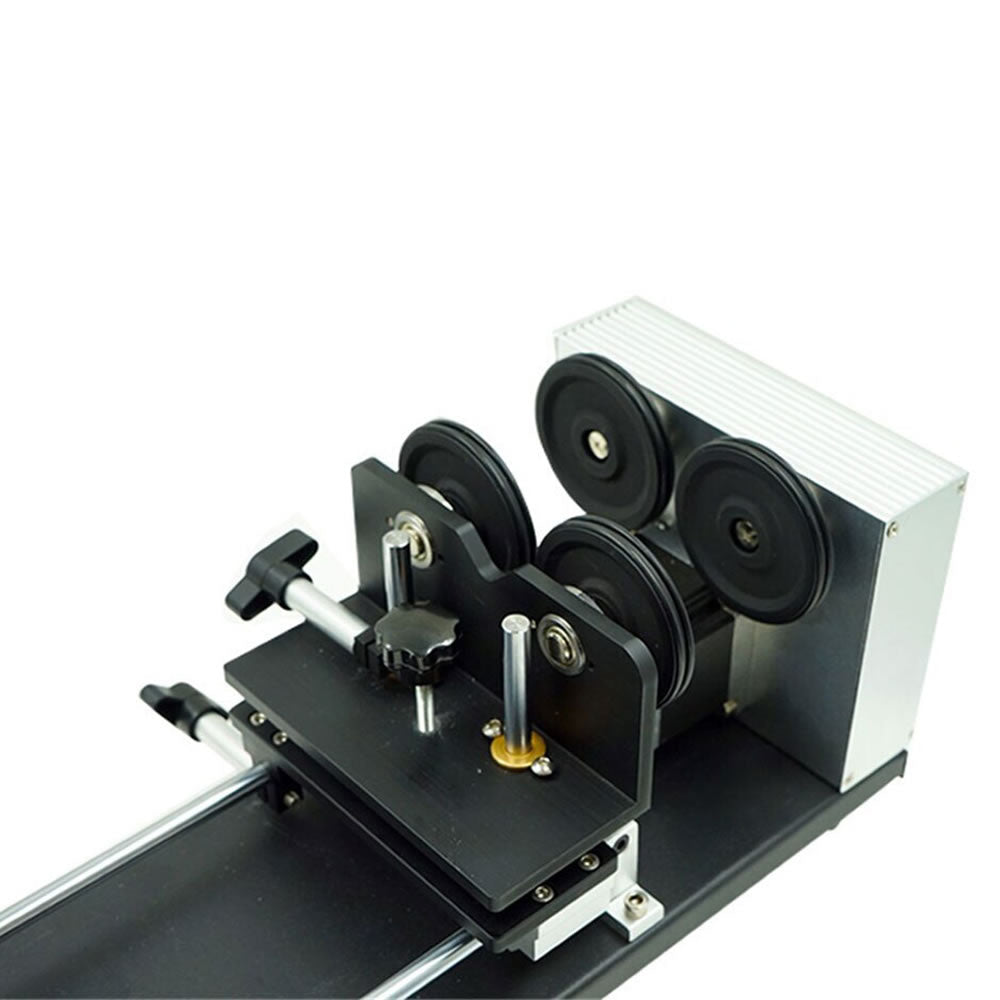

Customized rollers are thickened to increase friction and have a better clamping and rotating effect.
Features:
All made of high quality metal, it's more robust and stable.
The roller design has a better clamping and rotating effect.
Delivery of semi-finished products, easy installation,no need to change software, control board or any other accessories, turns your Laser engraver machine to a rotating engraving machine.
Usage:
1. Pull out the 4-pin wire on Y axis stepper motor of Engraver.
2.Then insert the wire on stepper motor of Rotate Engraving Module.
3. Place Rotate Engraving Module under the laser module and start to engrave.(Need to change parameter of Y axis on GRBL software)
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
