1. dToF Direct Time-of-Flight
2. Minimum volume
3. Measuring distance far
4. High measurement accuracy
5. Light weight
6. Strong ability to resist environmental light interference
Application:

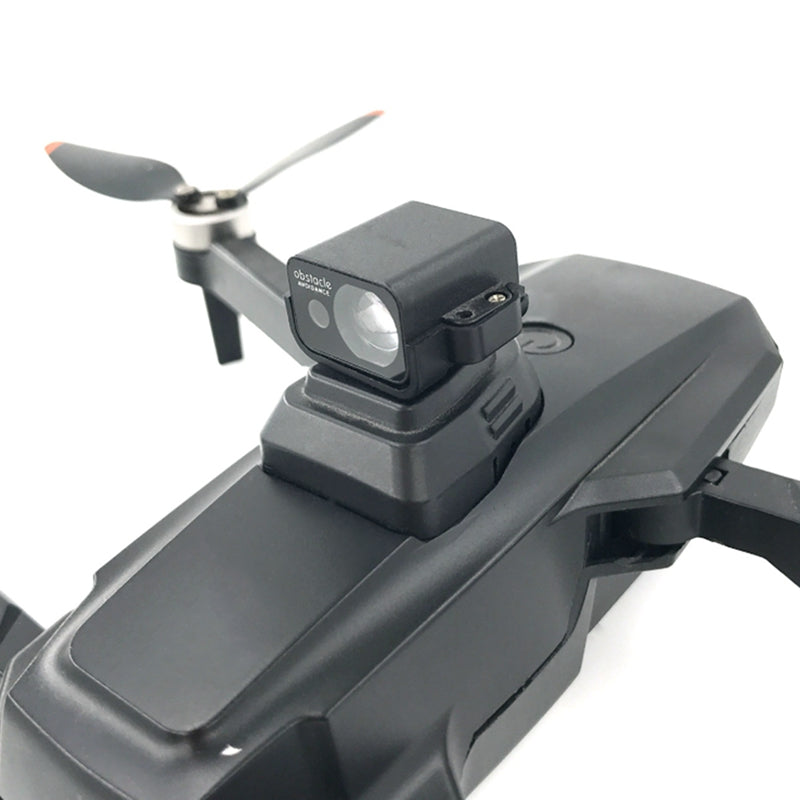

UAV height setting and obstacle avoidance, robot obstacle avoidance
High-speed measurement and safety monitoring in of transportation and industrial automation
Product Model:R50-C
Measuring range:50 m
Measurement accuracy:±2cm @Less than 2 m, ±2% @ equal 2 m
Measuring frequency:100Hz
Light source wavelength:905±5nm
FOV:Less than 2°
Measurement blind area:5-10cm
Operating voltage:3.5-5.5V
Power consumption :50mA@5V
Working temperature:0-60℃
Storage temperature:-20-70℃

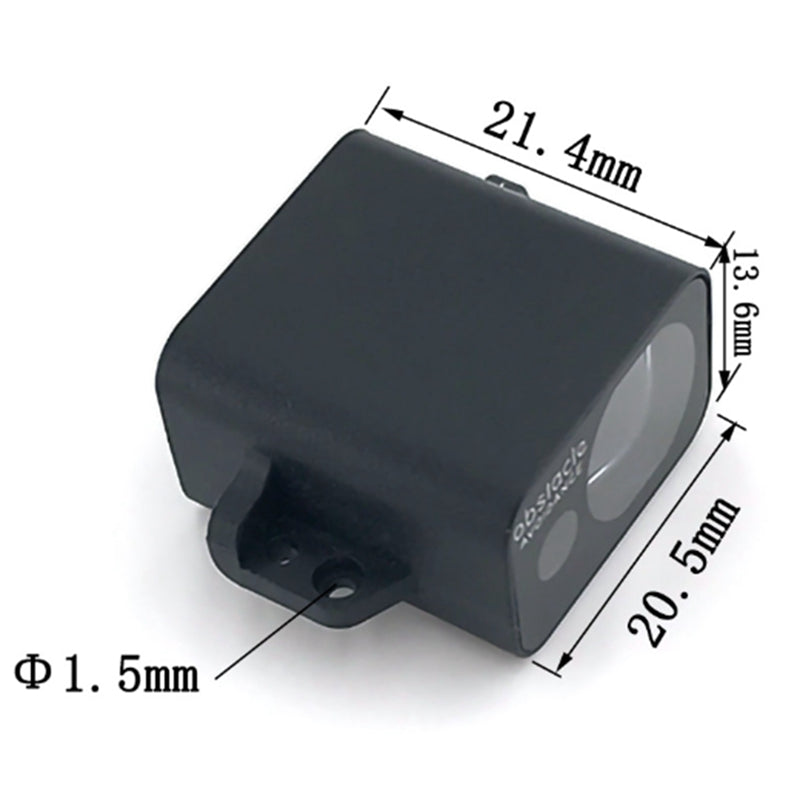

Dimensions:28.5 x 13.6 x 21.4mm
Weight:6g
Communication Interface:UART:115200 / I2C: up to 400K
Colour:As Shown
Material:ABS
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
