You can dial the local calls, domestic and international calls with this terminal connecting with a desktop phone and a SIM card
Sultable for Alarm System! Compatible with GSM 850/900/1800/1900 MHz, widely used with many providers
Simple to install and easy to maintain, A directional higher gain antenna can be connected to solve the poor coverage problem
Compatible to PABX,alarm system,the recording system,etc.

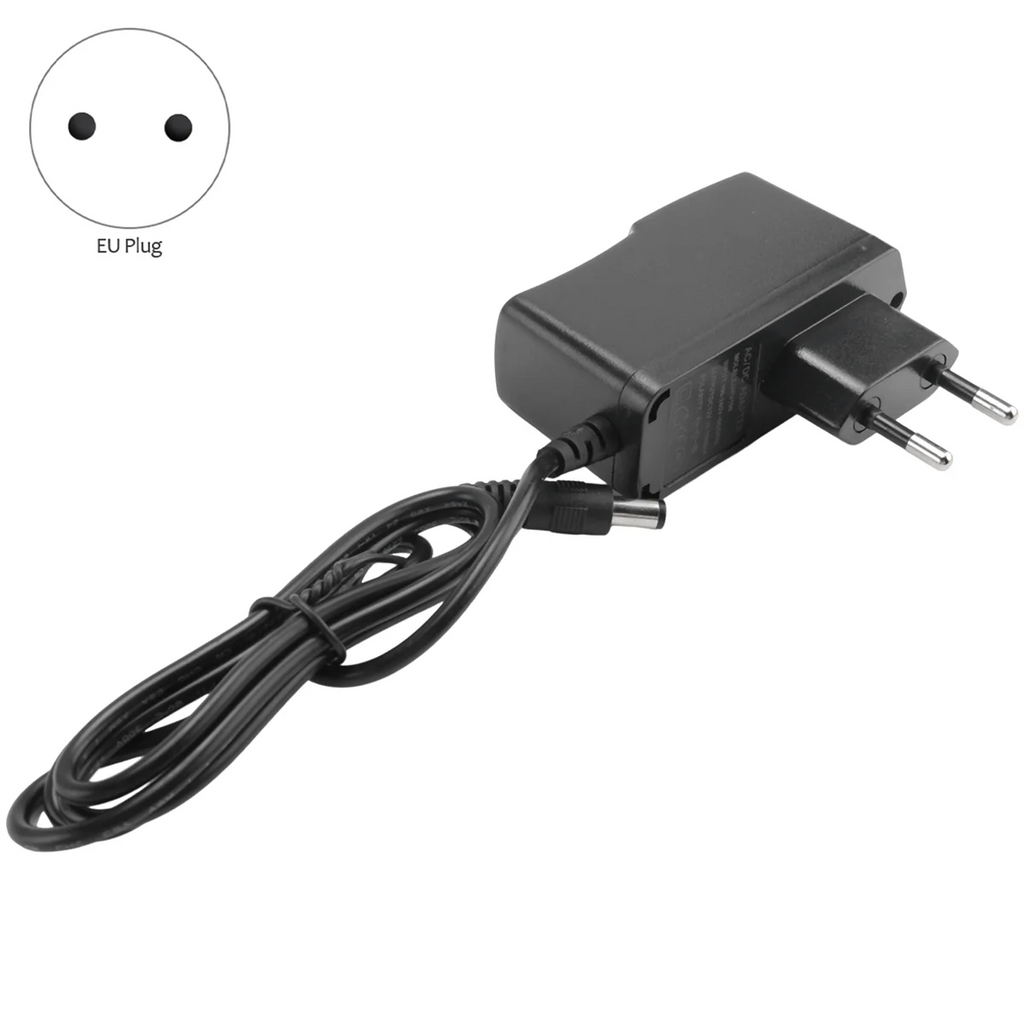

Plug Type:EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on
How to use this device?
Step 1: Install a SIM Card: Insert the SIM card only when the terminal is switched off and the AC adapter is unplugged

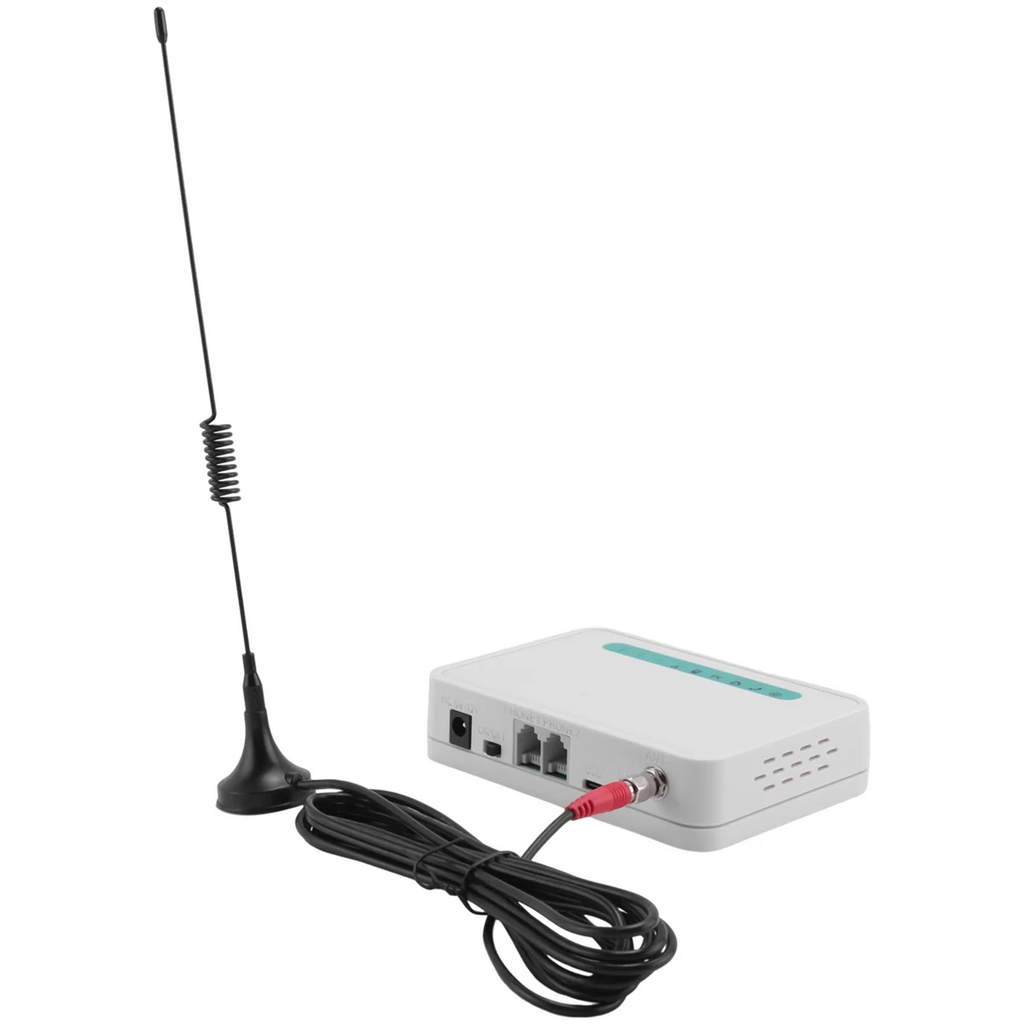

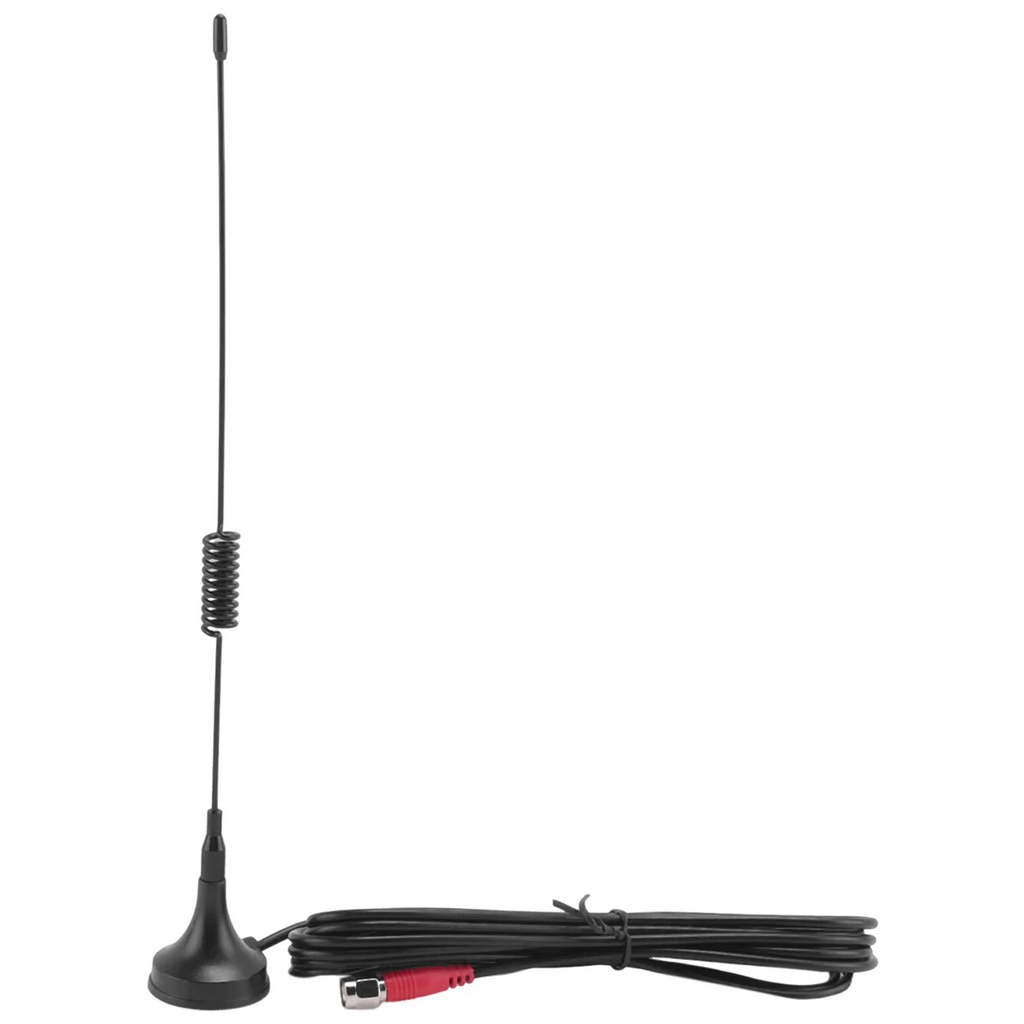

Step 2: Connect the Antenna: For antenna connection, you can use your mobile phone to search for the place where the strongest signal is, then put the antenna there. Please do not make the antenna too close to the terminal. It will disturb the signal of the terminal.
Step 3:Connecting your terminal with desktop phone
To make calls, you should connect the telephone line with RJ11 phone port of GSM terminal and telephone set

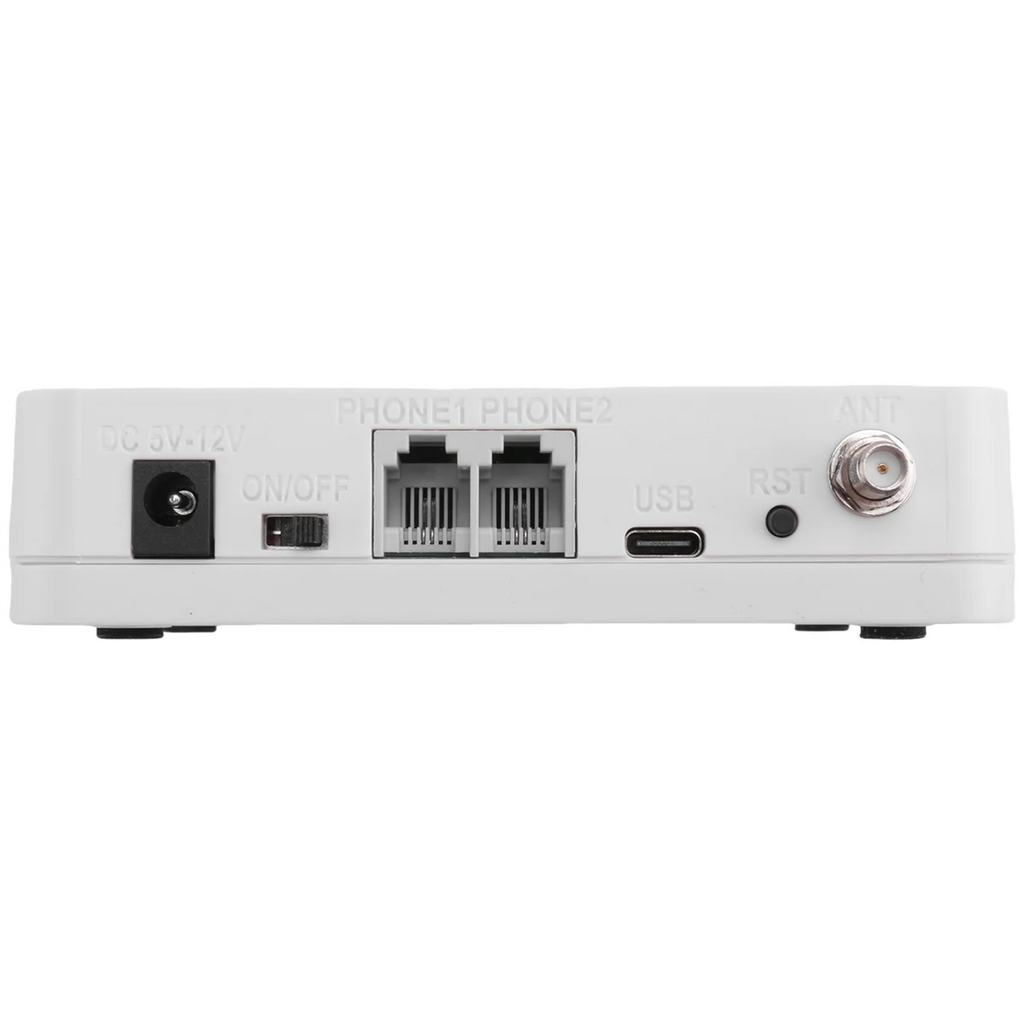

There is one communication portal at the side of the terminal.You can connect one desktop phones with terminal.
Step 4: Connect power adapter and switch on the power.
Step 5: For a while, the device get GSM signal and enter normal working status.
Step 6: Make phone call with your telephone set that connected with terminal.
Specifications
1.Networks support: GSM850/900/1800/1900MHz
2.Frequency range:
GSM 850MHz(Transmits: 824-849MHz, Receives: 869-894MHz)
GSM 900MHz(Transmits: 890-915MHz, Receives: 935-960MHz)
GSM 1800MHz (Transmits: 1710-1785MHz, Receives: 1805-1880MHz)
3.Voltage DC 5V-12V
4.Telephone line length: 150cm
Colour: white
Material: plastic
Size: 120 x 85 x 28mm
Voltage: AC220V

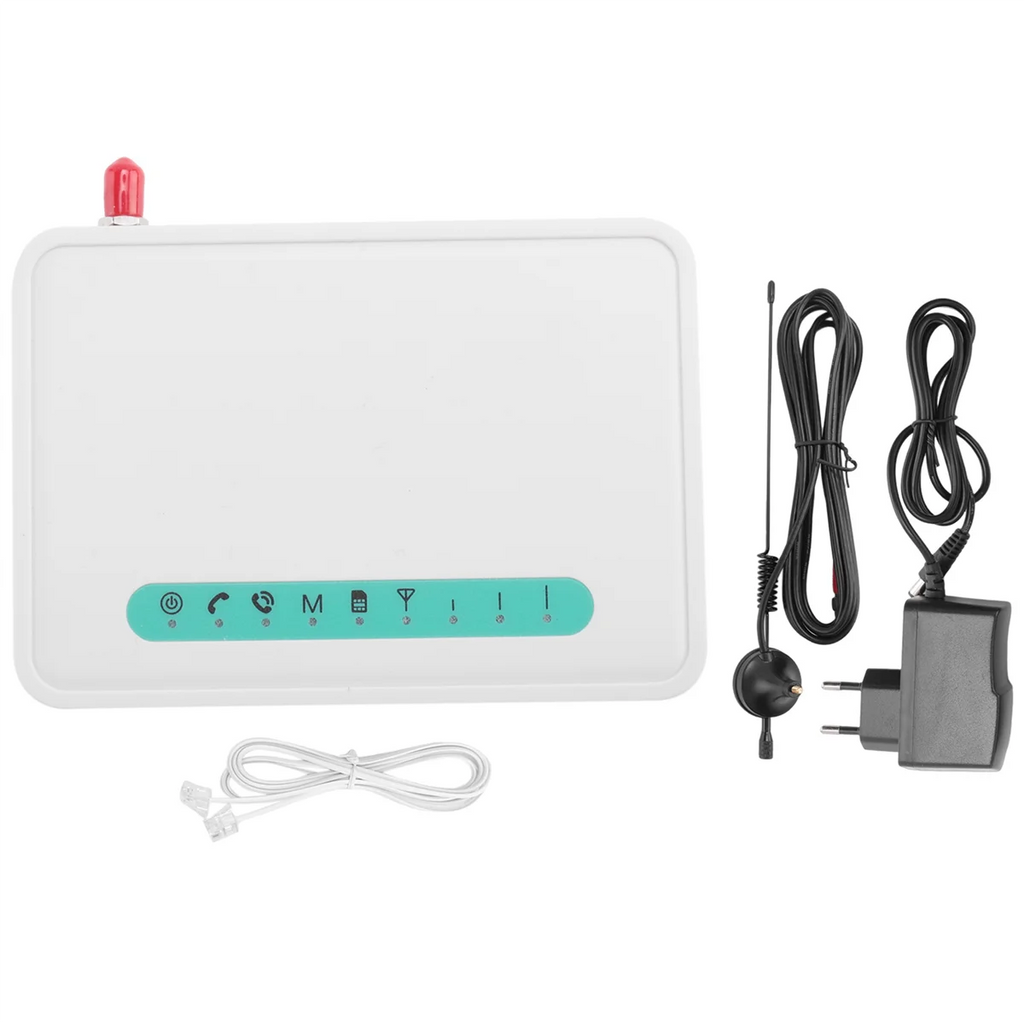

Package Contents:
1 x Wireless terminal
1 x antenna
1 x EU plug
1 x Telephone line
