Feature:

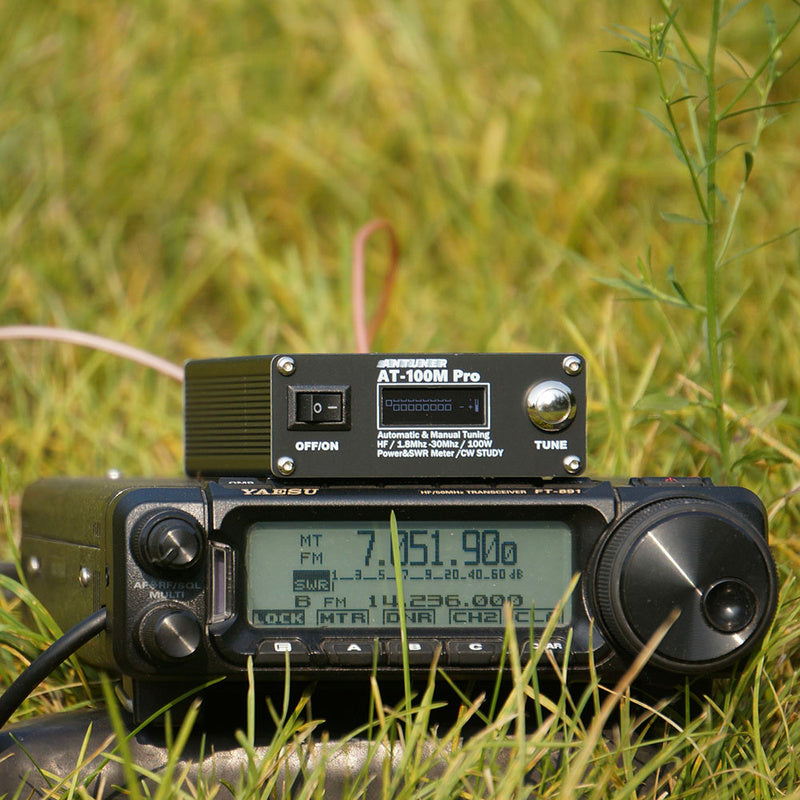

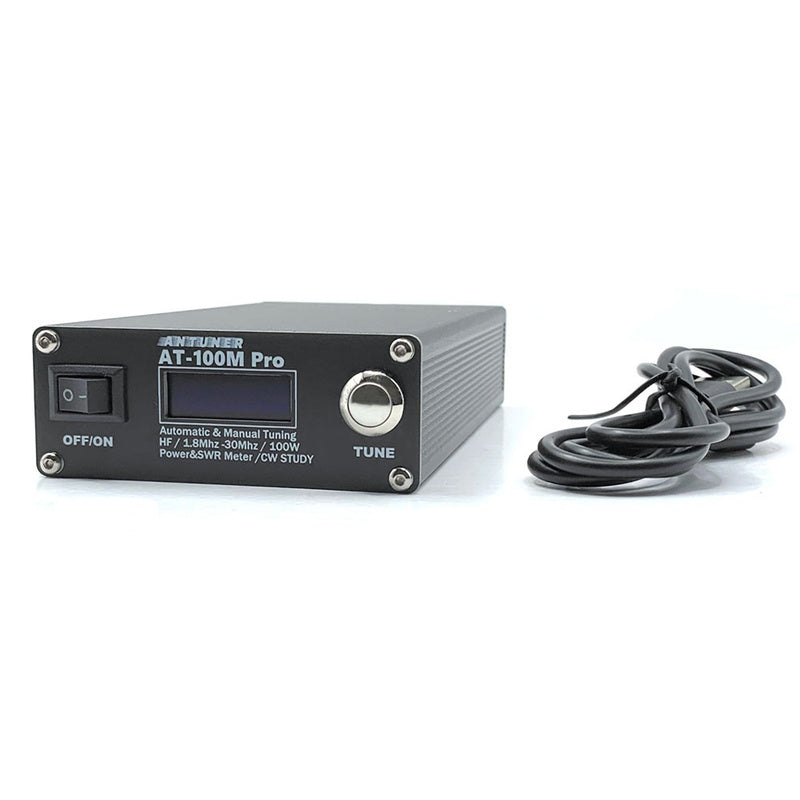

1. Wide Compatibility: This antenna tuner supports any radio and antenna without the need for specialized cables. Compatible with most radios and antennas on the market, such as for Kenwood, ICOM, Yaesu, Baofeng, USDX, QRP, and more. Supports end-fed, vertical, horizontal, Yagi, inverted V, car-mounted antennas, and more. The system supports 6 different interface modes, including user-defined interface, bar graph SWR meter interface, large font interface, SWR curve interface, power curve interface, relay, and battery voltage status interface.
2. Antenna Tuner + SWR Meter 2-in-1:
3. Powerful Tuning Capability: This shortwave antenna tuner built-in large capacitors and inductor combinations greatly improve tuning success rate and reduce the hassle of repeatedly adjusting the feeder system. The maximum capacitance combination value is up to 3869pF, and the maximum inductance combination value is up to 17.21uH. Supports both manual and automatic tuning modes. In auto mode, when the SWR exceeds the set value (default 1.80) while monitoring the transmitted signal from the radio, it will automatically trigger the lowest SWR tuning.

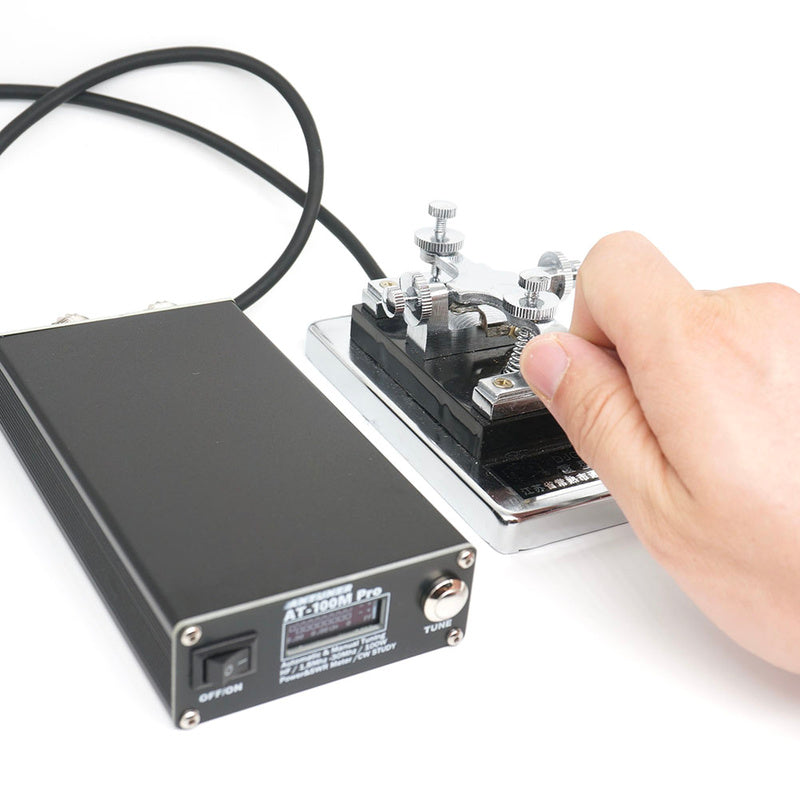

4. Morse Code Practice Device: The rear panel of this standing wave meter features a 3.5mm headphone jack that supports external single-paddle keys, allowing you to easily practice Morse code in your free time. No need to purchase a separate Morse code practice device - everything is covered in one device.
5. Multiple Built-in Professional Settings:



Specification:
Certification: CE
Origin: Mainland China
Battery capacity: 3300mAh
Charging interface: USB-TYPE C
Charging time: about 4 hours
Product power consumption: Maximum 5W
Standby time: about 150~200 hours (no tuning action)
Tuning time: about 10~25 hours (start 1-3 relays)

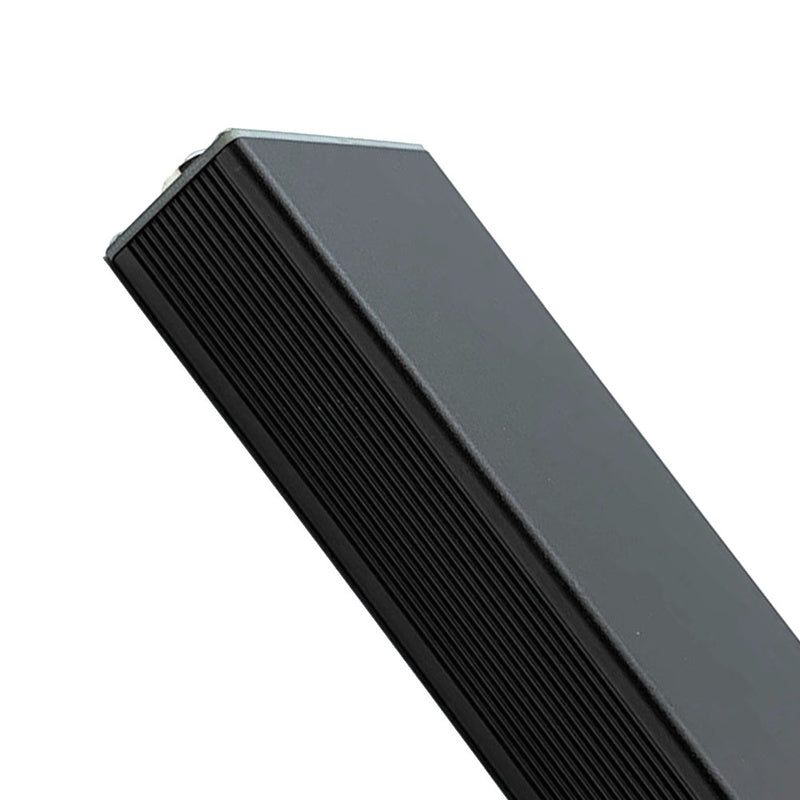

Shell material: ABS

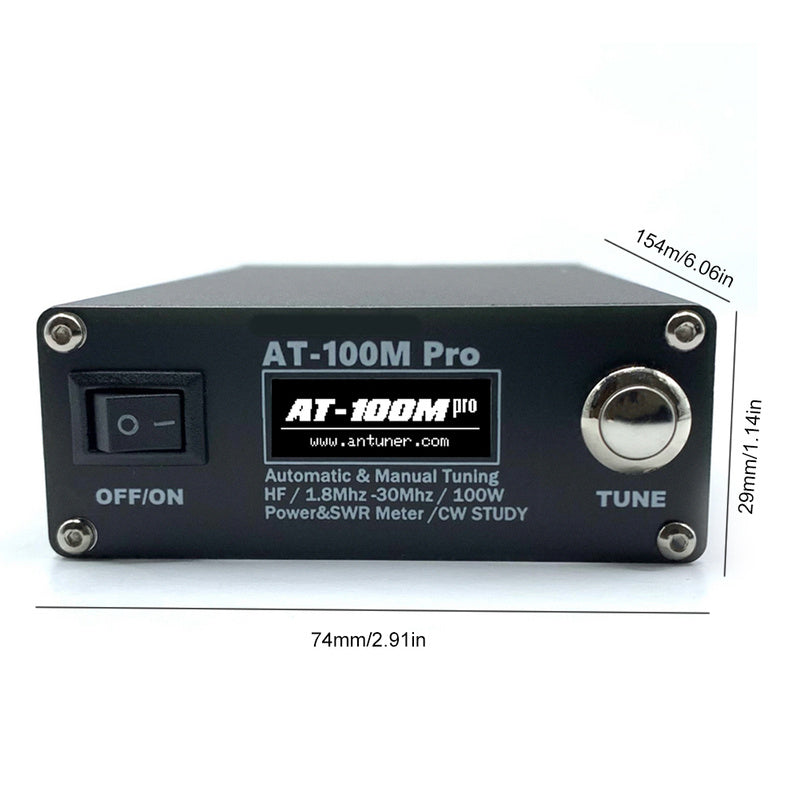

Product size: 154.00x74.00x29.00mm
Product size: 6.06x2.91x1.14inch
Certification: CE certification
Origin (Country or Region): Mainland China (Origin)
Support radio stations: supports most radio stations and antennas on the market
Frequency/Power:
1.8Mhz-18Mhz SSB/CW 0.1W-100W
1.8Mhz-18Mhz FM/AM/FT8 0.1W-50W
18Mhz-30Mhz SSB/CW 0.1W-50W
18Mhz-30Mhz FM/AM/FT8 0.1W-50W
Automatic memory channel: 60 groups
Maximum combined inductance value: 17.21uH
Maximum combined capacitance value: 3869pF
Standing Wave Table: Supported
Power meter: Support (0.1W-150W)
Interactive modes: bar mode, large font mode, relay mode, power curve graph mode, standing wave curve graph mode, CW exerciser mode, configuration menu mode
Auto-tuning mode: supported
Manual tuning mode: supported (the inductor or capacitor value can be modified arbitrarily for manual tuning)

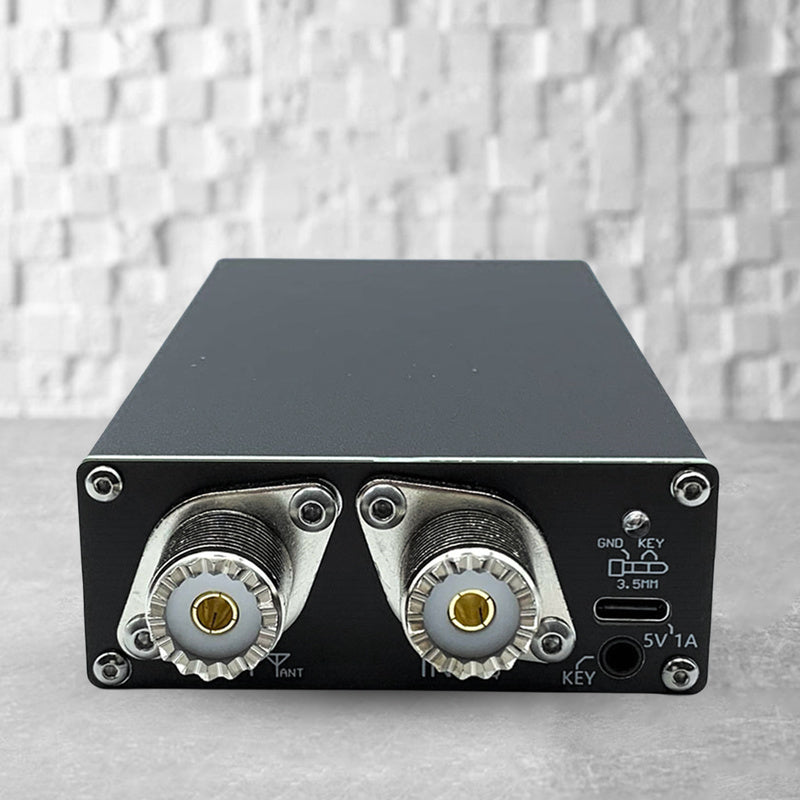

CW practice: supports external 3.5mm headphone jack for single paddle CW practice
Supports front panel button trigger exercises
CW single propeller key interface: 3.5MM headphone jack
Buzzer: Support (automatic prompt when the standing wave exceeds the set value)
