Features:

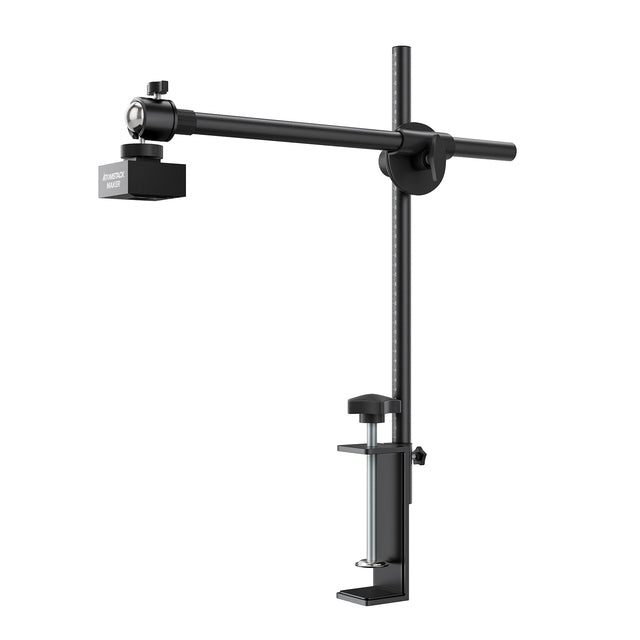

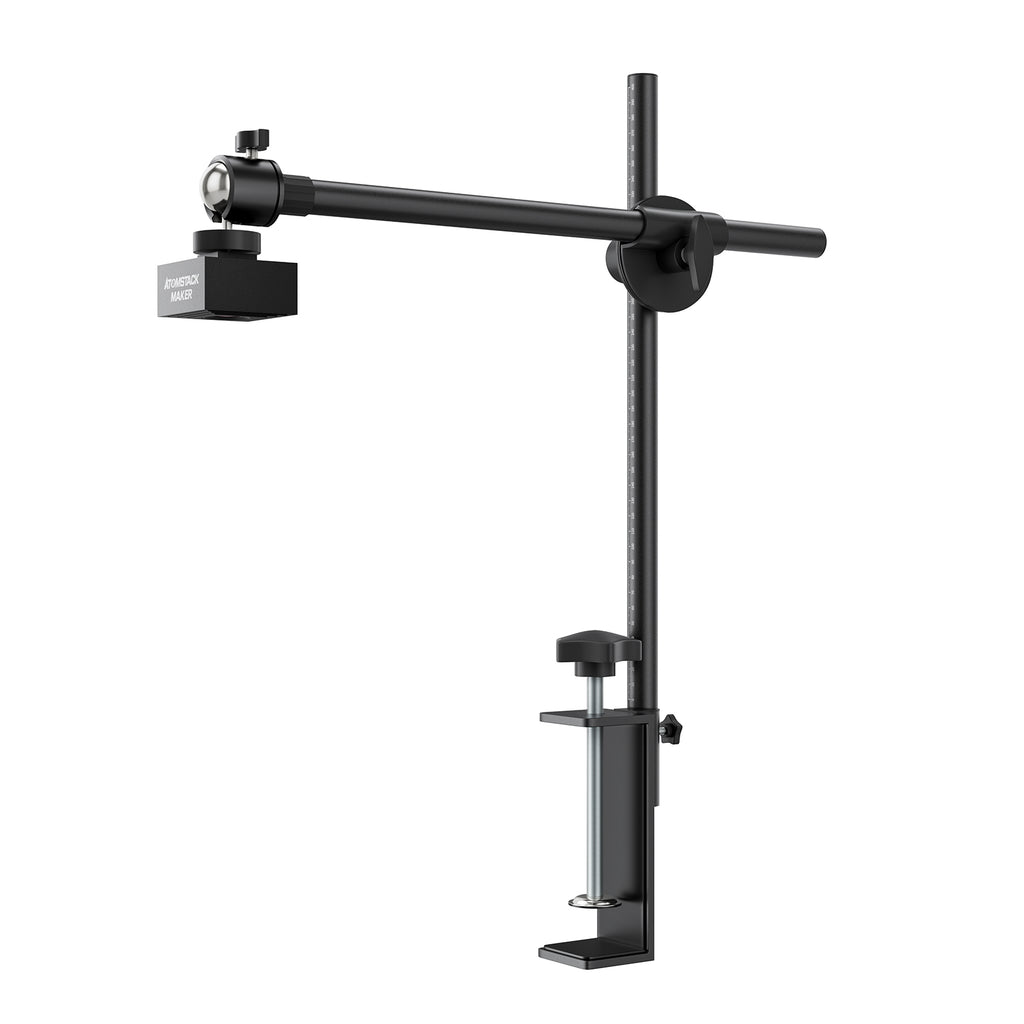

Industrial Digital Camera: Different from the electronic camera, the atomstack maker camera is a 5 mega-pixel HD industrial digital camera, which ensures accurate positioning during use.
Large Positioning Area: Industrial wide-angle lens, perfect for machines within 450*450mm frame (Photography range 400*400mm)
Precise Positioning: The industrial camera specially customized for the laser engraving machine is deeply matched with Lightburn software. After simple calibration, it can automatically locate the area and the object for work, with the positioning error less than 1 mm.
Multitask Operation: With the precise positioning of the camera, multiple independent tasks can now be completed at one time. Under the guidance of the camera, the laser will automatically find carving objects one by one and work.
Work Preview: No need to straighten the carving materials any more. The atomstack maker camera perfectly solves the positioning problem of special-shaped patterns. Now you can design directly on the surface of consumables, and what you see is what you get.
Video Record&Time-lapse photography: Please share your amazing creative creation process with everyone. Through the delayed shooting of the camera, you can record the completion of the whole work and share it.

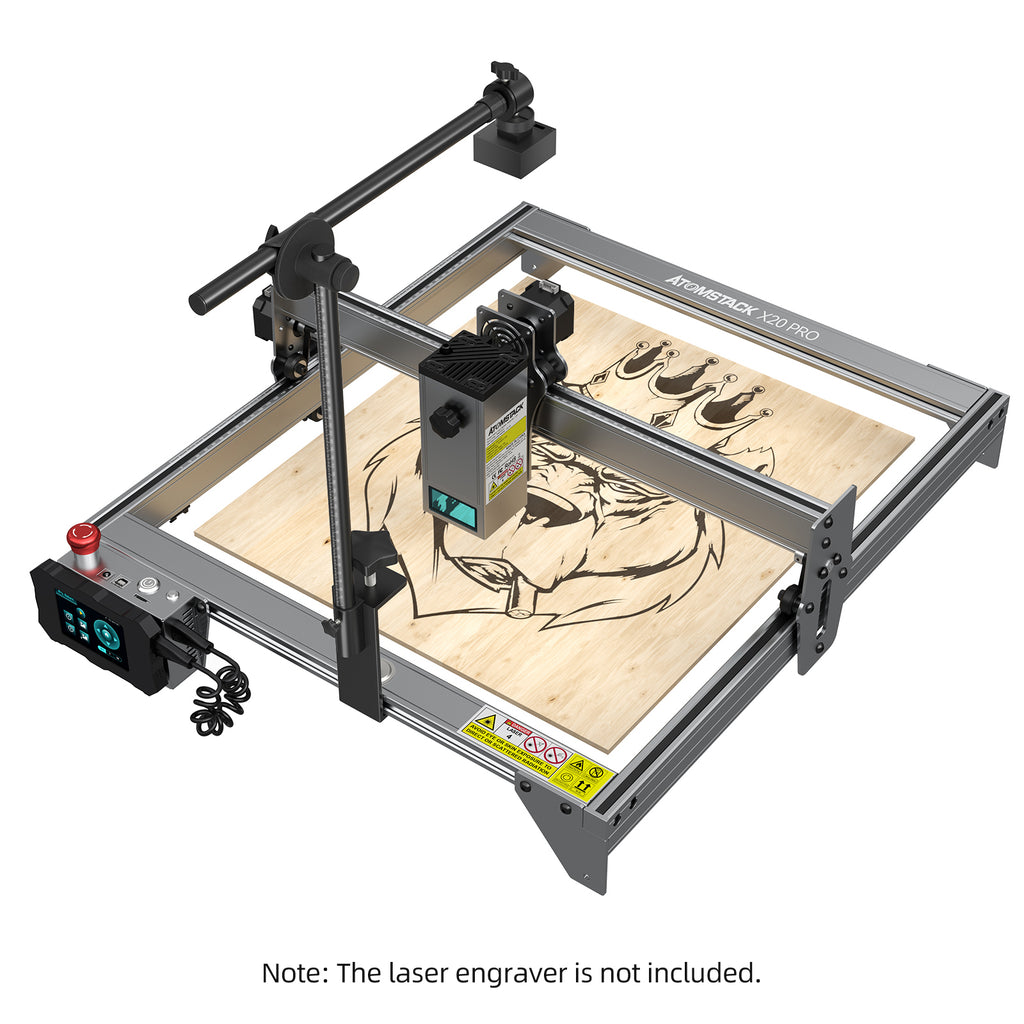

High Adaptability: The atomstack maker camera can be compatible with all Atomstack , Ortur, NEJE and xTool frame laser engraving machines (Lightburn software is required).
Specification:
Brand: Atomstack Maker
Model: AC1
Pixel: 5MP
Resolution: 2592*1944
Sensor: 1/2.5" CMOS Sensor
Pixel Size: 2.2μm x 2.2μm
FOV: D: 92° H: 86° V: 56°
Camera size: 42*42*29mm
Support Laser Machine Frame: 450mmx450mm
Photography range: 400mmx400mm
Software: Lightburn
Driver: Driver-free for Windows/Mac systems
Package Size: 475x163x130mm/18.7x6.4x5.1in
Package Weight: 1.3kg/2.86lb
Packing List:
1 x AC1 Camera Kit
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
