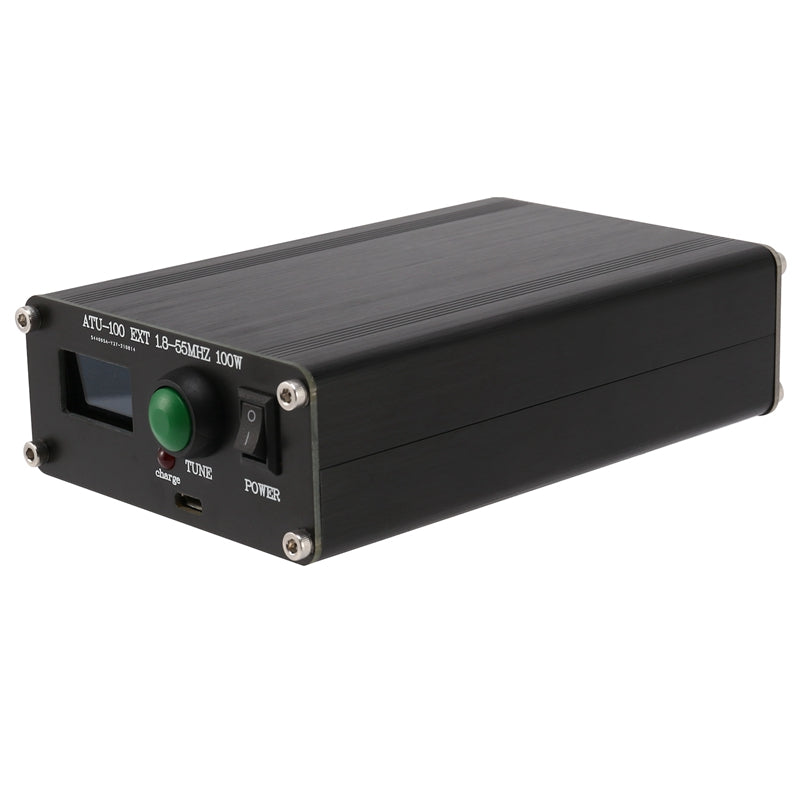

Mini short wave automatic antenna tuner, type-c charging interface, m seat, oled display.

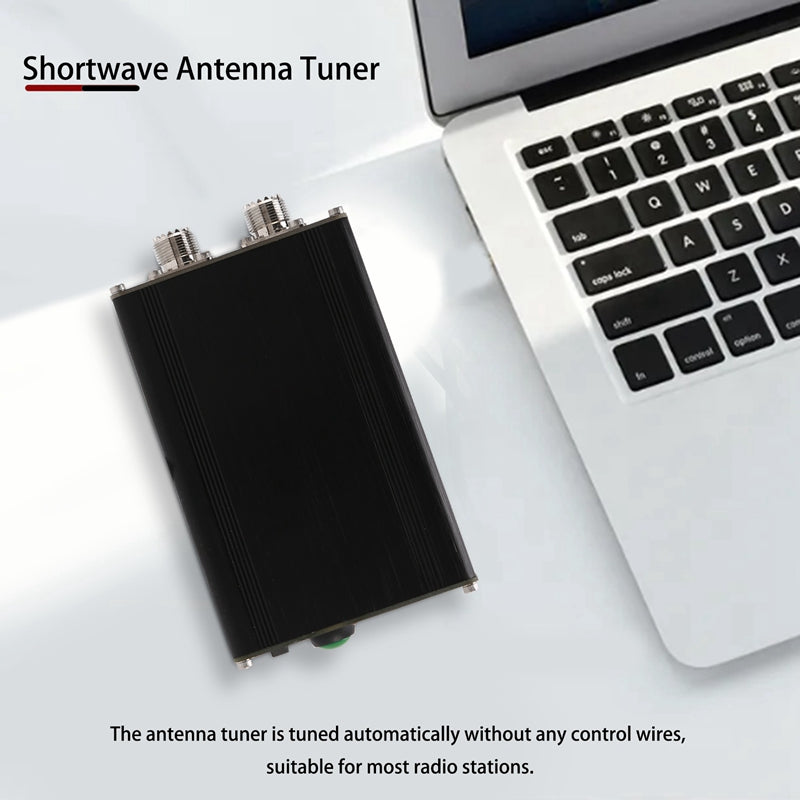

The antenna tuner is tuned automatically without any control wires, suitable for most radio stations.
The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively over a wide frequency range, overlapping the 1.8-55mhz amateur radio band.
With metal housing, stable and reliable performance.
Supply voltage: USB charge and discharge (built-in battery)
Battery: 1 * lithium battery, 1350mAh (included)
Maximum current consumption: 1350mAh
Maximum working
power : 100w Maximum possible measuring
power : 150w Minimum power required to start tuning : 5w
Minimum possible measuring power: 0.1w
Measuring steps for power up to 10w: 0.1w
Measuring steps with power greater than 10w: 1w
Power measuring accuracy: 10%
Maximum installation inductance: 8.53uh
Minimum step length installation inductance: 0.05uh
maximum installation capacity: 1869pf
minimum step length of installation capacity: 10pf
Display: OLED
Material:metal
colour:black

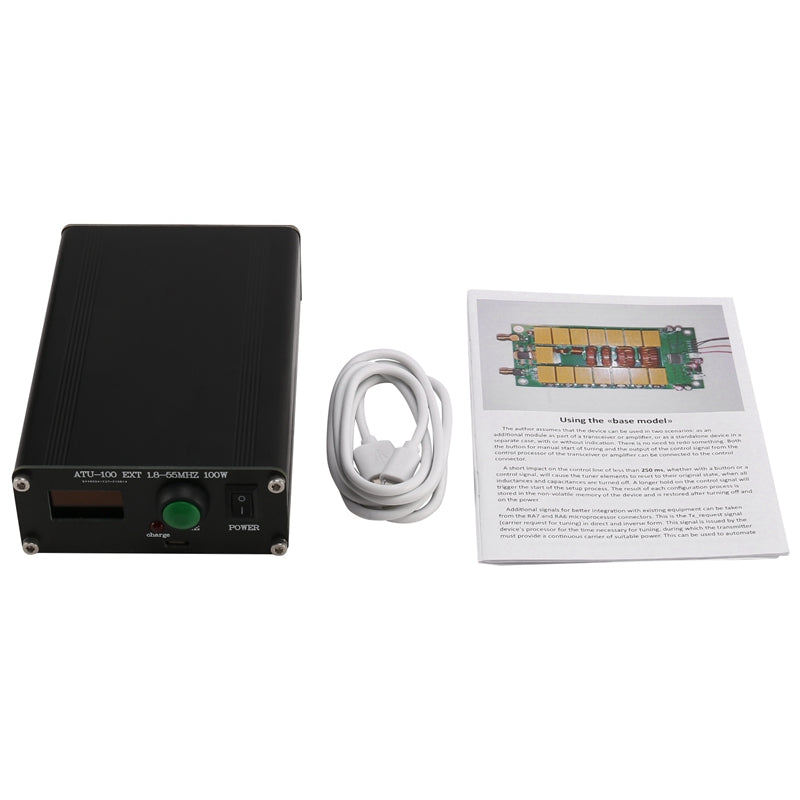

Package Contents:
1 x Automatic Antenna Tuner
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
