Features:
Auto Distinguish Function: This ATS supports direct current 12/24/48V and AC 110 V/220 V auto distinguish, you can set the cut-off and recovery voltages according to your needs.
LCD Display Screen: This transfer switch adopt LCD display screen and real-time display battery voltage, working status of public power.

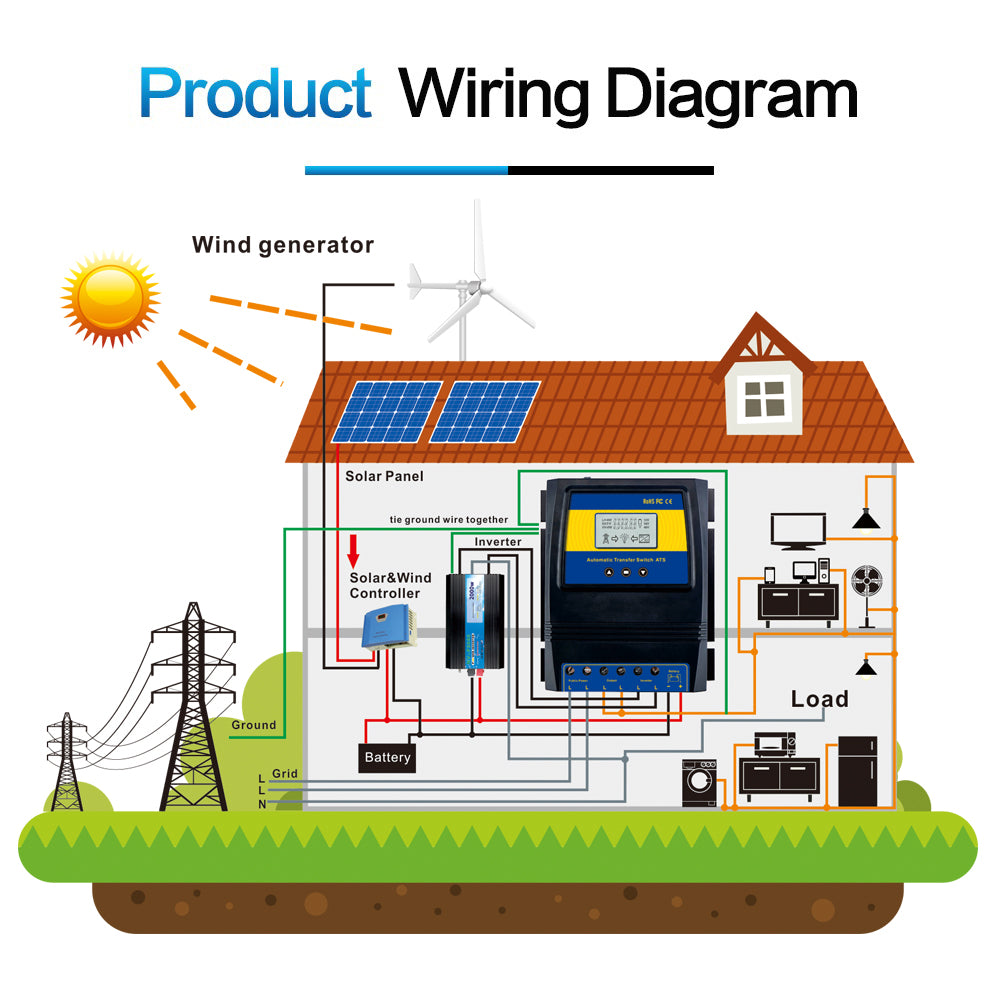

Great for Solar&Wind System: After install this intelligent switch, it will automatically switch over to grids power on a cloudy or windless day when your batteries become low.
Upgrade Performance: The max.power up to 1.1kw, inverter transfer to public power ≤10ms, public power transfer to inverter ≤16ms.

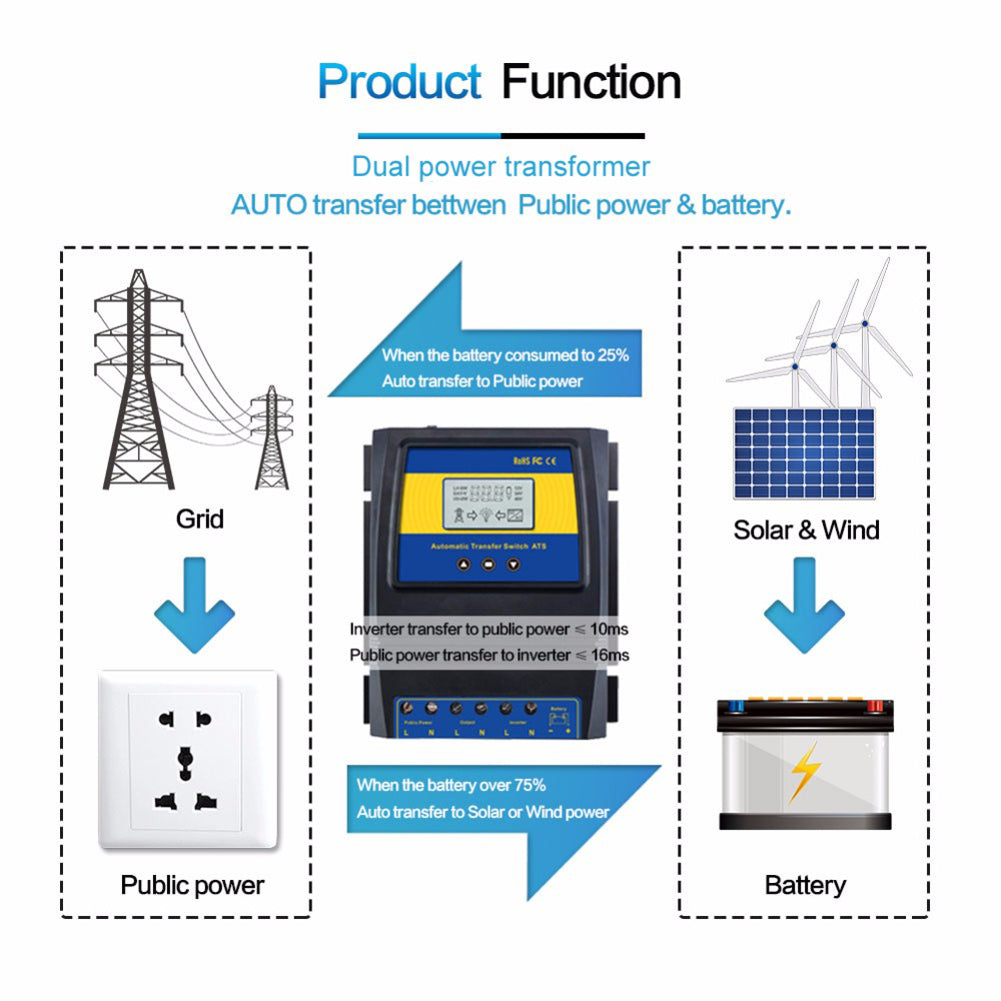

Dual Power Transformer: When the battery voltage is below the cut-off point, the ATS controller will switch to grids power, and when the battery voltage is above the recovery point, it will switch back to battery power.

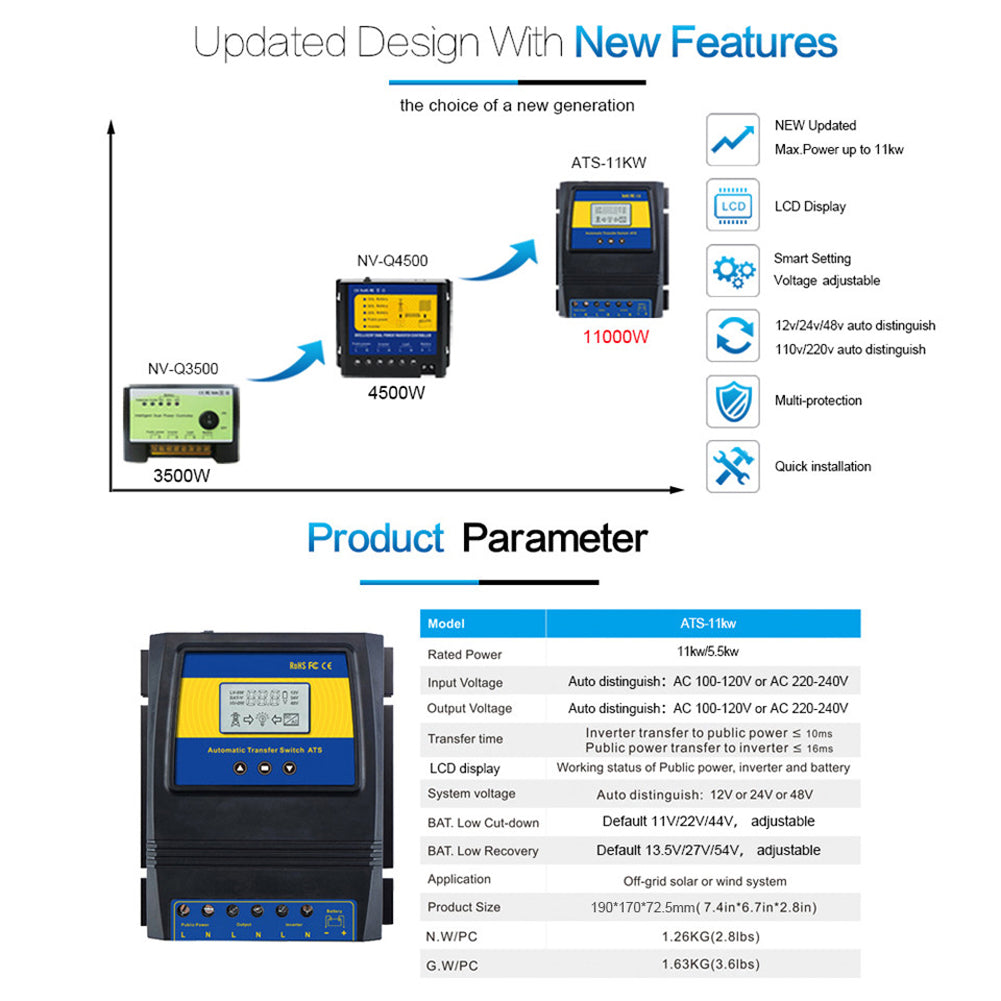

Specifications:
Material: plastics
Rated power: 5.5kw/11kw
Input Voltage: Auto distinquish AC 100-120V or AC 220-240V
Output Voltage: Auto distinquish AC 100-120V or AC 220-240V
Transfer time:
inverter transfer to public power ≤10ms
public power transfer to inverter ≤16ms
System voltage: Auto distinguish: 12V, 24V, 48V
BAT. Low Cut-down: Default 11V/22V/44V, adjustable
BAT. Low Recovery: Default 13.5V/27V/54V, adjustable
Package size: 250 * 200 * 80mm / 9.8 * 7.9 * 3.1in
Package weight: 1630g / 3.6lb
Packing list:
1 * Power Transfer Switch
