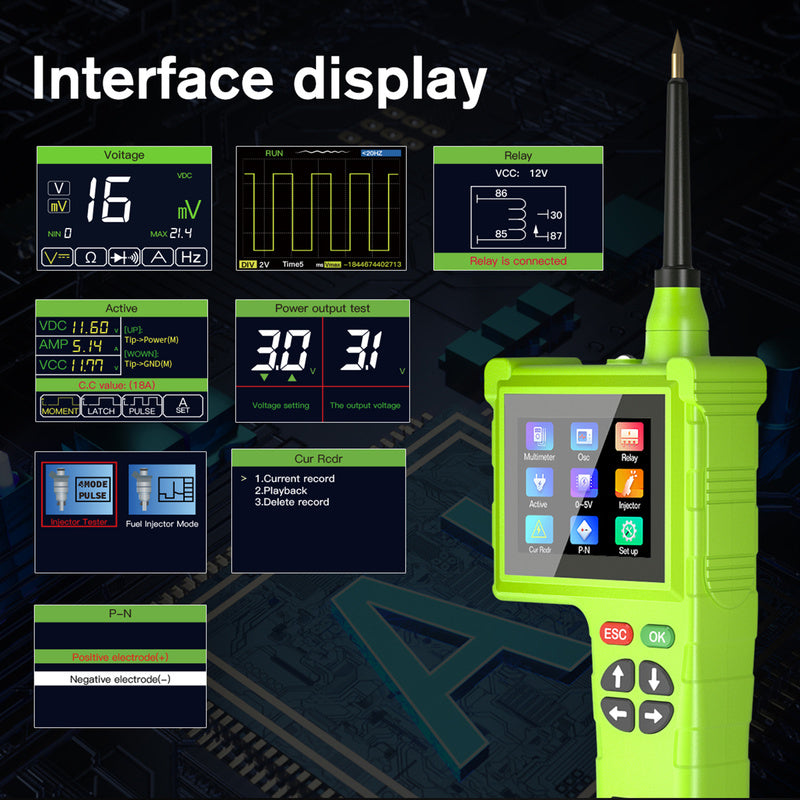

Features:
2.Leakage Test: Detects current magnitude and real-time current, plots current waveforms, and current waveforms can be recorded and saved.
3.Injector Testing/Clean: Support for injector nozzle signal analogue output, injector nozzle signal acquisition, injector nozzle cleaning, analysis of parameters to draw waveform signals.
4.Relay Test: Supports 5-terminal relay or 4-terminal relay detection. Easy, convenient and fast.
5.Enhanced Multimeter: DC voltage testing, Resistance test, Diode test, Current, Frequency test.
6.Component activation: Supports activation of high power components with instantaneous currents up to 100Amps. Components such as car bulbs, motors, gauges, etc.

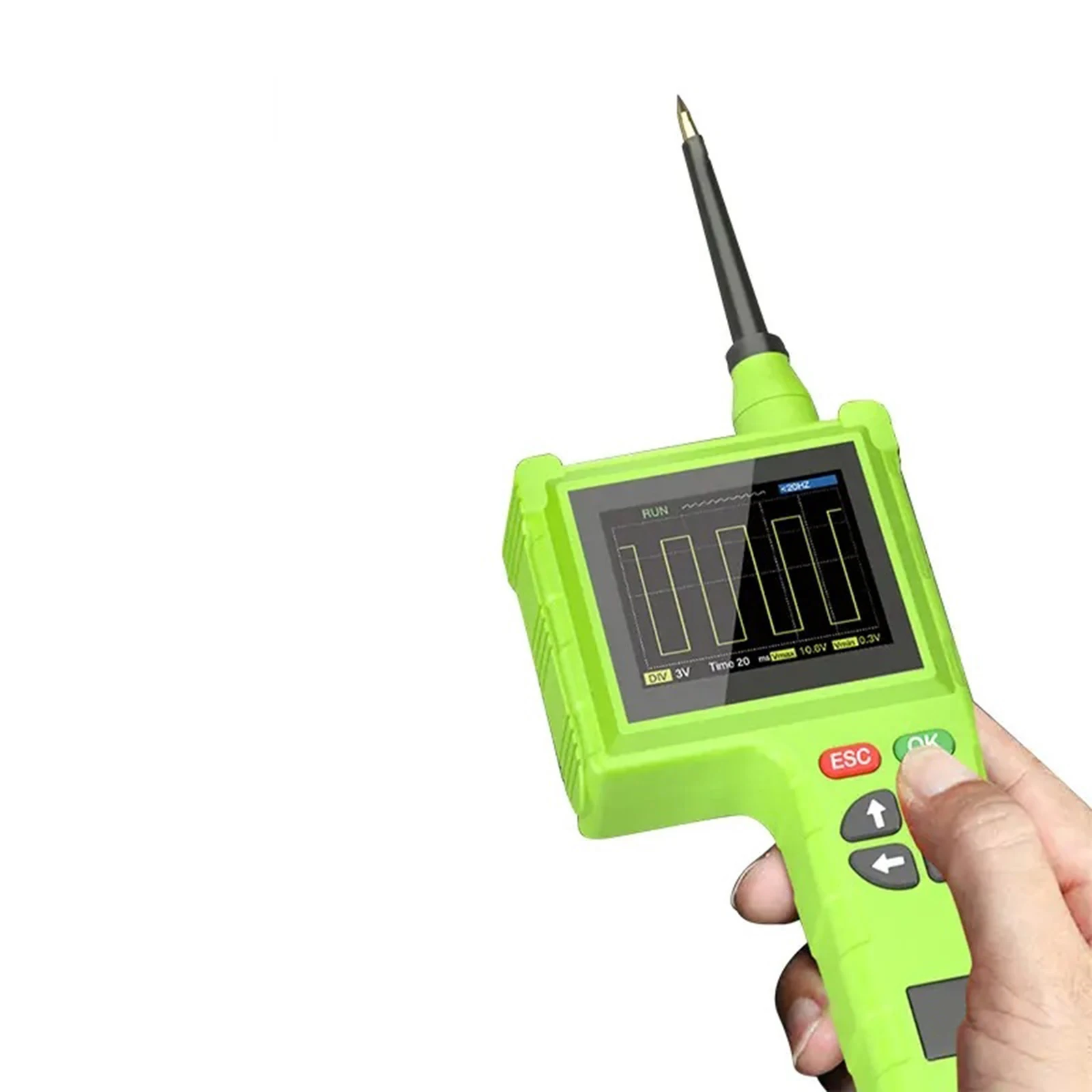

7.Oscilloscope Features: For collecting changes in DC voltage signals in circuit systemse.g. pwm control signals, crank signals, fan speed regulation signals, etc.

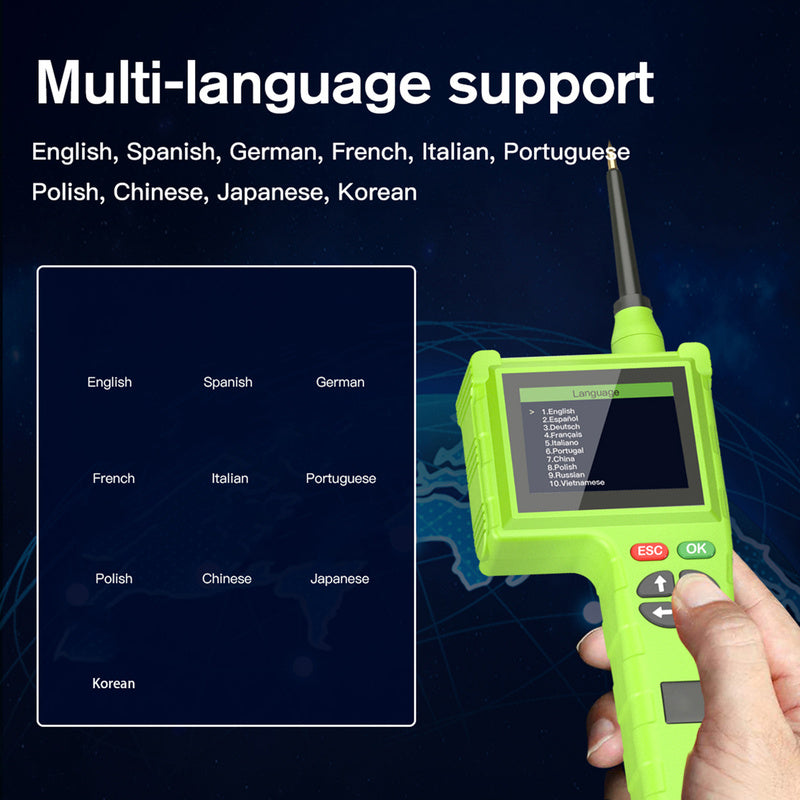

8.Multi-language support: English, Spanish, German, French, Italian, PortuguesePolish, Chinese, Japanese, Korean.

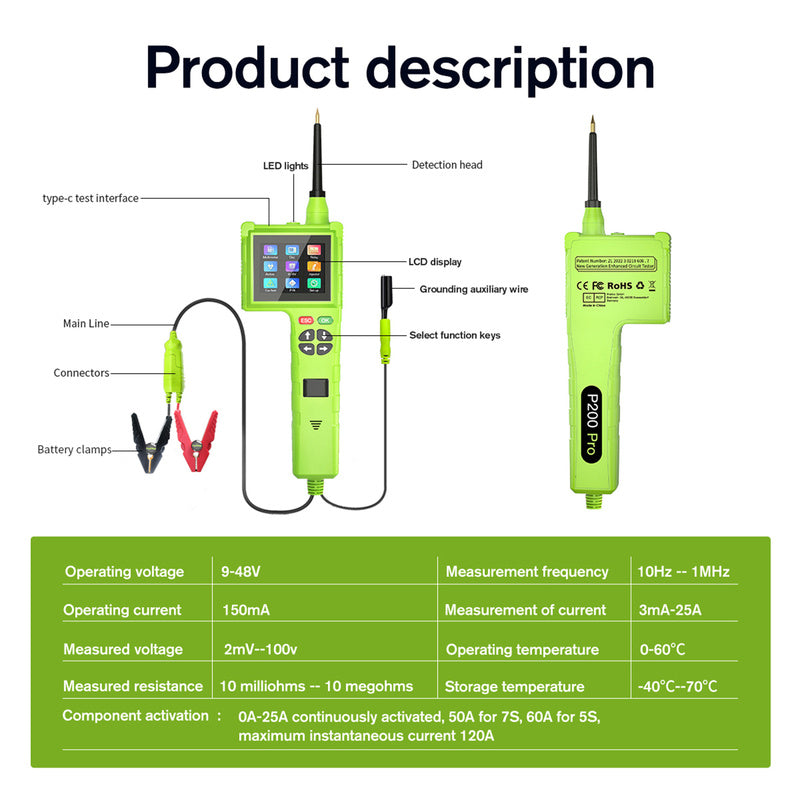

Specifications:

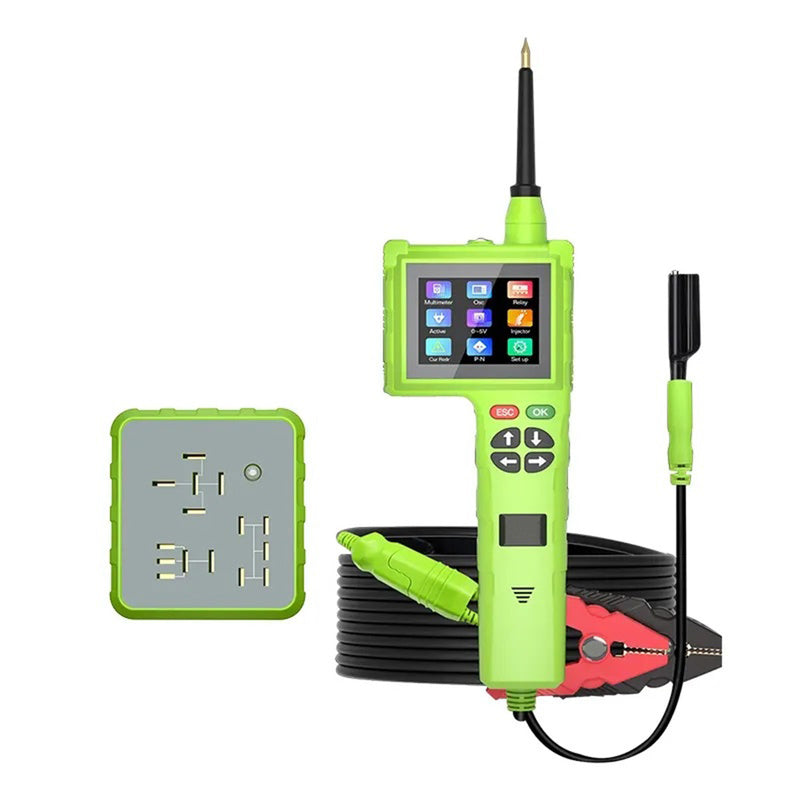

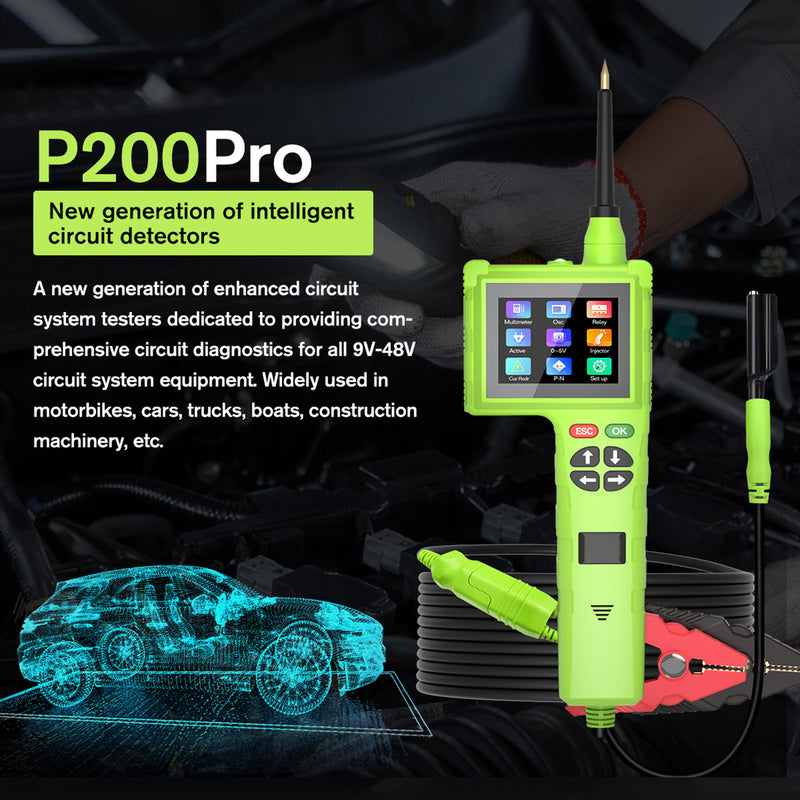

Item name: Car Circuit Tester
Model number: Smart Hook Master Edition P200 Pro
Applicable models: universal, support 110+ cars brands

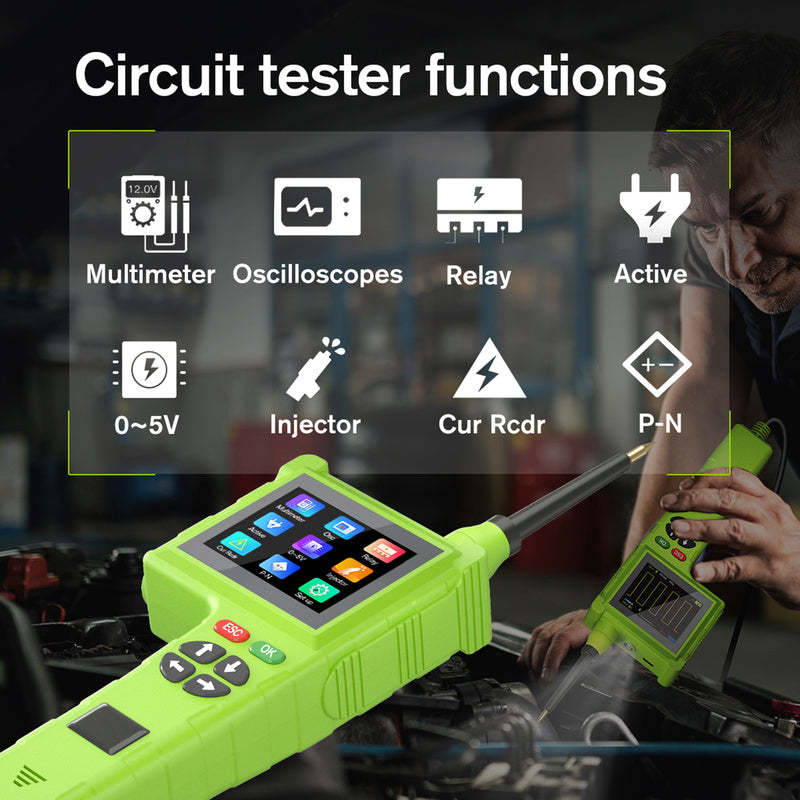

Function: Multimeter, Relay test, Oscilloscope, Leakage test, Injector test/clean, Component activation, etc.
LCD: 2.4 inch (320*240 DPI) TFT color display
External power supply: 12V or 24V Powered by battery
Operating voltage: 9V(Minimum)-48V(Maximum)
Operating current: 150mA
Measured voltage: 2mV(Minimum)--100V(Maximum)
Measured resistance: 10 milliohms--10 megohms
Component activation: 0A-25A continuously activated, 50A for 7S, 60A for 5S, maximum instantaneous current 120A.
Measurement frequency:10Hz -- 1MHz
Measurement of current: 3mA-25A
0-5V power supply: Support
Operating temperature: 0-60℃/32-140F
Storage temperature: -40°C-70°C/-40-185 F
Weight: 2kg/4.40lb
Dimensions: 304*233*108mm/11.96*9.17*4.25in
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm.
