2.4G wireless Keyboard Characteristics:

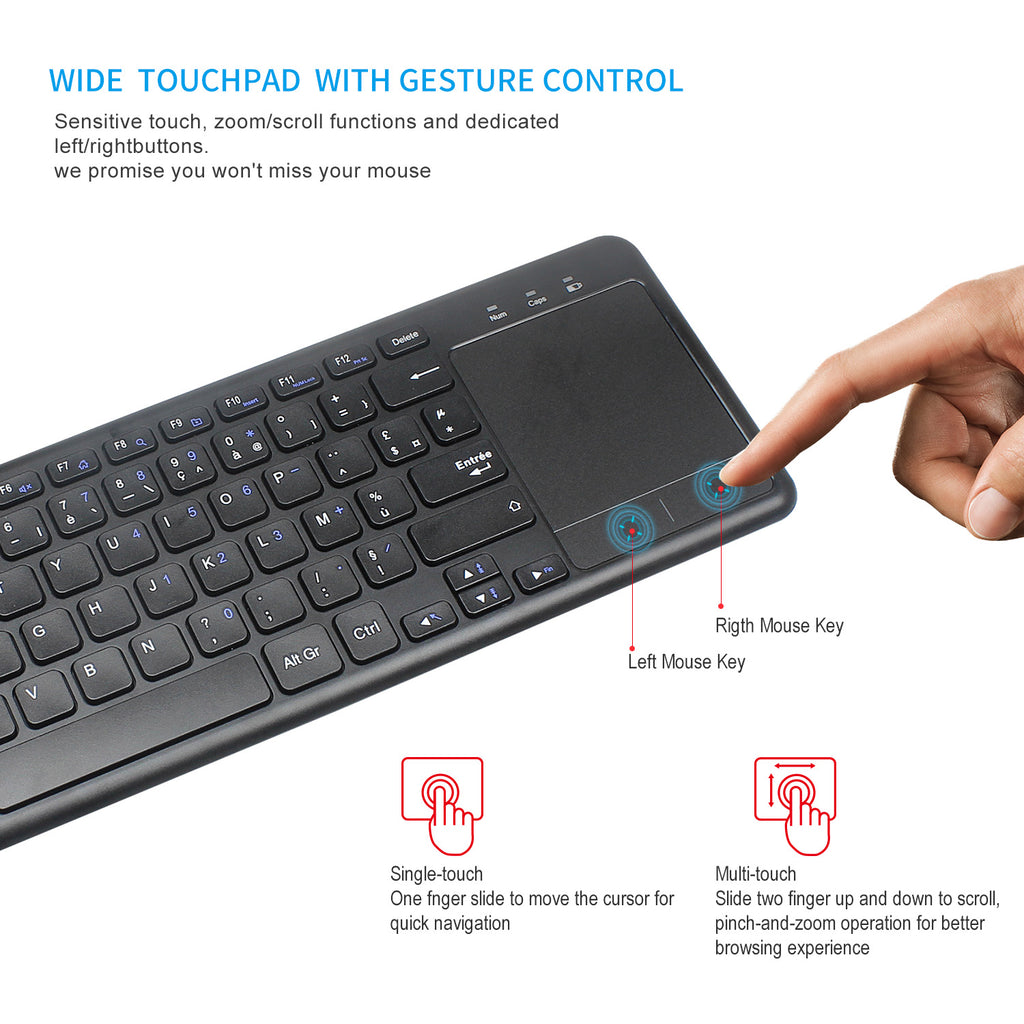

1) 2.4G wireless keyboard touchpad

2) Suitable for AIl-IN-ONE computers,Laptops,Desktops,etc.

3) R shape angle of keycaps,comfort to type.

4) Supported power by 2pcs AAA batteries.

Energy Saving Mode：

1.Keyboard dormant energy-saving mode:lf keyboard is not used for 10minutes,it will be dormant.Press any key,it will be active.

2.If press and hold any key for 2 minutes,keyboard will be dormant.Press any key,it will be active.

Keyboard specification：

1: Operating distance is up to 10 meters

2: Modulation system: GFSK

3: Working voltage: 1.8-3.0V

4: Keyboard working current: 2.5mA

Touchpad working current: 4.0mA

5: Standby current: 0.3~1.5mA

6: Sleeping current: <0.2mA

7: Battery: 2*AAA（Not Included）

8: Key force: 60g about

9: Key life: 3 million strokes

10: Operating temperature: -10  - 55 degrees

11: Keyboard weight: 266g

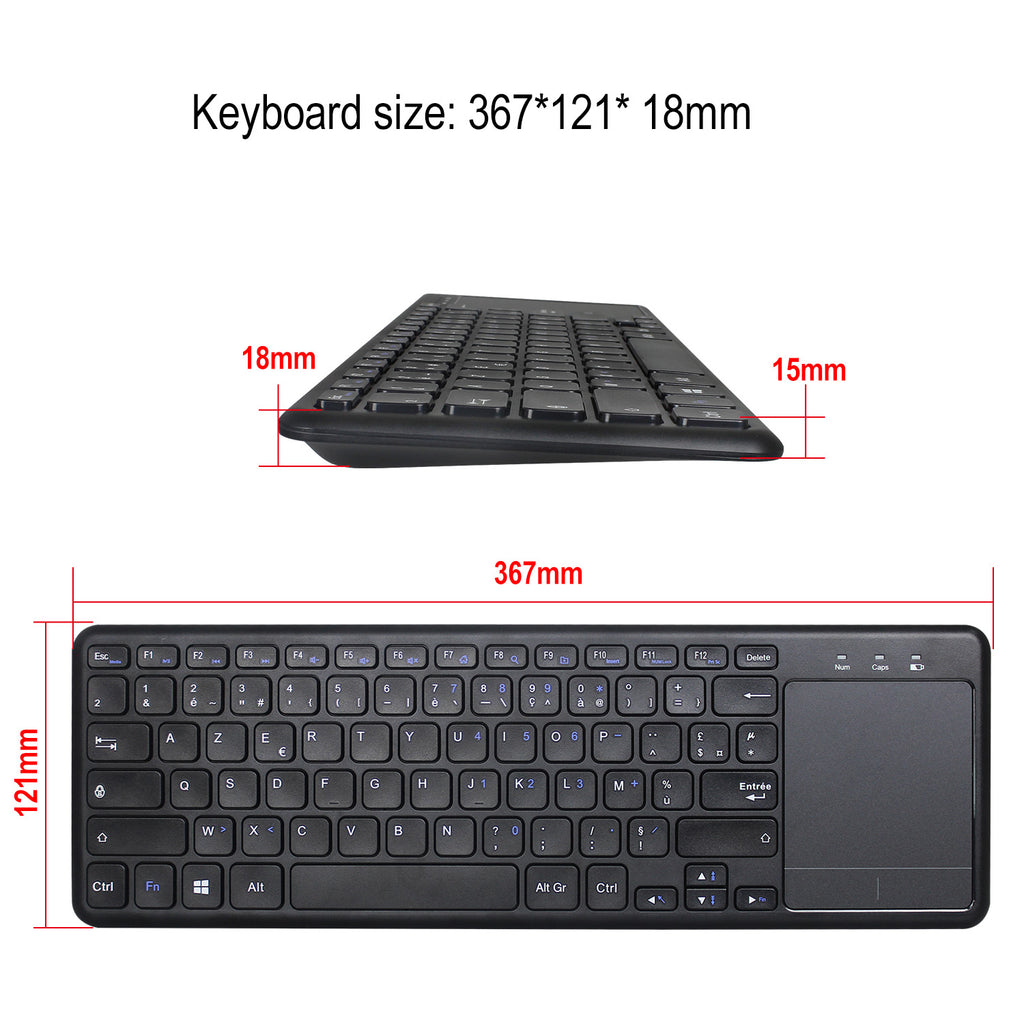

12: Keyboard size: 36.7*12.1*18cm

13: Packing weight: 347g

14: Packing  size：38*12.6*2.3cm

15:Support Windows 2000 / XP / win7 / win8 / win10 / Vista 32bit / MAC / Android TV(The IOS system cannot use the touchpad)

Package Included:

2.4G wireless keyboard

USB receiver

English User manual

Function Keys Analysis:

Fn +Esc : Player / Fn +F1 : Play/Pause

Fn +F2 : Last track / FN+F3 : Next track

FN+F4 : Volume down / FN+F5 : Volume up

FN+F6 : Mute / FN+F7 : Home

FN+F8 : Search / FN+F9 : Favorite

FN+F10 : Insert / FN+F11 : Number lock

FN+F12 :  Screenshot

FN+Pg Up：Page up

FN+Pg On：Page down

FN+Home：Line front

FN+End：Line end

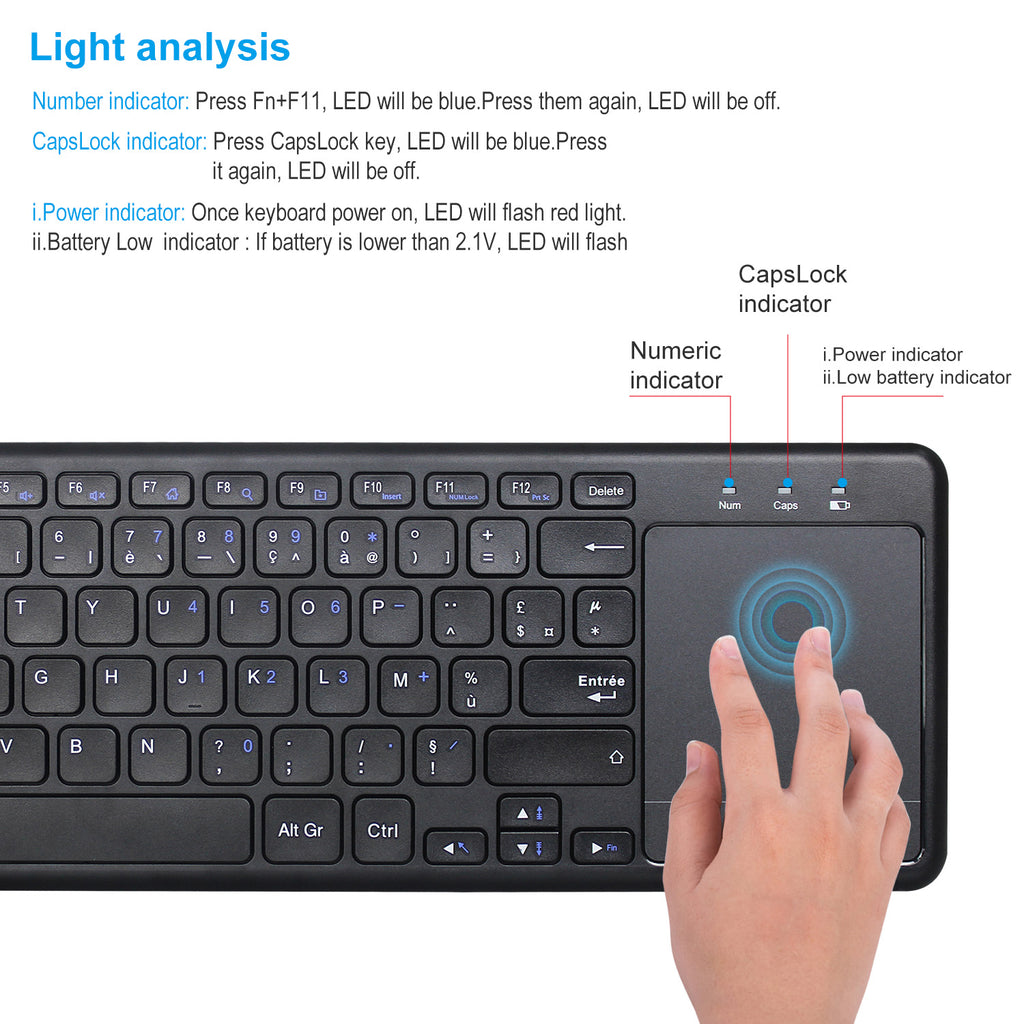

Indicator Analysis:

1：Num一Number indicator: Press Fn+F11,LED will be blue.Press them again,LED will be off.

2：Caps一CapsLock indicator: Press CapsLock key,LED will be blue.Press it again,LED will be off.

3：i）Power indicator: Once keyboard power on,LED will flash red light.

i）Battery Low indicator : If battery is lower than 2.1V,LED will flash red light.

Safety Caution：

1) Keep the item away from sharp objects.

2) Do not place heavy object on the keyboard.

3) Do not Microwave the item.

4) Do not force or distorted the keyboard

5) Keep away from oil, chemical or any other organic liquid.Package Contents

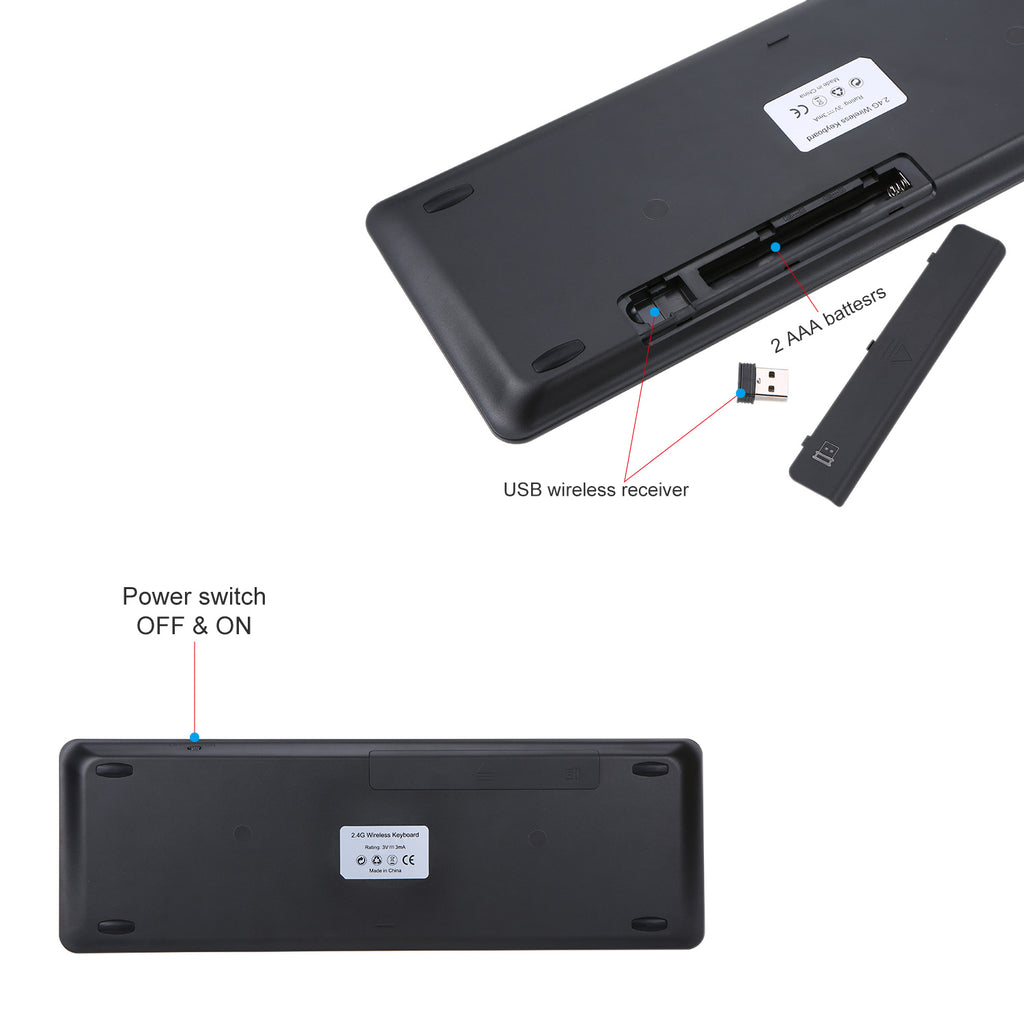

Connecting Steps:

Stpe1. USB receiver connect to device's USB port.

Step2. Assembly 2AAA bteriese switch power btton to [ONj side.

Step3. (Power] ndicator flashes red,then of.Connected scessuily

Note:

In step 2,if fail to cnnetpress ESC+K.forcing to enter pairing status.
