invisible the drones when recording a video. With the material of high-quality carbon fiber, the frame is not only secured and well built but also weighs light. Response very fast with F722 AIO Brushless FC 35A(BLHeli_S) and 2204-2400KV Motor. Pilots will enjoy a flight experience with Pavo360.
Note: The Pavo360 frame kit is designed for SMO 360 panoramic camera. Insta360 ONE R camera is not compatible with this frame.
Bullet Point
Built-in carbon fiber and reserve a storage room for the camera, the Pavo360 frame has a more concise appearance and is more convenient for installation.
Made of high-quality PA12 material, the Pavo360 frame kit has higher abrasion resistance, toughness, and shows excellent impact resistance in drop & impact tests.

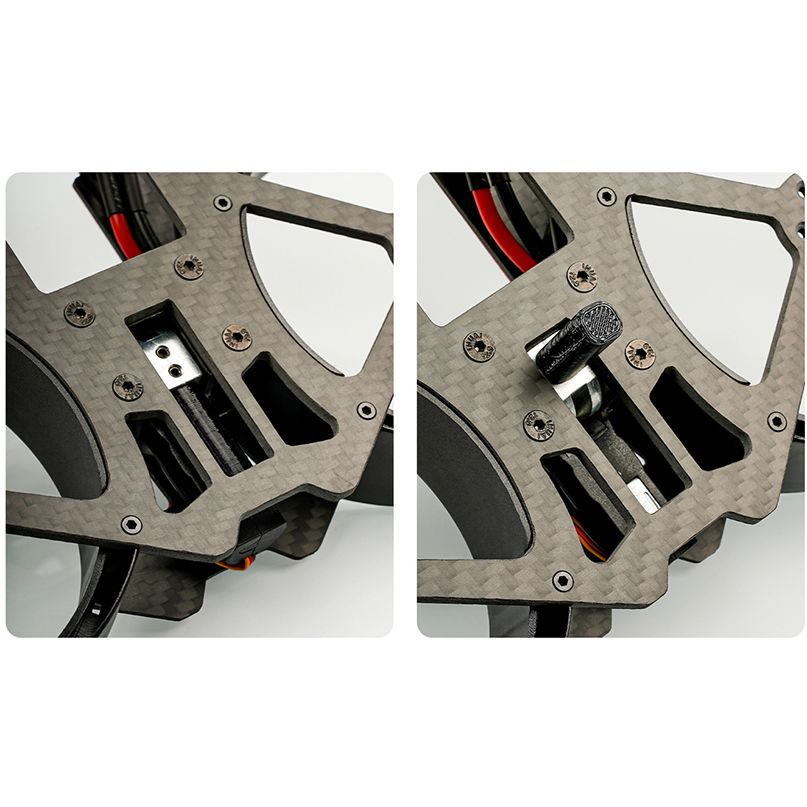

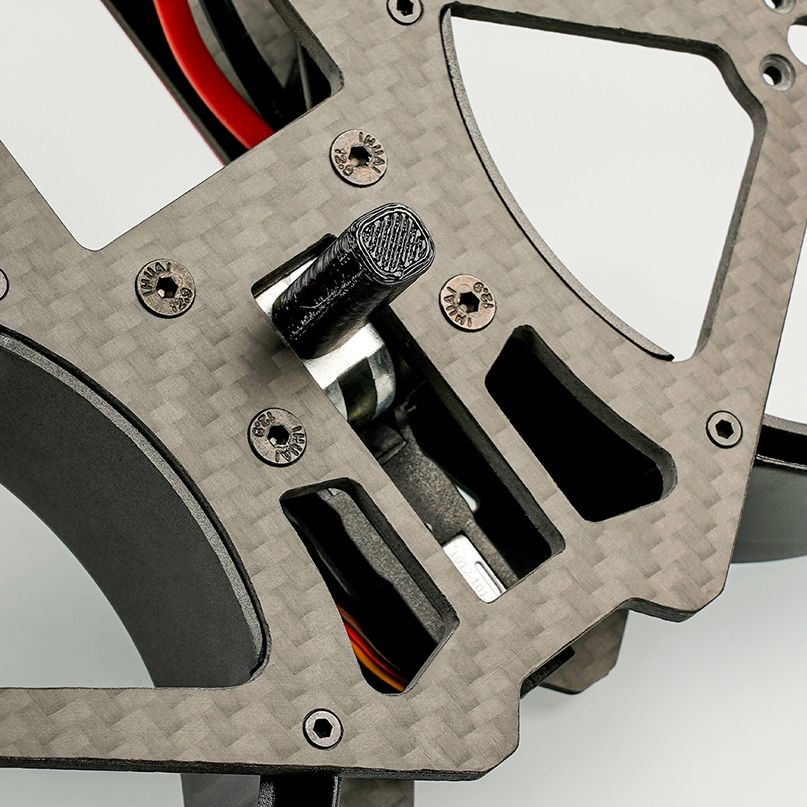

By mounting the landing gear, pilots can control its extension and retraction, which keeps safety when the drone is landing.
Recommend 3 inches 5 blades propeller and 2204-2400KV Motor for this 168mm wheelbase frame. Pilots will enjoy a flight experience with Pavo360.
The ultra-thin and flat frame design with SMO 360 Camera (not included) makes it possible to record and enjoy the 360 videos without any unseen areas.
Note: Please make sure the battery is suitable with battery bay on this frame, which is 59x31x26mm. High recommending 850mAh 3S 75C lipo battery.
Specification
Item: Pavo360 Frame Kit
Wheelbase: 168 mm
Color: Black
Material: PA12
Weight: 187.22 g
Recommend Motor: 2204-2400KV Motor
Recommend FC: Toothpick F722 2-6S AIO Brushless Flight Controller 35A(BLHeli_S)
Recommend Camera: SMO 360
Recommend Battery: 850mAh 3S 75C Lipo Battery (2PCS) x 2
Propellers: Gemfan D76 5-Blade Propellers

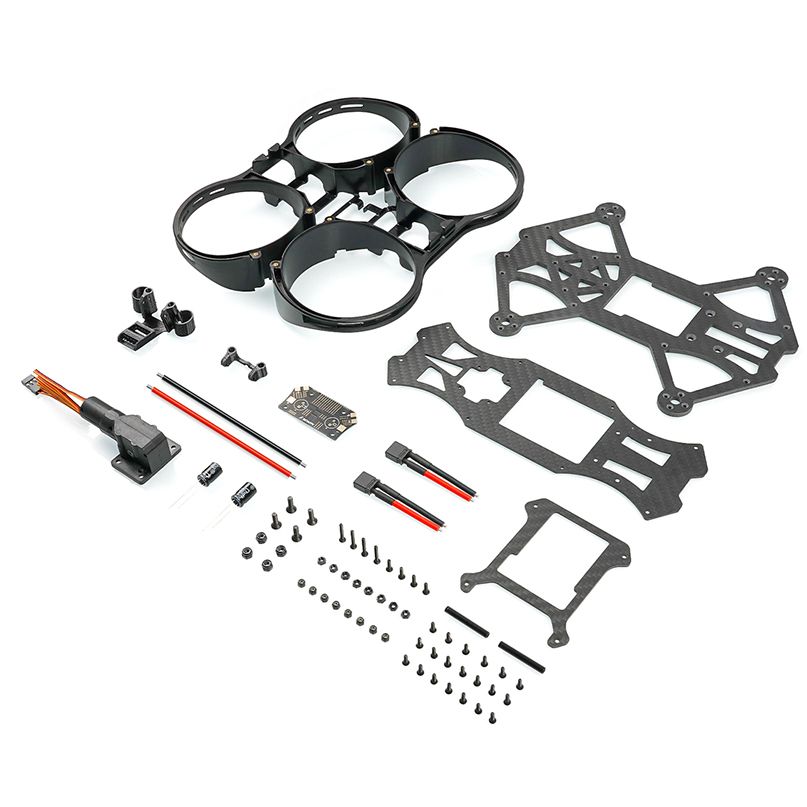

Package
1 * Pavo360 frame kit
1 * Top Plate
1 * Bottom Plate
1 * Camera Mounting Plate
1 * Landing Part
1 * Battery Elimination Circuit (BEC)
2 * Aluminum Columns
2 * 3D Printing Holder
2 * Capacitors
2 * Battery Cables
2 * Wires
1 * Pack of Screws and Nut
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
