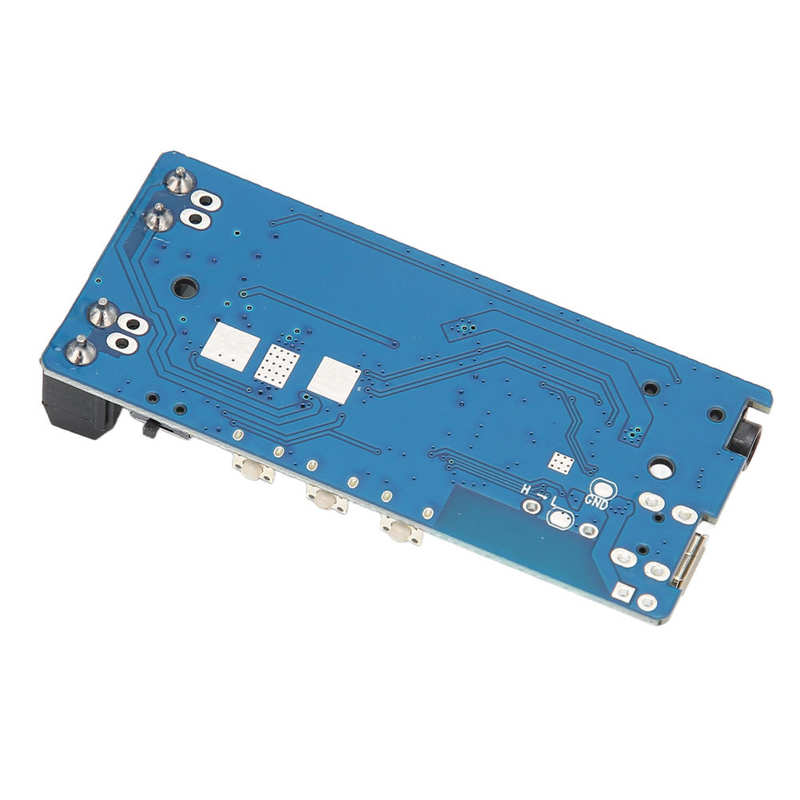

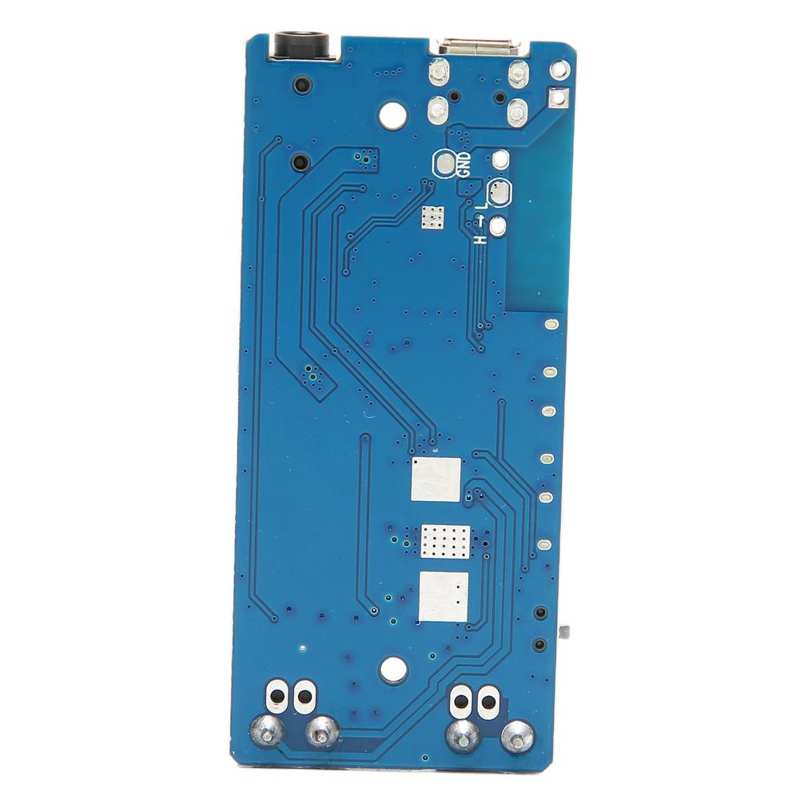

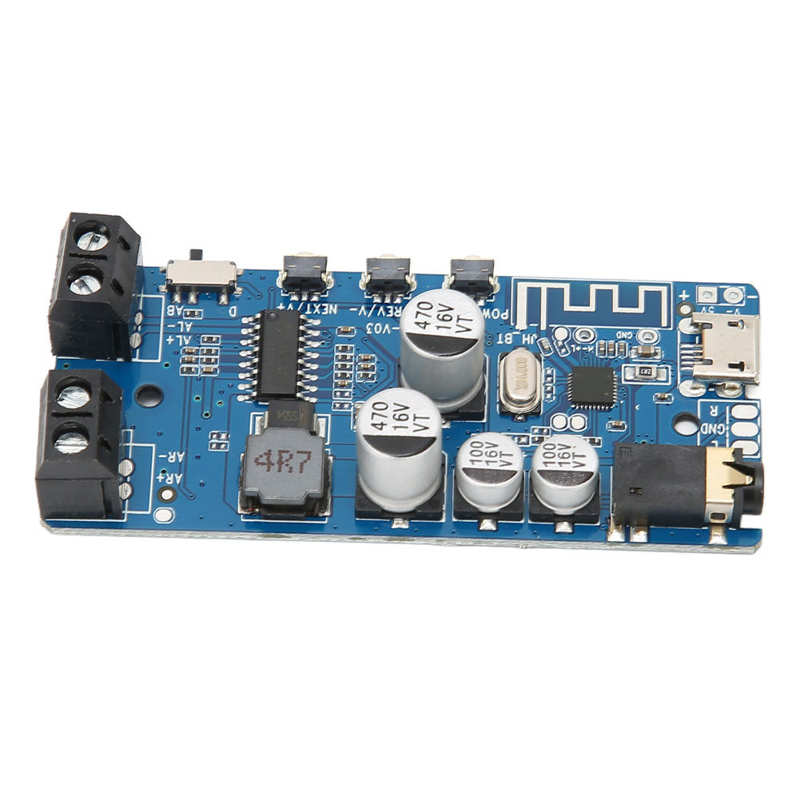

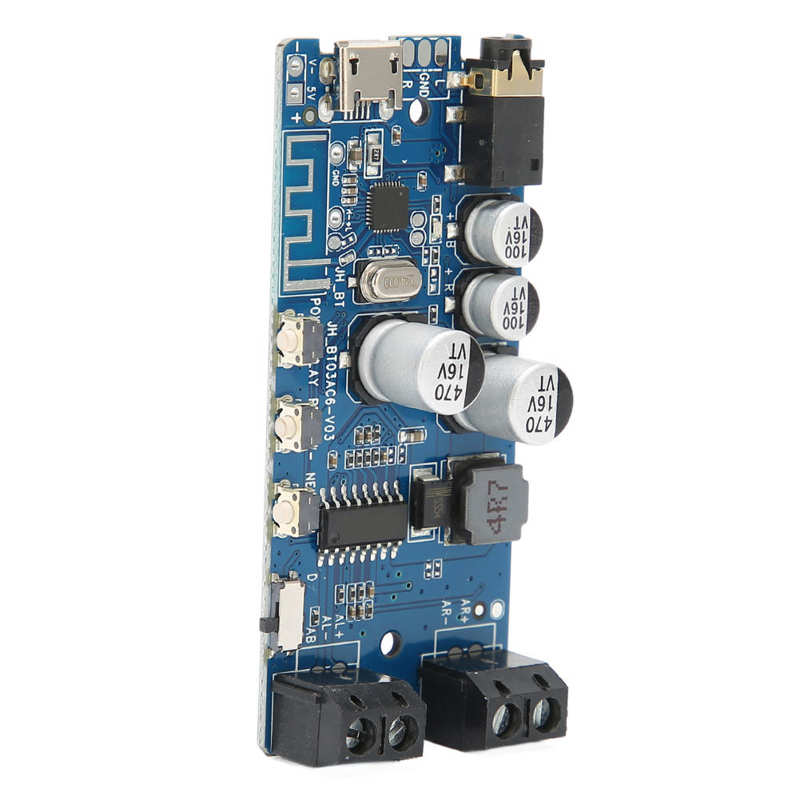

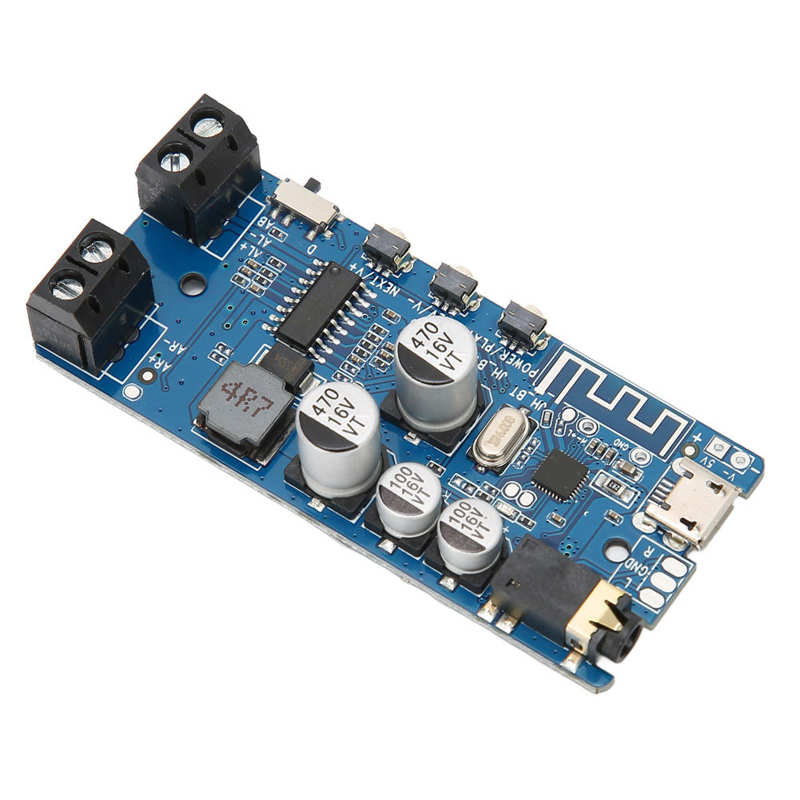

Bluetooth Power Amplifier Board 2x5W Dual Power Output DIY Bluetooth 5.0 Stereo Receiver Module

   Feature:

   1. With button control, there are controls for up and down songs, volume addition and subtraction, play, pause, switch machine, etc. Using Bluetooth 5.0 main control chip, good transmission effect and high stability.

   2.   Powered by micro 5p interface, ordinary mobile phone charger 5V2A charging cable can be used. (recommended 5V/3A, if 5V/2A power supply is used, it is recommended to play more power in class D mode of 5V/3A Large).

   3. Output interface: 3.5mm stereo (reserved welding port, you can DIY). Installation: When installing the Bluetooth board, the Bluetooth antenna should not be close to the metal parts as much as possible, so as not to affect the transmission distance.

   4.   The Bluetooth signal of phone, laptop, and tablet can be transmitted to power amplifier, active speaker and other device. The interface can also be connected to 3.5mm headphones to turn into Bluetooth headphones. (without mic, voice chat is not supported).

    5. Speaker output ports 2 groups (one for each left and right channel) cannot be used with the headphone plug at the same time. When the headphone plug is connected to the headphone, the device will auto switch to the headphone output, and at the same time stop the signal of the speaker output port of the power amplifier board.

    Specification:

    Item Type: Bluetooth Power Amplifier Board

 Material: PCB

 Bluetooth Version: V5.0

 Bluetooth Name: JH-BT

 Maximum Receiving Distance: More Than 10m / 33ft

 Power Output: Stereo 2x5W

 Output Mode: AB/D Selectable

 Driver Speaker Impedance: 2-4-8 Ohm Speaker

 Power Supply Interface: Micro USB 5V DC (recommended 5V/3A, if 5V/2A power supply is used, due to the large operating current in class D mode, it needs to be switched to class AB mode, it is recommended to play more power in class D mode of 5V/3A Large) Users need to bring their own USB adapter and micro power supply cable (reserved 2.5mm welding port, this model does not support battery power supply)

 Headphone Output Interface: 3.5mm Stereo

 Speaker Output Interface: 2x2PIN / 5mm Spacing (cannot be output to power amplifier)

 Speaker: 2-8 ohm 5-10W speakers can be connected respectively, 4 ohm 10W speakers are recommended.

 Installation: When installing the Bluetooth board, the Bluetooth antenna should not be close to the metal parts as much as possible, so as not to affect the transmission distance.

 SNR: 90DB

 Total Harmonic Distortion +Noise:-70DB

 Crosstalk: -86db

 DNR: 91db

 Transmission Protocol: A2DP/AVCTP/AVDTP/HFP

    Package List:

   1 x Bluetooth Power Amplifier Board
