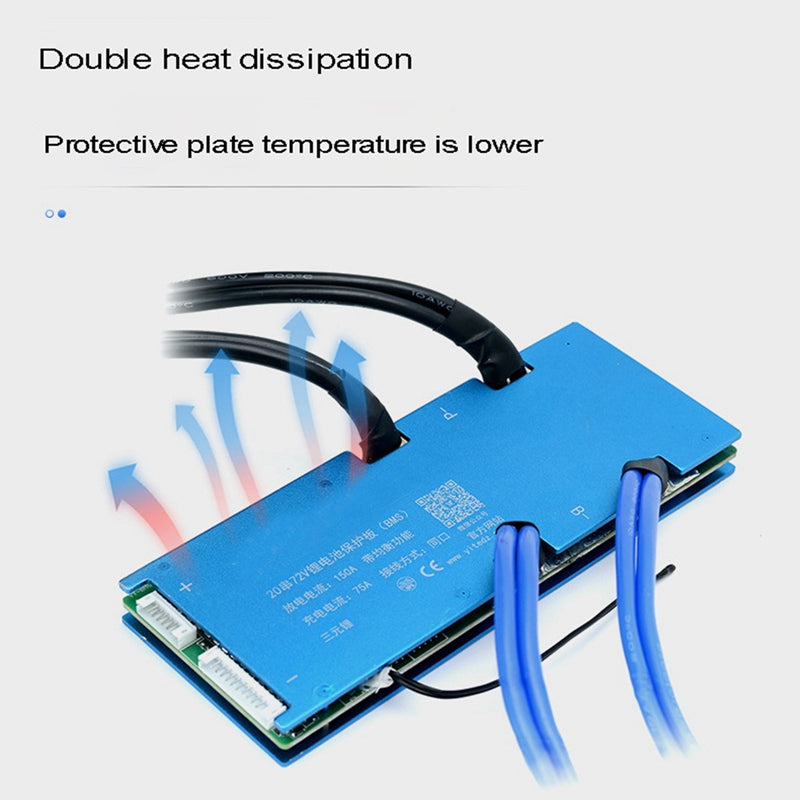

Equipped with aluminum fins to ensure fast heat dissipation - equipped with thickened aluminum fins to achieve rapid heat dissipation

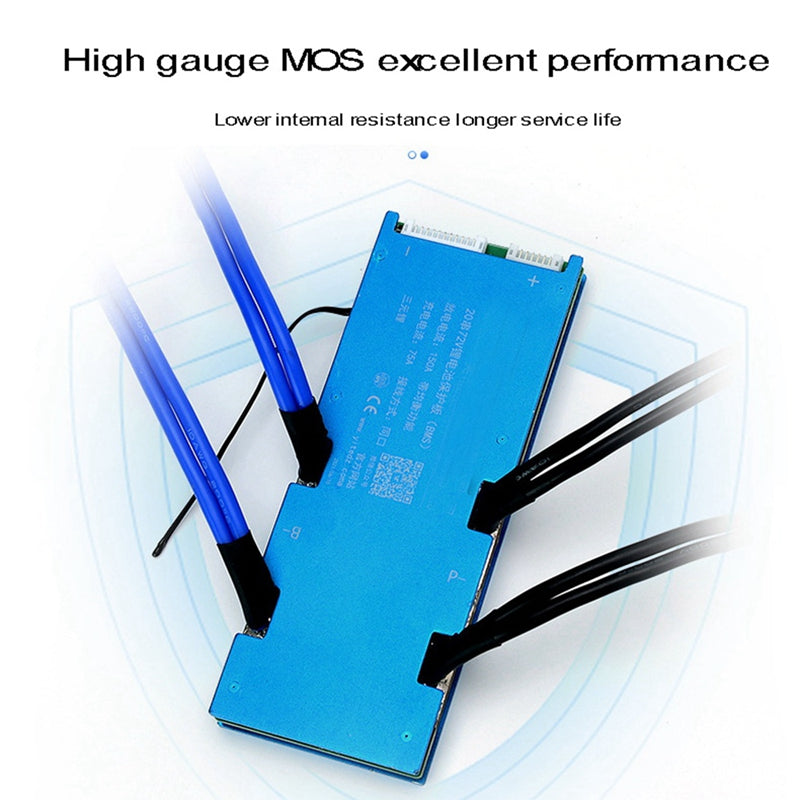

Multiple tests to ensure high quality - this product has passed load and burn-in tests to ensure quality

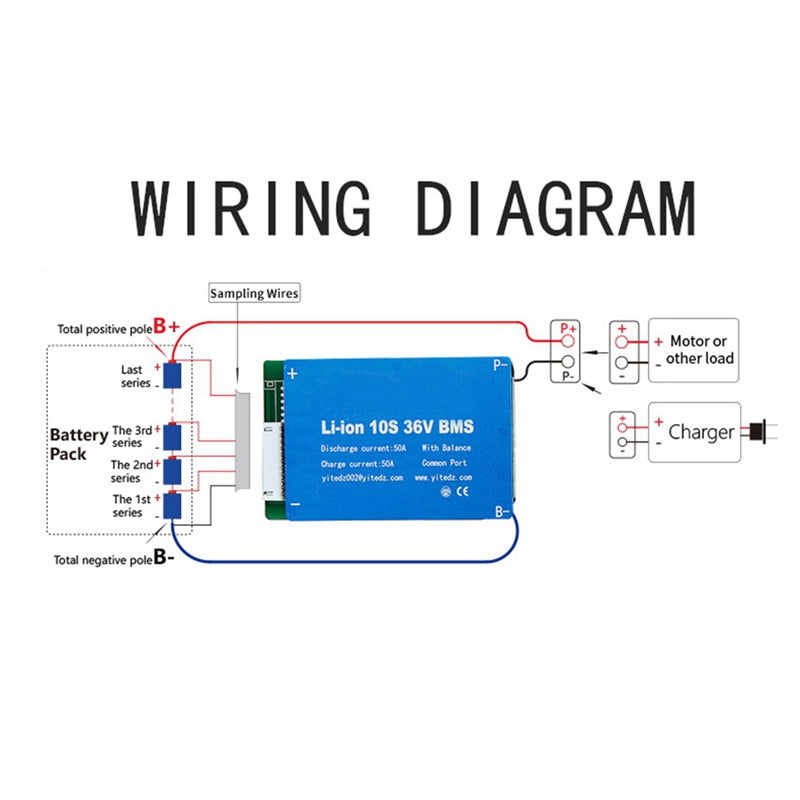

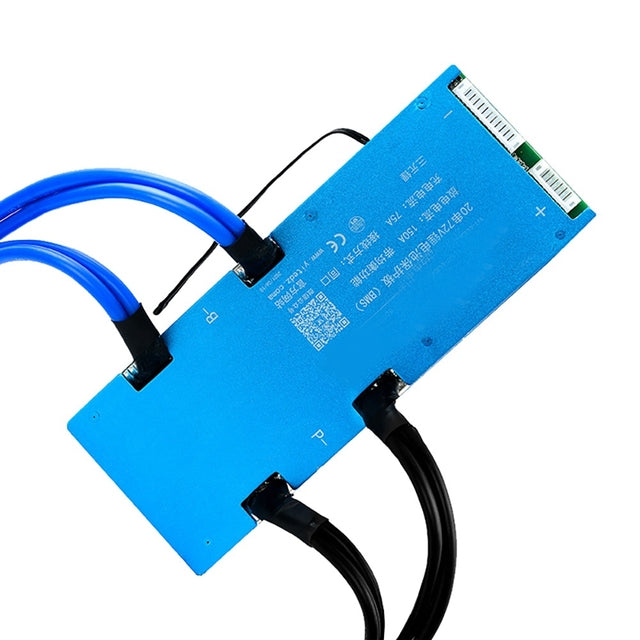

Name: 20s lithium battery protection system

Protection functions: overcharge, overdischarge, overcurrent, temperature control, balance

Using a single battery voltage: 3.7V

Continuous current: 150A / 100A

Charging voltage: 55.25V

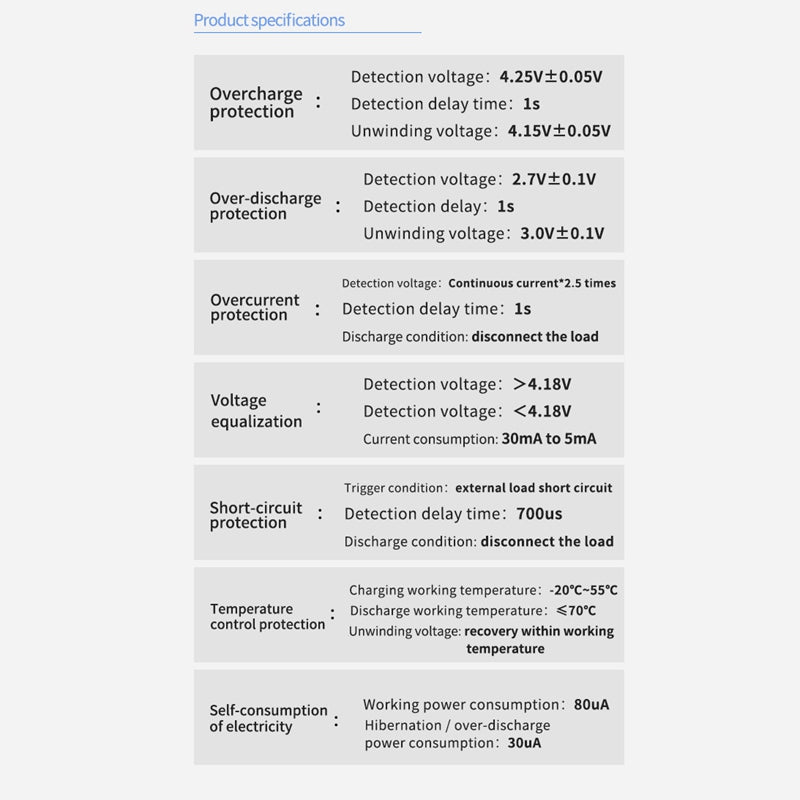

Overcharge Protection:

Detection voltage: 4.25V±0.05V

Detection delay: 1s

Release voltage: 4.15V±0.05V

Over discharge protection:

Detection voltage: 2.7V±0.1V

Detection delay: 1s

Release voltage: 3.0V±0.1V

Overcurrent Protection:

Detection voltage: continuous current * 2.5 times

Detection delay: 1s

Release condition: disconnect the load

Voltage equalization:

Detection voltage: Greater than 4.18V

Release voltage: Less than 4.18V

Current consumption: 30mA±5mA

Short circuit protection:

Trigger condition: external load short circuit

Detection delay: 700us

Release condition: disconnect the load

Temperature control protection:

Charging working temperature: -20°C~55°C

Discharge working temperature: less than equal 70℃

Release voltage: recovery within operating temperature

Self-consumption:

Working power consumption: 80uA

Sleep/overdischarge power consumption: 30uA

size:175x68x16mm

Material:pvc+aluminum

colour:Blue

Package Contents:

1 * bms battery charging protection boarderdischarge power consumption: 30uA

size:175x68x16mm

Material:pvc+aluminum

colour:Blue

Package Contents:

1 * bms battery charging protection board

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
