Feature:
1. High Indication Accuracy: The pointer is driven by a stepping motor to accurately display the engine speed. It has the characteristics of high indication accuracy, versatility, reliability and stability, and relatively simple control.
2. Weatherproof: IP67 waterproof and dustproof, 316L stainless steel bezel, and equipped with anti‑fog curved glass, it can be used for a long time even in acid, alkali and humid environments.
3. Low Power Consumption: The stepping motor is suitable for the whole series of stepping instruments, and has the advantages of low power consumption, long life and high precise.
4. Wide Working Voltage: Ultra‑wide working voltage design (long‑term working voltage: 9‑32V, maximum reach: 36V, (≤1 minute)).
5. Easy Connection: The wire harness connector has a buckle to achieve the best and firm connection, so that the gauge can work normally even under strong vibrations.
6. Wide Application: The speedometer can be widely used for engine/generator sets, ships, construction machinery, agricultural machinery, car modification, etc.
Specification:

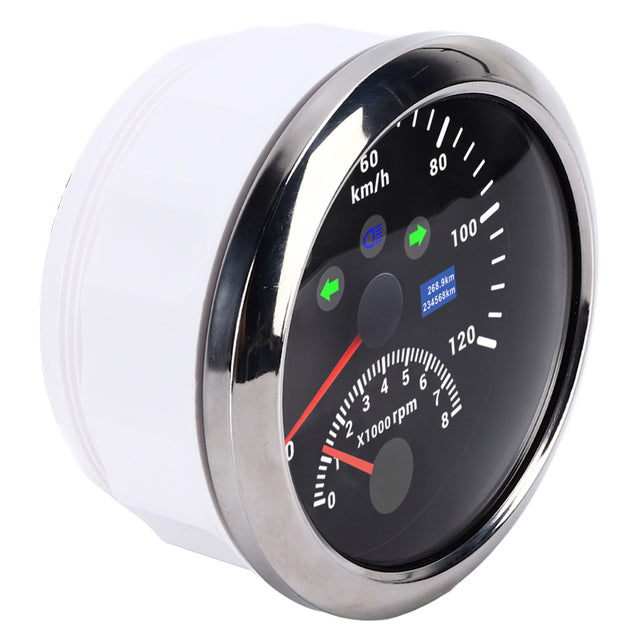

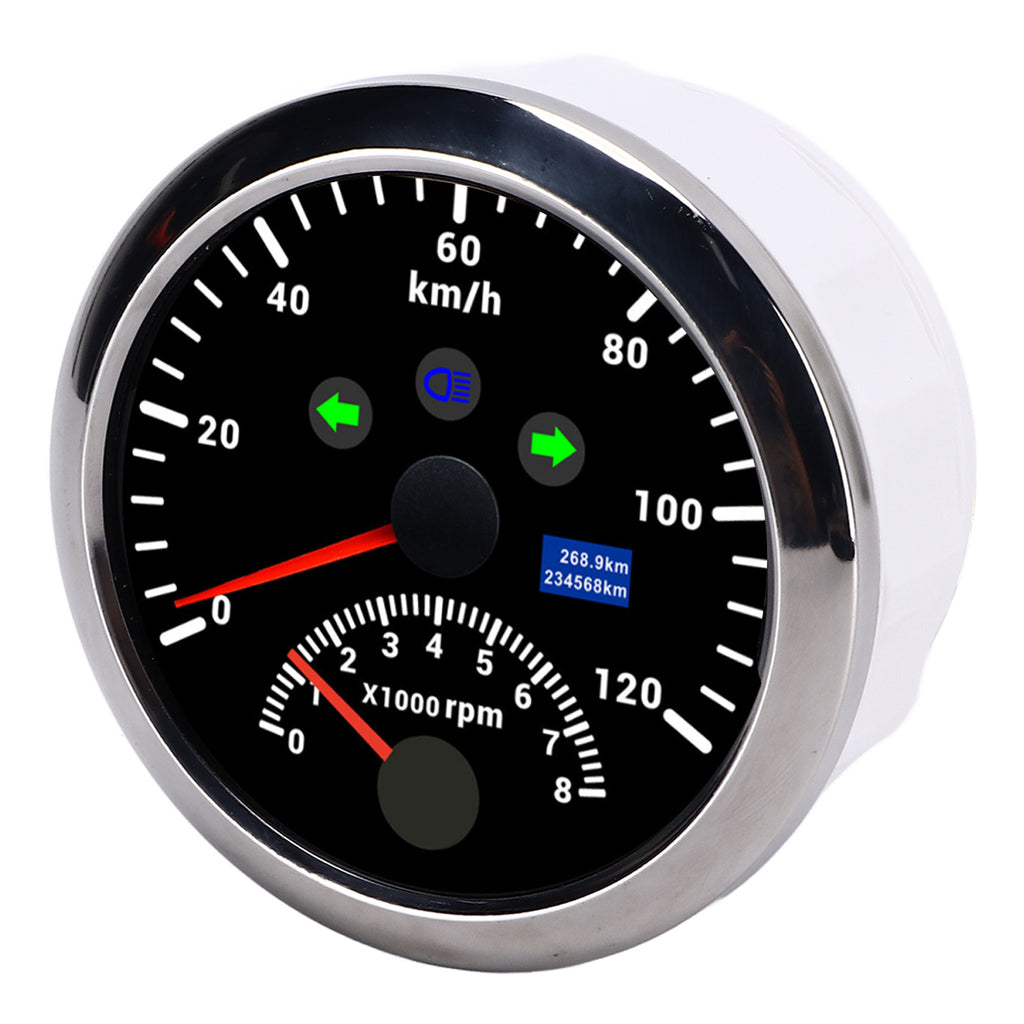

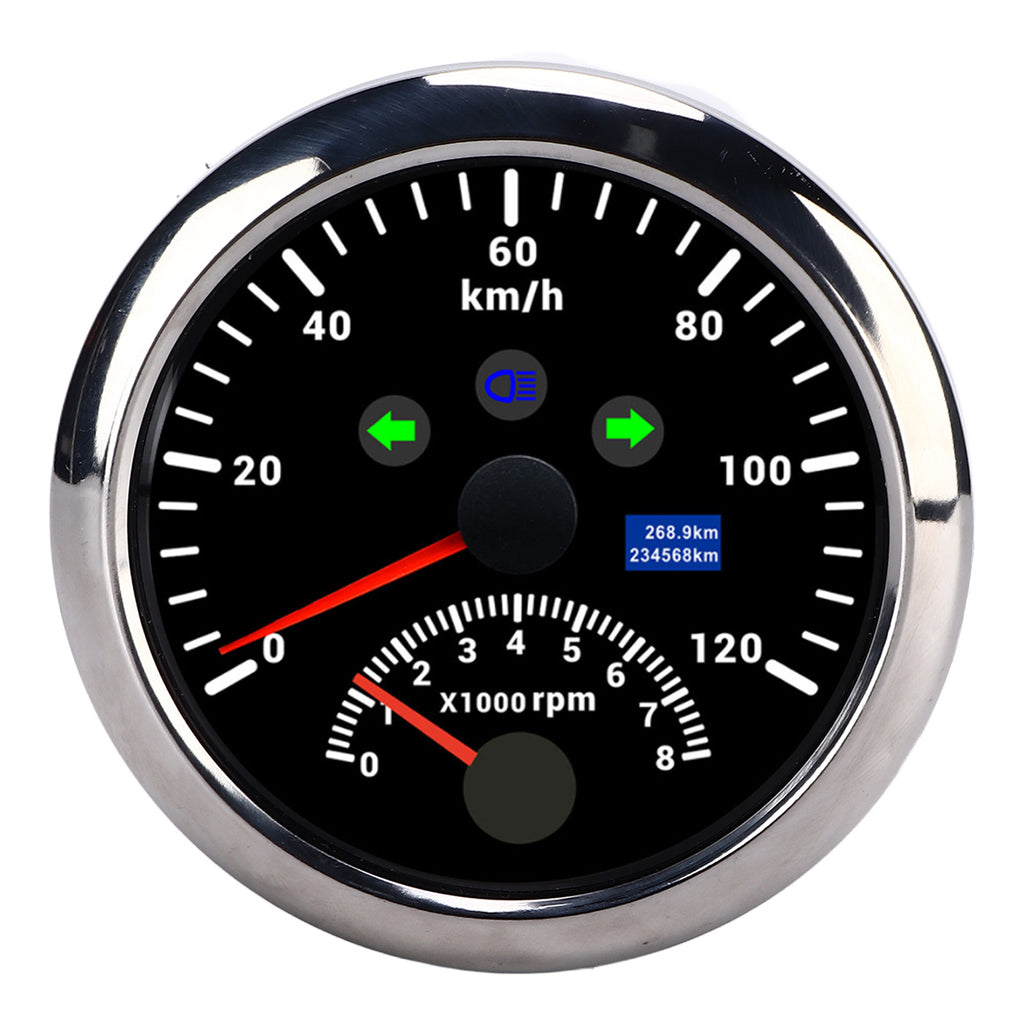

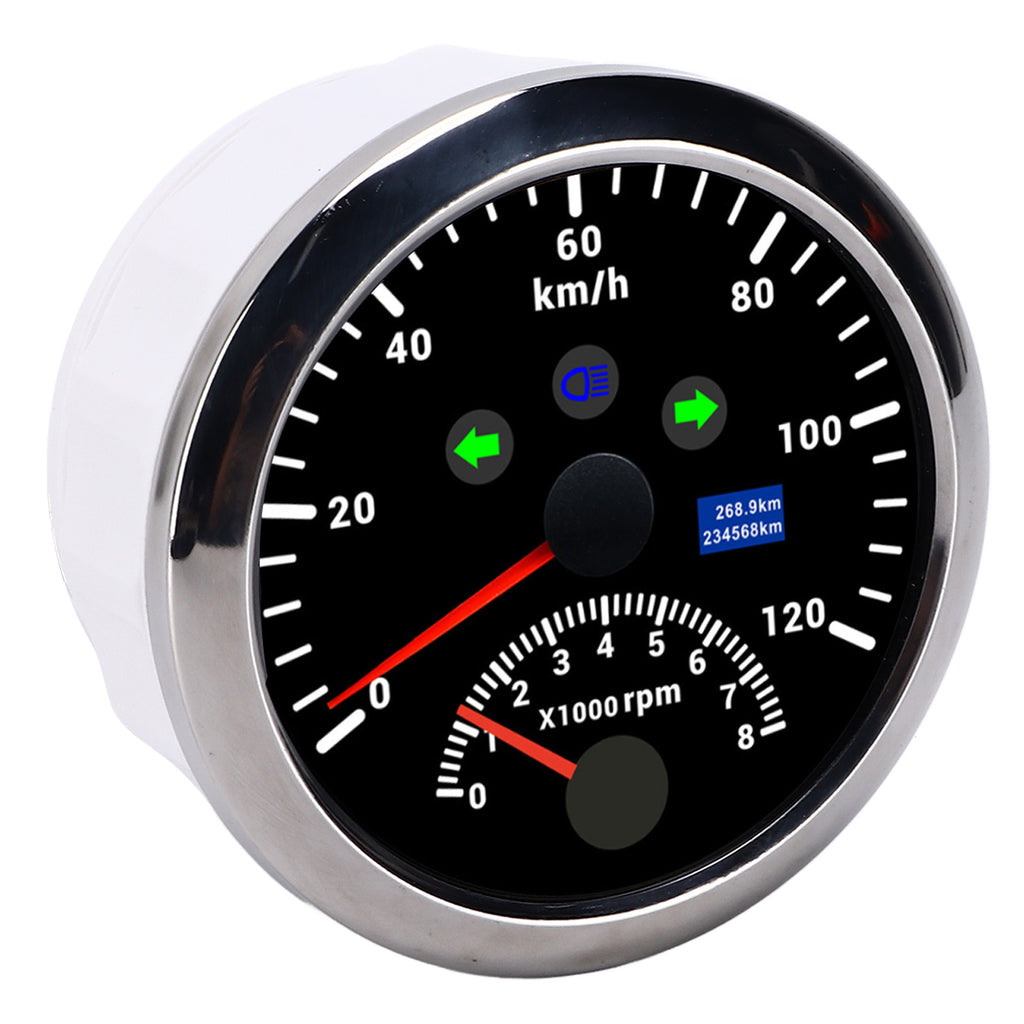

Item Type: GPS Speedometer
Material: Plastic+stainless steel
Fixed Size: Approx. 85mm (3-3/8in)
Indication Range: 0-120Km/h and 0-8000rpm
Working Voltage: 12V/24V
Access Voltage Range: 9-32V
GPS blind zone odometer compensation
Overspeed buzzer alarm (adjustable value)
Indicator Lights: Left, high beam, right

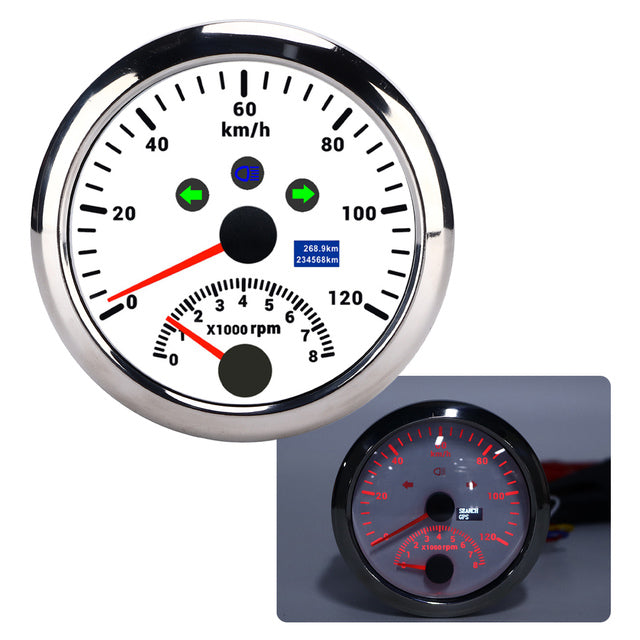

Backlight: Red
Operating Temperature: -40 to 85°C
Operation Mode: LCD display, stepping motor
Application: 12V/24V vehicles, boats, yachts, RVs and other vehicles
How to Use:
Wiring:
1. Black‑negative
2. Red‑positive
3. Blue‑speed signal line
4. Yellow‑backlit
5. White‑high beam
6. Brown‑buzzer positive
7. Green‑negative pole of buzzer alarm
8. Yellow‑left turn signal light
9. Gray‑right turn signal light
Package List:
1 x Tachometer
1 x GPS Antenna
1 x Manual
