Features:

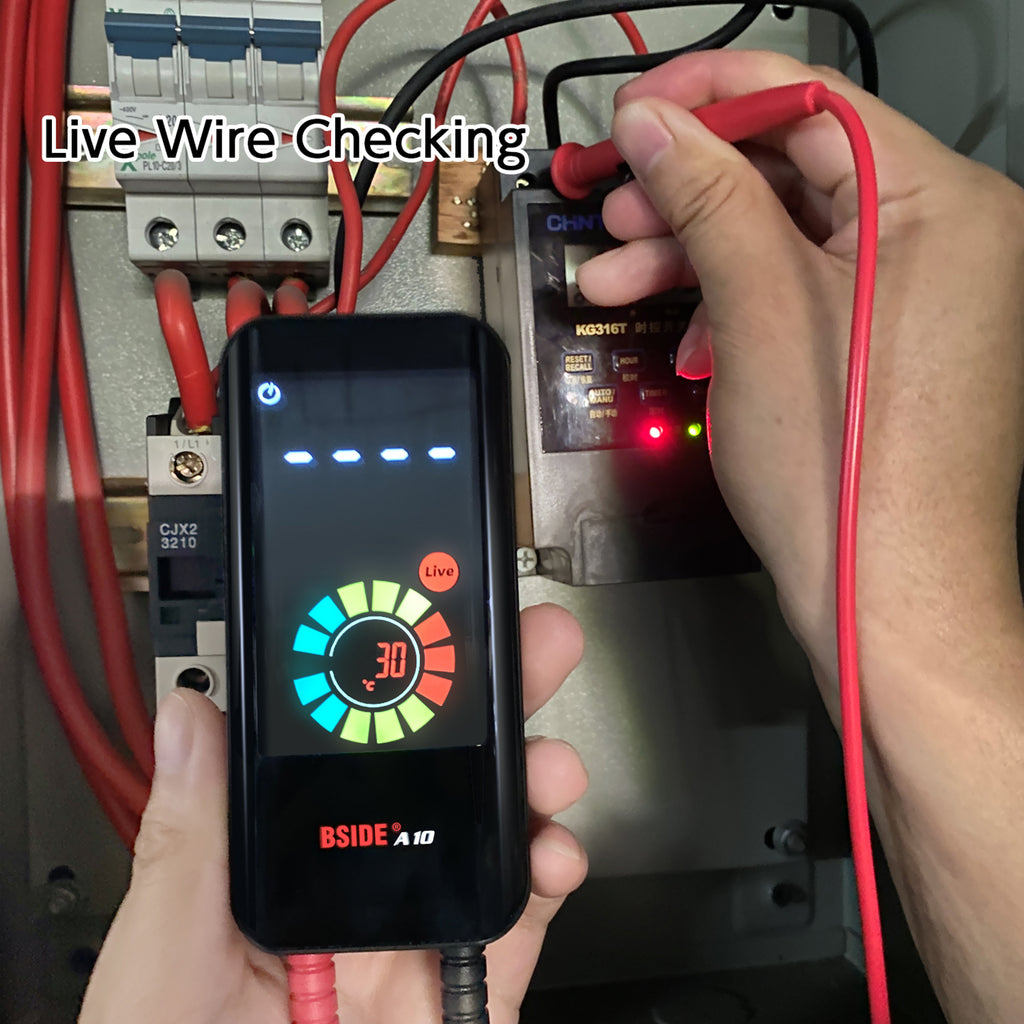

Basic Measuring Functions: including DC voltage, AC voltage, frequency, resistance, continuity, capacitance, diode, non-contact voltage induction, live wire checking.

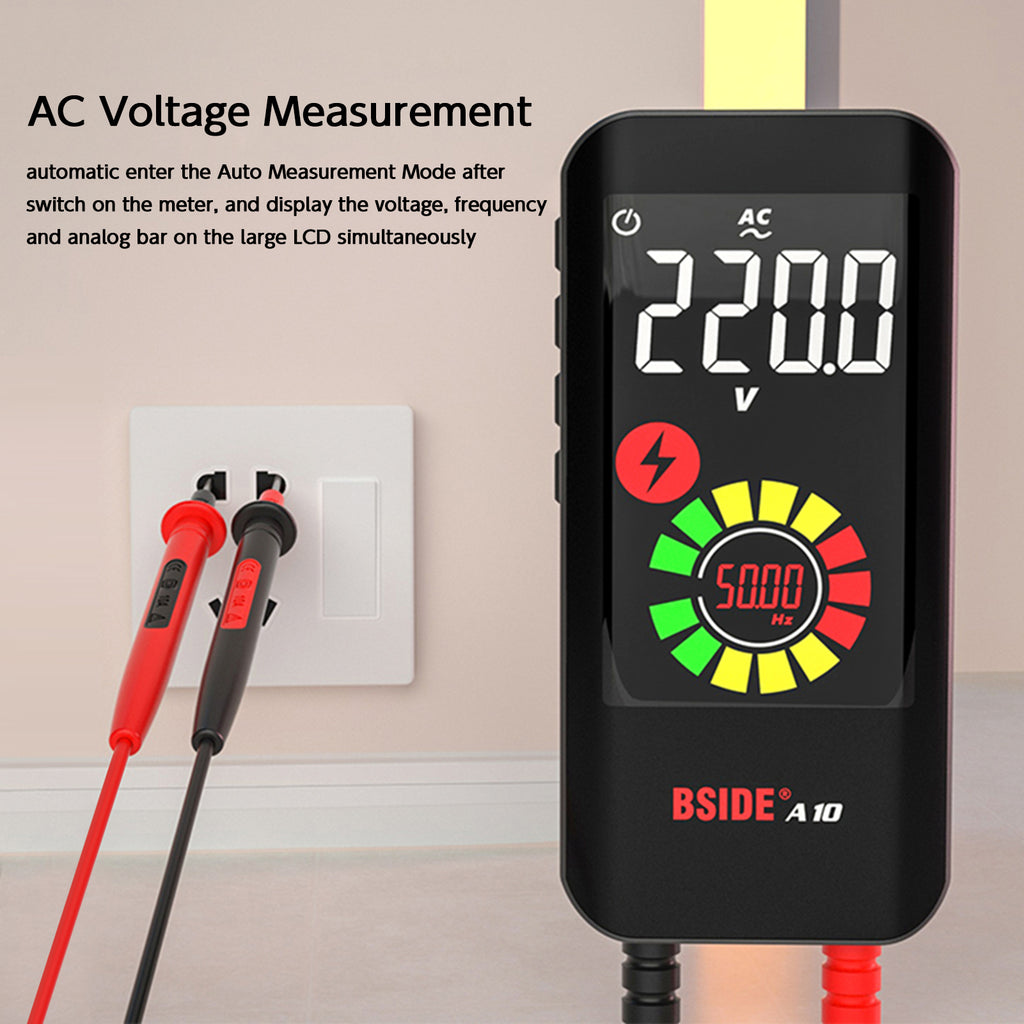

Auto Measurement Mode: automatic identification of AC voltage, DC voltage, resistance.
Wide Measurement Range: 0~600V AC/DC voltage, 0.1Ω~60MΩ resistance, 1nF~60mF capacitance, 10Hz~10MHz frequency, 0.1~99.9% duty ratio, 0~50℃ temperature, and measure diodes within 3V.
Easy-to-read Color LCD Screen: greatly enhance the reading experience.
3 Results Display: shows voltage, frequency and analog bar on the large LCD simultaneously.
Rechargeable Li-ion Battery: built-in 800mAh li-ion battery, conveniently recharged by the included charging cable via computer or the USB socket.
Safety Operation: full measuring range overload protection, double insulation protection, meet with CAT II safe grade.

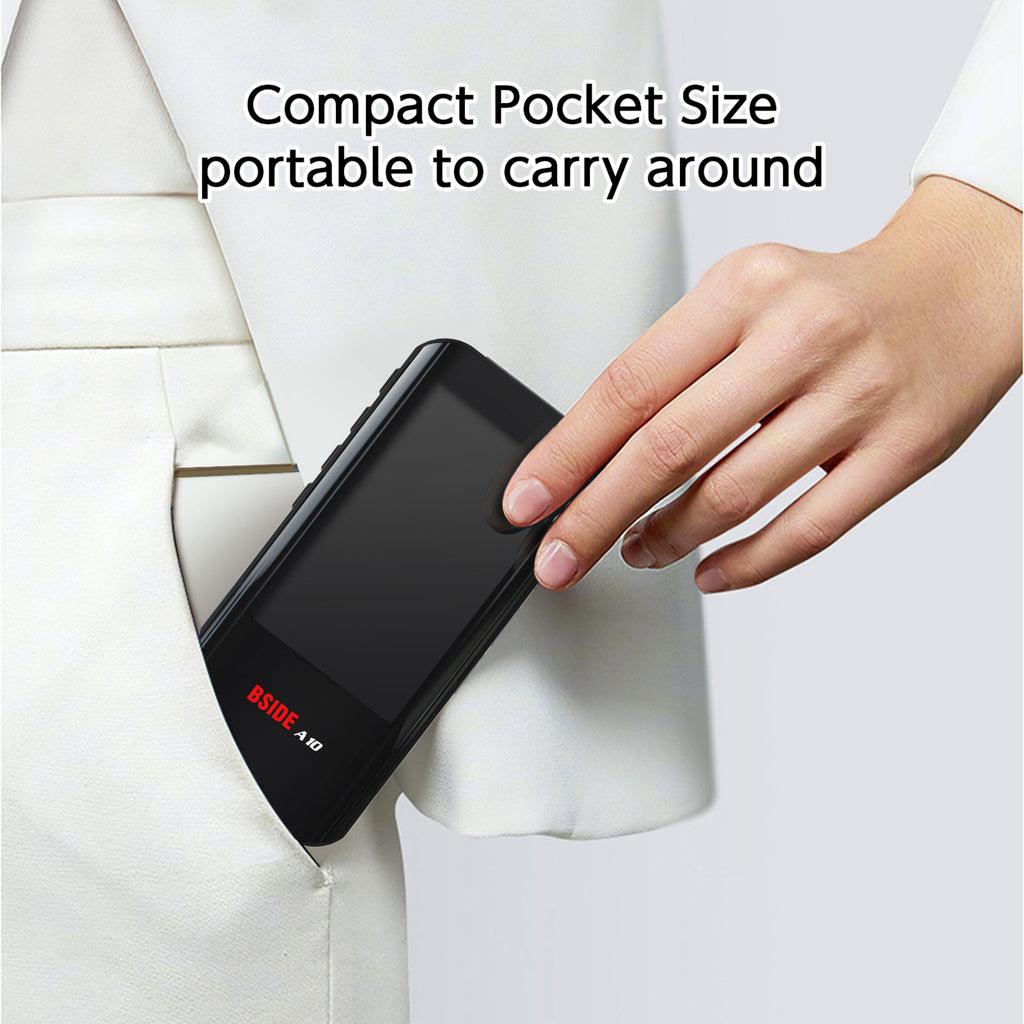

Compact Pocket Size: convenient for one-handed operation, portable to carry around, with a zipper pouch to store and protect the meter.
Specifications:
DC Voltage: 0~600V(DC mode), 1~600V(auto mode)
AC Voltage: 0~600V(AC mode), 1~600V(auto mode)
Resistance: 0.1Ω~10MΩ, 10~60MΩ

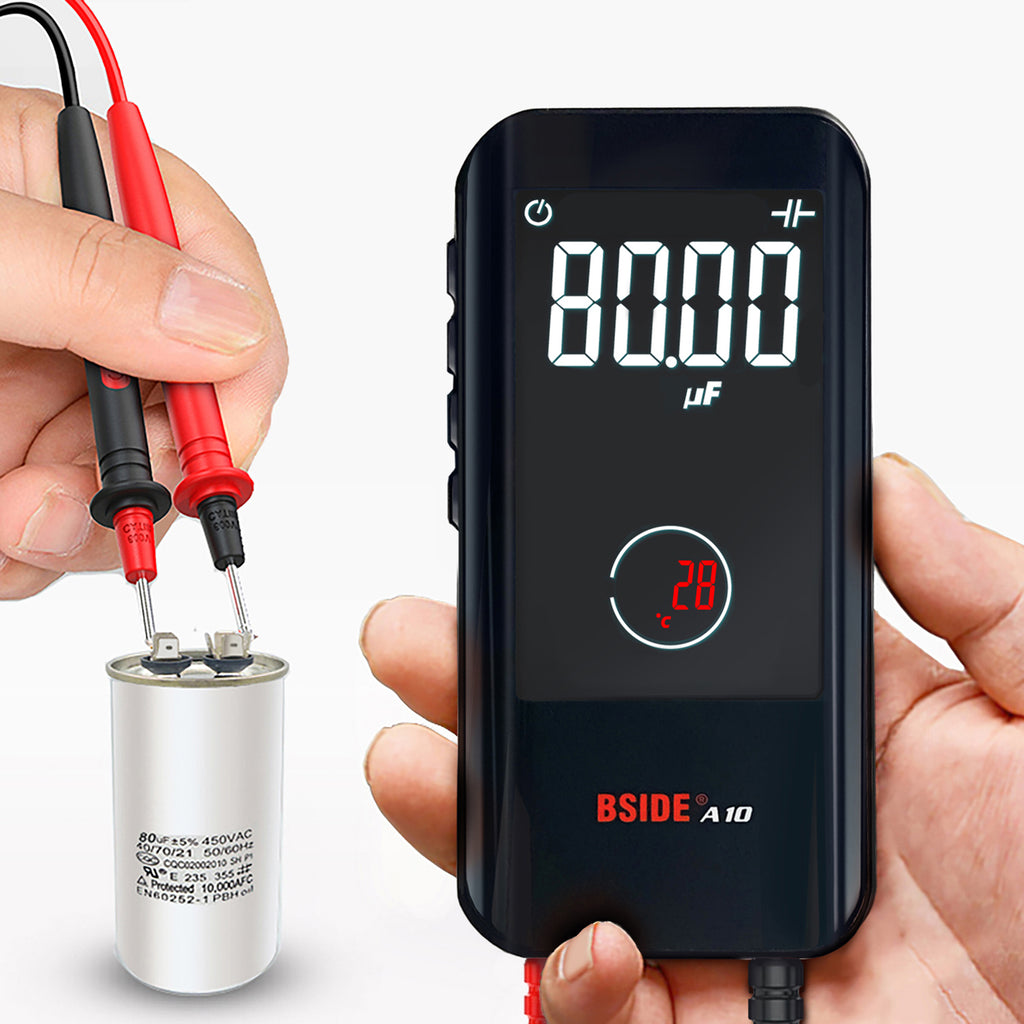

Capacitance: 1nF~1mF, 1mF~60mF
Frequency: 10Hz~10MHz(ACV 3~600V)
Duty Ratio: 0.1~99.9%
Material: ABS
Range: Automatic range
Display: Color LCD
Maximum Display Value: 9999 digits
Polarity Indication: Self-indicating, "-"means Negative polarity
Over-range Display: "OL" or "-OL"
Sampling Time: The meter figures show about 0.4 seconds
Automatic Power-off Time: 5 minutes
Battery Low Voltage Indication: LCD display a battery symbol
Operational Temperature and Humidity: 0~40℃, 0~80%RH
Storage Temperature and Humidity: -10~60℃, 0~70%RH
Operating Altitude: ≤2000m
Battery: Li-ion battery inside

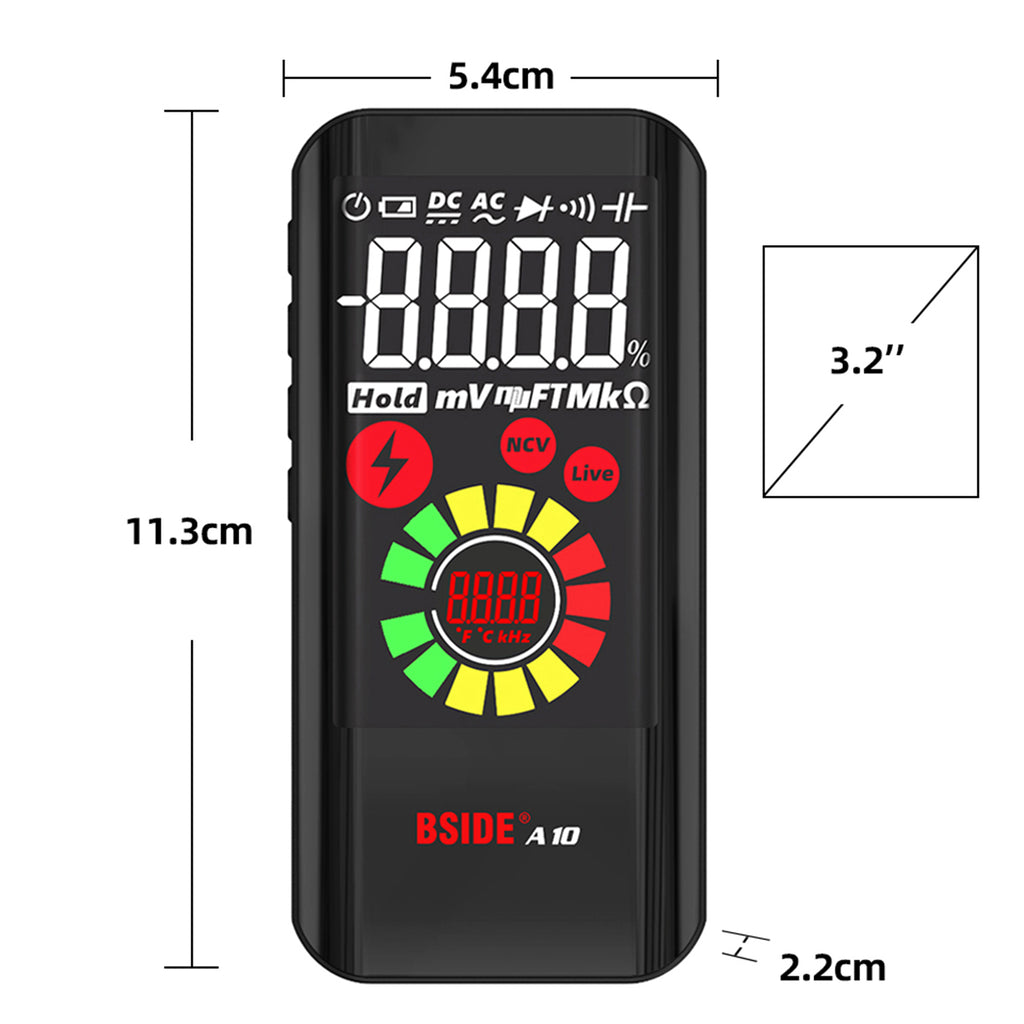

Item Size: 113.3 * 54.2 * 22mm / 4.46 * 2.13 * 0.87in
Item Weight: 102g / 3.60oz
Package Weight: 250g / 8.52oz
Package Size: 18 * 8.5 * 4cm / 7.09 * 3.35 * 1.57in
Packing List:
1 * Multimeter
1 * Pair of Test Lead
1 * Charging Cable
1 * Storage Pouch
1 * Manual (English)
