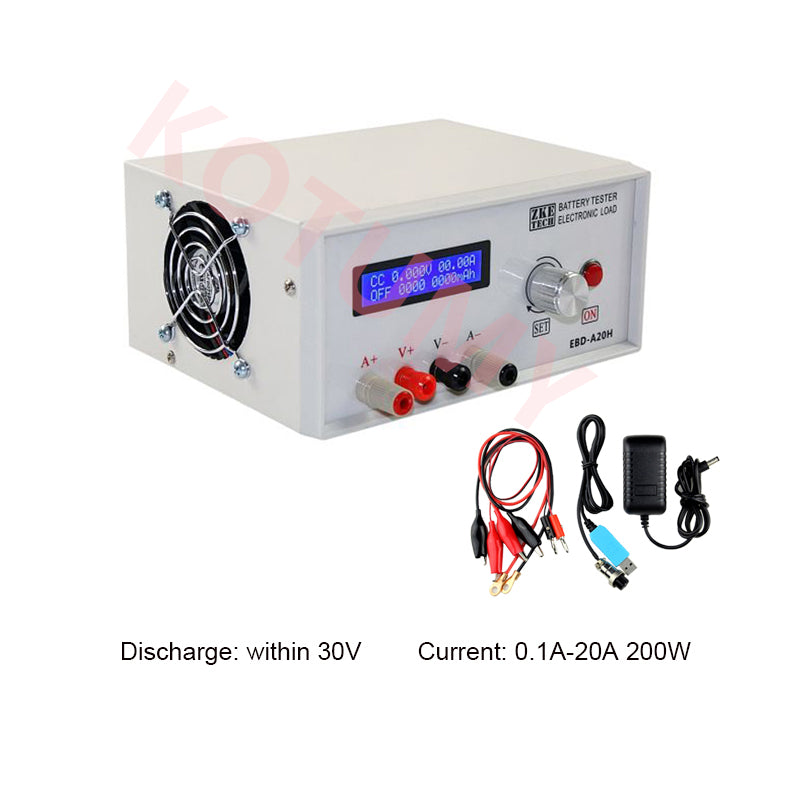

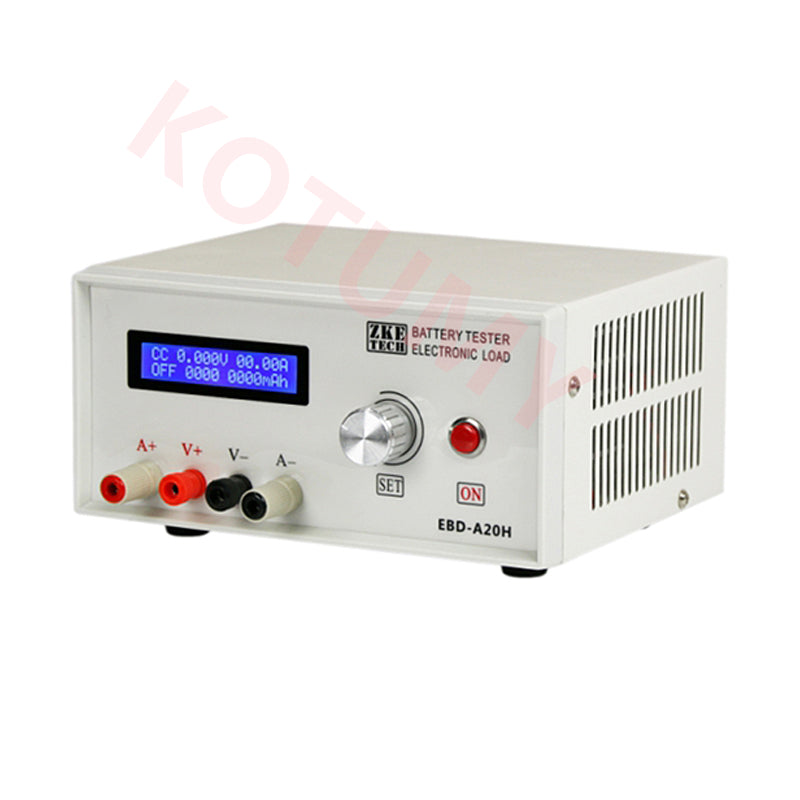

EBD-A20H 30V-20A-200W
Power supply method: DC 12V 1A
Voltage setting: 0.00-30.00V, minimum step 0.01V
Current setting: 0.10-20.00A, with a minimum step of 0.01A (automatically limiting the current when the power exceeds the limit)
Mode setting:
DSC-CC (Constant Current Discharge): The discharge current is constant, used to test battery capacity or power supply current
DSC-CP (constant power): discharge power is constant, used to simulate constant power equipment or test power supply power
Voltage measurement:
0.000-4.500V (low voltage range), accurate to 0.003V, error ± 0.5%
4.50V-30.00V (high voltage range), accurate to 0.01V, error ± 0.5%
Current measurement:
0.10-20.00A, accurate to 0.01A, with an error of 0.5%
Within 10Ah, with a resolution of 0.001Ah
Capacity measurement:
10Ah-100Ah, resolution 0.01Ah
Above 100Ah, with a resolution of 0.1Ah
Discharge power: maximum 200W, controlled within 90% during long-term operation

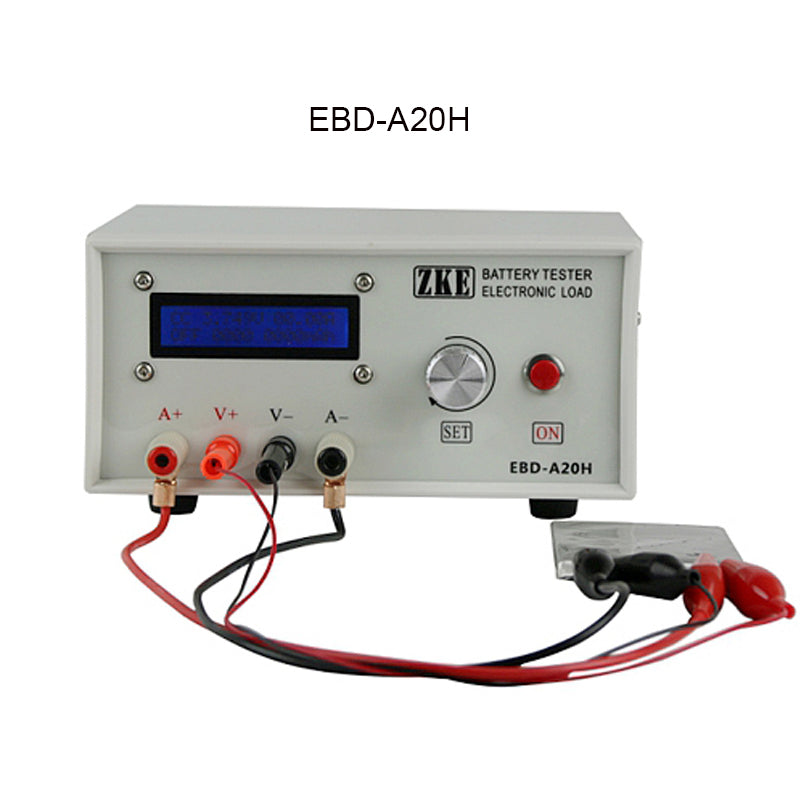

Wiring method: Four wire detection, voltage measurement and current channel separate wiring to ensure measurement accuracy
LCD display: voltage, current, capacity, time, power, energy and other test data
Computer online:
Dedicated USB to T serial cable (aviation plug interface, not regular USB cable)

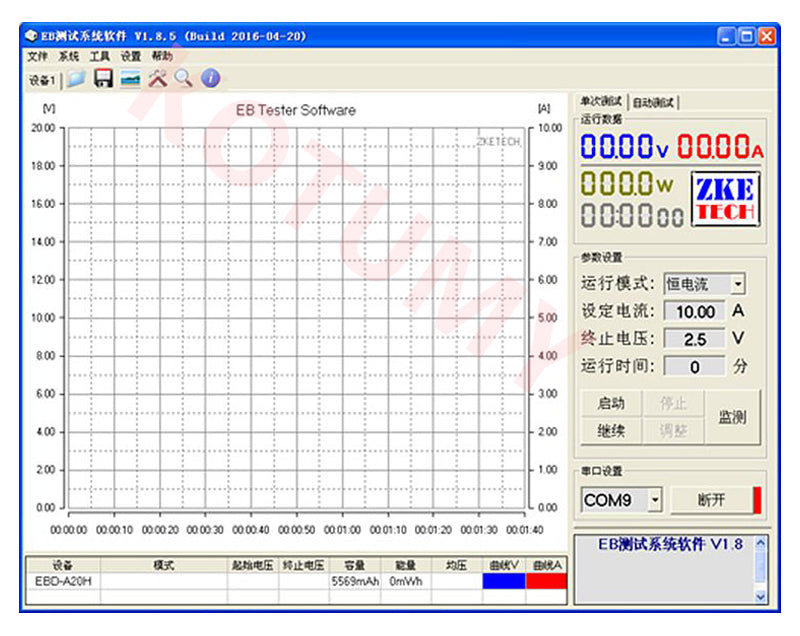

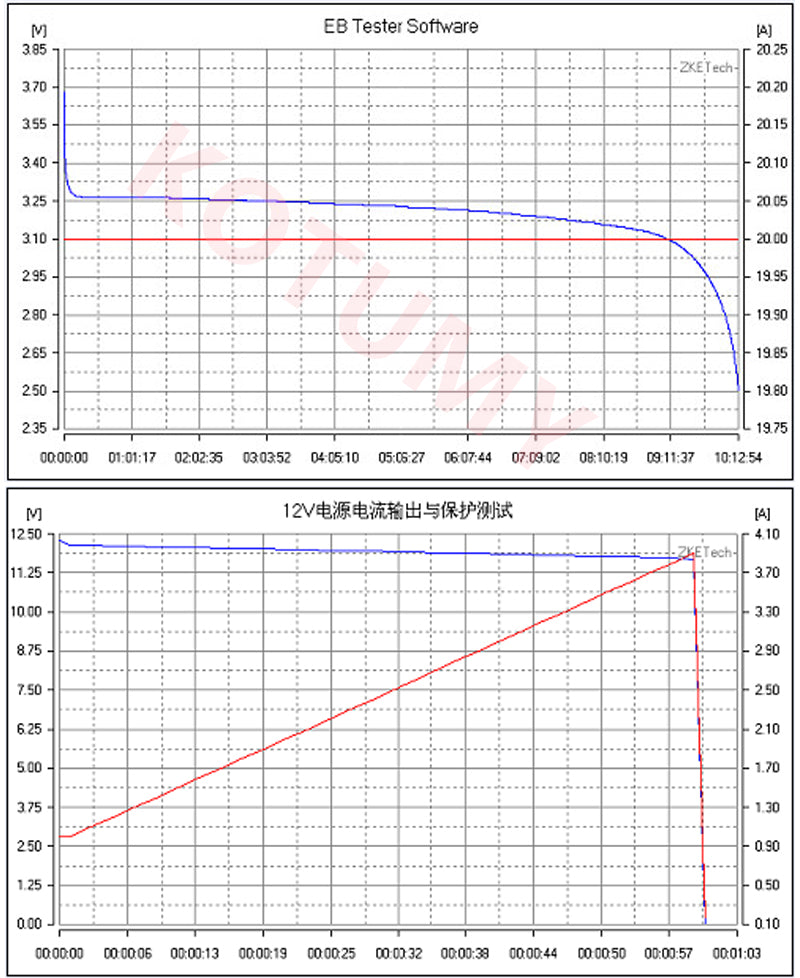

Computer control, curve drawing, automatic current testing, calibration of measurement standards, and upgrading of equipment components

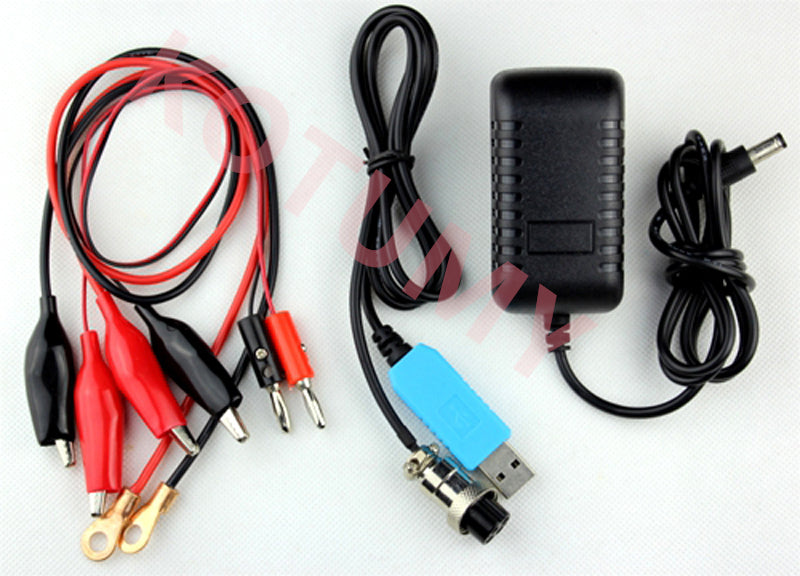

Package Included:
1 x EBD-A20H battery tester
2 x Cables
1 x USB to TTL cable
1 x Power Supply Adapter
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
