Features：
* Various functions, practical and convenient

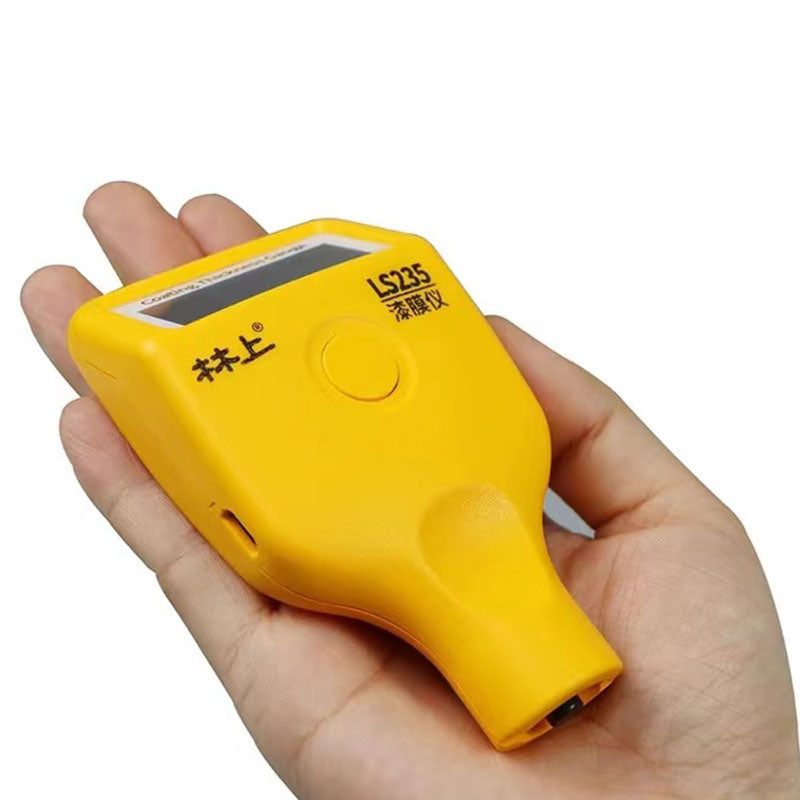

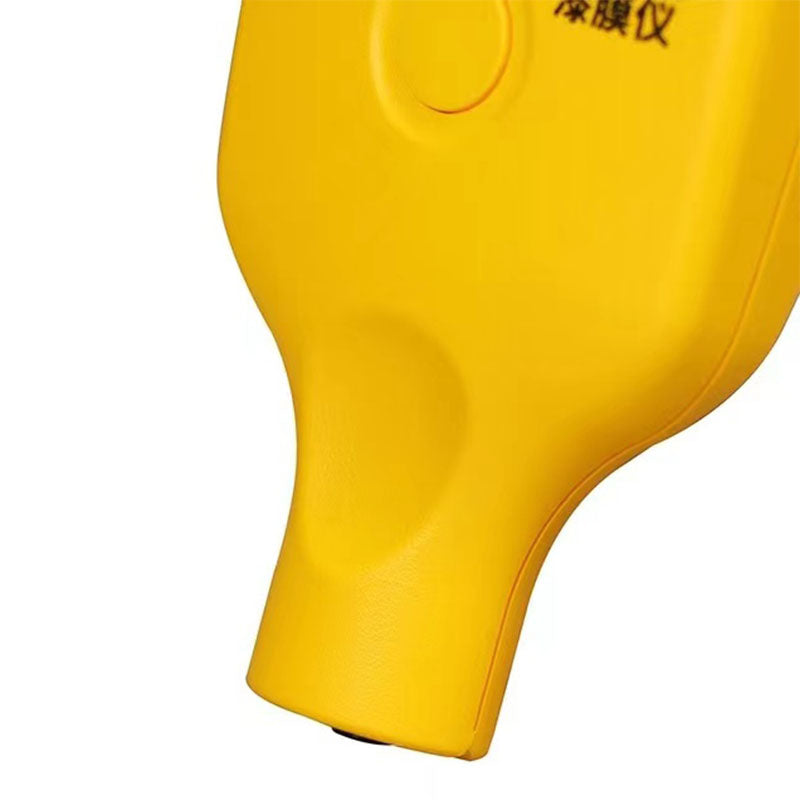

Automotive Paint meter has multiple functions and powerful performance which can quickly discover iron, aluminum, iron galvanized and non-metallic materials on.
* Detect the metallic putty quickly

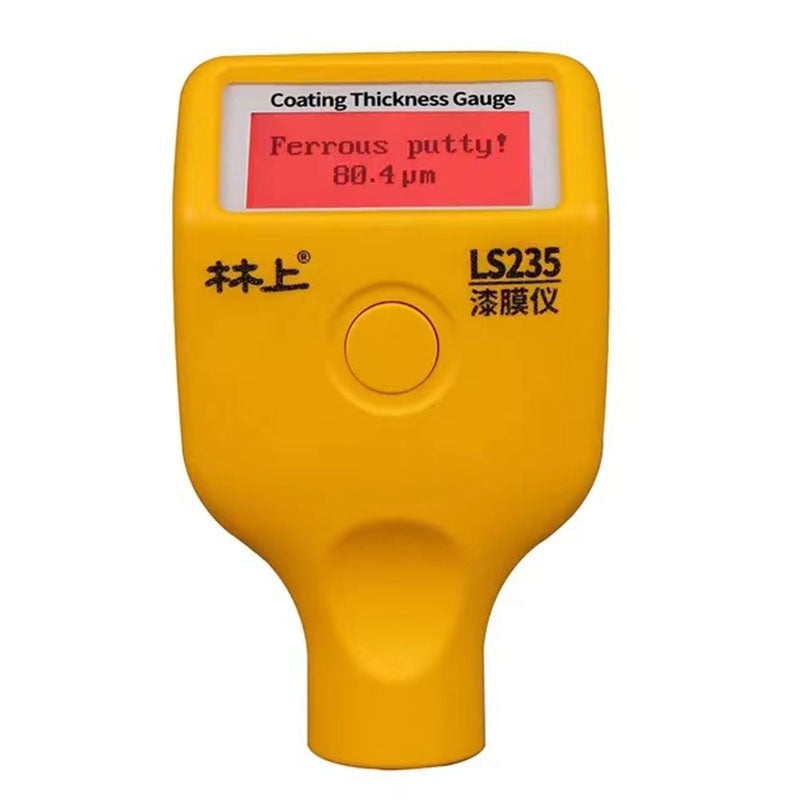

If a car shell has been repaired with metallic putty, LS235 car paint meter can dig out it accompanied two buzzers in the
automatic measurement pattern (FE/NFE pattern) and red light is on.
* Motor vehicle body's material reminder with three backlights.
Red, green and white backlight indicates different material recognized by the car paint meter. Bright red represents metallic powder , iron galvanized is recognized as bright green, while others are bright white.
Specifications:
Probe tip
Ruby
Measuring principle
Fe: Hall Effect / NFe: Eddy current
Probe type
Built-in integrated probe
Measuring rang
0.0-2000μm
Resolution
0.1μm:(0μm-99.9μm)
1μm:(100μm-999μm)
0.01mm:(1.00mm-2.00mm)
Accuracy
≤±(3% reading+2μm)
Unit
μm / mil
Measuring interval
0.5s
Minimum measuring area
Ø = 25mm
Minimum curvature
Convex:5mm / Concave:25mm
Minimum substrate thickness
Fe:0.2mm / NFe:0.05mm
Display
128×48 dot matrix LCD
Power supply
2 pcs of 1.5V AAA alkaline battery
Range of operation temperature
-20℃-50℃
Storage temperature range
-20℃-60℃
Host size
101*62*28 mm
79eight
79g
