Features:
Top performance cost ratio
High power density, smallest and compact

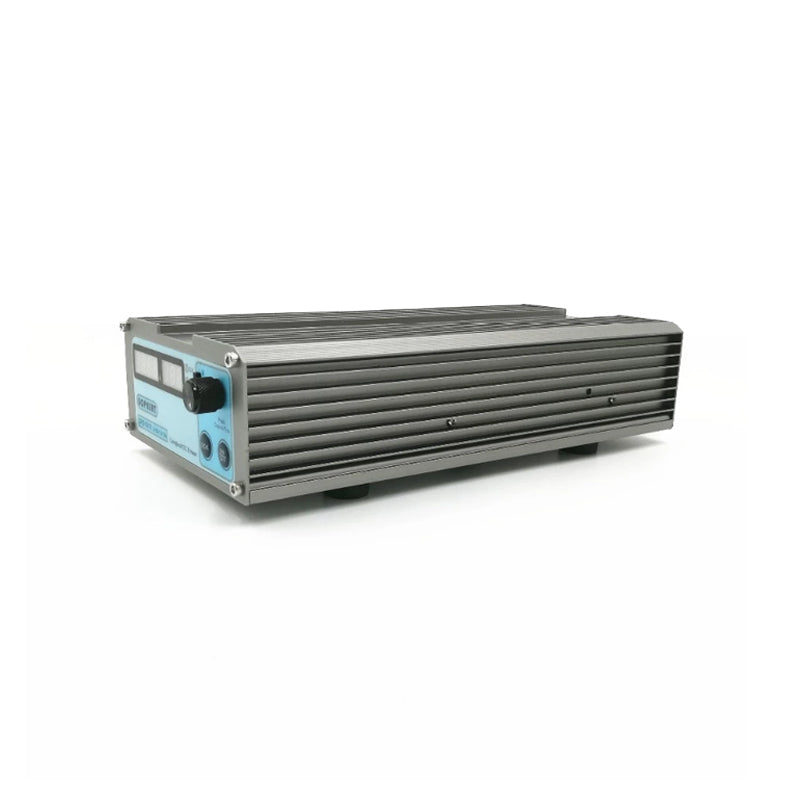

Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current

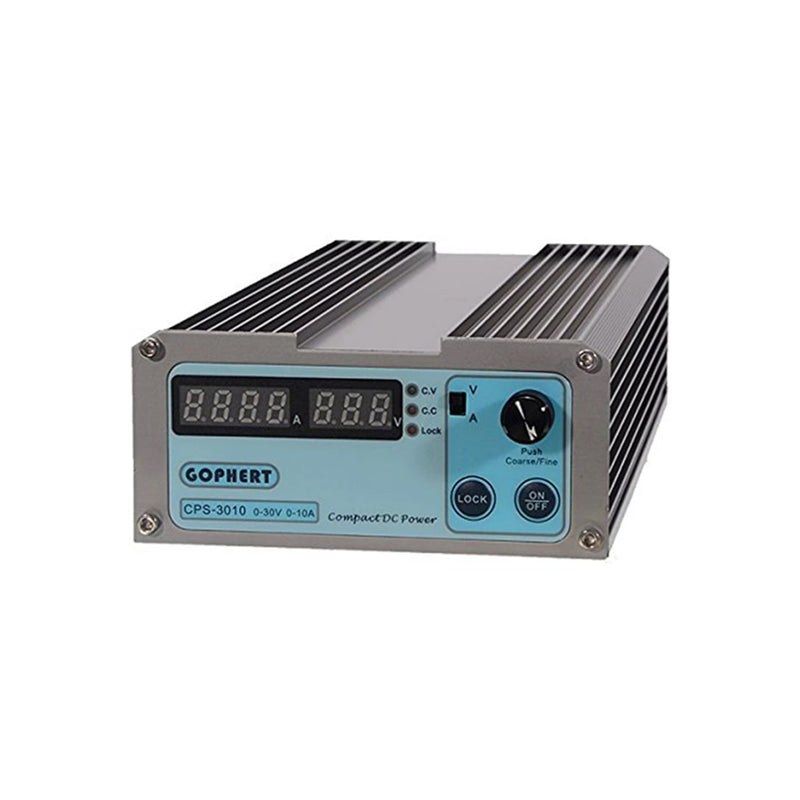

Four digital current meter and three digital volt meter
Soft start without overshooting
High efficiency, up to 88%
Low Ripple & Noise
Output ON/OFF
LOCK switch
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection
Specification:
Operation Voltage Range 198 – 264Vac
Operation Frequency Range 45 – 65HZ
Output Voltage Range 0 – 32V
Output Current Range 0 – 10A
Efficiency (220Vac/full load) ≥88%
Full Load Input Current(220Vac) ≤2.3A
No Load Input Current(220Vac) ≤120mA
Volt Meter Accuracy ≤ 0.3% + 1 digits
Current Meter Accuracy ≤ 0.3% + 3 digit
Constant Voltage
Load Regulation (0-100%) ≤ 30mV
Line Regulation(198-264Vac) ≤ 10mV
Ripple & Noise (Peak-Peak) ≤ 40mV
Ripple & Noise (r.m.s) ≤ 5mV
Set Accuracy ≤ 0.3% + 10mV
Transient Response Time (50%-100% rated Load) ≤ 1.0ms
Constant Current
Load Regulation(90%-10% Rated Voltage) ≤ 100mA
Line Regulation (198-264Vac) ≤ 50mA
Ripple & Noise (Peak-Peak) ≤ 100mAp-p
Set Accuracy ≤ 0.3% + 20mA
Size(width× height× depth) 120×55×240mm
Net Weight 1.2KG

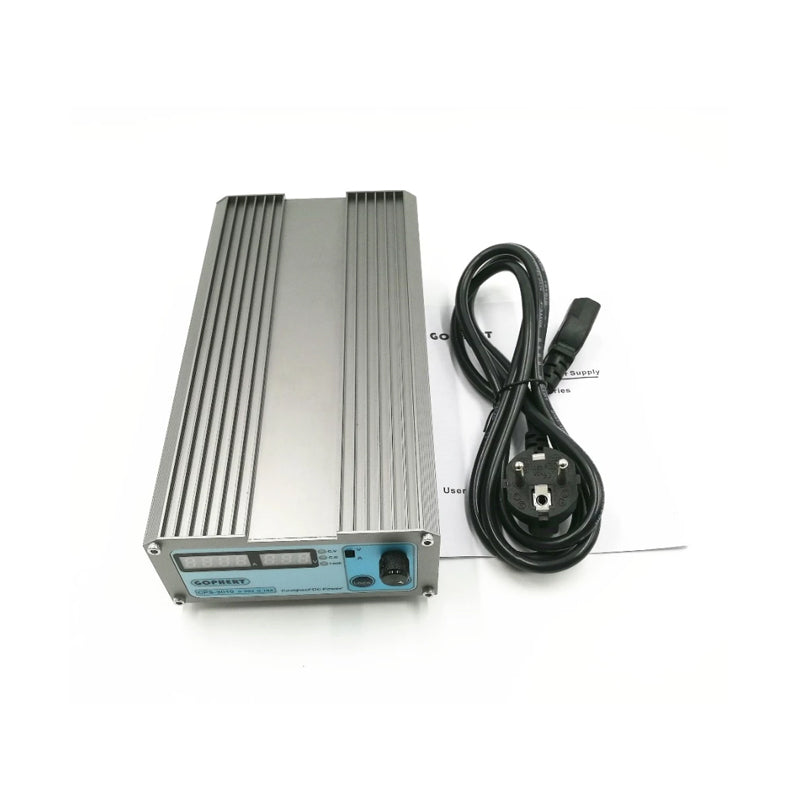

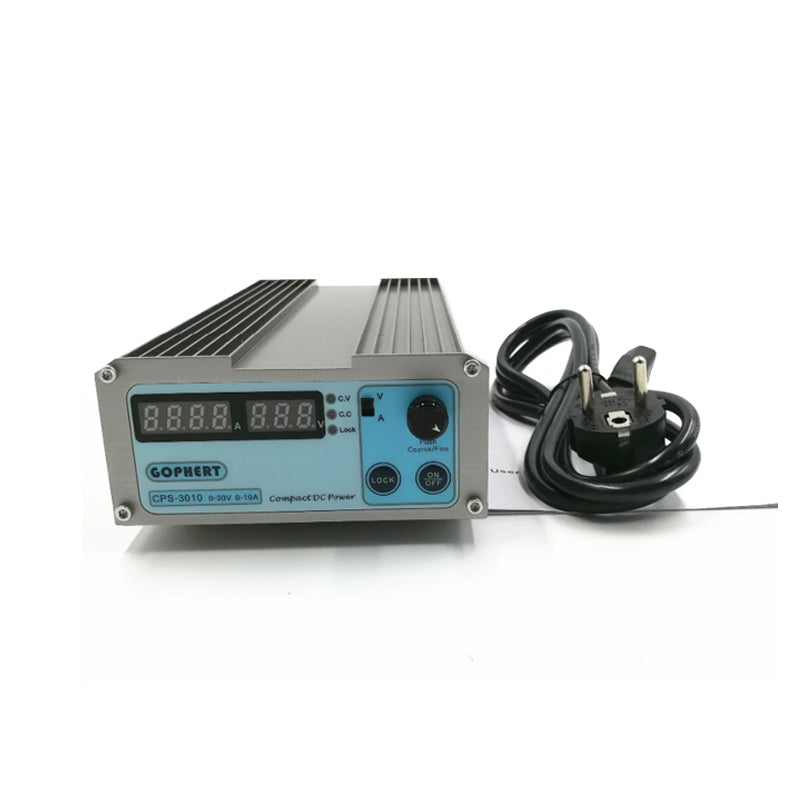

Package include:
1 x CPS-3010 DC Power Supply
1 x AC Power cable--china standard Plug(default), if you need other standard power plug,please contact us before order.
1 x User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
