1. OE Nmuber: CF188‑023100, 0180‑023100, 0180‑023004, 0180‑022200, CF188‑02300, 0180‑023003, CF188‑040004, 0180‑040004, CF188‑0400020180‑040002, CF188‑0400A0, 0180‑0400A0, CF188‑040003, 0180‑040003‑0050.

2. Sturdy Piston: Piston is made of strong aluminum. Piston rings are seminitrided, with excellent wear resistance, fatigue resistance, and high temperature resistance.

3. Durable Cylinder: The cylinder is made of excellent aluminum alloy material, high strength, not easy to deform, long service life and strong impact resistance, which can reduce engine shake and make driving more stable and .

4. Perfect Performence: The cylinder can work reliably under harsh conditions, and it can improve engine displacement and performance, and increase horsepower and .

5. Easy and Convenient to Use: The cylinder piston gasket kit is easy to install. The operation is simple, and the control is convenient.

    Specification:

Item Type: Cylinder Piston Gasket Kit

Material: Forged Aluminum

Reference Part Number:

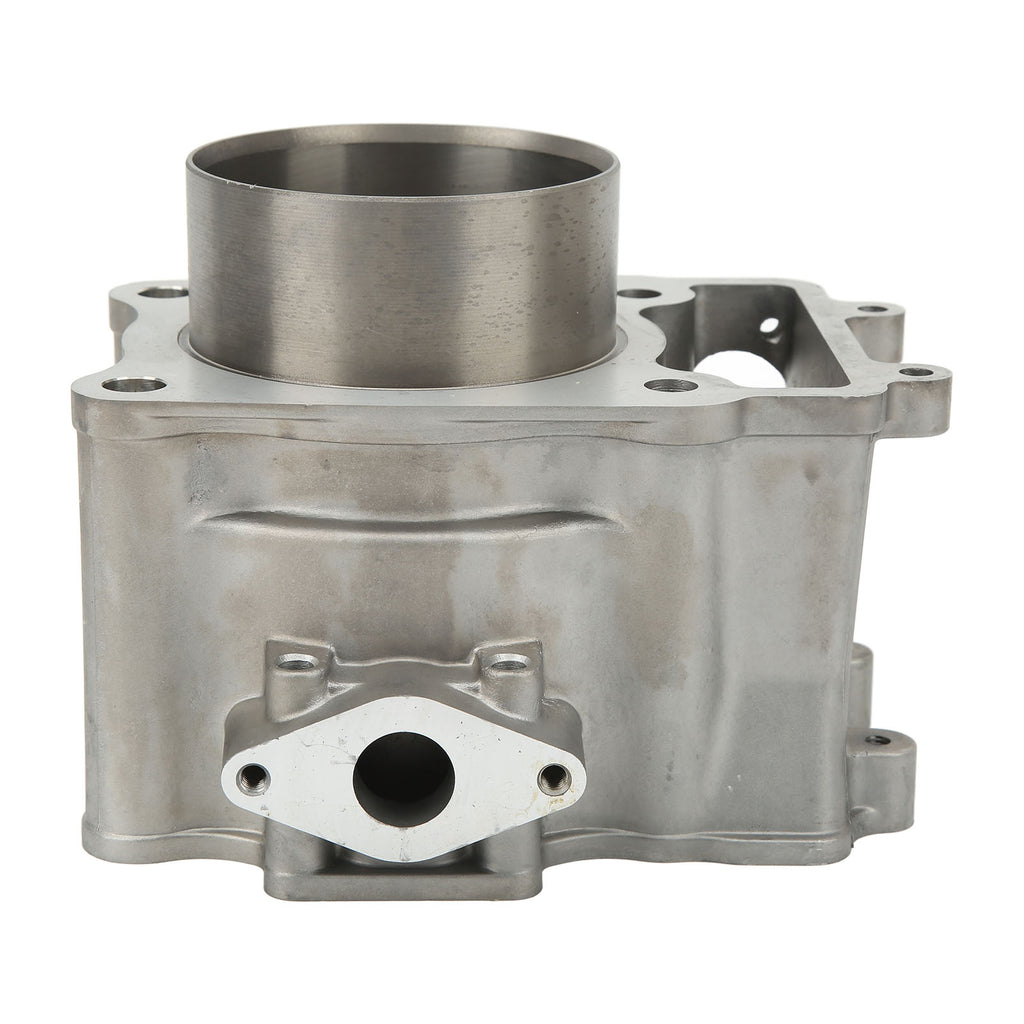

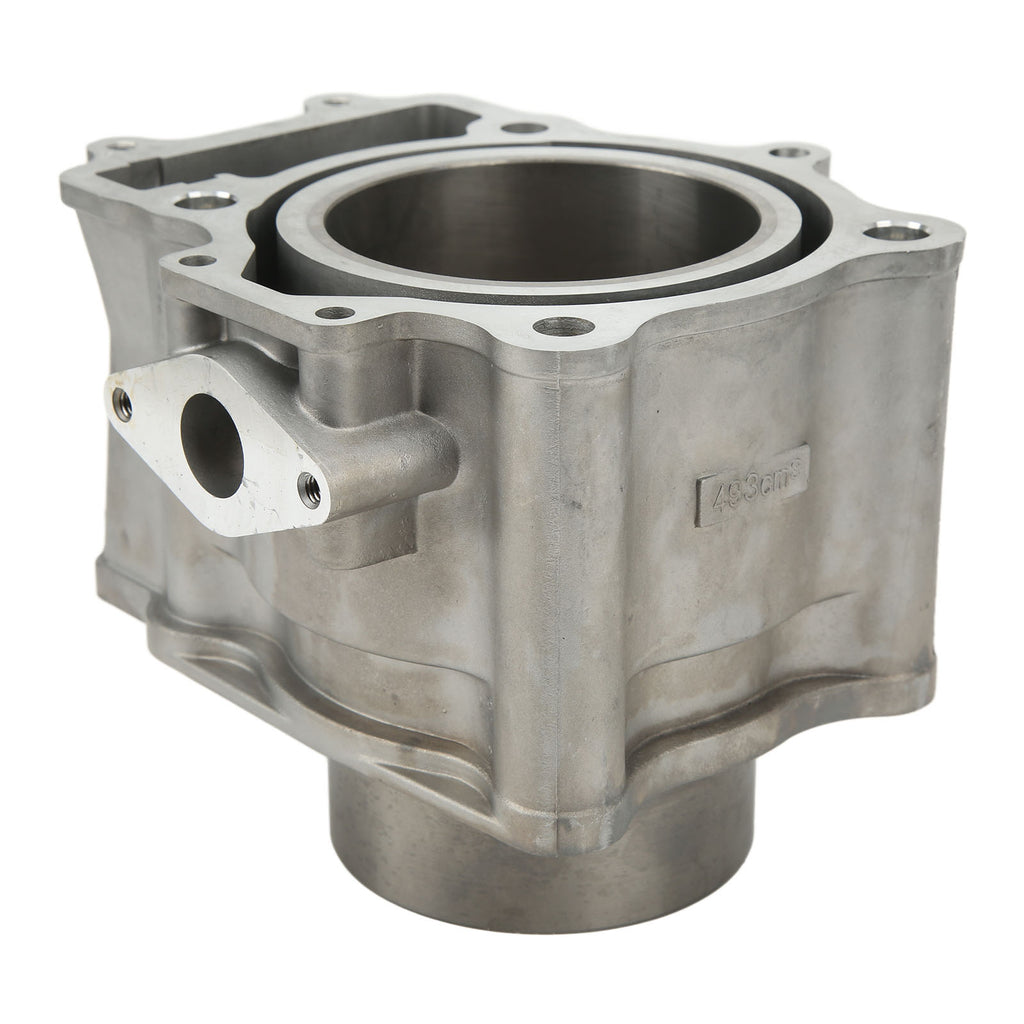

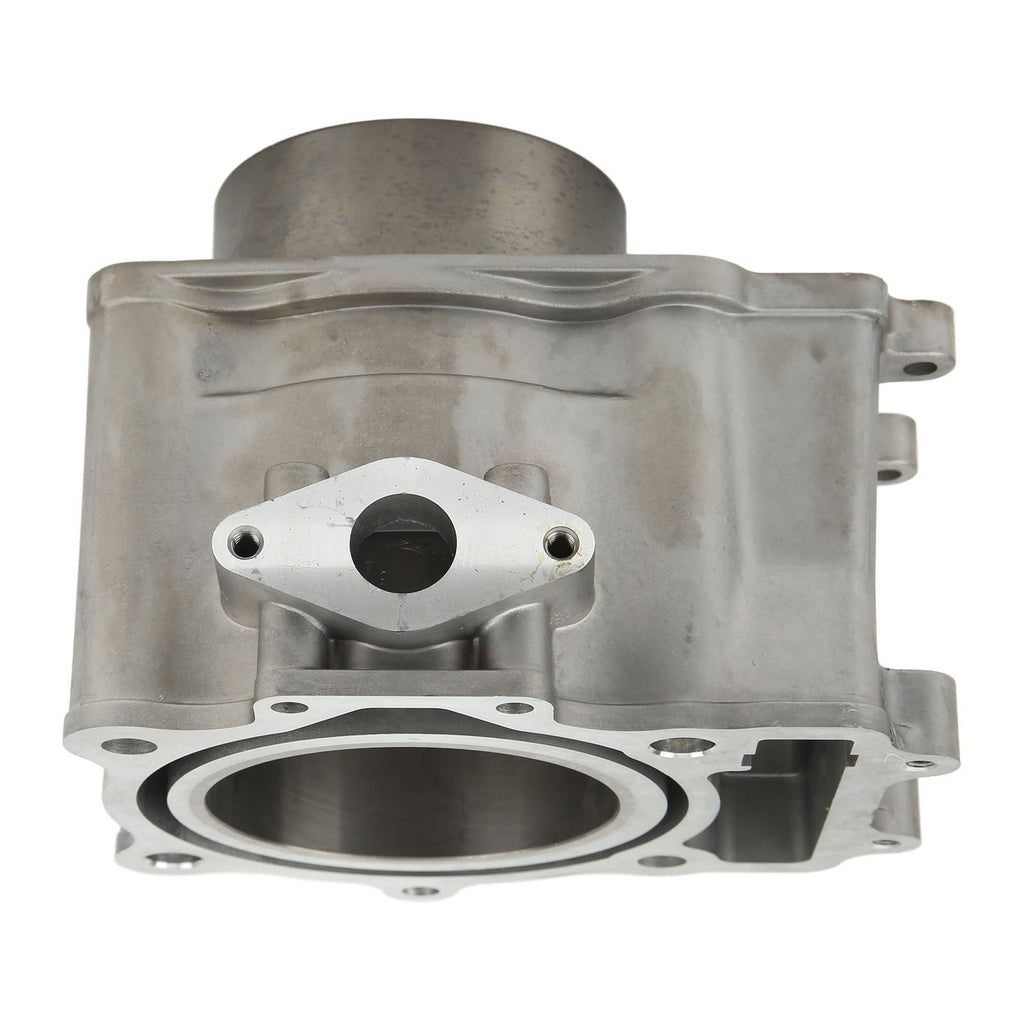

Cylinder: CF188-023100, 0180-023100

Cylinder Base Gasket: 0180-023004

Cylinder Head Gasket: 0180-022200

Tensioner Gasket: CF188-02300, 0180-023003

Piston: CF188-040004, 0180-040004

Piston Pin: CF188-0400020180-040002

Piston Group: CF188-0400A0, 0180-0400A0

Elastic Retaining , Piston: CF188-040003, 0180-040003-0050

Cylinder Diameter: 87.5mm

Pin Diameter: 23mm

Cylinder Base Outer Diameter: 93.5mm

Middle Height of Cylinder: 100mm

Total Cylinder Height: 139.5mm

Total Piston Height: 56.7mm

Piston Compression Height: 28.5mm

Displacement: 500CC

Fitment:

Replacement for CFMoto 500cc / 493cc Cylinder Kit for the CF188 / CF500 engine.

Replacement for CFMoto ATV CF500 CForce X5 2011-2016

Replacement for CFMoto ATV CF500-2 CForce X5 2011-2016

Replacement for CFMoto ATV CF500-2A CForce X5 2011-2016

Replacement for CFMoto UTV CF500-3 UForce U500 U5 2011-2015

Replacement for CFMoto ATV CF500-A CForce X5 2011-2016

Replacement for CFMoto CF500 XL One

Replacement for CFMoto Rancher 500

Replacement for CFMoto Terralander 500

Replacement for Explorer Atlas 500

Replacement for Explorer Everest 500

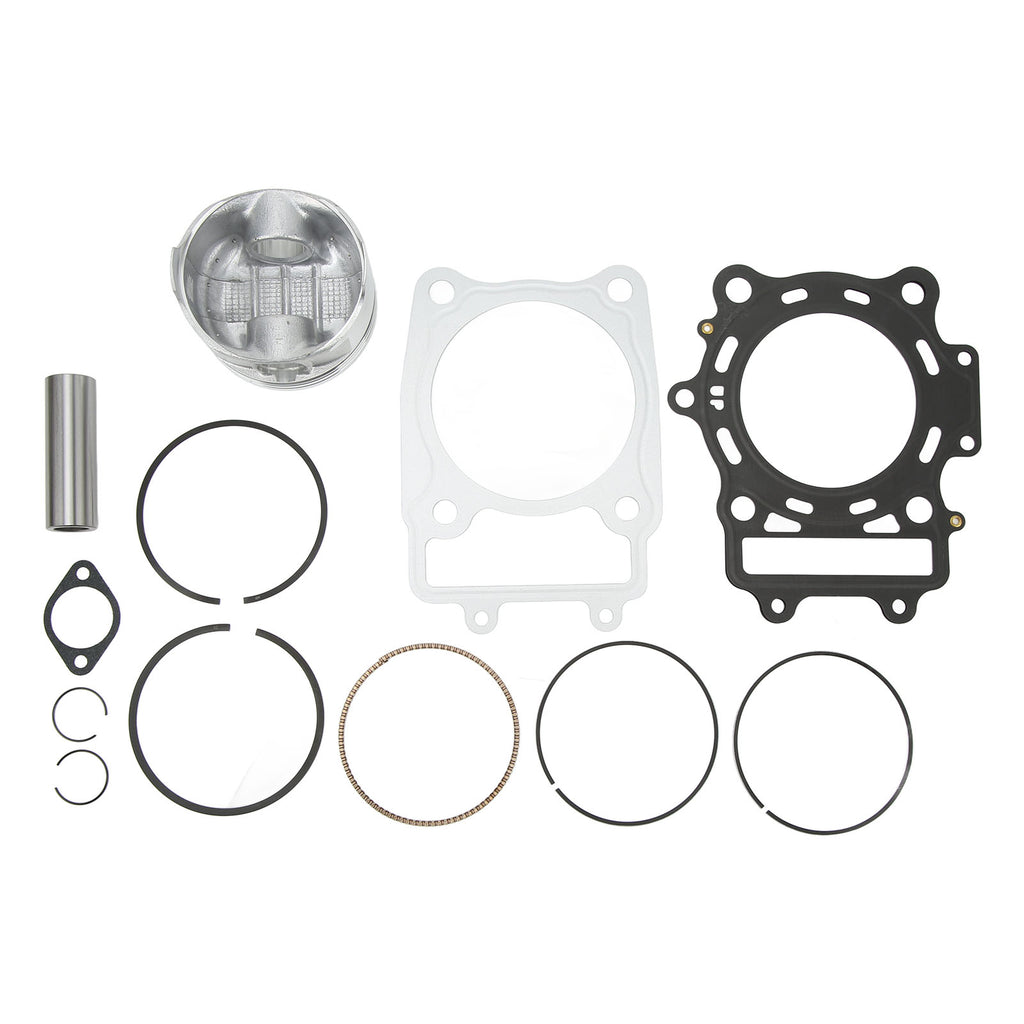

    Package List:

1 x Cylinder    1 x Piston

    1 x Piston Pin

    2 x Spring

    3 x Gasket

    5 x Piston
