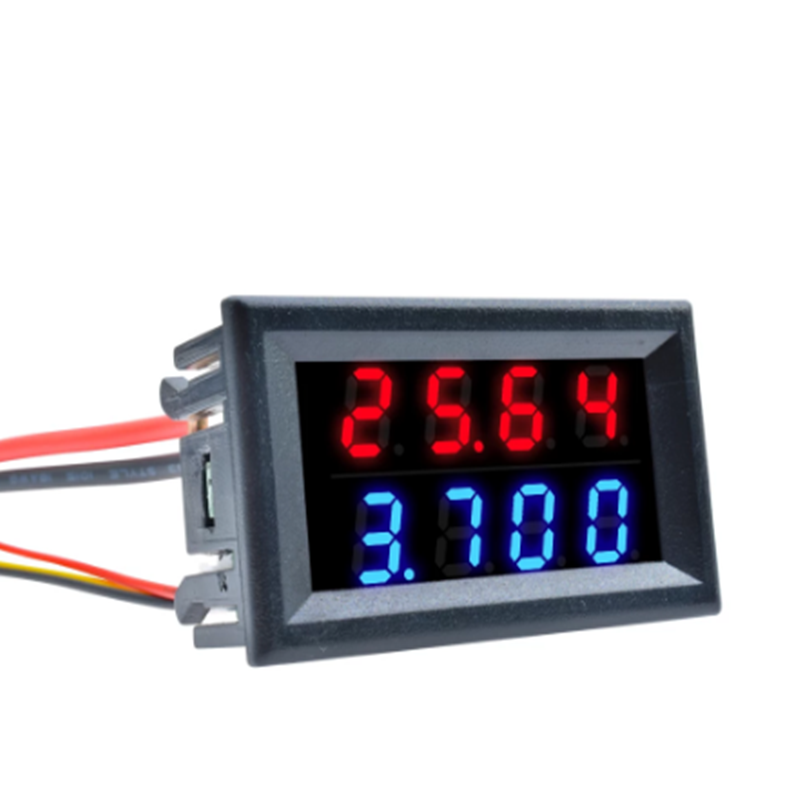

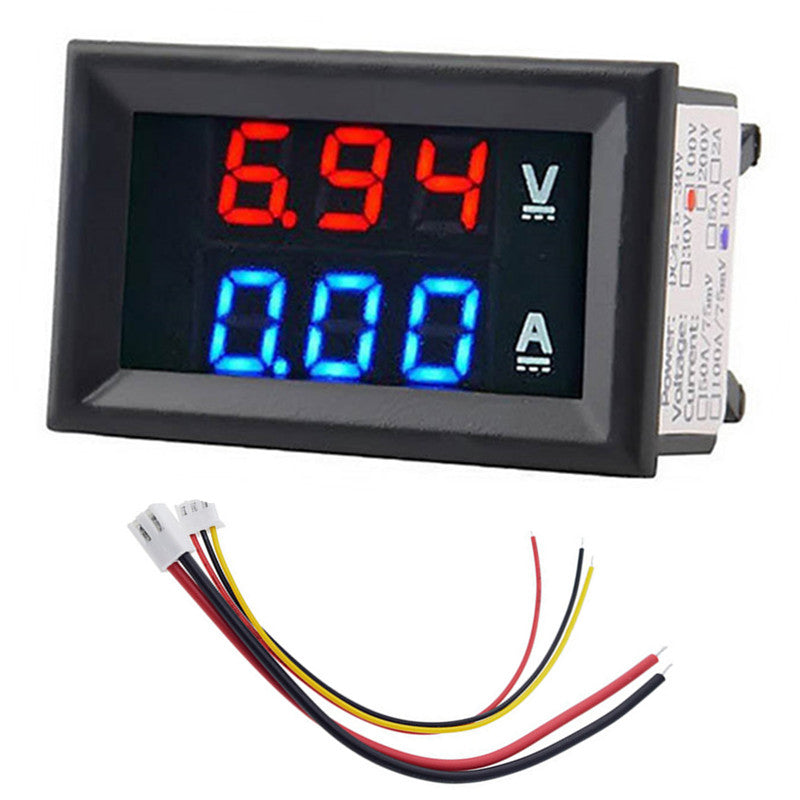

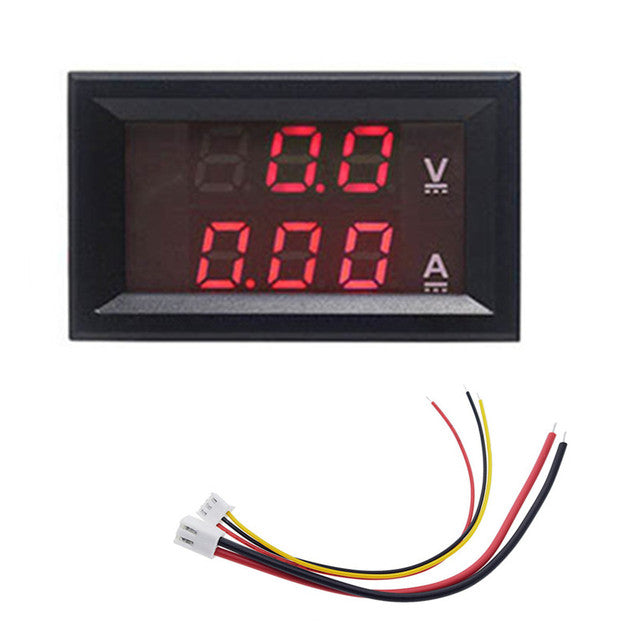

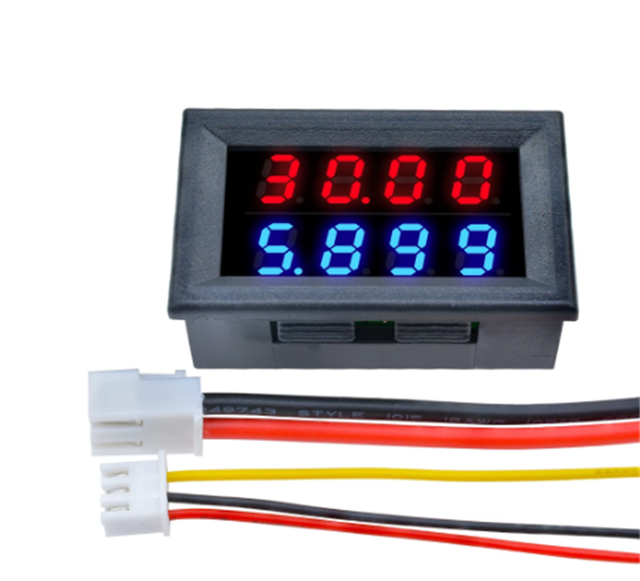

DC 100V 10A 50A 100A Digital Voltmeter Ammeter Wattmeter Voltage Current Power Meter Volt Detector Tester Monitor Voltage Tester
Features:
Voltage measurement range: 0.0V-100V
Current test range: 0-999mA, 0-10A
Power supply range: DC4-30.0V
Voltage error: ±0.1%
Current error: ±1%
Working current: < 20mA
Refresh rate: about 300mS once
Display mode: double three-digit 0.28" LED digital tube
Display colors: red+blue
Lead length: 15cm
Dimensions: 48 x 29 x 22 mm
Mounting hole: 46 x 27 mm
Working temperature: -10℃~65℃
Specification:
Working voltage of Meter itself:DC 4 - 30V(The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
Working current of Meter itself:≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A,0-50A,0-100A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube
Refresh rate: about 300mS / times

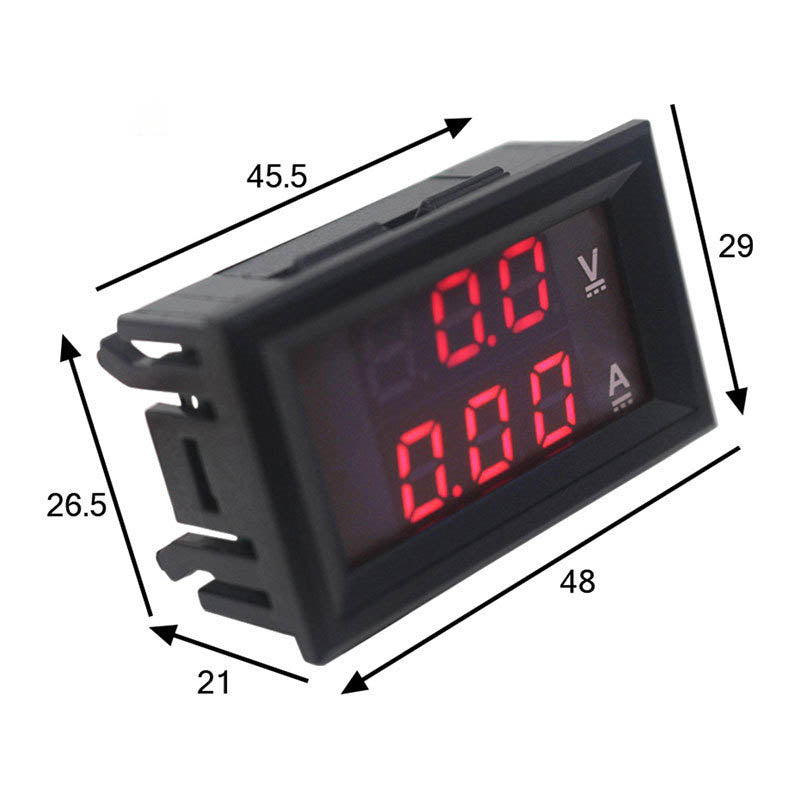

Dimensions:48mm*29mm*26mm
Operation Temp: -10°-+65°

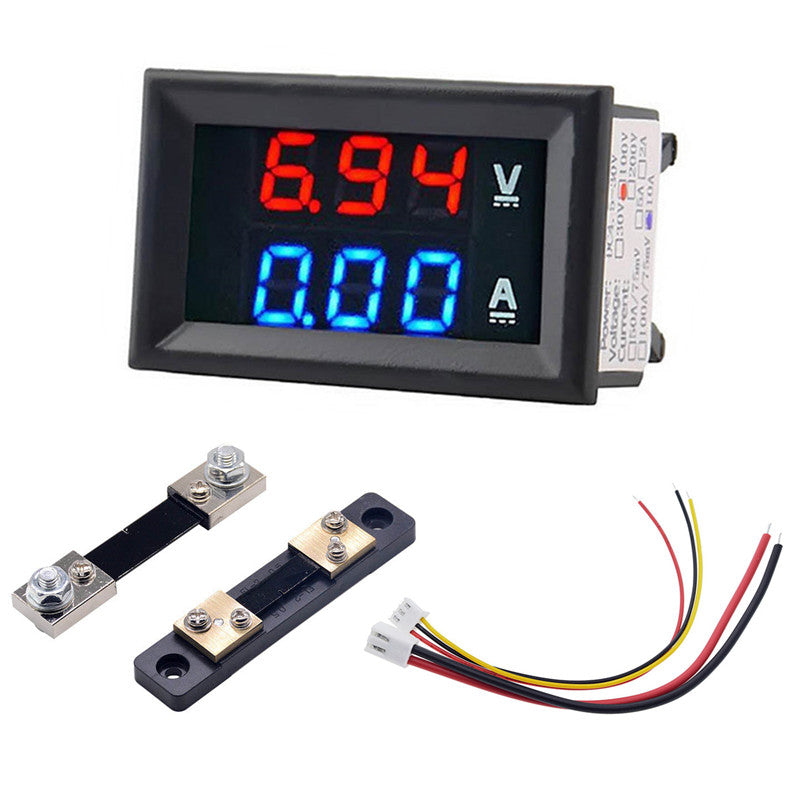

0-10A built-in shunt

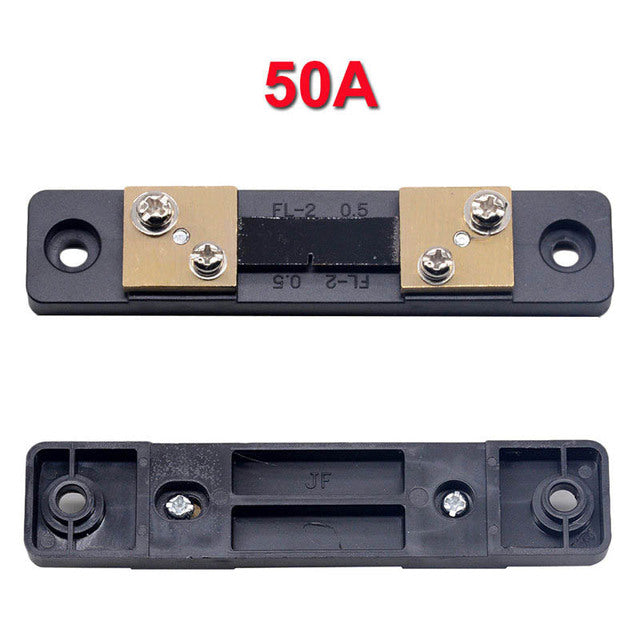

0-50A0-100A do not include shunt.
